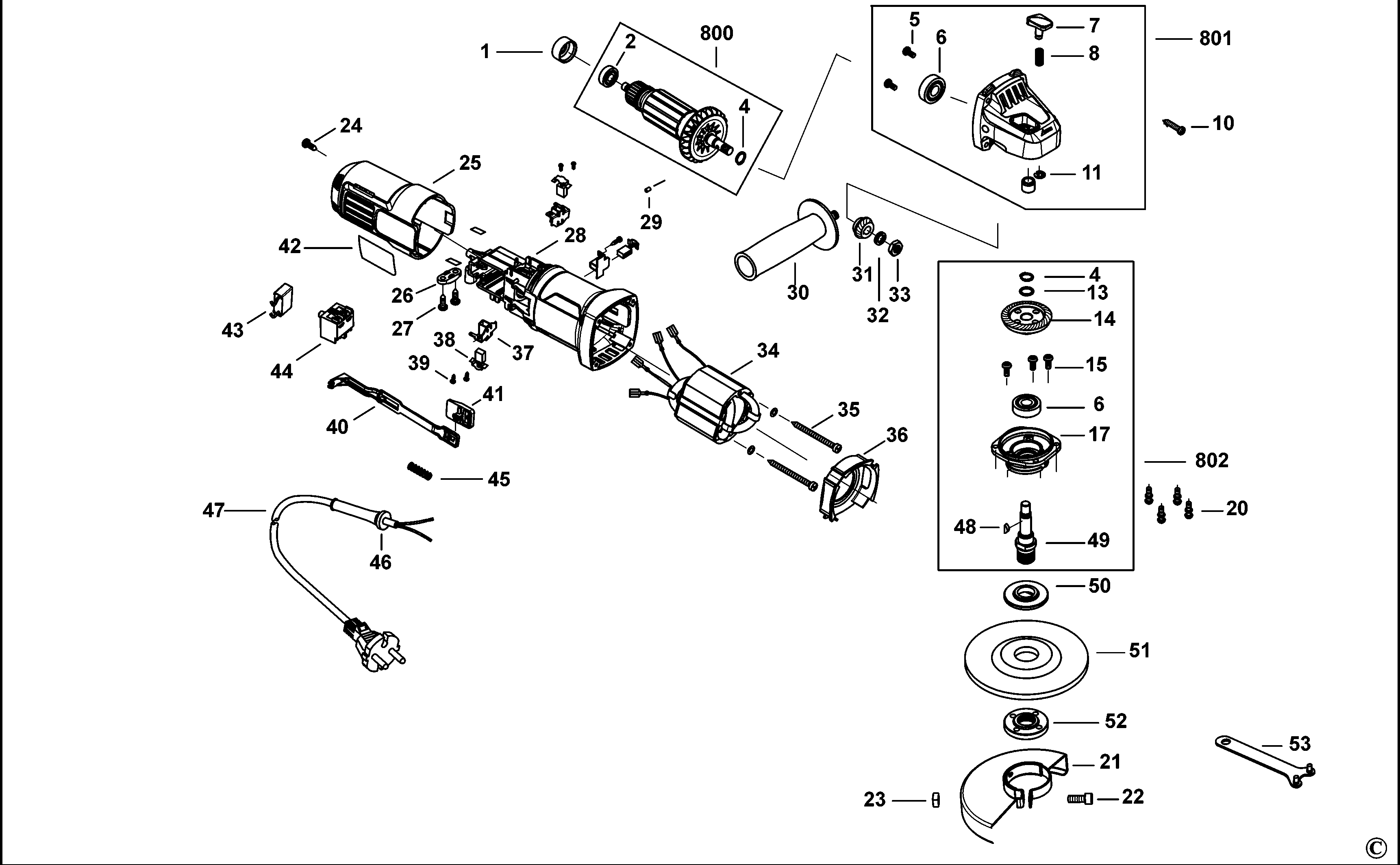

G650 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140003-59 | 1 | BEARING HOLDER | A9 | |||
| 2 | 5140003-60 | 1 | BEARING | A9 | |||
| 4 | 5170045-95 | 1 | LOCKING RING | A9 | |||
| 5 | 5140003-89 | 1 | SCREW | A9 | |||
| 6 | 5140003-66 | 1 | BEARING | A9 | |||
| 7 | 5170024-69 | 1 | PIN | A9 | |||
| 8 | 5140065-70 | 1 | SPRING | A9 | |||
| 10 | 5140065-72 | 1 | SCREW | A9 | |||
| 11 | 5170046-13 | 1 | LOCKING RING | A9 | |||
| 13 | 5140003-73 | 1 | WASHER | A9 | |||
| 14 | 5170024-71 | 1 | GEAR | A9 | |||
| 15 | 5140003-94 | 1 | SCREW | A9 | |||
| 17 | 5170024-72 | 1 | CAP | A9 | |||
| 20 | 5170024-73 | 1 | SCREW | A9 | |||
| 21 | 5170024-75 | 1 | GUARD | A9 | |||
| 21 | 5170024-74 | 1 | GUARD | A9 | |||
| 22 | 5170024-76 | 1 | SCREW | A9 | |||
| 23 | 5170024-77 | 1 | NUT | A9 | |||
| 24 | 5140003-99 | 1 | SCREW | A9 | |||
| 25 | 5170024-78 | 1 | END CAP | A9 | |||
| 26 | 5140002-48 | 1 | CORD CLAMP | A9 | |||
| 27 | 5140003-99 | 1 | SCREW | A9 | |||
| 28 | 5170024-79 | 1 | HOUSING | A9 | |||
| 29 | 5140003-88 | 1 | LOCK SCREW | A9 | |||
| 30 | 5140003-90 | 1 | Handle | A9 | |||
| 31 | 5170024-80 | 1 | PINION | A9 | |||
| 32 | 5140003-92 | 1 | WASHER SPRING | A9 | |||
| 33 | 5140003-93 | 1 | NUT | A9 | |||
| 35 | 5140004-04 | 1 | SCREW | A9 | |||
| 36 | 5170024-83 | 1 | MOUNT | A9 | |||
| 37 | 5140002-37 | 1 | BRUSH HOLDER | A9 | |||
| 38 | 5170024-84 | 1 | BRUSH PAIR | A9 | |||
| 39 | 5140003-86 | 1 | SCREW | A9 | |||
| 40 | 5170024-85 | 1 | BAR | A9 | |||
| 41 | 5170024-86 | 1 | BUTTON | A9 | |||
| 42 | 5170040-12 | 1 | RATING LABEL | A9 | |||
| 43 | 5170024-92 | 1 | CAPACITOR | A9 | |||
| 44 | 5170024-93 | 1 | SWITCH | A9 | |||
| 45 | 5170024-94 | 1 | SPRING | A9 | |||
| 46 | 5140002-29 | 1 | SLEEVE | A9 | |||
| 47 | 5170040-13 | 1 | CORDSET | A9 | |||
| 48 | 5140004-05 | 1 | WOODRUFF KEY | A9 | |||
| 49 | 5170024-99 | 1 | SPINDLE | A9 | |||
| 50 | 5170025-00 | 1 | INNER FLANGE | A9 | |||
| 52 | 5170025-05 | 1 | OUTER FLANGE | A9 | |||
| 53 | 5170040-03 | 1 | SPANNER | A9 | |||
| 800 | 5170031-58 | 1 | ARMATURE 220V | A9 | |||
| 801 | 5170031-59 | 1 | GEARCASE SA | A9 | |||
| 802 | 5170031-60 | 1 | GEAR & SPINDLE SA | A9 |
