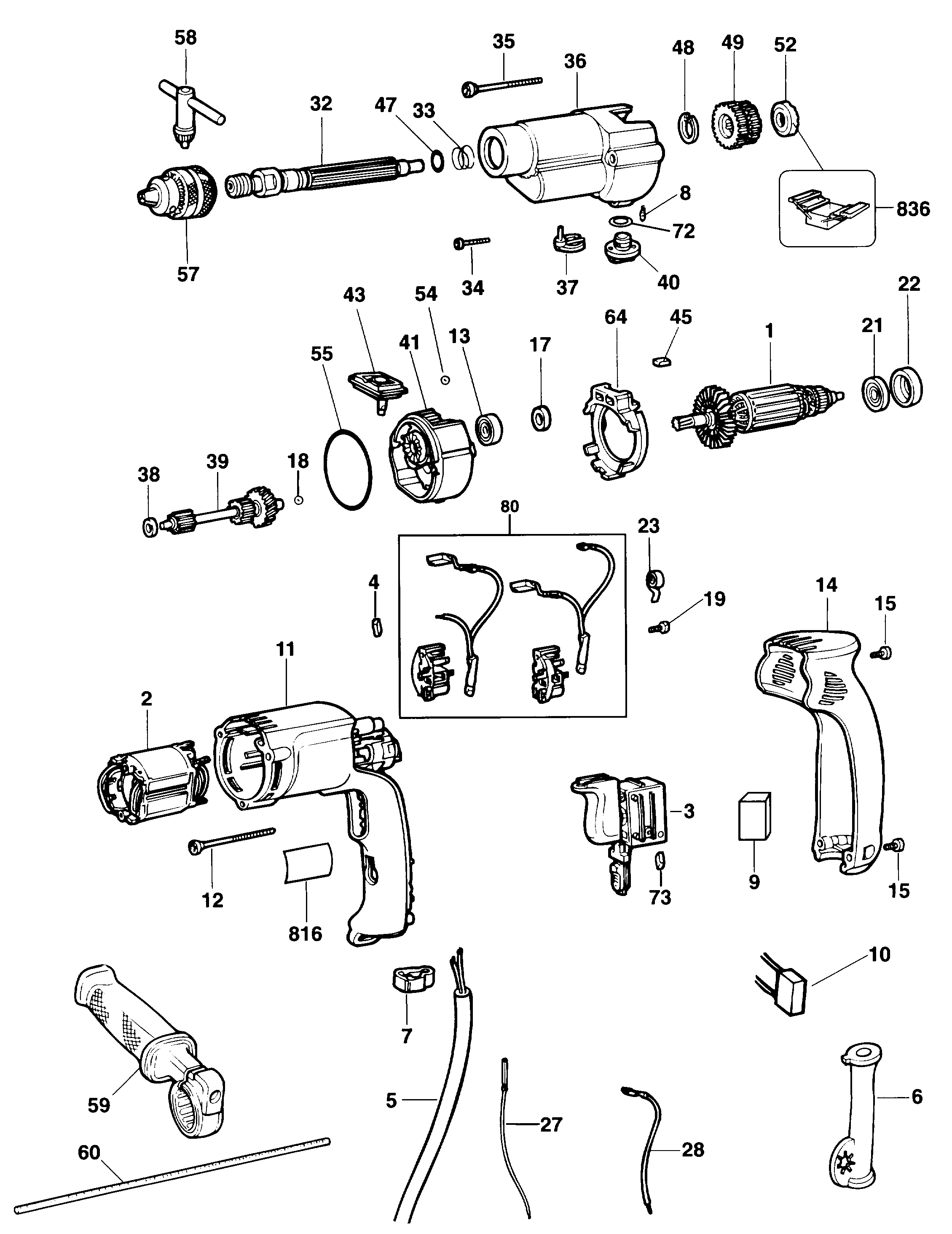

DW501-----C DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 387614-01 | 1 | ARMATURE 230V | XD | |||
| 3 | 176830-13 | 1 | SWITCH SA | XD | |||
| 5 | 330060-07 | 1 | CORDSET | XD | |||
| 6 | 401751-00 | 1 | CORD PROTECTOR | XD |  |
||
| 7 | 402649-00 | 1 | CORD CLAMP | XD | |||
| 8 | 326467-00 | 3 | DETENT | XD | |
||
| 9 | 930026-01 | 1 | BUMPER | XD |  |
||
| 11 | 176814-07 | 1 | FIELDCASE SA | XD | |||
| 12 | 390198-00 | 2 | SCREW | XD | |||
| 13 | N110358 | 1 | BEARING | XD | |||
| 14 | 610142-02 | 1 | HANDLE COVER | XD | |||
| 15 | 330065-08 | 3 | SCREW | M4x18 T20 | XD | |
|
| 17 | 402763-00 | 1 | SEAL | XD | |
||
| 18 | 936840-00 | 1 | BALL STEEL | XD | |
||
| 19 | 330065-06 | 2 | SCREW | XD | |
||
| 21 | N110358 | 2 | BEARING | XD | |||
| 22 | 949721-03 | 1 | SLEEVE | XD | |
||
| 23 | 402759-00 | 2 | BRUSH SPRING | XD | |
||
| 27 | 949801-87 | 1 | LEAD BLUE | XD | |
||
| 28 | 949801-70 | 1 | LEAD BLUE | XD | |||
| 32 | 581235-00 | 1 | SPINDLE | 1/2" x 20 UNF | XD | |
|
| 33 | 931890 | 1 | SPRING | XD | |
||
| 34 | 330065-13 | 1 | SCREW | XD | |
||
| 35 | 330065-10 | 2 | SCREW | XD | |
||
| 36 | 1006352-00 | 1 | GEARCASE | XD | |
||
| 37 | 401735-00 | 1 | SELECTOR FORK | XD | |
||
| 38 | 932933-00 | 1 | WASHER | XD | |||
| 39 | 581234-00 | 1 | INTERSHAFT | XD | |
||
| 40 | 628891-00 | 1 | SELECTOR FORK | SPEED | XD | |
|
| 41 | 583951-00 | 1 | GEARCASE COVER | XD | |||
| 43 | 401750-00 | 1 | SELECTOR SA | XD | |||
| 45 | 949638-02 | 2 | DAMPER | XD | |||
| 47 | 930028-00 | 1 | O RING | XD | |
||
| 48 | 944137-00 | 1 | CIRCLIP | XD | |||
| 49 | 397239-01 | 1 | GEAR | XD | |
||
| 52 | 945706-00 | 1 | RATCHET | XD | |
||
| 54 | 930012 | 1 | BALL | XD | |||
| 55 | 401847-00 | 1 | SEAL | XD | |
||
| 57 | 5140071-68 | 1 | CHUCK 13MM | XD | |
||
| 58 | 330034-07 | 1 | CHUCK KEY | XD | |||
| 59 | 939794-02 | 1 | HANDLE SIDE SA | XD | |||
| 60 | 940357-00 | 1 | DEPTH STOP | XD | |||
| 64 | 176811-00 | 1 | BAFFLE | XD | |
||
| 72 | 930727-00 | 1 | O RING | XD | |
||
| 73 | 932330 | 1 | INSERT | XD | |||
| 80 | 000000-00 | 1 | NO LONGER AVAILABLE | XD | |||
| 816 | 395047-00 | 1 | BRAND LABEL | XD | |||
| 836 | 559596-99 | 1 | S.T.PULLER | XD |
