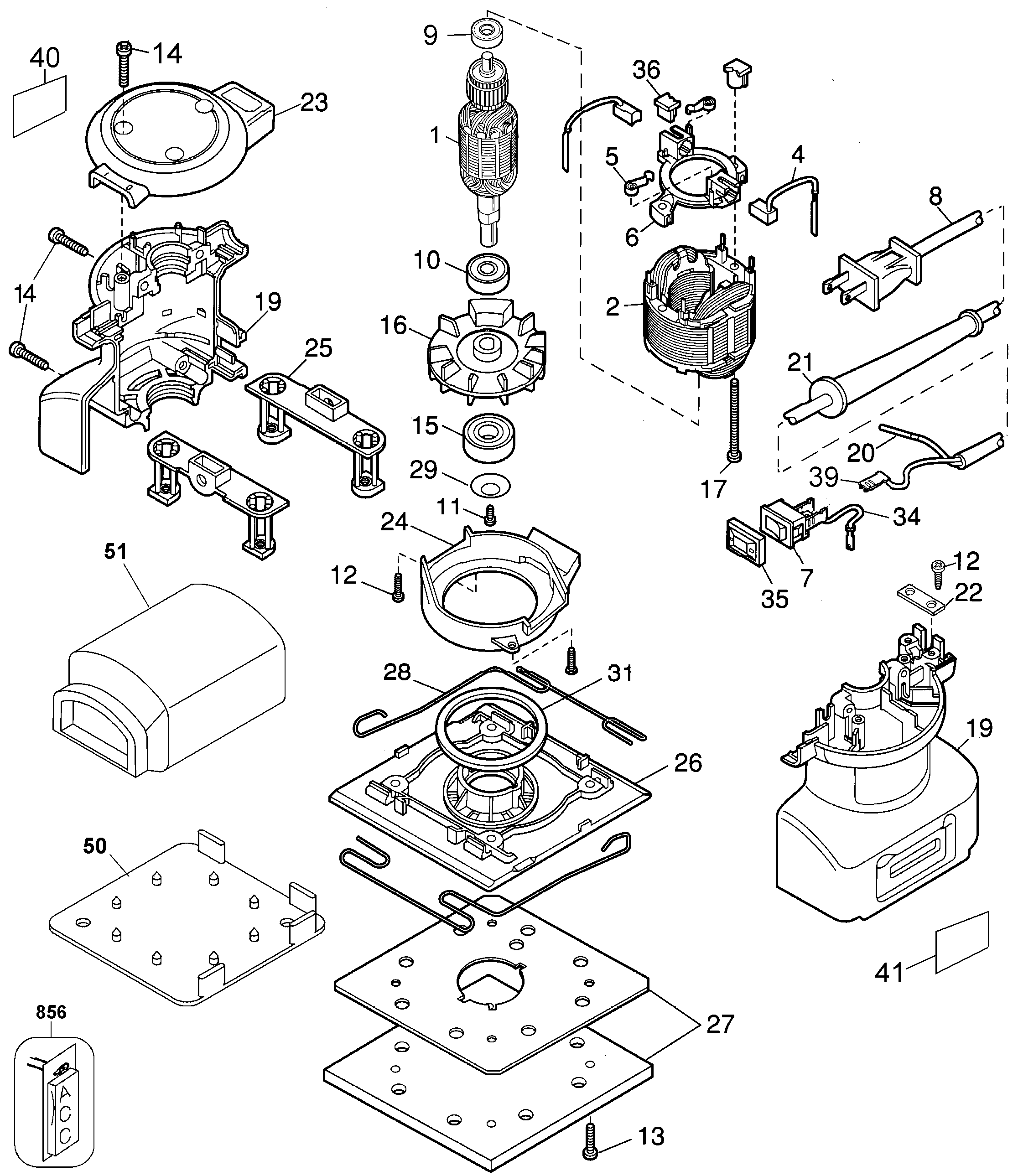

DW411 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 578863-00 | 1 | ARMATURE 115V | BR | |||
| 2 | 807254-08 | 1 | FIELD 115V | ` | BR | ||
| 4 | 445861-34 | 2 | BRUSH 120V | BR | |||
| 5 | 445860-00 | 2 | BRUSH SPRING | BR | |||
| 6 | 449899-05 | 1 | RING | BR | |||
| 7 | 144960-00 | 1 | SWITCH | BR | |||
| 8 | 330122-02 | 1 | CORD & PLUG | BR | |||
| 9 | 605040-05 | 1 | BEARING | BR | |||
| 10 | 330003-17 | 1 | BEARING | BR | |||
| 11 | 098012-11 | 1 | SCREW | BR | |||
| 12 | 330019-02 | 4 | SCREW | BR | |||
| 13 | 464285-00 | 4 | SCREW | BR | |||
| 14 | 330019-13 | 7 | SCREW | M4X19 T20 | BR | ||
| 15 | 330003-64 | 1 | BEARING | BR | |||
| 16 | 464281-00 | 1 | FAN | BR | |||
| 17 | 330019-08 | 2 | SCREW | BR | |||
| 19 | 464279-15 | 1 | CLAMSHELL | BR | |||
| 20 | 825209-00 | 2 | CONNECTOR | BR | |||
| 21 | 330005-01 | 1 | CORD PROTECTOR | BR | |||
| 22 | 380414-00 | 1 | CORD CLAMP | BR | |||
| 23 | 285252-00 | 1 | CAP | BR | |||
| 24 | 144964-00 | 1 | COVER | BR | |||
| 25 | 144988-02 | 2 | FOOT | BR | |||
| 26 | N073798 | 1 | BASE | 1/4 SHEET | BR | ||
| 27 | 151284-00SV | 1 | PAD | BR | |||
| 28 | 151288-00 | 2 | CLAMP | BR | |||
| 29 | 151652-00 | 1 | WASHER | BR | |||
| 31 | 144974-00 | 1 | SEAL | BR | |||
| 34 | 144989-00 | 1 | TERMINAL & LEAD | BLACK, 20GA | BR | ||
| 35 | 144983-07 | 1 | COVER | BR | |||
| 36 | 144956-00 | 2 | NUT | BR | |||
| 39 | 445964-00 | 2 | TERMINAL | BR | |||
| 40 | 604074-00 | 1 | NAMEPLATE | DW411-B3/BR T1 | BR | ||
| 41 | 604101-00 | 1 | IDENT. LABEL | BR | |||
| 50 | 144954-00 | 1 | PUNCH | BR | |||
| 51 | 608358-00 | 1 | DUSTBAG | BR | |||
| 856 | 147343-00 | 1 | ADAPTOR | OPTIONAL | BR |
