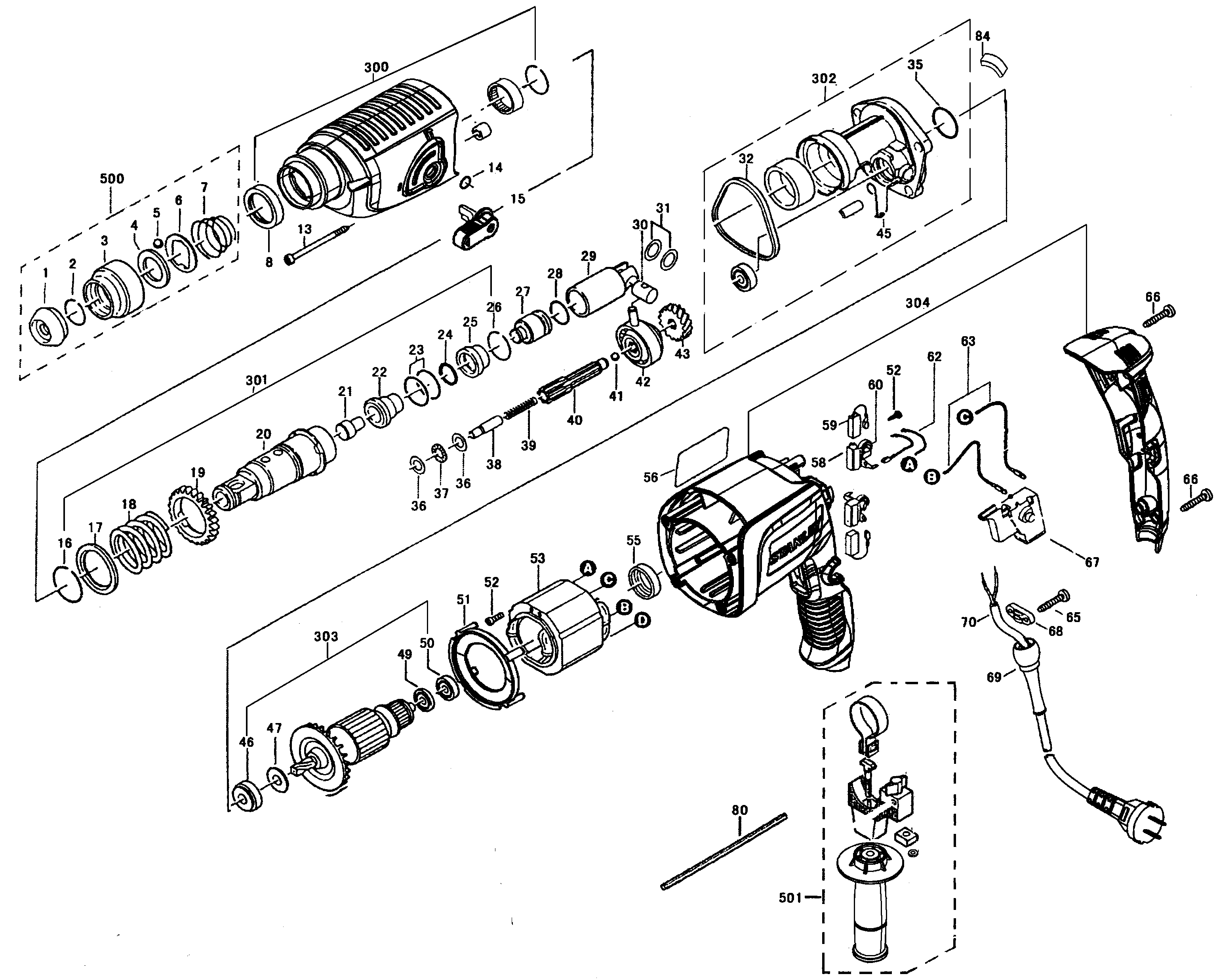

STHR202K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140166-47 | 1 | DUST SHIELD | BR | |||
| 2 | 5140166-48 | 1 | SNAP RING | BR | |||
| 3 | 5140166-49 | 1 | CHUCK COVER | BR | |||
| 4 | 5140166-50 | 1 | WASHER- CUP | BR | |||
| 5 | 5140166-51 | 1 | BALL | BR | |||
| 6 | 5140166-52 | 1 | RETAINING RING | BR | |||
| 7 | 5140166-53 | 1 | COMPRESSION SPRING | BR | |||
| 8 | 5140166-54 | 1 | OIL SEAL | BR | |||
| 13 | 5140166-55 | 4 | SELF TAPPING SCREW | BR | |||
| 14 | 5140166-56 | 1 | O-RING | BR | |||
| 15 | 5140166-57 | 1 | KNOB | BR | |||
| 16 | 5140166-58 | 1 | SNAP RING | BR | |||
| 17 | 5140166-59 | 1 | DISC | BR | |||
| 18 | 5140166-60 | 1 | SPRING | BR | |||
| 19 | 5140166-61 | 1 | GEAR | BR | |||
| 20 | 5140166-62 | 1 | CYLINDER | BR | |||
| 21 | 5140166-63 | 1 | IMPACTOR | BR | |||
| 22 | 5140166-64 | 1 | COVER | BR | |||
| 23 | 5140166-65 | 2 | O-RING | BR | |||
| 24 | 5140166-66 | 1 | O-RING | BR | |||
| 25 | 5140166-67 | 1 | COVER | BR | |||
| 26 | 5140166-68 | 1 | SNAP RING | BR | |||
| 27 | 5140166-69 | 1 | STRIKER | BR | |||
| 28 | 5140166-70 | 1 | O-RING | BR | |||
| 29 | 5140166-71 | 1 | PISTON | BR | |||
| 30 | 5140166-72 | 1 | PISTON PIN | BR | |||
| 31 | 5140166-73 | 2 | WASHER | BR | |||
| 32 | 5140166-74 | 1 | SEAL | BR | |||
| 35 | 5140166-75 | 1 | O-RING | BR | |||
| 36 | 5140166-76 | 2 | NEEDLE BEARING | BR | |||
| 37 | 5140166-77 | 1 | BEARING | BR | |||
| 38 | 5140166-78 | 1 | PIN | BR | |||
| 39 | 5140166-79 | 1 | SPRING | BR | |||
| 40 | 5140166-80 | 1 | SHAFT | BR | |||
| 41 | 5140166-81 | 1 | BALL | BR | |||
| 42 | 5140166-82 | 1 | BEARING | BR | |||
| 43 | 5140166-83 | 1 | GEAR | BR | |||
| 45 | 5140166-84 | 1 | SPRING | BR | |||
| 46 | 5140172-07 | 1 | BEARING | BR | |||
| 47 | 5140165-44 | 1 | WASHER | BR | |||
| 49 | 5140166-86 | 1 | INSULATING WASHER | BR | |||
| 50 | 5140165-47 | 1 | BEARING | BR | |||
| 51 | 5140166-87 | 1 | AIR DEFLECTOR | BR | |||
| 52 | 5140165-18 | 8 | SCREW | BR | |||
| 53 | 5140166-88 | 1 | FIELD | BR | |||
| 55 | 5140166-90 | 1 | BEARING HOUSING | BR | |||
| 56 | 5140166-92 | 1 | NAME PLATE | STHR202K-BR TY1 | BR | ||
| 58 | 5140166-13 | 1 | BRUSH HOLDER | BR | |||
| 59 | 5140166-11 | 1 | BRUSH | BR | |||
| 60 | 5140166-14 | 1 | BRUSH SPRING | BR | |||
| 62 | 5140166-96 | 1 | LEAD | BR | |||
| 63 | 5140166-98 | 1 | LEAD | BR | |||
| 65 | 5140166-29 | 2 | SELF TAPPING SCREW | BR | |||
| 66 | 5140164-93 | 3 | SCREW | BR | |||
| 67 | 5140167-00 | 1 | SWITCH | BR | |||
| 68 | 5140166-21 | 1 | CORD CLAMP | BR | |||
| 69 | 5140155-83 | 1 | CORD PROTECTOR | BR | |||
| 70 | 5140172-02 | 1 | CORD | BR | |||
| 80 | 5140167-04 | 1 | DEPTH ROD | BR | |||
| 84 | 5140167-05 | 1 | FELT PAD | BR | |||
| 300 | 5140167-06 | 1 | GEAR CASE ASSY. | BR | |||
| 301 | 5140167-07 | 1 | CYLINDER ASSEMBLY | BR | |||
| 302 | 5140167-08 | 1 | PLATE ASSY. | BR | |||
| 303 | 5140167-10 | 1 | ARMATURE ASSY. | BR | |||
| 304 | 5140167-11 | 1 | MOTOR HOUSING ASSY. | BR | |||
| 500 | 5140167-12 | 1 | HOOD COMPONENTS | BR | |||
| 501 | 5140167-13 | 1 | SIDE HANDLE ASSEMBLY | BR |
