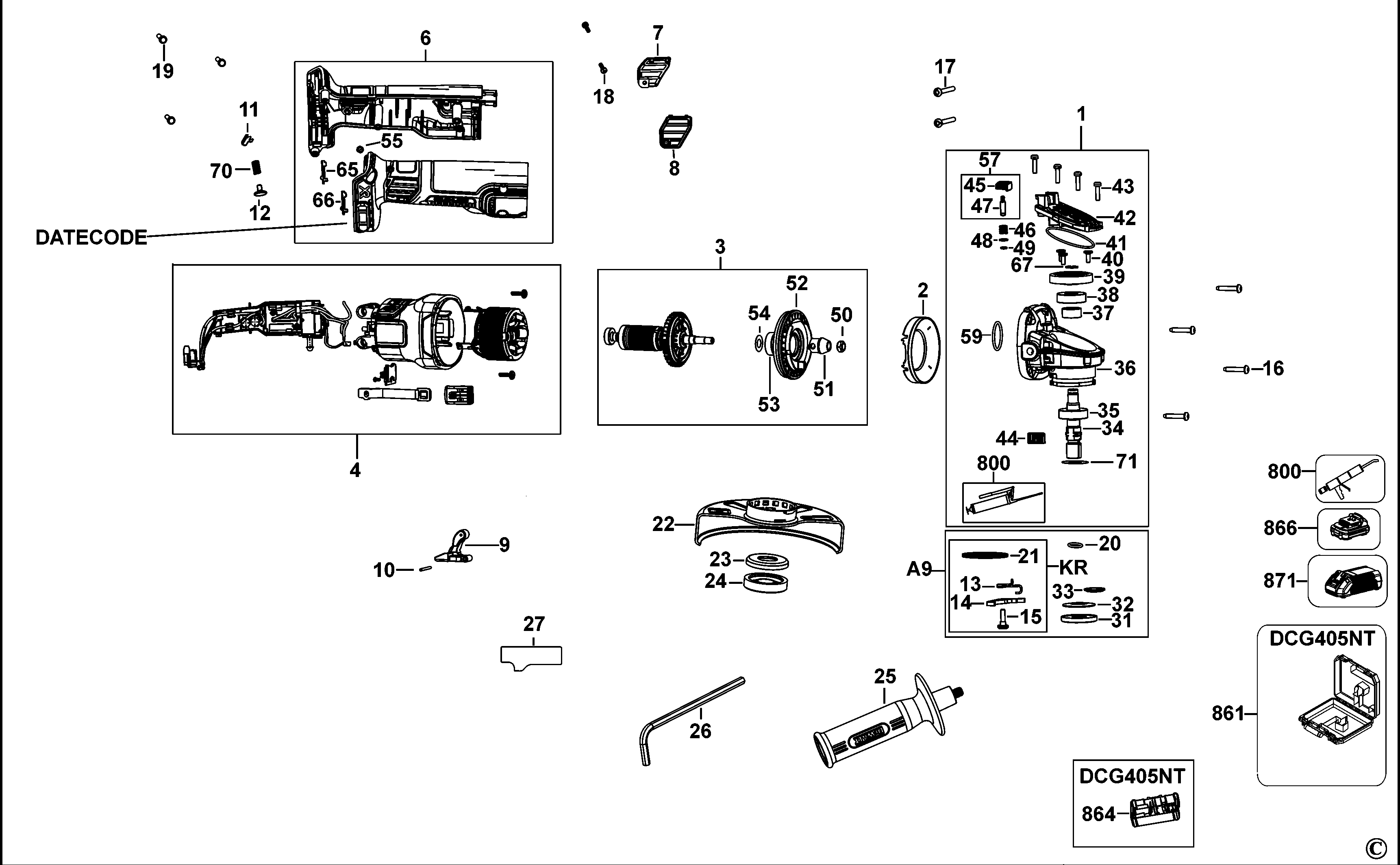

DCG405N SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N570177 | 1 | GEARCASE SA | B1 | |||
| 2 | N478435 | 1 | BAFFLE | B1 | |||
| 3 | N537673 | 1 | ROTOR SA | B1 | |||
| 4 | N551810 | 1 | MOTOR & SWITCH SA | B1 | |||
| 6 | N534719 | 1 | CLAMSHELL SET | B1 | |||
| 7 | N493573 | 1 | COVER | B1 | |||
| 8 | N493572 | 1 | COVER | B1 | |||
| 9 | N497112 | 1 | LEVER | B1 | |||
| 10 | N489903 | 1 | PIN | B1 | |||
| 11 | N467560 | 1 | PLATE | B1 | |||
| 12 | N091479 | 1 | MOUNT | B1 |  |
||
| 16 | 330065-31 | 4 | PLASTIC SCREW | B1 |  |
||
| 17 | 330065-33 | 2 | SCREW | B1 | |
||
| 18 | N042665 | 2 | SCREW | B1 | |
||
| 19 | 330019-04 | 3 | SCREW | B1 | |
||
| 22 | N115343 | 1 | GUARD SA | B1 | |
||
| 23 | N552368 | 1 | INNER FLANGE | B1 | |||
| 24 | N552385 | 1 | OUTER FLANGE | B1 | |||
| 25 | N421925 | 1 | SIDE HANDLE | B1 | |||
| 27 | N883845 | 1 | RATING LABEL | B1 | |||
| 35 | N150961 | 1 | BEARING | B1 | |||
| 36 | N109173 | 1 | GEARCASE | B1 | |
||
| 37 | N095815 | 1 | SLEEVE | B1 | |
||
| 38 | N150961 | 1 | BEARING | B1 | |||
| 39 | N097361 | 1 | GEAR | B1 | |
||
| 40 | N118088 | 3 | SCREW | B1 | |
||
| 41 | N094024 | 1 | O RING | B1 | |
||
| 42 | N116180 | 1 | GEARCASE COVER | B1 | |
||
| 43 | N122904 | 4 | SCREW | B1 | |
||
| 44 | N126708 | 1 | INSERT | B1 | |
||
| 45 | N126105 | 1 | BUTTON | B1 | |
||
| 46 | N092954 | 1 | SPRING | B1 | |
||
| 47 | N114592 | 1 | SPINDLE LOCK | B1 | |
||
| 48 | N447838 | 1 | WASHER | B1 | |||
| 49 | N094012 | 1 | O RING | B1 | |
||
| 50 | 604484-00 | 1 | NUT | B1 | |
||
| 51 | N095840 | 1 | PINION | B1 | |
||
| 52 | N478436 | 1 | STATOR | B1 | |||
| 53 | N214432 | 1 | BEARING | B1 | |
||
| 54 | N213812 | 1 | WASHER | B1 | |
||
| 55 | 330021-11 | 2 | STOP NUT | B1 | |
||
| 57 | N181767 | 1 | SPINDLE LOCK | B1 | |
||
| 59 | N119639 | 1 | O RING | B1 | |
||
| 65 | N728013 | 1 | INSERT | B1 | |||
| 66 | N728012 | 1 | INSERT | B1 | |||
| 67 | 444793-00 | 1 | CIRCLIP | B1 | |
||
| 70 | N461735 | 1 | SPRING | B1 | |||
| 71 | 638229-00 | 1 | WASHER | B1 | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B1 | |
