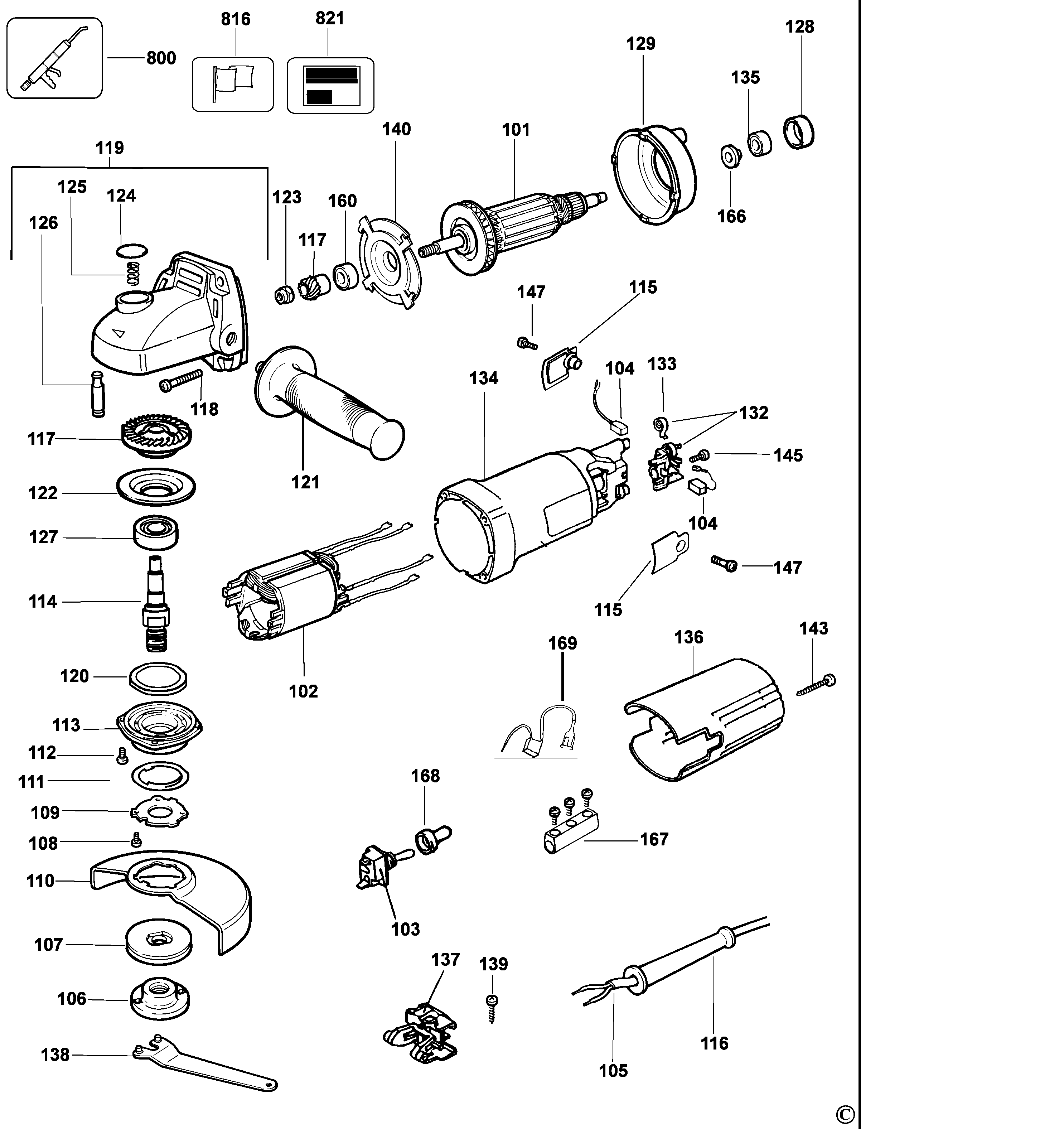

DW803 SMALL ANGLE GRINDER Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 401702-10 | 1 | ARMATURE 230V | B1 |  |
||
| 102 | N086307 | 1 | FIELD | B1 | |
||
| 103 | 562209-01 | 1 | SWITCH | B1 | |||
| 104 | N035676 | 1 | BRUSH PAIR 230V | B1 |  |
||
| 105 | 562161-06 | 1 | CORDSET | B1 | |||
| 106 | 659109-00 | 1 | OUTER FLANGE | M10 | B1 | |
|
| 107 | N039245 | 1 | INNER FLANGE | M10 | B1 | |
|
| 108 | 562160-06 | 3 | SCREW | B1 | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | B1 | |
||
| 110 | 944675-00 | 1 | GUARD | B1 | |
||
| 111 | 393576-00 | 1 | RING | B1 | |
||
| 112 | 330045-46 | 4 | SCREW | B1 | |
||
| 113 | 945298-01 | 1 | GEARCASE COVER | B1 | |
||
| 114 | N039248 | 1 | SPINDLE | M10 | B1 | |
|
| 115 | 945279-01 | 2 | BRUSH COVER | B1 | |
||
| 116 | 641081-00 | 1 | CORD PROTECTOR | B1 | |
||
| 117 | 661243-00 | 1 | GEAR & PINION | B1 | |
||
| 118 | 562097-01 | 4 | SCREW | B1 | |
||
| 119 | 562304-01 | 1 | GEARCASE SA | Inc # 124, 125, 126 | B1 | |
|
| 120 | 641893-00 | 1 | FELT SEAL | B1 | |
||
| 121 | 562211-00 | 1 | HANDLE SIDE SA | B1 | |
||
| 122 | 945299-00 | 1 | FLANGE | B1 | |
||
| 123 | 945292-00 | 1 | NUT | B1 | |
||
| 124 | 944575-00 | 1 | BUTTON | B1 | |
||
| 125 | 562210-00 | 1 | SPRING | B1 | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | B1 | |
||
| 127 | 605040-22 | 1 | BEARING | B1 | |
||
| 128 | 930275-00 | 1 | SLEEVE | B1 | |
||
| 129 | 401623-01 | 1 | BAFFLE | B1 | |
||
| 132 | 604146-00 | 2 | BRUSH HOLDER SA | B1 | |
||
| 133 | 562204-00 | 2 | SPRING | B1 | |
||
| 134 | 396007-04 | 1 | FIELDCASE | B1 | |
||
| 135 | 605040-03 | 1 | BEARING BALL | B1 | |
||
| 136 | 944671-04 | 1 | END CAP | B1 | |
||
| 137 | 397701-00 | 1 | SWITCH SUPPORT | B1 | |||
| 138 | 401253-00 | 1 | WRENCH ROUND-PINS | B1 | |
||
| 139 | 562097-05 | 1 | SCREW | B1 | |
||
| 140 | 401622-01 | 1 | FLANGE | B1 | |
||
| 143 | 562097-02 | 1 | SCREW | B1 | |
||
| 145 | 562097-00 | 2 | SCREW | B1 | |
||
| 147 | 945280-00 | 2 | SCREW | B1 | |
||
| 160 | N110359 | 1 | BEARING | B1 | |
||
| 160 | N110359 | 1 | BEARING | B1 | |
||
| 166 | 398906-00 | 1 | SPACER INSULATING | B1 | |
||
| 167 | 603180-00 | 1 | CONNECTOR | B1 | |
||
| 168 | 943254-00 | 1 | SWITCH COVER | B1 | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | B1 | |
|
| 816 | 946194-00 | 1 | BRAND LABEL | B1 | |
||
| 821 | 658919-00 | 1 | RATING PLATE | B1 |
