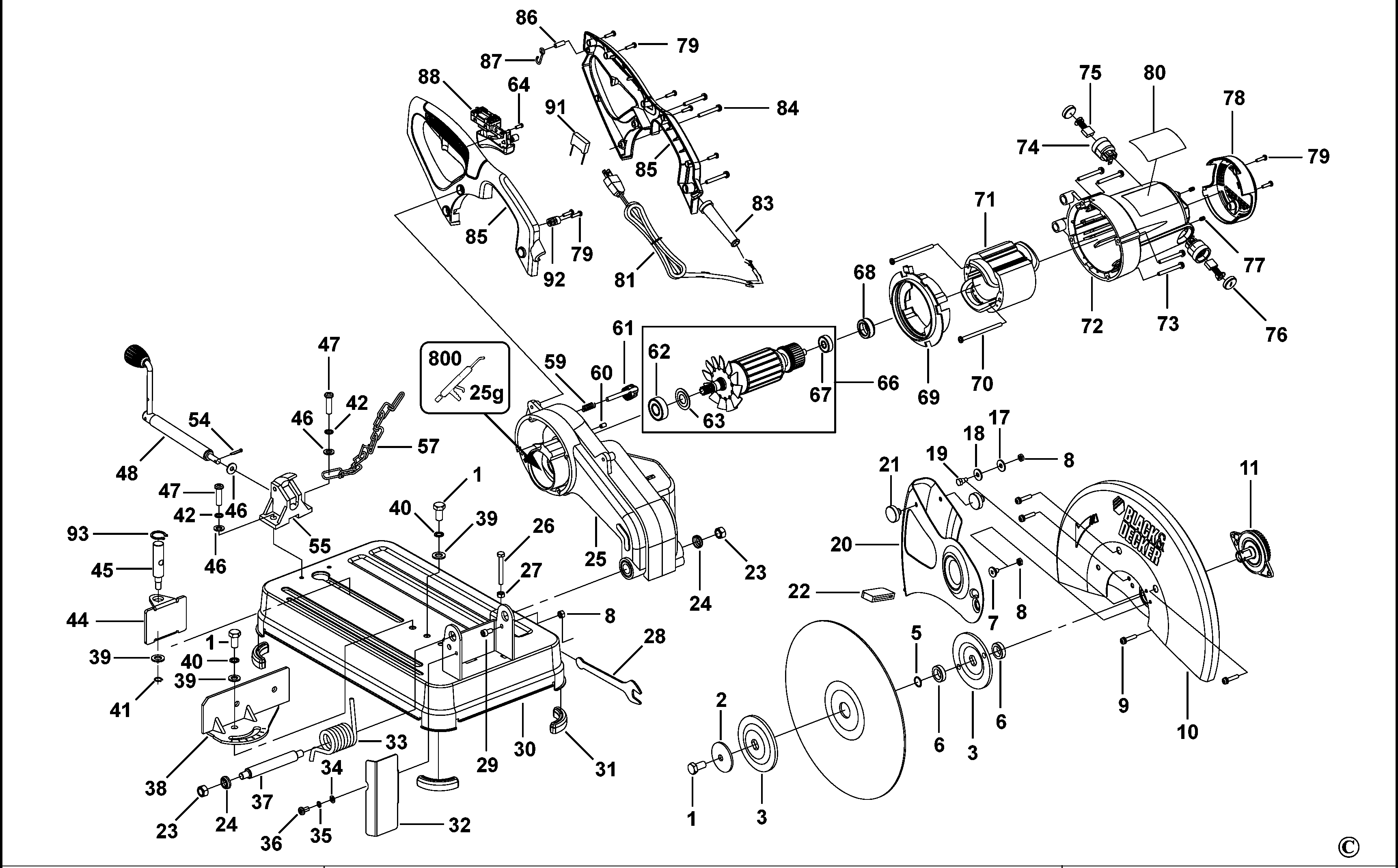

STEL705 CHOP SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140062-44 | 3 | BOLT | M5X8 | B1 |  |
|
| 2 | 5140062-45 | 1 | FLANGE | B1 | |
||
| 3 | 5140062-46 | 2 | FLANGE | B1 |  |
||
| 5 | 5140062-47 | 1 | O RING | B1 | |
||
| 6 | 5140062-48 | 2 | BUSH | B1 | |
||
| 7 | 5140062-49 | 1 | SCREW | M6X10 | B1 | |
|
| 8 | 5140062-50 | 3 | LOCK NUT | M6 | B1 | |
|
| 9 | 5140062-51 | 4 | SCREW | M5X25 | B1 | |
|
| 10 | 1004564-00 | 1 | GUARD | B1 | |
||
| 11 | 5140062-53 | 1 | GEAR & SPINDLE SA | B1 | |
||
| 17 | 5140062-54 | 1 | WASHER | B1 | |
||
| 18 | 5140062-55 | 1 | WASHER | Hard Paper | B1 | |
|
| 19 | 5140062-56 | 1 | SCREW | M6 | B1 | |
|
| 20 | 1004564-01 | 1 | GUARD LOWER | B1 | |
||
| 21 | 5140062-58 | 2 | RUBBER | B1 | |
||
| 22 | 5140062-59 | 1 | PROTECTOR | guard | B1 | |
|
| 23 | 5140062-60 | 2 | NUT | M10 | B1 | |
|
| 24 | 5140062-61 | 2 | WASHER. CUP | B1 | |
||
| 25 | 5140062-62 | 1 | ARM ELEVATING | B1 | |
||
| 26 | 5140062-63 | 3 | BOLT | M10X30 | B1 | |
|
| 27 | 5140062-64 | 1 | NUT | M10 | B1 | |
|
| 28 | 5140062-65 | 1 | WRENCH SPECIAL | B1 | |
||
| 29 | 5140062-66 | 1 | BOLT | M6X12 | B1 | |
|
| 30 | 1004564-02 | 1 | BASE | B1 | |
||
| 31 | 5140062-68 | 4 | FOOT | B1 | |
||
| 32 | 5140062-69 | 1 | PROTECTOR | B1 | |
||
| 33 | 5140062-70 | 1 | SPRING TORSION | B1 | |
||
| 34 | 5140062-71 | 1 | WASHER | B1 | |
||
| 35 | 5140062-72 | 1 | WASHER SPRING | B1 | |
||
| 36 | 5140062-73 | 1 | SCREW | M6X12 | B1 | |
|
| 37 | 5140062-74 | 1 | SHAFT | B1 | |
||
| 38 | 5140062-75 | 1 | FENCE | B1 | |
||
| 39 | 5140062-76 | 3 | WASHER | B1 | |
||
| 40 | 5140062-77 | 2 | WASHER SPRING | B1 | |
||
| 41 | 5140062-78 | 1 | RETAINER | B1 | |
||
| 42 | 5140062-79 | 2 | WASHER SPRING | B1 | |
||
| 44 | 5140062-80 | 1 | CLAMP | B1 | |
||
| 45 | 5140062-81 | 1 | SHAFT | B1 | |
||
| 46 | 5140062-82 | 3 | WASHER | B1 | |
||
| 47 | 5140062-83 | 2 | SCREW | B1 | |
||
| 48 | 1004564-03 | 1 | HANDLE SA | B1 | |
||
| 54 | 5140062-85 | 1 | PIN | 3.2X18 | B1 | |
|
| 55 | 5140062-86 | 1 | LOCKING DEVICE | B1 | |
||
| 57 | 5140062-87 | 1 | CHAIN | B1 | |
||
| 59 | 5140062-88 | 1 | SPRING | B1 | |
||
| 60 | 5140062-89 | 1 | PIN | B1 | |
||
| 61 | 1004564-04 | 1 | LOCK PIN | B1 | |
||
| 62 | 5140062-91 | 1 | BEARING | B1 | |
||
| 63 | 5140062-92 | 1 | WASHER | B1 | |
||
| 64 | 5140062-93 | 2 | SCREW | B1 | |
||
| 66 | 5140062-94 | 1 | ARMATURE SA | 220V | B1 | |
|
| 67 | 5140062-96 | 1 | BEARING | B1 | |
||
| 68 | 5140062-97 | 1 | SLEEVE BEARING | B1 | |
||
| 69 | 5140062-98 | 1 | DUST DEFLECTOR | B1 | |
||
| 70 | 5140062-99 | 2 | SCREW | B1 | |
||
| 71 | 5140063-00 | 1 | FIELD | 220V | B1 | |
|
| 72 | 1004564-05 | 1 | HOUSING MOTOR | B1 | |
||
| 73 | 5140063-03 | 4 | SCREW | M5X55 | B1 | |
|
| 74 | 5140063-04 | 2 | BRUSH HOLDER | B1 | |
||
| 75 | N381908 | 1 | BRUSH PAIR | B1 | |
||
| 76 | 5140063-07 | 2 | BRUSH CAP | B1 | |
||
| 77 | 5140063-08 | 2 | SCREW | B1 | |
||
| 78 | 1004564-06 | 1 | COVER REAR | B1 | |
||
| 79 | 5140063-10 | 10 | SCREW | B1 | |||
| 80 | 1004564-07 | 1 | RATING PLATE | B1 | B1 | |
|
| 81 | 1004441-04 | 1 | CORDSET | B1 | |
||
| 83 | 5140063-19 | 1 | CORD PROTECTOR | B1 | |
||
| 84 | 5140063-20 | 3 | SCREW | M5X40 | B1 | ||
| 85 | 1004564-09 | 1 | HANDLE SA | B1 | |
||
| 86 | 5140063-22 | 1 | PIN | B1 | |
||
| 87 | 5140063-23 | 1 | HOOK | B1 | |
||
| 88 | 1004453-08 | 1 | SWITCH | B1 | |
||
| 91 | 5140063-25 | 1 | CAPACITOR | B1 | |
||
| 92 | 5140063-26 | 1 | CORD CLAMP | B1 | |||
| 93 | 5140063-27 | 1 | RETAINER | B1 | |||
| 800 | 870889-02 | 1 | GREASE | 25g | B1 | |
