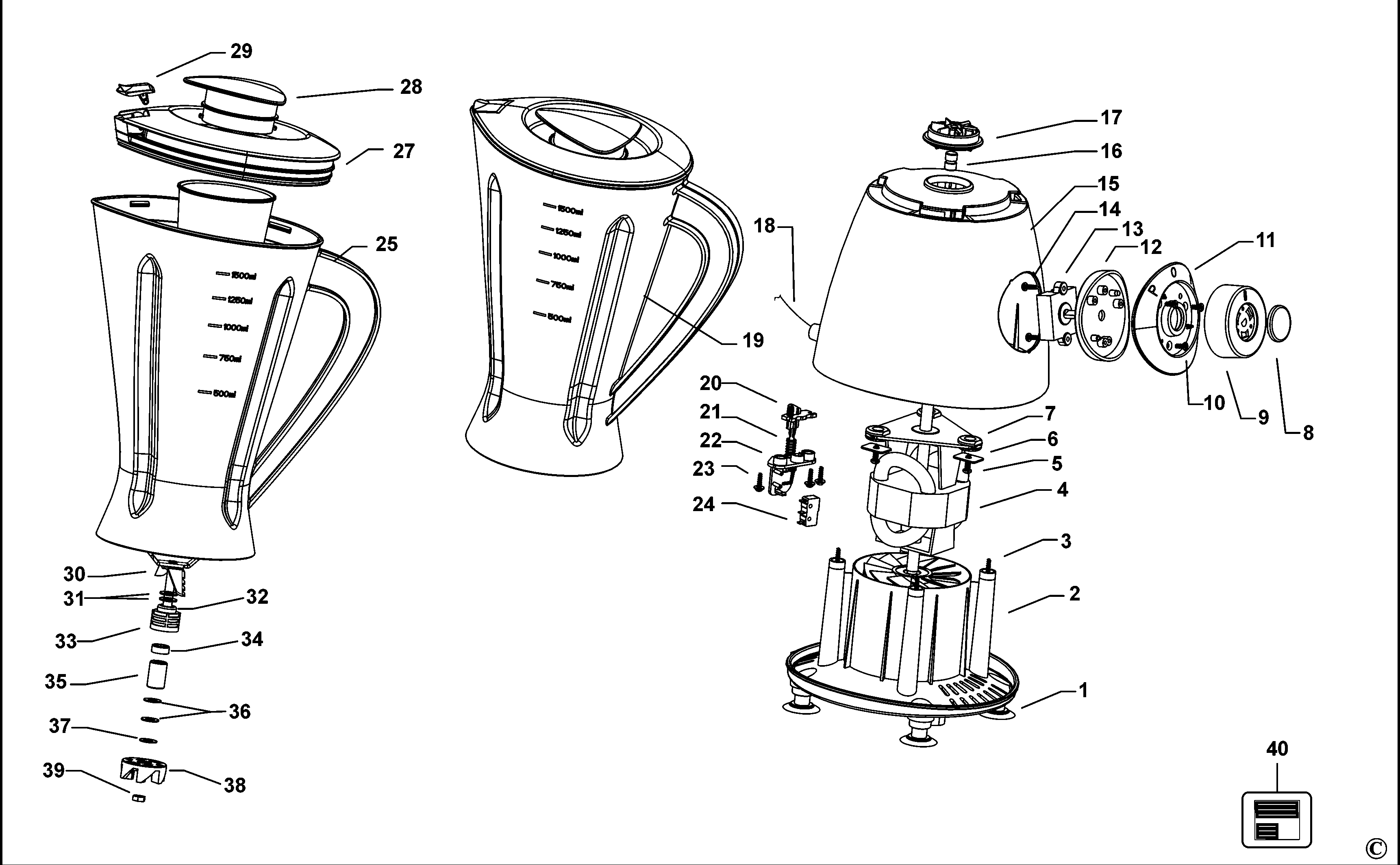

BX385 BLENDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5170011-75 | 1 | FEET | B1 |  |
||
| 2 | 5170011-76 | 1 | BASE | B1 | |
||
| 3 | 5170011-77 | 1 | SCREW | B1 | |
||
| 4 | 5170011-78 | 1 | MOTOR | B1 | |
||
| 5 | 5170011-79 | 1 | SCREW | B1 | |
||
| 6 | 5170011-80 | 1 | WASHER | B1 | |
||
| 7 | 5170011-81 | 1 | RING | B1 | |
||
| 8 | 5170011-82 | 1 | SWITCH COVER | B1 | |
||
| 9 | 5170011-83 | 1 | SWITCH | B1 | |
||
| 10 | 5170011-84 | 1 | SCREW | B1 | |
||
| 11 | 5170011-85 | 1 | PANEL | B1 | |
||
| 12 | 6010353-53 | 1 | SWITCH SUPPORT | B1 | |
||
| 13 | 6010353-52 | 1 | SWITCH | B1 | |
||
| 14 | 5170011-86 | 1 | SCREW | B1 | |
||
| 15 | 5170011-87 | 1 | BODY | B1 | |
||
| 16 | 5170011-88 | 1 | PELLET | B1 | |
||
| 17 | 6010353-51 | 1 | DRIVE SHAFT | B1 | |
||
| 18 | 5170011-89 | 1 | CORDSET | B1 | |
||
| 19 | 6010353-58 | 1 | BLENDER | B1 | |
||
| 20 | 6010353-54 | 1 | ACTUATOR | B1 | |
||
| 21 | 6010353-55 | 1 | SPRING | B1 | |
||
| 22 | 6010353-56 | 1 | SWITCH SUPPORT | B1 | |
||
| 23 | 5170011-90 | 1 | SCREW | B1 | |
||
| 24 | 6010353-57 | 1 | MICRO SWITCH | B1 | |
||
| 25 | 5170011-91 | 1 | JAR | B1 | |
||
| 27 | 5170011-92 | 1 | COVER | B1 | |
||
| 28 | 5170011-93 | 1 | CUP | B1 | |
||
| 29 | 5170011-94 | 1 | COVER | B1 | |
||
| 30 | 5170011-95 | 1 | BLADE | B1 | |
||
| 31 | 5170011-96 | 1 | RUBBER | B1 | |
||
| 32 | 5170011-97 | 1 | COVER | B1 | |
||
| 33 | 5170011-98 | 1 | SUPPORT | B1 | |
||
| 34 | 5170011-99 | 1 | GLAND | B1 | |
||
| 35 | 5170012-00 | 1 | SHAFT | B1 | |
||
| 36 | 5170012-01 | 1 | RUBBER | B1 | |
||
| 37 | 5170012-02 | 1 | WASHER | B1 | |
||
| 38 | 5170012-03 | 1 | CONNECTOR | B1 | |
||
| 39 | 5170012-04 | 1 | NUT | B1 | |
||
| 40 | 5170012-05 | 1 | RATING LABEL | B1 | |
