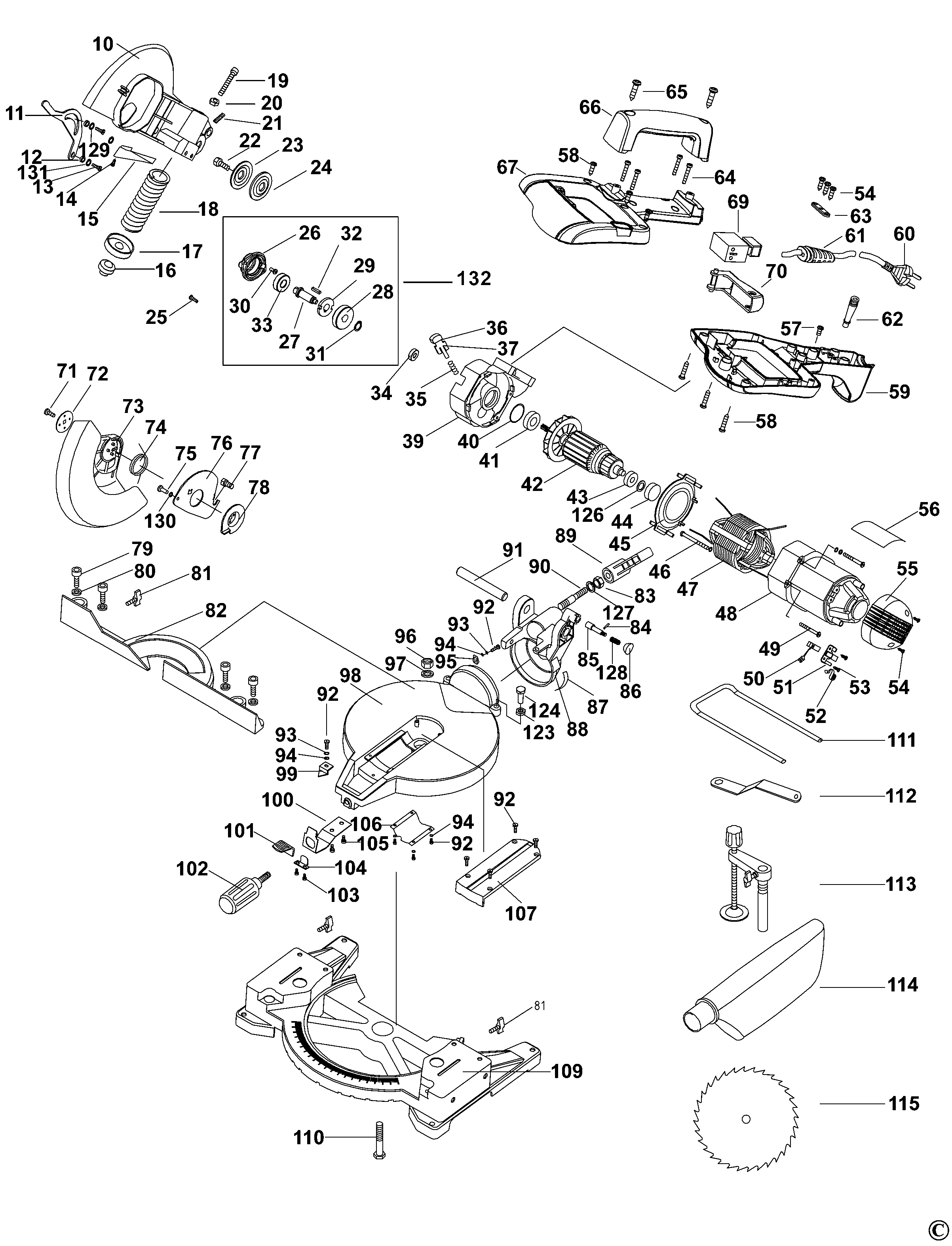

BT1400 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 10 | 5140015-10 | 1 | SHIELD | B1 |  |
||
| 11 | 5140015-11 | 1 | SHIELD | B1 | |
||
| 12 | 5140015-12 | 1 | RING | B1 | |
||
| 13 | 5140015-13 | 1 | SCREW | B1 | |
||
| 14 | 5140015-14 | 1 | SCREW | B1 | |
||
| 15 | 5140015-15 | 1 | TUBE EXTRACTION | B1 | |
||
| 16 | 5140015-16 | 1 | PIN | B1 | |
||
| 17 | 5140015-17 | 1 | STOP PLATE | B1 | |
||
| 18 | 5140015-18 | 1 | SPRING | B1 | |
||
| 19 | 5140015-19 | 1 | BOLT | B1 | |
||
| 20 | 5140015-20 | 1 | NUT | B1 | |
||
| 21 | 5140015-21 | 1 | SCREW | B1 | |
||
| 22 | 5140015-22 | 1 | BOLT | B1 | |
||
| 23 | 5140015-23 | 1 | OUTER FLANGE | B1 | |
||
| 24 | 5140069-57 | 1 | INNER FLANGE | B1 | |
||
| 25 | 5140015-25 | 1 | SCREW | B1 | |
||
| 26 | 5140015-26 | 1 | COVER | B1 | |
||
| 27 | 5140069-58 | 1 | SPINDLE | B1 | |
||
| 28 | 5140069-59 | 1 | GEAR | B1 | |
||
| 29 | 5140069-60 | 1 | FLANGE | B1 | |
||
| 30 | 5140015-30 | 1 | SCREW | B1 | |
||
| 31 | 5140015-31 | 1 | RING | B1 | |
||
| 32 | 5140069-61 | 1 | KEY | B1 | |
||
| 33 | 5140015-33 | 1 | BEARING | B1 | |
||
| 34 | 5170007-06 | 1 | BEARING,BALL | B1 | |
||
| 35 | 5140015-35 | 1 | SPRING | B1 | |
||
| 36 | 5140015-36 | 1 | BUTTON | B1 | |
||
| 37 | 5140015-37 | 1 | SPINDLE LOCK | B1 | |
||
| 39 | 5170007-07 | 1 | GEAR CASE SA | B1 | |
||
| 40 | 5140015-40 | 1 | O RING | B1 | |
||
| 41 | 5140015-41 | 1 | BEARING | B1 | |
||
| 42 | 5140012-94 | 1 | ARMATURE | B1 | |
||
| 43 | 5140015-43 | 1 | BEARING | B1 | |
||
| 44 | 5140015-44 | 1 | SLEEVE | B1 | |
||
| 45 | 5140015-45 | 1 | BAFFLE FAN | B1 | |
||
| 46 | 5140015-46 | 1 | SCREW | B1 | |
||
| 47 | 5140012-96 | 1 | STATOR | B1 | |
||
| 48 | 5140047-27 | 1 | FIELD CASE | B1 | |
||
| 49 | 5140015-49 | 1 | SCREW | B1 | |
||
| 50 | 5140015-50 | 1 | BRUSH | B1 | |
||
| 51 | 5140015-51 | 1 | BRUSH HOLDER | B1 | |
||
| 52 | 5140015-52 | 1 | SPRING | B1 | |
||
| 53 | 5140015-53 | 1 | SCREW | B1 | |
||
| 54 | 5140015-54 | 1 | SCREW | B1 | |
||
| 55 | 5140047-28 | 1 | CAP | B1 | |
||
| 56 | 5170007-08 | 1 | RATING LABEL | B1 | |
||
| 57 | 5140069-64 | 1 | SCREW | B1 | |
||
| 58 | 5140069-65 | 1 | SCREW | B1 | |
||
| 59 | 5140047-29 | 1 | HANDLE & COVER | B1 | |
||
| 60 | 5170005-81 | 1 | CORDSET | B1 | |
||
| 61 | 5140047-30 | 1 | CORD PROTECTOR | B1 | |
||
| 62 | 5140015-62 | 1 | PROTECTOR | B1 | |
||
| 63 | 5140069-67 | 1 | CORD CLAMP | B1 | |
||
| 64 | 5140047-31 | 1 | SCREW | B1 | |
||
| 65 | 5140047-32 | 1 | SCREW | B1 | |
||
| 66 | 5140047-33 | 1 | HANDLE | B1 | |
||
| 67 | 5140047-34 | 1 | CLAMSHELL | B1 | |
||
| 69 | 5140047-35 | 1 | SWITCH | B1 | |
||
| 70 | 5140047-36 | 1 | TRIGGER | B1 | |
||
| 71 | 5140015-71 | 1 | SCREW | B1 | |
||
| 72 | 5140015-72 | 1 | SHIELD | B1 | |
||
| 73 | 5140015-73 | 1 | SHIELD | B1 | |
||
| 74 | 5140015-74 | 1 | SPRING TORSION | B1 | |
||
| 75 | 5140015-75 | 1 | SCREW | B1 | |
||
| 76 | 5140015-76 | 1 | PLATE | B1 | |
||
| 77 | 5140015-77 | 1 | BOLT | B1 | |
||
| 78 | 5140015-78 | 1 | SHIELD | B1 | |
||
| 79 | 5140015-79 | 1 | SCREW | B1 | |
||
| 80 | 5140015-80 | 1 | WASHER | B1 | |
||
| 81 | 5170005-82 | 1 | KNOB | B1 | |
||
| 82 | 5140015-82 | 1 | BAFFLE | B1 | |
||
| 83 | 5140015-83 | 1 | NUT | B1 | |
||
| 84 | 5140015-84 | 1 | PIN | B1 | |
||
| 85 | 5140015-85 | 1 | LOCKING PIN | B1 | |
||
| 86 | 5170005-83 | 1 | CAP | B1 | |
||
| 87 | 5140015-87 | 1 | BEVEL SCALE | B1 | |
||
| 88 | 5140015-88 | 1 | TRUNNION | B1 | |
||
| 89 | 5140015-89 | 1 | HANDLE | B1 | |
||
| 90 | 5140015-90 | 1 | STUD | B1 | |
||
| 91 | 5140015-91 | 1 | SHAFT | B1 | |
||
| 92 | 5140015-92 | 1 | SCREW | B1 | |
||
| 93 | 5140015-93 | 1 | WASHER | B1 | |
||
| 94 | 5140015-94 | 1 | WASHER | B1 | |
||
| 95 | 5140015-95 | 1 | POINTER | B1 | |
||
| 96 | 5140015-96 | 1 | NUT | B1 | |
||
| 97 | 5140015-97 | 1 | WASHER | B1 | |
||
| 98 | 5140015-98 | 1 | TABLE | B1 | |
||
| 99 | 5140015-99 | 1 | POINTER | B1 | |
||
| 100 | 5140016-00 | 1 | SPRING | B1 | |
||
| 101 | 5140016-01 | 1 | BUTTON | B1 | |
||
| 102 | 5170005-84 | 1 | HANDLE | B1 | |
||
| 103 | 5140016-03 | 1 | SCREW | B1 | |
||
| 104 | 5140016-04 | 1 | CLAMP | B1 | |
||
| 105 | 5140016-05 | 1 | SCREW | B1 | |
||
| 106 | 5140016-06 | 1 | PLATE | B1 | |
||
| 107 | 5140016-07 | 1 | PLATE | B1 | |
||
| 109 | 5140016-09 | 1 | BASE | B1 | |
||
| 110 | 5140016-10 | 1 | BOLT | B1 | |
||
| 111 | 5140016-11 | 1 | BRACKET | B1 | |
||
| 112 | 5140016-12 | 1 | WRENCH SPECIAL | B1 | |
||
| 113 | 5170005-85 | 1 | CLAMP | B1 | |
||
| 114 | 5140016-14 | 1 | DUSTBAG | B1 | |
||
| 115 | 5140016-15 | 1 | BLADE | B1 | |
||
| 123 | 5170007-24 | 1 | NUT M8 | B1 | |
||
| 124 | 186769-00 | 1 | SCREW | B1 | |
||
| 126 | 5140069-69 | 1 | WASHER SPRING | B1 | |
||
| 127 | 5140069-70 | 1 | WASHER | M10X35 | B1 | |
|
| 128 | 5140069-71 | 1 | SPRING | B1 | |
||
| 129 | 5140069-72 | 1 | WASHER | B1 | |
||
| 130 | 5140069-73 | 1 | WASHER | ID 8mm OD 22mm | B1 | |
|
| 131 | 5140069-74 | 1 | WASHER SPRING | B1 | |
||
| 132 | 5170007-05 | 1 | SPINDLE & GEAR SA | B1 | |
