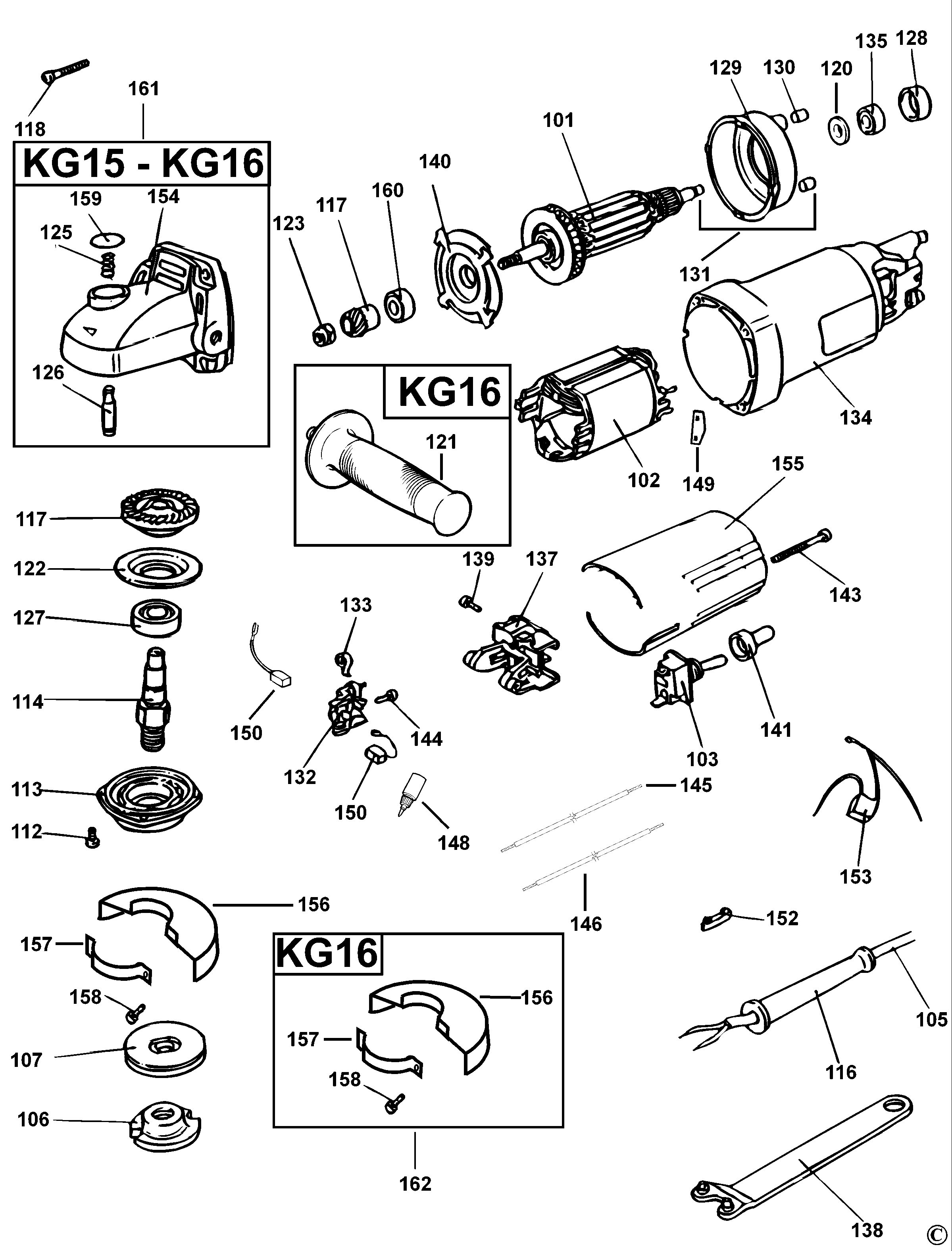

KG15 ANGLE GRINDER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 401702-08 | 1 | ARMATURE 230V | B1 |  |
||
| 102 | 397015-00 | 1 | FIELD | B1 | |||
| 103 | 562209-00 | 1 | SWITCH | B1 |  |
||
| 105 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 106 | 622208-00 | 1 | OUTER FLANGE | B1 | |
||
| 107 | N039245 | 1 | INNER FLANGE | M10 | B1 | |
|
| 112 | 562160-07 | 4 | SCREW | B1 | |||
| 113 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 114 | 622210-00 | 1 | SPINDLE | B1 | |
||
| 116 | 330005-01 | 1 | CORD PROTECTOR | B1 | |
||
| 117 | 586255-00 | 1 | GEAR & PINION | B1 | |||
| 118 | 562097-01 | 4 | SCREW | B1 | |
||
| 120 | 945287-00 | 1 | SPACER | B1 | |||
| 122 | 945299-00 | 1 | FLANGE | B1 | |
||
| 123 | 945292-00 | 1 | NUT | B1 | |
||
| 125 | 562210-00 | 1 | SPRING | B1 | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | B1 | |
||
| 127 | 573119-01 | 1 | BEARING | B1 | |
||
| 128 | 930275-00 | 1 | SLEEVE | B1 | |
||
| 129 | 401623-00 | 1 | BAFFLE | B1 | |
||
| 130 | 949638-01 | 2 | BUFFER | B1 | |
||
| 131 | 401635-00 | 1 | BAFFLE SA | B1 | |
||
| 132 | 000000-00 | 2 | NO LONGER AVAILABLE | B1 | |||
| 133 | 562204-00 | 2 | SPRING | B1 | |
||
| 134 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 135 | 573119-02 | 1 | BEARING | B1 | |
||
| 137 | 397701-00 | 1 | SWITCH SUPPORT | B1 | |||
| 138 | 401253-00 | 1 | WRENCH ROUND-PINS | B1 | |
||
| 139 | 562097-05 | 1 | SCREW | B1 | |
||
| 140 | 401622-01 | 1 | FLANGE | B1 | |
||
| 141 | 943254-00 | 1 | SWITCH COVER | B1 | |
||
| 143 | 562097-02 | 2 | SCREW | B1 | |
||
| 144 | 562097-00 | 2 | SCREW | B1 | |
||
| 145 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 146 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 148 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 149 | 402489-00 | 2 | PAD | B1 | |||
| 150 | 930151-00 | 2 | BRUSH 220V | B1 | |||
| 152 | 930187-00 | 1 | TERMINAL | B1 | |
||
| 154 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 155 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 156 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 157 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 158 | 000000-00 | 2 | NO LONGER AVAILABLE | B1 | |||
| 159 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 160 | 573119-00 | 1 | BEARING | 8x22x7 - 608 2RS | B1 | |
|
| 161 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 |
