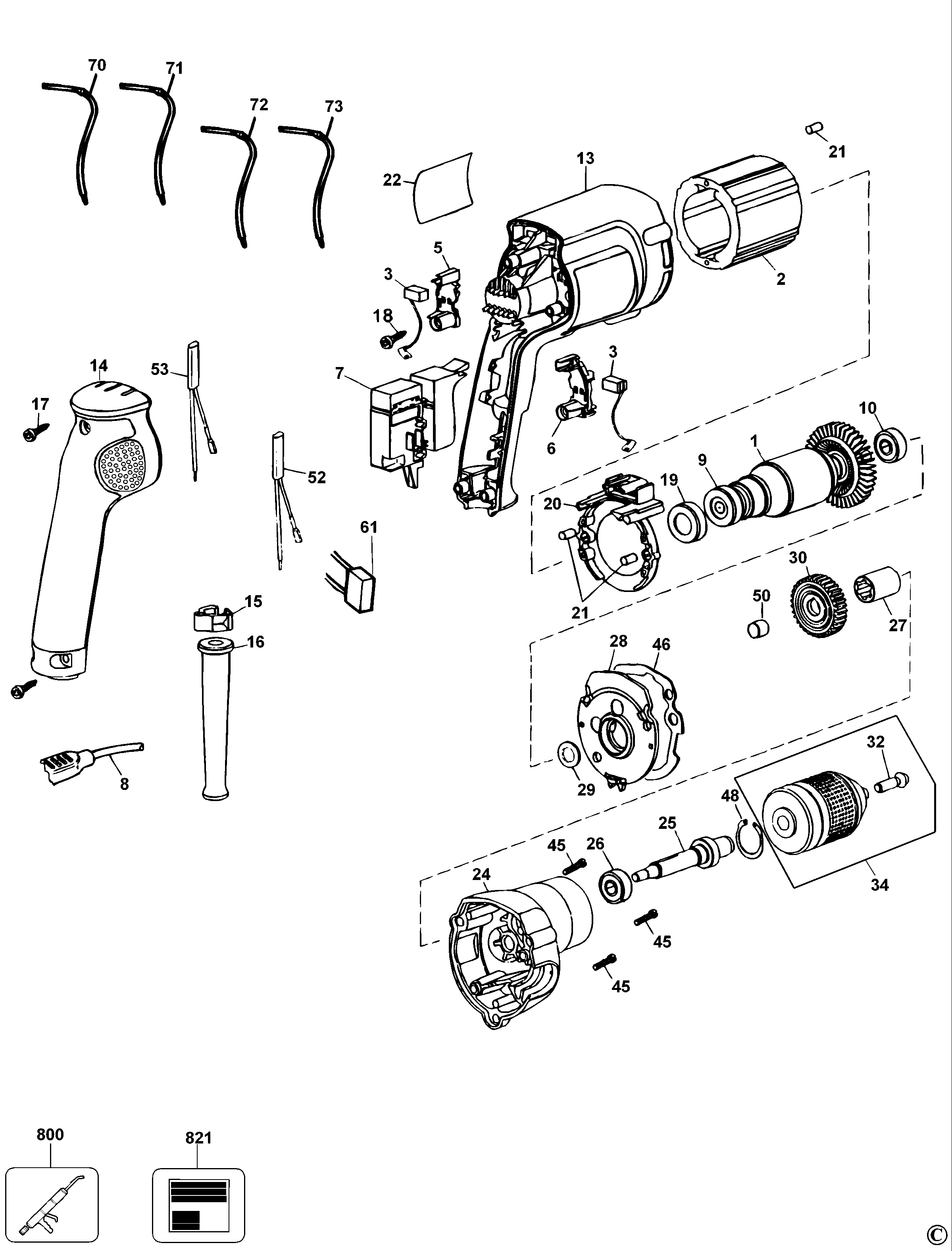

DW217 PERCEUSE Type 4 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579598-13 | 1 | ARMATURE 230V | GB |  |
||
| 2 | N447605 | 1 | FIELD 230V | GB | |
||
| 3 | 176949-00 | 2 | BRUSH 230V | GB | |
||
| 5 | 176801-03 | 1 | PORTE-BALAIS | GB | |
||
| 6 | 176800-03 | 1 | PORTE-BALAIS | GB | |
||
| 7 | 176830-15 | 1 | INTERRUPTEUR | Tyco | GB |  |
|
| 8 | 330060-83 | 1 | JEU DE CORDONS | GB | |
||
| 9 | 605040-06 | 1 | BEARING,BALL | GB | |
||
| 10 | 605040-06 | 1 | BEARING,BALL | GB | |
||
| 13 | N014399 | 1 | BOITIER DE CHAMP | GB | |
||
| 14 | 176816-03 | 1 | COUVERCLE DE POIGNEE | GB | |
||
| 15 | 402648-00 | 1 | COLLIER DE CORDON | GB | |
||
| 16 | N542553 | 1 | PROTECTEUR DE CORDON | GB | |||
| 16 | N542553 | 1 | PROTECTEUR DE CORDON | GB | |||
| 17 | 330019-13 | 3 | VIS | M4X19 T20 | GB | |
|
| 18 | 330065-06 | 2 | VIS | GB | |
||
| 19 | 389824-00 | 1 | GAINE | GB | |
||
| 20 | 176811-00 | 1 | CHICANE | GB | |
||
| 21 | 949638-02 | 3 | AMORTISSEUR | GB | |
||
| 22 | 395047-00 | 1 | ETIQUETTE MARQUE | GB | |
||
| 24 | 176693-00SV | 1 | CARTER D'ENGRENAGES | GB | |
||
| 25 | 176680-01 | 1 | AXE | GB | |
||
| 26 | 605040-20 | 1 | PALIER | 12 x 28 x 8mm | GB | |
|
| 27 | 176691-01 | 1 | ENTRETOISE | GB | |
||
| 28 | 386622-00 | 1 | COUVERCLE DE CARTER D'ENGRENAGES | GB | |
||
| 29 | 23813-00 | 1 | RONDELLE AVANT | GB | |
||
| 30 | 176629-00 | 1 | PIGNON | GB | |
||
| 32 | 590668-00 | 1 | VIS | GB | |
||
| 34 | N474509 | 1 | S/E MANDRIN | GB | |
||
| 45 | 90611830 | 3 | VIS | GB | |
||
| 46 | 176655-00 | 1 | JOINT STATIQUE | GB | |
||
| 48 | 087692-00 | 1 | PIECE DE RETENUE | GB | |
||
| 50 | 910560 | 1 | PALIER | GB | |
||
| 52 | 580555-00 | 1 | S/E CONDUCTEUR D'ENRICHISSEUR | GREEN | GB | |
|
| 53 | 580555-01 | 1 | S/E CONDUCTEUR D'ENRICHISSEUR | YELLOW | GB | |
|
| 61 | 949877-01 | 1 | CONDENSATEUR | GB | |
||
| 70 | 176893-00 | 1 | LEAD BLACK | GB | |||
| 71 | 176834-00 | 1 | LEAD BLUE | GB | |||
| 72 | 176892-00 | 1 | LEAD PURPLE | GB | |
||
| 73 | 176894-00 | 1 | LEAD ORANGE | GB | |
||
| 800 | 286436-00 | 1 | GRAISSE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 821 | 569037-00 | 1 | PLAQUE SIGNALETIQUE | GB | |
