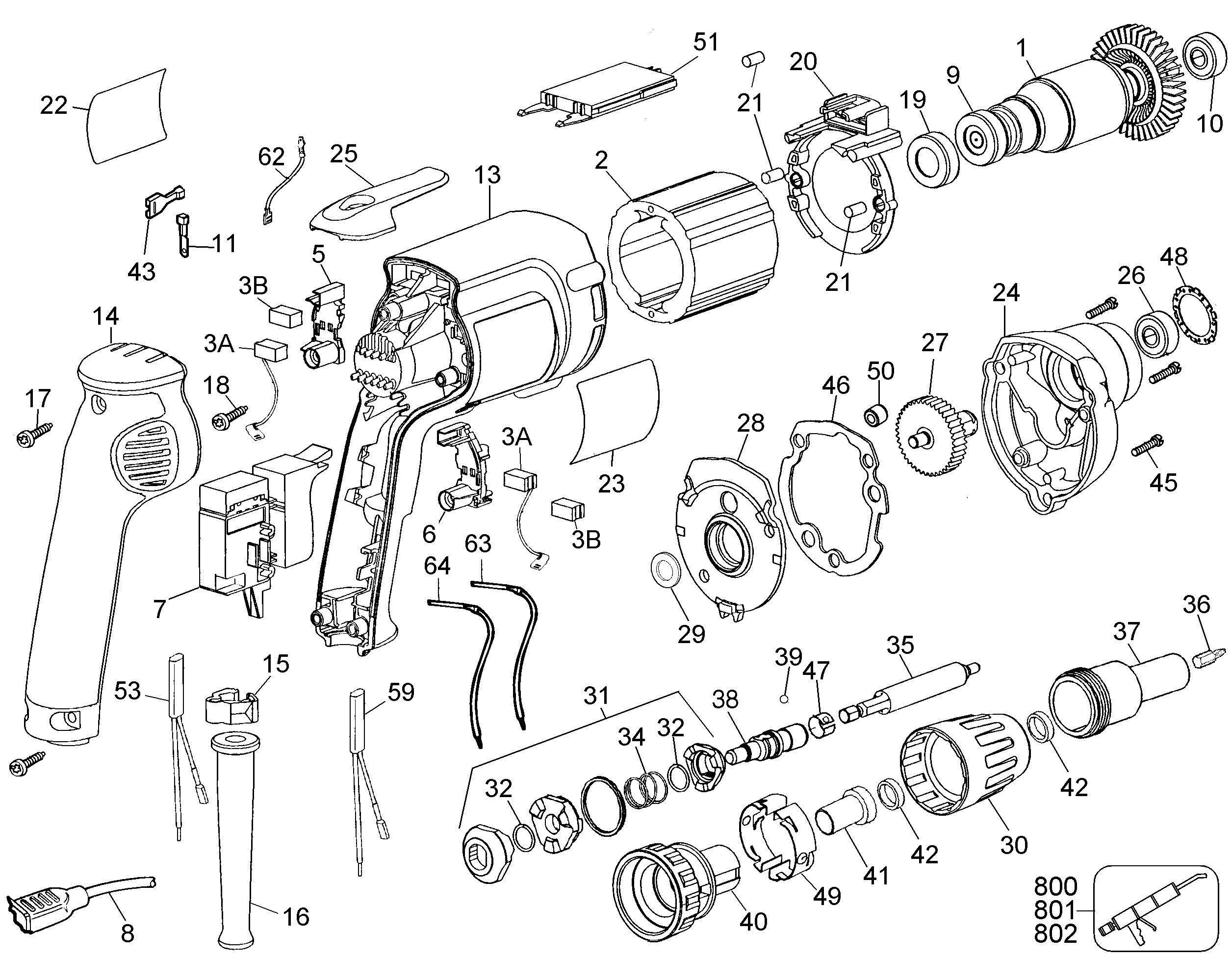

DW256 VISSEUSE Type A1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 176851-01 | 1 | ARMATURE ET VENTILATEUR | 6 TEETH | B1 | ||
| 2 | 176849-01SV | 1 | FIELD 230V | B1 |  |
||
| 5 | N440281 | 1 | BRUSH HOLDER,L | B1 | |||
| 6 | N440280 | 1 | BRUSH HOLDER,R | B1 | |||
| 7 | 176830-15 | 1 | INTERRUPTEUR | Tyco | B1 | |
|
| 8 | 380677-02 | 1 | JEU DE CORDONS | B1 | |
||
| 9 | 330003-04 | 1 | PALIER | B1 | |||
| 10 | 330003-04 | 1 | PALIER | B1 | |||
| 11 | 449192-00 | 2 | BORNE | B1 |  |
||
| 13 | 429969-03 | 1 | BOITIER DE CHAMP | B1 | |
||
| 14 | 176816-01 | 1 | COUVERCLE DE POIGNEE | B1 | |
||
| 15 | 176829-00 | 1 | COLLIER DE CORDON | B1 | |
||
| 16 | 330005-01 | 1 | PROTECTEUR DE CORDON | B1 | |||
| 17 | 330019-13 | 3 | VIS | M4X19 T20 | B1 | |
|
| 18 | 176951-00 | 2 | VIS | B1 | |
||
| 19 | 949721-03 | 1 | MANCHON | B1 | |
||
| 20 | 176811-00 | 1 | CHICANE | B1 | |
||
| 21 | 949638-02 | 2 | AMORTISSEUR | B1 | |
||
| 22 | 395047-00 | 1 | ETIQUETTE MARQUE | B1 | |
||
| 23 | 176909-02 | 1 | PLAQUE SIGNALETIQUE | B1 | |||
| 24 | 388562-00SV | 1 | CARTER D'ENGRENAGES | INC 26, 48 | B1 | |
|
| 25 | N045425 | 1 | ATTACHE | B1 | |
||
| 26 | 605040-20 | 1 | PALIER | 12 x 28 x 8mm | B1 | |
|
| 27 | 638982-00SV | 1 | AXE ET PIGNON | 47 TEETH | B1 | |
|
| 28 | 386622-00 | 1 | COUVERCLE DE CARTER D'ENGRENAGES | B1 | |
||
| 29 | 023813-00 | 1 | RONDELLE FIBRE | B1 | |||
| 30 | 152492-01 | 1 | COLLIER | B1 | |
||
| 31 | 429634-00 | 1 | S/E EMBRAYAGE | INC 32, 34 | B1 | |
|
| 32 | 089210-00 | 2 | PIECE DE RETENUE | B1 | |
||
| 34 | 176842-00 | 1 | RESSORT | B1 | |
||
| 35 | N449701 | 1 | PORTE-EMBOUT | B1 | |
||
| 36 | 607904-22 | 1 | EMBOUT DE TOURNEVIS | DRYWALL PR2 | B1 | |
|
| 37 | 450770-02SV | 1 | POSITIONNEUR | INC 42 | B1 | ||
| 38 | 385861-00 | 1 | AXE | B1 | |
||
| 39 | 696631-00 | 1 | ROTULE | B1 | |
||
| 40 | N740053 | 1 | S/E EMBRAYAGE | PKGD 176632-00 | INC 41, 42, 49 | B1 | |
| 41 | 450907-00 | 1 | MANCHON | B1 | |
||
| 42 | 696534-00 | 2 | JOINT | B1 | |
||
| 43 | 136086-02 | 4 | BORNE | B1 | |
||
| 45 | 330019-14 | 3 | VIS | B1 | |
||
| 46 | 176655-00 | 1 | JOINT STATIQUE | B1 | |
||
| 47 | 094518-00 | 1 | PIECE DE RETENUE | B1 | |
||
| 48 | 176689-00 | 1 | PIECE DE RETENUE | B1 | |
||
| 49 | 391436-00 | 2 | RESSORT | B1 | |
||
| 50 | 093128-00 | 1 | ROULEMENT A AIGUILLES | B1 | |
||
| 63 | 176834-00 | 1 | LEAD BLUE | B1 | |||
| 64 | 176893-00 | 1 | LEAD BLACK | B1 | |||
| 201 | 176846-04 | 2 | BRUSH 120V | B1 | |
||
| 800 | 761995-01 | 1 | GRAISSE | 180 Grams | 6 OZ | CVJ GREASE | B1 | |
| 801 | 283484-01 | 1 | GRAISSE | 32oz, EXXON CVJ | B1 | ||
| 802 | N017298 | 1 | GRAISSE | G-2008 Molykote | 1-LB | B1 | |
