P7801 DIE GRINDER Type 1 | Ritningar
Dokument

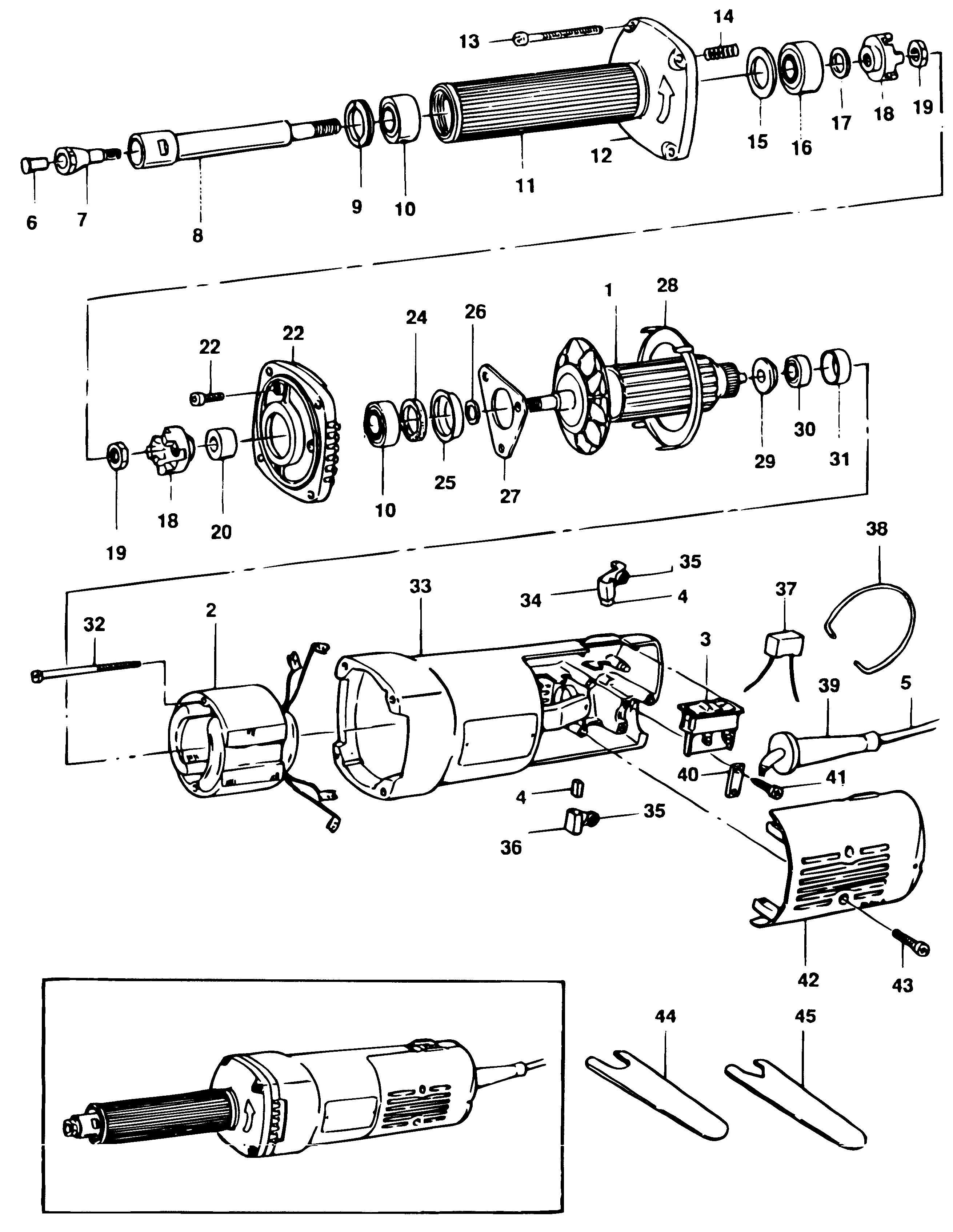

Parts List
Visa rullgardinsmenyn då vissa produkter kan ha flera olika ritningar
Utskriftsvänlig
Visa hel sida
| Item No. | Product Number | Antal per | Product Description | Beskrivning | Annan info | Varumärken | Product Status | Riktpris |
|---|---|---|---|---|---|---|---|---|
| 1 | 938624 | 1 | ARMATURE | BR 115V | SE |  |
1224.98 SEK | |
| 1 | 938624 | 1 | ARMATURE | SG 115V | SE | |
1224.98 SEK | |
| 1 | 938624 | 1 | ARMATURE | GB 115V | SE | |
1224.98 SEK | |
| 1 | 938624 | 1 | ARMATURE | AE 115V | SE | |
1224.98 SEK | |
| 1 | 938624 | 1 | ARMATURE | CO-MX-PA-VE 120V | SE | |
1224.98 SEK | |
| 1 | 868600-00 | 1 | ARMATURE | GB 240V | SE | |
1634.80 SEK | |
| 1 | 868600-00 | 1 | ARMATURE | SE | |
1634.80 SEK | ||
| 2 | 938658 | 1 | FIELD | GB 240V | SE | |
1316.49 SEK | |
| 2 | 938654 | 1 | FIELD | SE | ||||
| 2 | 938655-00 | 1 | FIELD | BR 115V | SE | |
1210.73 SEK | |
| 2 | 938655-00 | 1 | FIELD | SG 115V | SE | |
1210.73 SEK | |
| 2 | 938655-00 | 1 | FIELD | AE 115V | SE | |
1210.73 SEK | |
| 2 | 938655-00 | 1 | FIELD | CO-MX-PA-VE 120V | SE | |
1210.73 SEK | |
| 3 | 937689 | 1 | SWITCH | SE | |
105.21 SEK | ||
| 4 | 937690-00 | 2 | BRUSH | GB 240V | SE | |
17.34 SEK | |
| 4 | 937690-00 | 2 | BRUSH | SE | |
17.34 SEK | ||
| 4 | 938572 | 2 | BRUSH | BR 115V | SE | |
40.07 SEK | |
| 4 | 938572 | 2 | BRUSH | SG 115V | SE | |
40.07 SEK | |
| 4 | 938572 | 2 | BRUSH | GB 115V | SE | |
40.07 SEK | |
| 4 | 938572 | 2 | BRUSH | AE 115V | SE | |
40.07 SEK | |
| 4 | 938572 | 2 | BRUSH | CO-MX-PA-VE 120V | SE | |
40.07 SEK | |
| 5 | 937139 | 1 | CABLE | BR 115V | SE | |
192.64 SEK | |
| 5 | 330061-07 | 1 | CABLE SA | GB 115V | SE | |||
| 5 | 949843-03 | 1 | CABLE | SG 115V | SE | |
165.69 SEK | |
| 5 | 949843-03 | 1 | CABLE | AE 115V | SE | |
165.69 SEK | |
| 5 | 949843-03 | 1 | CABLE | CO-MX-PA-VE 120V | SE | |
165.69 SEK | |
| 5 | 949843-03 | 1 | CABLE | SE | |
165.69 SEK | ||
| 5 | 949770-06 | 1 | CABLE & PLUG | GB 240V | SE | |
364.42 SEK | |
| 6 | 938614 | 1 | NUT | GB 240V | SE | |
17.34 SEK | |
| 6 | 938614 | 1 | NUT | SG 115V | SE | |
17.34 SEK | |
| 6 | 938614 | 1 | NUT | GB 115V | SE | |
17.34 SEK | |
| 6 | 938614 | 1 | NUT | AE 115V | SE | |
17.34 SEK | |
| 6 | 938614 | 1 | NUT | SE | |
17.34 SEK | ||
| 7 | 938615 | 1 | COLLET 6MM | GB 240V | SE | |
402.04 SEK | |
| 7 | 938615 | 1 | COLLET 6MM | SG 115V | SE | |
402.04 SEK | |
| 7 | 938615 | 1 | COLLET 6MM | GB 115V | SE | |
402.04 SEK | |
| 7 | 938615 | 1 | COLLET 6MM | AE 115V | SE | |
402.04 SEK | |
| 7 | 938615 | 1 | COLLET 6MM | SE | |
402.04 SEK | ||
| 8 | 935804-01 | 1 | SPINDLE | SE | |
1131.01 SEK | ||
| 9 | 935811-01 | 1 | NUT | SE | |
83.23 SEK | ||
| 10 | 949719-16 | 2 | BEARING | SE | |
83.23 SEK | ||
| 11 | 935812-00 | 1 | CONNECTOR | SE | |
67.94 SEK | ||
| 12 | 935808-01 | 1 | GEARCASE | SE | |
897.19 SEK | ||
| 13 | 934512 | 4 | SCREW | SE | |
19.00 SEK | ||
| 14 | 935805 | 3 | SPRING | SE | |
19.00 SEK | ||
| 15 | 935813 | 1 | WASHER | SE | |
17.34 SEK | ||
| 16 | 577745-00 | 2 | BEARING | SE |  |
83.23 SEK | ||
| 17 | 940246 | 1 | WASHER | SE | |
19.00 SEK | ||
| 18 | 935807 | 2 | COUPLING | SE | |
17.34 SEK | ||
| 19 | 935815 | 2 | WASHER | SE | |
17.34 SEK | ||
| 20 | 938616 | 1 | SPACER | SE | |
30.66 SEK | ||
| 21 | 930224-00 | 3 | SCREW | SE | |
19.00 SEK | ||
| 22 | 935809-00 | 1 | GEARCASE COVER | SE | |
255.86 SEK | ||
| 24 | 938618 | 1 | FELT | SE | |
19.00 SEK | ||
| 25 | 938620 | 1 | COVER | SE | ||||
| 26 | 938617 | 1 | SPACER | SE | |
19.00 SEK | ||
| 27 | 938621 | 1 | FLANGE | SE | ||||
| 28 | 933516 | 1 | BAFFLE | SE | |
19.00 SEK | ||
| 29 | 934412 | 1 | SPACER | SE | |
19.00 SEK | ||
| 30 | 330003-02 | 1 | BEARING | SE | |
67.94 SEK | ||
| 31 | 930029-00 | 1 | HOLDER BEARING | SE | |
19.00 SEK | ||
| 32 | 934429 | 2 | SCREW | SE | |
67.94 SEK | ||
| 33 | 937687-00 | 1 | FIELDCASE | SE | ||||
| 34 | 937693 | 1 | PLATE | SE | |
19.00 SEK | ||
| 35 | 934859 | 2 | SPRING | SE | |
19.00 SEK | ||
| 36 | 937694 | 1 | BRUSH HOLDER | SE | |
17.34 SEK | ||
| 37 | 949877-01 | 1 | CAPACITOR | GB 240V | SE | |
40.07 SEK | |
| 37 | 949877-01 | 1 | CAPACITOR | BR 115V | SE | |
40.07 SEK | |
| 37 | 949877-01 | 1 | CAPACITOR | GB 115V | SE | |
40.07 SEK | |
| 37 | 930030 | 1 | CAPACITOR | SE | |
17.34 SEK | ||
| 38 | 938629 | 1 | RING | BR 115V | SE | |||
| 38 | 938629 | 1 | RING | CO-MX-PA-VE 120V | SE | |||
| 39 | 949835-01 | 1 | PROTECTOR | SG 115V | SE | |
17.34 SEK | |
| 39 | 949835-01 | 1 | PROTECTOR | AE 115V | SE | |
17.34 SEK | |
| 39 | 949835-01 | 1 | PROTECTOR | CO-MX-PA-VE 120V | SE | |
17.34 SEK | |
| 39 | 933551-00 | 1 | PROTECTOR | SE | |
17.34 SEK | ||
| 39 | 933551-00 | 1 | PROTECTOR | GB 240V | SE | |
17.34 SEK | |
| 39 | 933551-00 | 1 | PROTECTOR | BR 115V | SE | |
17.34 SEK | |
| 39 | 933551-00 | 1 | PROTECTOR | GB 115V | SE | |
17.34 SEK | |
| 40 | 930103-00 | 1 | CORD CLAMP | SE | |
19.00 SEK | ||
| 41 | 930076-00 | 2 | SCREW | SE | |
19.00 SEK | ||
| 42 | 937691 | 1 | COVER | SE | |
67.94 SEK | ||
| 43 | 932409 | 3 | SCREW | SE | |
19.00 SEK | ||
| 44 | 938631 | 1 | SPANNER | SE | |
28.25 SEK | ||
| 45 | 938630 | 1 | WRENCH | SE | ||||
| 46 | 935810-00 | 1 | COLLET 6.35MM | PARTS NOT DRAWN | SE | |
364.42 SEK | |
| 47 | 935803 | 1 | NUT | PARTS NOT DRAWN | SE | |
17.34 SEK |
* Alla priser är rekommenderade listpriser exkl. moms och frakt. Dessa kan variera i marknaden. Vi förbehåller oss rätten att ändra priser och villkor utan förvarning.
