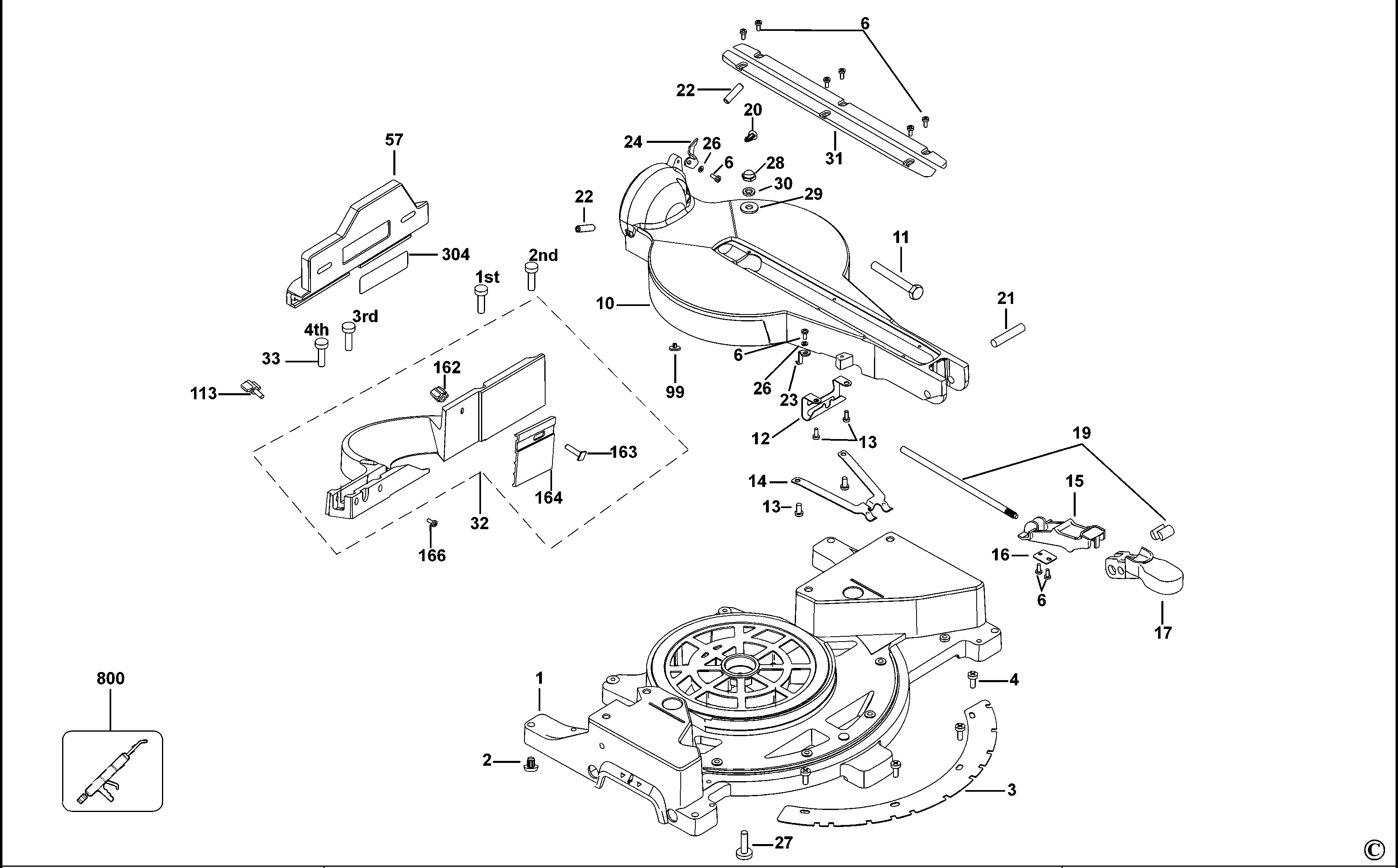

D27112 TABLE TOP MITRE SAW Type 1 | Drawings
Documents
Lista delov
Poglejte v spustni meni, ker imajo lahko nekateri izdelki več risb
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Vodilna cena |
|---|---|---|---|---|---|---|---|---|
| 1 | 869349-00 | 1 | BASE SA | QS | ||||
| 2 | 153612-00 | 4 | FOOT | QS | ||||
| 3 | N690033 | 1 | SCALE | QS | ||||
| 4 | 604987-00 | 4 | SCREW | QS | ||||
| 5 | N114229 | 1 | TABLE | QS | ||||
| 6 | 330045-05 | 10 | SCREW | QS | ||||
| 7 | 391358-01 | 1 | HOLDER | QS | ||||
| 8 | 860094-02 | 1 | SCREW | QS | ||||
| 9 | 860610-01 | 1 | PUSHROD | QS | ||||
| 10 | 869350-00 | 1 | TABLE SA | QS | ||||
| 11 | 638875-00 | 1 | BOLT | QS | ||||
| 12 | 397062-00 | 1 | PLATE | QS | ||||
| 13 | 330045-55 | 4 | SCREW | M5x55 MTL THD FMG | QS | |||
| 14 | 397070-00 | 1 | SPRING | QS | ||||
| 15 | 397073-00 | 1 | ACTUATOR | QS | ||||
| 16 | 397075-00 | 1 | CLAMP | QS | ||||
| 17 | 397065-00 | 1 | LEVER | QS | ||||
| 18 | 635045-00 | 1 | BRACKET | QS | ||||
| 19 | 629395-00 | 1 | LOCK SA | QS | ||||
| 20 | 638835-00 | 1 | COVER | QS | ||||
| 21 | 397063-00 | 1 | PIN | QS | ||||
| 22 | 153576-03 | 2 | SCREW | QS | ||||
| 23 | 397048-00 | 1 | POINTER | QS | ||||
| 24 | 397090-00 | 1 | POINTER | QS | ||||
| 25 | 330045-05 | 4 | SCREW | QS | ||||
| 26 | 249233-00 | 2 | WASHER | QS | ||||
| 27 | 860085-19 | 1 | SCREW | QS | ||||
| 28 | 860092-05 | 1 | NUT | QS | ||||
| 29 | 153781-00 | 2 | WASHER | QS | ||||
| 30 | 613270-00 | 1 | WASHER | QS | ||||
| 31 | N714363 | 2 | COVERPLATE | QS | ||||
| 32 | 641363-00 | 1 | FENCE SA | Inc 162,163,164 | QS | |||
| 33 | 330045-33 | 4 | SCREW | QS | ||||
| 34 | N102812 | 1 | GUARD KIT | QS | ||||
| 35 | 330045-32 | 2 | SCREW | M8x1.25x20 MTLTHDFMG | QS | |||
| 37 | 860083-04 | 2 | NUT | QS | ||||
| 38 | 637806-00 | 1 | FENCE | QS | ||||
| 39 | 637805-00 | 1 | PLATE | QS | ||||
| 40 | 634738-00 | 1 | BRACKET | QS | ||||
| 42 | 612008-00 | 1 | SCREW | QS | ||||
| 43 | 392948-00 | 1 | WASHER CLAMP | QS | ||||
| 44 | 605794-00 | 1 | LEVER LOCK | QS | ||||
| 45 | 860094-02 | 1 | SCREW | QS | ||||
| 47 | 605795-00 | 1 | CLEVIS PIN | QS | ||||
| 48 | 605796-00 | 1 | BRACKET | QS | ||||
| 49 | 636091-00 | 1 | SUPPORT | QS | ||||
| 50 | 153781-00 | 1 | WASHER | QS | ||||
| 52 | 860092-05 | 1 | NUT | QS | ||||
| 53 | 606362-01 | 1 | BUSHING | QS | ||||
| 54 | 941756-00 | 1 | KNOB | QS | ||||
| 55 | 385567-03 | 1 | KEY | TX30 6.0mm | QS | |||
| 56 | 860074-02 | 4 | WASHER | QS | ||||
| 57 | 640349-00 | 1 | FENCE | QS | ||||
| 58 | 637338-00 | 1 | LEVER LOCK | QS | ||||
| 59 | 860084-24 | 4 | SCREW | QS | ||||
| 60 | 150075-00 | 1 | SCREW | QS | ||||
| 61 | 330045-34 | 1 | SCREW | QS | ||||
| 62 | 949894-02 | 2 | SCREW | QS | ||||
| 63 | 637289-00 | 1 | SPRING | QS | ||||
| 64 | 637193-00 | 1 | LEVER | QS | ||||
| 65 | 153639-00 | 1 | SCREW | QS | ||||
| 66 | 949702-19 | 1 | SCREW | QS | ||||
| 67 | 647382-00 | 1 | ARM | QS | ||||
| 68 | 649653-00 | 1 | LOCKING PIN | QS | ||||
| 69 | 610722-00 | 1 | LABEL | QS | ||||
| 70 | N102812 | 1 | GUARD KIT | QS | ||||
| 71 | 385756-01 | 1 | BUSH | QS | ||||
| 72 | 330045-33 | 1 | SCREW | QS | ||||
| 73 | N186624 | 1 | INNER FLANGE SA | QS | ||||
| 74 | 696519-00 | 1 | RING | QS | ||||
| 75 | 391375-00 | 1 | BAFFLE FAN | QS | ||||
| 76 | 330003-13 | 1 | BEARING | QS | ||||
| 77 | 930098-00 | 1 | RETAINER | QS | ||||
| 78 | 869290-00 | 1 | ARMATURE 230V | QS | ||||
| 79 | N110359 | 1 | BEARING | QS | ||||
| 79 | N110359 | 1 | BEARING | QS | ||||
| 80 | 145312-00 | 1 | PLUG | QS | ||||
| 81 | 330019-19 | 2 | SCREW | QS | ||||
| 82 | 869045-00 | 1 | FIELD 230V | 2 Lead | QS | |||
| 83 | 654838-00 | 1 | BRUSH PLATE SA | QS | ||||
| 84 | 381028-08 | 2 | BRUSH & LEAD | QS | ||||
| 85 | 391317-00 | 1 | FIELDCASE | QS | ||||
| 86 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | QS | |||
| 87 | 330019-13 | 4 | SCREW | M4X19 T20 | QS | |||
| 88 | 391933-00 | 1 | END CAP | QS | ||||
| 89 | N121000 | 1 | HANDLE & COVER | QS | ||||
| 90 | 330019-13 | 6 | SCREW | M4X19 T20 | QS | |||
| 91 | 640985-00 | 1 | SWITCH | QS | ||||
| 92 | 868320-00 | 1 | COVER | QS | ||||
| 93 | 863259-00 | 1 | PROTECTOR | QS | ||||
| 94 | 326057-00 | 1 | TERMINAL BLOCK | QS | ||||
| 95 | 330120-00 | 1 | CORDSET (EURO) | QS | ||||
| 96 | 654791-00 | 1 | CAPACITOR 220V | QS | ||||
| 97 | 615851-00 | 1 | BUSHING | QS | ||||
| 99 | 640146-00 | 3 | PAD | QS | ||||
| 100 | N176002 | 1 | RAIL SA | QS | ||||
| 104 | 330022-08 | 1 | GRUB SCREW | QS | ||||
| 107 | 639554-00 | 2 | WASHER | QS | ||||
| 108 | 639383-00 | 1 | SPACER | QS | ||||
| 109 | 633290-04 | 1 | SPRING TORSION | QS | ||||
| 110 | 642980-00 | 1 | SPACER | QS | ||||
| 111 | 397128-00 | 1 | PIVOT SHAFT | QS | ||||
| 112 | 943030-00 | 2 | O RING | QS | ||||
| 113 | 147107-06 | 1 | KNOB | QS | ||||
| 114 | 606014-00 | 1 | SPRING | QS | ||||
| 115 | 330045-14 | 1 | SCREW | QS | ||||
| 116 | 397089-00 | 1 | NUT | QS | ||||
| 117 | 612008-00 | 1 | SCREW | QS | ||||
| 118 | 153781-00 | 1 | WASHER | QS | ||||
| 119 | 637807-00 | 1 | SCALE | QS | ||||
| 120 | 605798-00 | 1 | POINTER | QS | ||||
| 121 | 613270-00 | 1 | WASHER | QS | ||||
| 123 | 628591-00 | 1 | GUIDE | QS | ||||
| 126 | 397080-00 | 1 | HANDLE | QS | ||||
| 128 | 637334-00 | 1 | SCALE | QS | ||||
| 130 | 153586-00 | 2 | WASHER | QS | ||||
| 131 | 616001-00 | 2 | SCREW | QS | ||||
| 132 | 153576-00 | 1 | SCREW | QS | ||||
| 135 | 941756-00 | 1 | KNOB | QS | ||||
| 137 | 330045-15 | 3 | SCREW | QS | ||||
| 138 | 641845-00 | 1 | BRAND LABEL | QS | ||||
| 139 | 635047-00 | 1 | COVER | QS | ||||
| 140 | 637288-00 | 1 | SPRING | QS | ||||
| 141 | 625857-00 | 1 | SCREW.SPECIAL | QS | ||||
| 142 | 860094-05 | 2 | SCREW | QS | ||||
| 143 | 153639-00 | 1 | SCREW | QS | ||||
| 144 | 604728-00 | 2 | LOCKING RING | QS | ||||
| 145 | 146774-00 | 2 | ROLLER | QS | ||||
| 146 | 637998-00 | 1 | LOWER GUARD SA | QS | ||||
| 147 | 647776-00 | 1 | BLADE BOLT | M8 X 20 LH T40 | QS | |||
| 148 | 604765-00 | 1 | CLAMP OUTER | QS | ||||
| 149 | 616319-00 | 1 | WASHER INNER CLAMP | QS | ||||
| 150 | 861340-00 | 1 | NUT | QS | ||||
| 151 | 605040-51 | 1 | SPACER | QS | ||||
| 152 | 330024-49 | 1 | SCREW | QS | ||||
| 153 | 330045-23 | 1 | SCREW | QS | ||||
| 154 | 146740-02 | 2 | SLEEVE | QS | ||||
| 155 | 153639-00 | 5 | SCREW | QS | ||||
| 156 | 637192-00 | 1 | CAM | QS | ||||
| 157 | 629745-00 | 1 | CIRCLIP | QS | ||||
| 158 | 330045-05 | 1 | SCREW | QS | ||||
| 159 | 640503-00 | 1 | SPRING | QS | ||||
| 160 | 634726-00 | 1 | GUARD | QS | ||||
| 161 | 635046-00 | 1 | GUARD | QS | ||||
| 162 | 653947-00 | 1 | KNOB | QS | ||||
| 163 | 653948-00 | 1 | BOLT | QS | ||||
| 164 | 634736-00 | 1 | FENCE | QS | ||||
| 165 | 645156-00 | 1 | LABEL | QS | ||||
| 166 | 860094-02 | 1 | SCREW | QS | ||||
| 167 | 860491-01 | 1 | SPRING | QS | ||||
| 168 | 720929-00 | 1 | WING NUT | QS | ||||
| 169 | 931429-00 | 1 | WASHER | QS | ||||
| 170 | 720959-00 | 1 | WASHER | QS | ||||
| 171 | 931997-00 | 1 | SCREW | QS | ||||
| 172 | 862427-00 | 1 | KNOB | QS | ||||
| 173 | 634734-00 | 1 | BRACKET | QS | ||||
| 174 | 860094-02 | 1 | SCREW | QS | ||||
| 175 | 385567-04 | 1 | KEY | T40 | QS | |||
| 176 | 645746-00 | 2 | BUSHING | QS | ||||
| 198 | 652236-00 | 1 | LEAD BLACK | QS | ||||
| 200 | 869231-04 | 1 | FENCE SA | QS | ||||
| 210 | 860322-00 | 1 | CIRCLIP | QS | ||||
| 211 | 653767-00 | 1 | FELT | QS | ||||
| 212 | 393071-00 | 1 | PLATE | QS | ||||
| 213 | 860094-02 | 1 | SCREW | QS | ||||
| 214 | 650829-00 | 1 | PLATE | QS | ||||
| 215 | 860073-07 | 1 | WASHER M6 | QS | ||||
| 216 | 868082-00 | 1 | SPRING | QS | ||||
| 217 | 650846-00 | 1 | LOCK PIN | QS | ||||
| 220 | 650828-00 | 1 | BRACKET | QS | ||||
| 225 | 651250-00 | 1 | HOLDER | QS | ||||
| 230 | 330045-14 | 3 | SCREW | QS | ||||
| 231 | 647385-00 | 1 | GEARCASE COVER | QS | ||||
| 232 | 616979-01 | 1 | O RING | 72.76 x 1.78 | QS | |||
| 233 | 330003-66 | 1 | BEARING,BALL | QS | ||||
| 234 | 860094-06 | 2 | SCREW | QS | ||||
| 235 | 869219-08 | 1 | SPINDLE & GEAR SA | QS | ||||
| 236 | 386780-00 | 1 | BEARING | QS | ||||
| 300 | N121000 | 1 | HANDLE & COVER | QS | ||||
| 300 | N121000 | 1 | HANDLE & COVER | QS | ||||
| 301 | 330045-05 | 1 | SCREW | QS | ||||
| 302 | 650889-00 | 1 | BUSHING | QS | ||||
| 303 | 397118-00 | 1 | GUIDE | QS | ||||
| 304 | 621135-00 | 1 | WARNING LABEL | QS | ||||
| 350 | 654313-00 | 1 | DUST PORT | QS | ||||
| 351 | 654787-00 | 1 | RETAINER | QS | ||||
| 352 | 330045-23 | 4 | SCREW | QS | ||||
| 356 | 860083-12 | 1 | NUT M6 | QS | ||||
| 357 | 654312-00 | 1 | SUPPORT | QS | ||||
| 358 | 607491-00 | 2 | RIVET | QS | ||||
| 359 | 330013-02 | 4 | SCREW | QS | ||||
| 360 | 650855-00 | 1 | FELT | QS | ||||
| 800 | 5140061-28 | 1 | GREASE | QS | ||||
| 801 | 93488-00 | 1 | GREASE | QS | ||||
| 821 | N049806 | 1 | RATING PLATE | QS |
