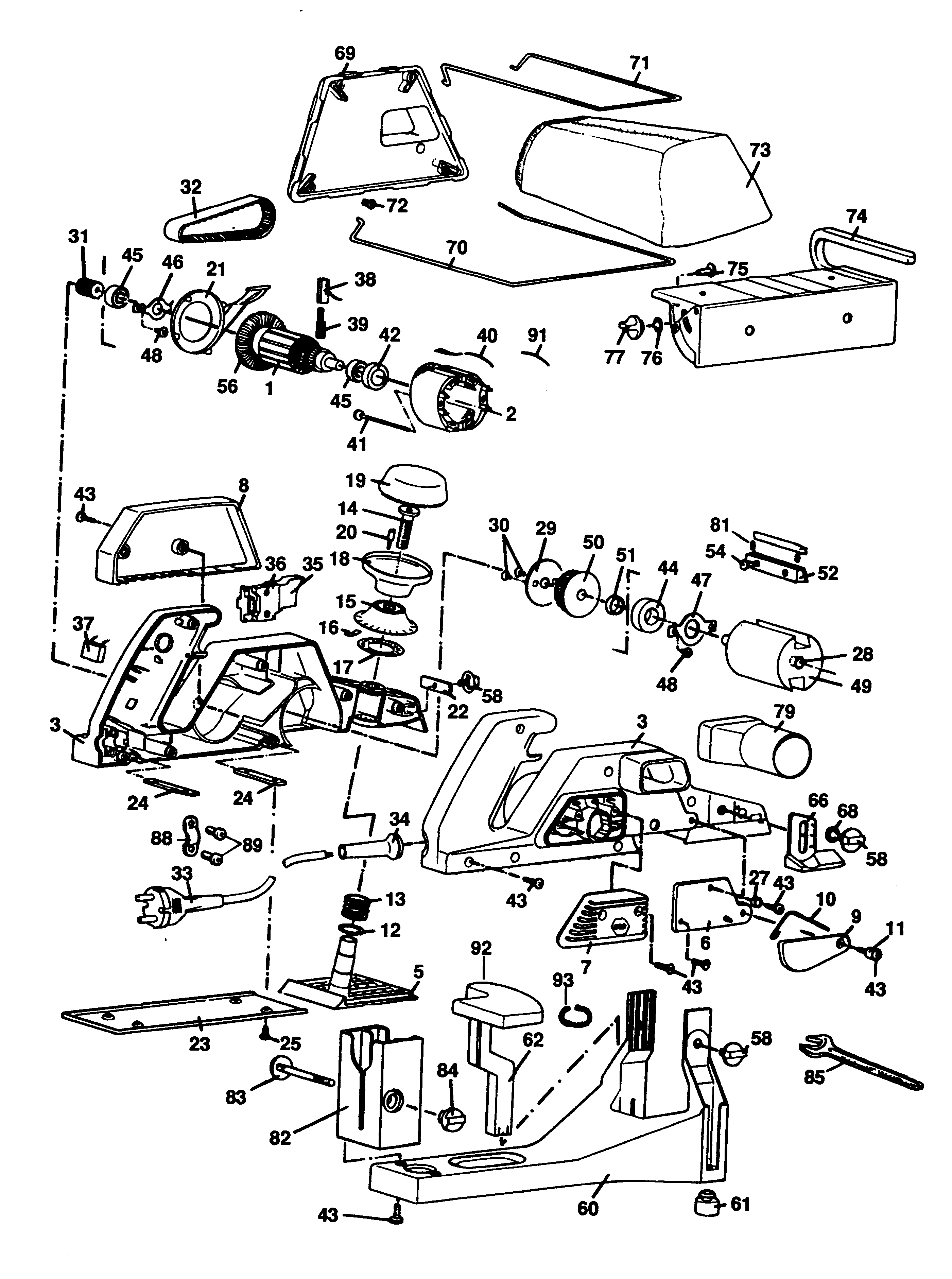

SR600K PLANER Type 1 | Drawings
Documents
Lista delov
Poglejte v spustni meni, ker imajo lahko nekateri izdelki več risb
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Vodilna cena |
|---|---|---|---|---|---|---|---|---|
| 2 | 879731 | 1 | FIELD | CH | ||||
| 3 | 320598 | 1 | HOUSING | CH | ||||
| 5 | 878174 | 1 | SHOE | CH | ||||
| 6 | 878215 | 1 | BRACKET | CH | ||||
| 7 | 322429 | 1 | COVER | CH | ||||
| 8 | 873550 | 1 | COVER BELT | CH | ||||
| 9 | 916974 | 1 | GUARD | CH | ||||
| 10 | 917368 | 1 | SPRING | CH | ||||
| 11 | 918481 | 1 | BUSH | CH | ||||
| 12 | 916950 | 1 | WASHER | CH | ||||
| 13 | 916951 | 1 | SPRING | CH | ||||
| 14 | 916952 | 1 | SCREW | CH | ||||
| 15 | 322427 | 1 | INSERT | CH | ||||
| 16 | 916954 | 2 | SPRING | CH | ||||
| 17 | 916955 | 1 | PLATE | CH | ||||
| 18 | 916956 | 1 | KNOB | CH | ||||
| 19 | 916957 | 1 | KNOB | CH | ||||
| 20 | 918482 | 2 | PIN | CH | ||||
| 21 | 372782 | 1 | BAFFLE FAN | CH | ||||
| 22 | 918405 | 1 | PLATE | CH | ||||
| 23 | 321050 | 1 | PLATE | CH | ||||
| 25 | 911216 | 4 | SCREW | CH | ||||
| 27 | 917140 | 1 | BUSH | CH | ||||
| 28 | 330004-04 | 1 | BEARING NEEDLE | CH | ||||
| 29 | 321564 | 1 | PLATE | CH | ||||
| 30 | 911246 | 2 | SCREW | CH | ||||
| 31 | 916967 | 1 | PULLEY | CH | ||||
| 32 | 914592 | 1 | BELT | CH | ||||
| 33 | 874308 | 1 | CORDSET | CH | ||||
| 34 | 916968 | 1 | CORD PROTECTOR | CH | ||||
| 35 | 322002 | 1 | SWITCH | CH | ||||
| 37 | 321384 | 1 | CAPACITOR | CH | ||||
| 38 | 877898 | 2 | BRUSH HOLDER | CH | ||||
| 39 | 915068-01 | 2 | BRUSH & SPRING | SINGULAR | CH | |||
| 40 | 878277 | 1 | LEAD 280MM | CH | ||||
| 41 | 911250 | 2 | SCREW.TEMP | CH | ||||
| 42 | 911897 | 1 | HOLDER | CH | ||||
| 43 | 911325 | 14 | SCREW | CH | ||||
| 44 | 915541 | 1 | BEARING | CH | ||||
| 45 | 330003-31 | 2 | BEARING | CH | ||||
| 46 | 916980 | 1 | PLATE | CH | ||||
| 47 | 916971 | 1 | PLATE | CH | ||||
| 48 | 911388 | 4 | SCREW | CH | ||||
| 49 | 872367 | 1 | BLADEDRUM | CH | ||||
| 50 | 913968 | 1 | PULLEY | CH | ||||
| 51 | 916758 | 1 | SPACER | CH | ||||
| 52 | 322725-49 | 2 | BLADE HOLDER | CH | ||||
| 54 | 322553 | 4 | SCREW.TEMP | CH | ||||
| 56 | 917752 | 1 | FAN | CH | ||||
| 58 | 322505 | 3 | NUT WING | CH | ||||
| 58 | 322505 | 4 | NUT WING | CH | ||||
| 60 | 917089 | 1 | STAND | SR600K | CH | |||
| 61 | 917086 | 3 | FOOT | SR600K | CH | |||
| 62 | 870599 | 1 | GUIDE | SR600K | CH | |||
| 66 | 916992 | 1 | GUIDE | SR600K | CH | |||
| 68 | 330016-02 | 1 | WASHER | SR600K | CH | |||
| 69 | 917239 | 1 | PLATE | SR600K | CH | |||
| 70 | 917240 | 1 | FRAME | SR600K | CH | |||
| 71 | 917241 | 1 | FRAME | SR600K | CH | |||
| 72 | 911059 | 4 | SCREW | SR600K | CH | |||
| 75 | 911353 | 2 | SCREW | SR600K | CH | |||
| 76 | 330016-07 | 2 | WASHER | SR600K | CH | |||
| 77 | 322078 | 2 | NUT WING | SR600K | CH | |||
| 79 | 917320 | 1 | ADAPTOR | CH | ||||
| 81 | 911391-01 | 4 | SCREW | CH | ||||
| 83 | 911488 | 1 | SCREW | SR600K | CH | |||
| 85 | 917132 | 1 | WRENCH | CH | ||||
| 88 | 910556 | 1 | CABLE CLAMP | CH | ||||
| 89 | 911059 | 2 | SCREW | CH | ||||
| 91 | 877358 | 1 | LEAD 220MM | CH | ||||
| 92 | 322436 | 1 | LEVER | SR600K | CH | |||
| 93 | 917322 | 1 | SPRING | SR600K | CH |
