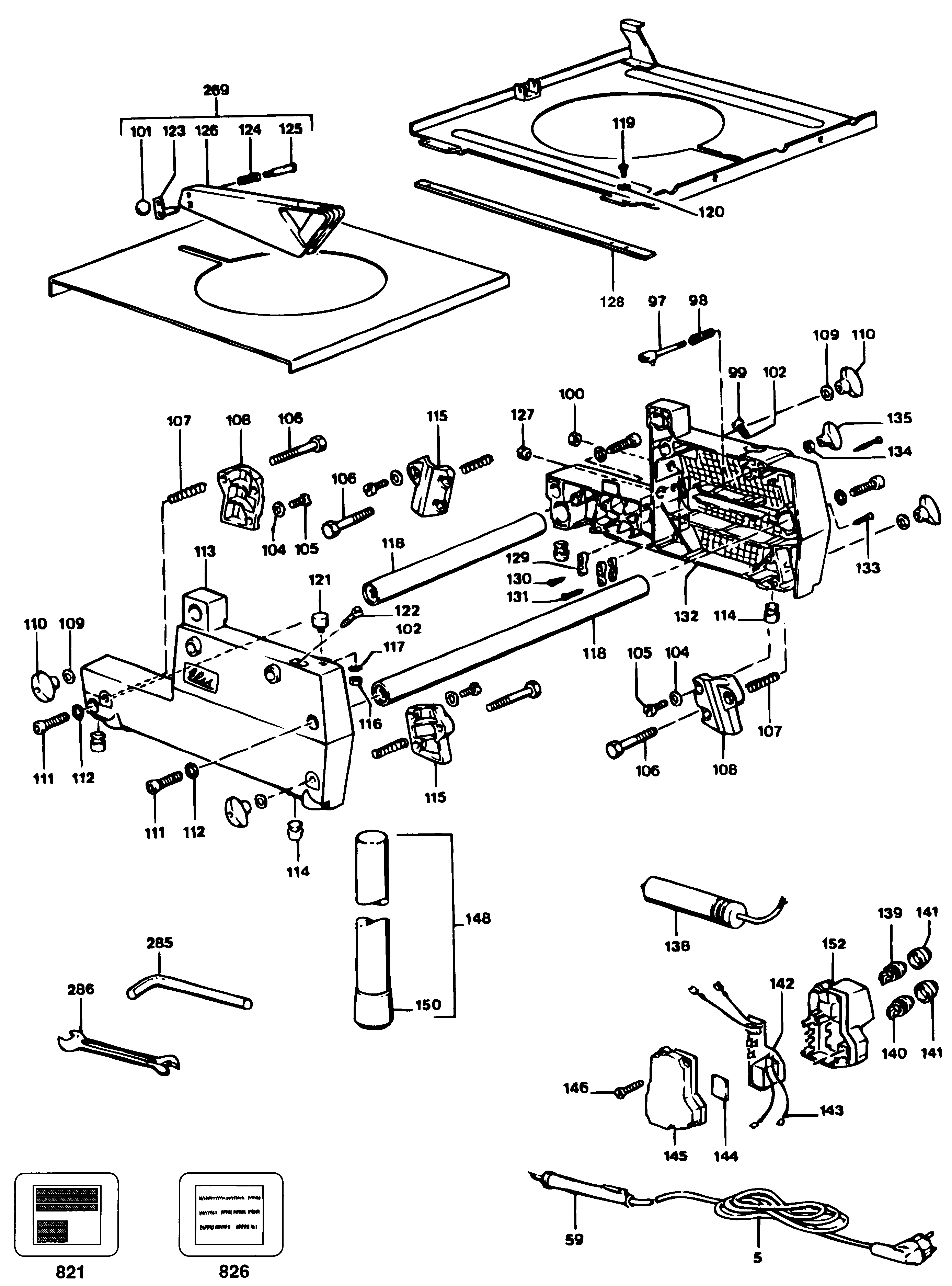

TGS171----H TABLE Type 1 | Drawings
Documents
Lista delov
Poglejte v spustni meni, ker imajo lahko nekateri izdelki več risb
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Vodilna cena |
|---|---|---|---|---|---|---|---|---|
| 5 | 860731-00 | 1 | CABLE | CH | ||||
| 5 | 860472-00 | 1 | CABLE SA | STANDARD | CH | |||
| 59 | 942277-00 | 1 | PROTECTOR | CH | ||||
| 96 | 860089-16 | 1 | SCREW | CH | ||||
| 97 | 942230-00 | 1 | SPINDLE SA | CH | ||||
| 98 | 761054-00 | 1 | SPRING | CH | ||||
| 99 | 860089-07 | 2 | SCREW.TEMP | CH | ||||
| 100 | 860083-15 | 1 | NUT | CH | ||||
| 102 | 861378-00 | 4 | SCREW | CH | ||||
| 104 | 720959-00 | 8 | WASHER | CH | ||||
| 105 | 941606-00 | 8 | SCREW | CH | ||||
| 106 | 942043-00 | 4 | SCREW | CH | ||||
| 107 | 761054-00 | 1 | SPRING | CH | ||||
| 108 | 171114301 | 2 | CLAMP RH | CH | ||||
| 109 | 860073-03 | 1 | WASHER M8 | CH | ||||
| 110 | 941756-00 | 4 | KNOB | CH | ||||
| 111 | 942447-00 | 4 | SCREW | CH | ||||
| 112 | 98197-08 | 4 | WASHER | CH | ||||
| 113 | 172110106 | 1 | COVER LH | CH | ||||
| 114 | 942375-00 | 2 | FOOT | M | CH | |||
| 114 | 941803-00 | 2 | FOOT | STANDARD | CH | |||
| 115 | 171114302 | 2 | CLAMP LH | CH | ||||
| 116 | 860083-14 | 1 | NUT | CH | ||||
| 117 | 860078-02 | 1 | WASHER | CH | ||||
| 118 | 071101800 | 1 | CROSS BRACE | CH | ||||
| 119 | 760998-00 | 4 | SCREW | CH | ||||
| 120 | 761035-00 | 4 | WASHER | CH | ||||
| 121 | 941614-00 | 1 | FOOT | CH | ||||
| 122 | 860089-16 | 2 | SCREW | CH | ||||
| 123 | 171112606 | 1 | PIN | CH | ||||
| 124 | 941622-00 | 1 | SPRING | CH | ||||
| 125 | 171112604 | 1 | PIN | CH | ||||
| 126 | N162669 | 1 | GUARD UPPER | CH | ||||
| 127 | 021161300 | 1 | GROMMET | CH | ||||
| 128 | 171116301 | 1 | GUIDE | CH | ||||
| 129 | 941544-00 | 4 | CABLE CLAMP | CH | ||||
| 130 | 860084-11 | 4 | SCREW | CH | ||||
| 131 | 860084-13 | 2 | SCREW | CH | ||||
| 133 | 860084-13 | 2 | SCREW | CH | ||||
| 134 | 949726-05 | 1 | NUT | CH | ||||
| 135 | 071921305 | 1 | KNOB | CH | ||||
| 138 | 942289-00 | 1 | CONDENSOR | CH | ||||
| 139 | 942418-00 | 1 | BUTTON | CH | ||||
| 140 | 942419-00 | 1 | BUTTON | CH | ||||
| 141 | 942415-00 | 2 | COVER | CH | ||||
| 142 | 942279-00 | 1 | PCB SA | CH | ||||
| 142 | 942279-01 | 1 | SWITCH RELAY 220V | CH | ||||
| 143 | 942279-01 | 1 | SWITCH RELAY 220V | CH | ||||
| 144 | 172163801 | 1 | PLATE | CH | ||||
| 145 | 172163501 | 1 | COVER | CH | ||||
| 146 | 949896-12 | 2 | SCREW | CH | ||||
| 148 | 869373-00 | 4 | FSO KIT | CH | ||||
| 148 | 869373-00 | 4 | FSO KIT | CH | ||||
| 150 | 941579-01 | 4 | FOOT | CH | ||||
| 152 | 172160101 | 1 | HOUSING SWITCH | CH | ||||
| 269 | N164678 | 1 | GUARD SA | CH | ||||
| 284 | 171106001 | 1 | SWITCH KIT | CH | ||||
| 285 | 860098-05 | 1 | HEX KEY 8 MM | CH | ||||
| 286 | 941580-00 | 1 | SPANNER 13-17MM | CH | ||||
| 821 | 172050303 | 1 | NAMEPLATE | CH | ||||
| 826 | 171050301 | 1 | LABEL | CH |
