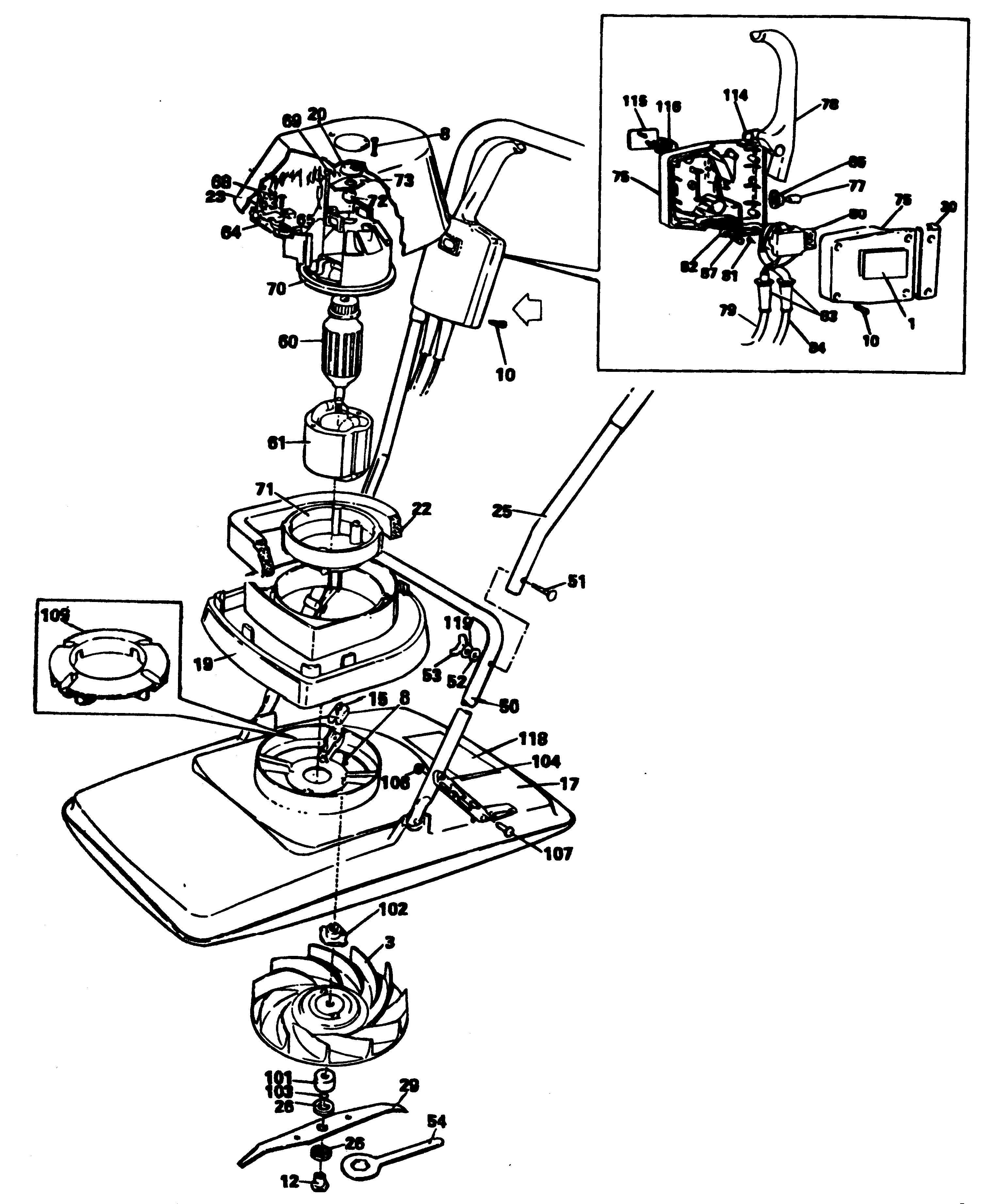

GX200 HOVER MOWER Type H1B | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 830803 | 1 | IMPELLOR | AE |  |
||
| 8 | 849256 | 7 | SCREW | AE | |
||
| 10 | 849256 | 6 | SCREW | AE | |
||
| 12 | 748760 | 1 | NUT | AE | |
||
| 15 | 854151 | 1 | CORD CLAMP | AE | |
||
| 17 | 844337 | 1 | CUTTER COVER | AE | |
||
| 19 | 844499 | 1 | COVER | AE | |
||
| 20 | 792987 | 1 | INDICATOR | AE | |
||
| 22 | 843669 | 1 | FILTER | AE | |
||
| 23 | 793961 | 1 | COVER & LABEL | AE | |
||
| 25 | 795625 | 1 | HANDLE UPPER | AE | |
||
| 26 | 792248 | 2 | SPACER | AE | |
||
| 29 | 368901 | 1 | BLADE 12" | AE | |
||
| 30 | 827131 | 1 | PLATE | AE | |
||
| 50 | 844490 | 1 | LOWER HANDLE | AE | |
||
| 51 | 830664 | 2 | BOLT | AE | |
||
| 52 | 830832 | 2 | WASHER M6 | AE | |
||
| 53 | 844565 | 2 | NUT WING | AE | |
||
| 54 | 844249 | 1 | SPANNER | AE | |
||
| 59 | 797834-02 | 1 | MOTOR SA | AE | |||
| 61 | 806164-01 | 1 | FIELD | GB GX250 | AE | |
|
| 61 | 806164-01 | 1 | FIELD | GB GX200 | AE | |
|
| 63 | 797059-01 | 2 | BRUSH | AE | |
||
| 64 | 797573-01 | 2 | BRUSHBOX SA | AE | |
||
| 68 | 894748 | 2 | O RING | AE | |
||
| 69 | 844217-02 | 2 | SCREW.SPECIAL | AE | |
||
| 70 | 745689 | 1 | YOKE SA | AE | |
||
| 71 | 854146 | 1 | MOUNT | AE | |
||
| 72 | 890075 | 1 | BEARING | AE | |
||
| 73 | 854155 | 1 | RETAINER | AE | |
||
| 77 | 827132 | 1 | ACTUATOR | GB GX250 | AE | |
|
| 77 | 827132 | 1 | ACTUATOR | GB GX200 | AE | |
|
| 77 | 827132 | 1 | ACTUATOR | AE | |
||
| 78 | 844583 | 1 | LEVER | AE | |
||
| 79 | 330048-53 | 1 | CORDSET (SPLASH) | GB GX250 | AE | |
|
| 79 | 330048-53 | 1 | CORDSET (SPLASH) | GB GX200 | AE | |
|
| 79 | 330048-04 | 1 | CORDSET (EURO) | AE | |
||
| 80 | 795780 | 1 | SWITCH | GB GX250 | AE | |
|
| 80 | 794164 | 1 | SWITCH | GB GX200 | AE | |
|
| 80 | 853325 | 1 | SWITCH CUT OUT SA | AE | |
||
| 81 | 854053 | 3 | SCREW | AE | |
||
| 81 | 990735 | 2 | SCREW | GB GX250 | AE | |
|
| 81 | 990735 | 2 | SCREW | GB GX200 | AE | |
|
| 82 | 827140 | 1 | CABLE CLAMP | AE | |
||
| 83 | 770235 | 2 | PROTECTOR | AE |  |
||
| 84 | 844608 | 1 | CABLE SA | AE | |||
| 84 | 797799 | 1 | CABLE SA | GB GX250 | AE | |
|
| 85 | 851901 | 1 | SEAL | AE | |
||
| 87 | 810269 | 3 | SCREW | AE | |
||
| 101 | 842780 | 1 | INSULATOR | AE | |
||
| 102 | 843849 | 1 | MOUNT | AE | |
||
| 103 | 845785 | 1 | RETAINER | AE | |
||
| 104 | 839047 | 1 | STAY | AE | |
||
| 105 | 844746 | 1 | WARNING LABEL | AE | |||
| 106 | 821533 | 1 | WASHER LOCK | AE | |
||
| 107 | 844342 | 1 | PIN | AE | |
||
| 109 | 841572 | 1 | DEFLECTOR | AE | |
||
| 111 | 915859 | 2 | CLIP CABLE | AE | |||
| 112 | 844840 | 1 | COUPLER (SPLASH) | GB GX250 | AE | |
|
| 112 | 844840 | 1 | COUPLER (SPLASH) | GB GX200 | AE | |
|
| 114 | 827135 | 1 | SPRING | AE | |
||
| 115 | 746031 | 1 | BUTTON LOCK-OFF | AE | |
||
| 116 | 827137 | 1 | SPRING | AE | |
||
| 118 | 844492 | 1 | LABEL | AE | |
||
| 119 | 844568 | 2 | WASHER M6 | AE | |
