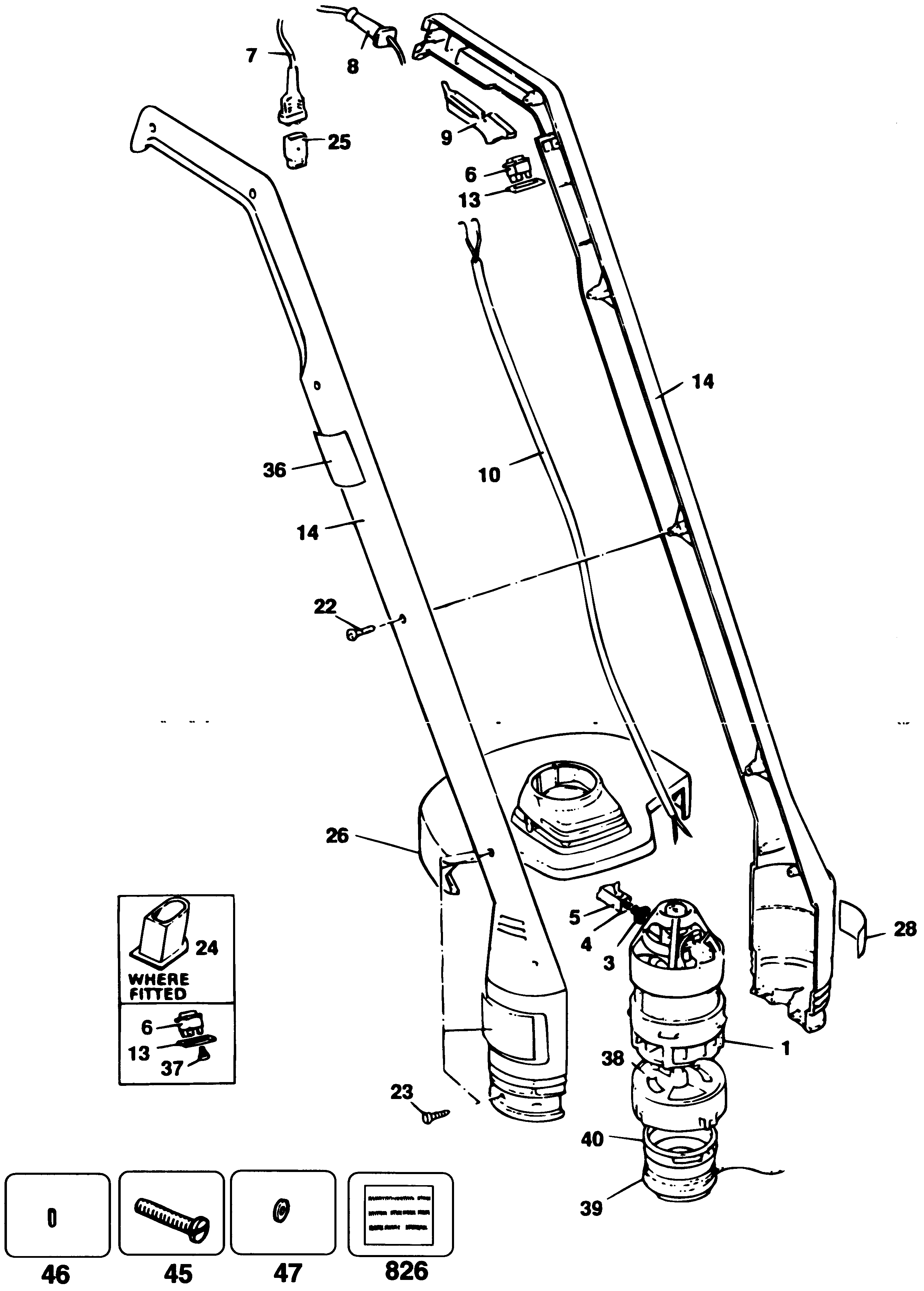

GL120 STRING TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 372523 | 2 | BRUSH | ZA |  |
||
| 4 | 847709 | 2 | SPRING | ZA | |
||
| 5 | 846076 | 2 | BRUSHBOX | ZA | |
||
| 7 | 746528 | 1 | CORDSET | ZA | |||
| 8 | 890184 | 1 | CORD PROTECTOR | ZA | |
||
| 9 | 810997 | 1 | LEVER | ZA | |
||
| 14 | 746120 | 1 | CLAMSHELL GREEN | ZA | |
||
| 22 | 849256 | 9 | SCREW | ZA | |
||
| 23 | 894748 | 1 | O RING | ZA | |
||
| 24 | 746121 | 1 | CHIMNEY | ZA | |||
| 26 | 746373 | 1 | GUARD 10" GREEN | ZA | |
||
| 37 | 814709 | 2 | SCREW | ZA | |
||
| 38 | 827759 | 1 | SPOOL CARRIER | ZA | |
||
| 39 | 576576-01 | 1 | SPOOL SA | ZA |  |
||
| 40 | 795506 | 1 | RETAINER | PARTS NOT DRAWN | ZA | |
|
| 60 | 811226 | 1 | FENCE | PARTS NOT DRAWN | ZA | |
