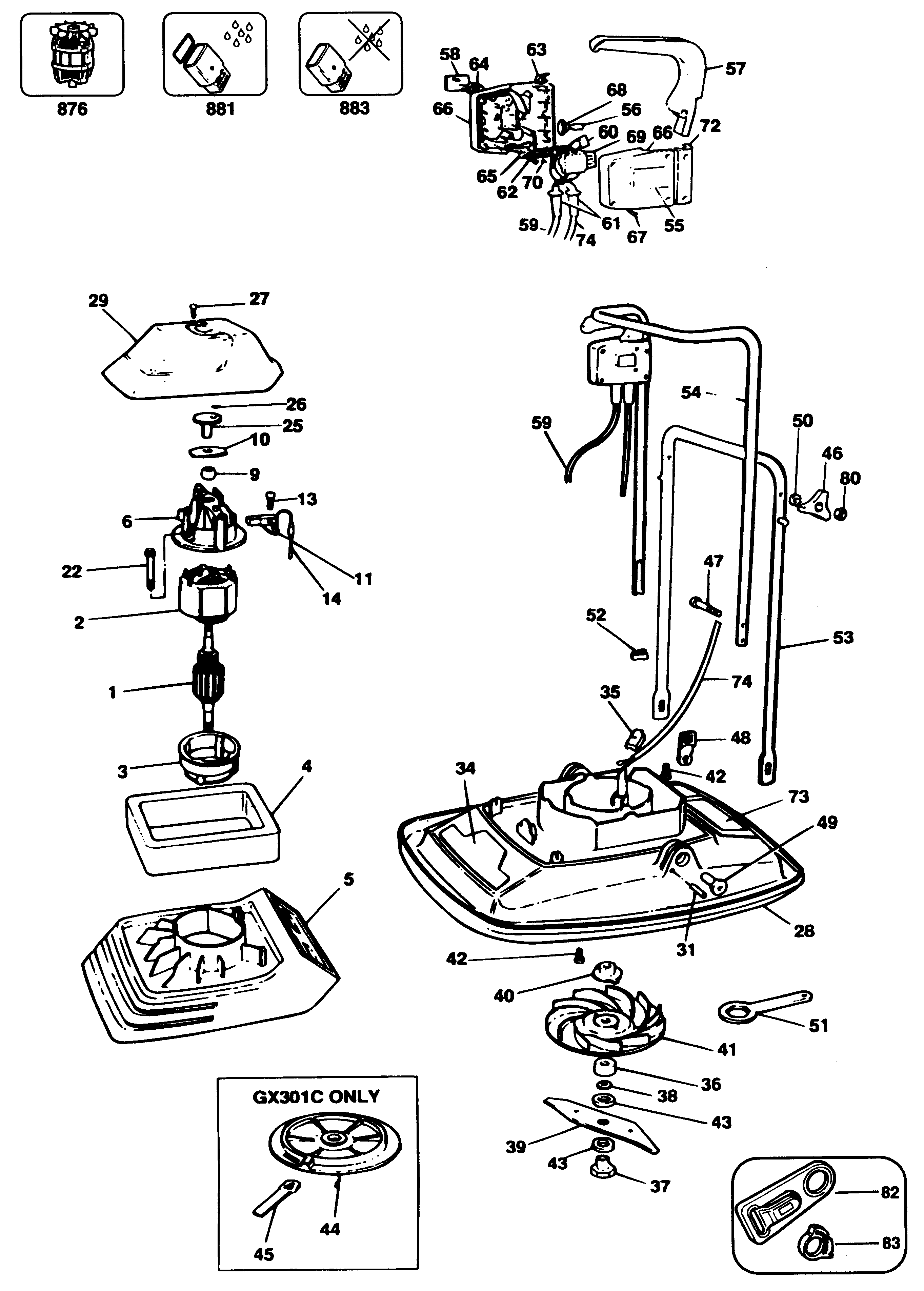

GX300 HOVER MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 830769-49 | 1 | ARMATURE | GB |  |
||
| 2 | 748242-49 | 1 | FIELD 240V | GB | |
||
| 3 | 854146 | 1 | MOUNT | GB | |
||
| 4 | 830666 | 1 | FILTER | GB | |
||
| 6 | 745689 | 1 | YOKE SA | GB | |
||
| 9 | 890075 | 1 | BEARING | GB | |
||
| 10 | 854155 | 1 | RETAINER | GB | |
||
| 11 | 843619 | 2 | BRUSH HOLDER | GB | |
||
| 12 | 839052 | 2 | BRUSH | GB | |
||
| 13 | 894748 | 2 | O RING | GB | |
||
| 14 | 854930 | 2 | CHOKE SA | GB | |
||
| 22 | 844217-02 | 2 | SCREW.SPECIAL | GB | |
||
| 26 | 830790 | 1 | LABEL | GB | |
||
| 27 | 849256 | 2 | SCREW | GB | |
||
| 31 | 830768 | 2 | SPIROL PIN | GB | |
||
| 34 | 830759 | 1 | BRAND LABEL | GX300 | GB | |
|
| 34 | 830755 | 1 | BRAND LABEL | GX301C | GB | ||
| 35 | 854151 | 1 | CORD CLAMP | GB | |
||
| 36 | 842780 | 1 | INSULATOR | GB | |
||
| 37 | 748760 | 1 | NUT | GB | |
||
| 38 | 845785 | 1 | RETAINER | GB | |
||
| 39 | 368901 | 1 | BLADE 12" | GB | |
||
| 40 | 843849 | 1 | MOUNT | GB | |
||
| 41 | 830803 | 1 | IMPELLOR | GB | |
||
| 42 | 849256 | 7 | SCREW | GB | |
||
| 43 | 792248 | 2 | SPACER | GB | |
||
| 45 | 794588-02 | 1 | BLADE PLASTIC | GX301C | GB | |
|
| 46 | 830657 | 2 | NUT WING | GB | |
||
| 47 | 830664 | 2 | BOLT | GB | |
||
| 48 | 830771 | 2 | RETAINER | GB | |
||
| 49 | 830773 | 2 | PIN | GB | |
||
| 50 | 830832 | 2 | WASHER M6 | GB | |
||
| 51 | 844249 | 1 | SPANNER | GB | |
||
| 52 | 915859 | 1 | CLIP CABLE | GB | |||
| 54 | 795622 | 1 | HANDLE UPPER | GB | |
||
| 56 | 827132 | 1 | ACTUATOR | GB | |
||
| 57 | 746030 | 1 | LEVER | GB | |
||
| 58 | 746031 | 1 | BUTTON LOCK-OFF | GB | |
||
| 59 | 330048-53 | 1 | CORDSET (SPLASH) | GB | |
||
| 60 | 807285-06 | 1 | CAPACITOR | GB | |
||
| 61 | 770235 | 2 | PROTECTOR | GB |  |
||
| 62 | 810269 | 3 | SCREW | GB | |
||
| 63 | 827135 | 1 | SPRING | GB | |
||
| 64 | 827137 | 1 | SPRING | GB | |
||
| 65 | 827140 | 1 | CABLE CLAMP | GB | |
||
| 67 | 809961 | 6 | SCREW | GB | |||
| 68 | 851901 | 1 | SEAL | GB | |
||
| 69 | 794164 | 1 | SWITCH | GB | |
||
| 70 | 990735 | 2 | SCREW | GB | |
||
| 72 | 827131 | 1 | PLATE | GB | |
||
| 73 | 830789 | 1 | WARNING LABEL | GB | |
||
| 74 | 747050 | 1 | CABLE | GB | |
||
| 75 | 844840 | 1 | COUPLER (SPLASH) | GB | |
||
| 80 | 830762 | 2 | NUT | GB | |
