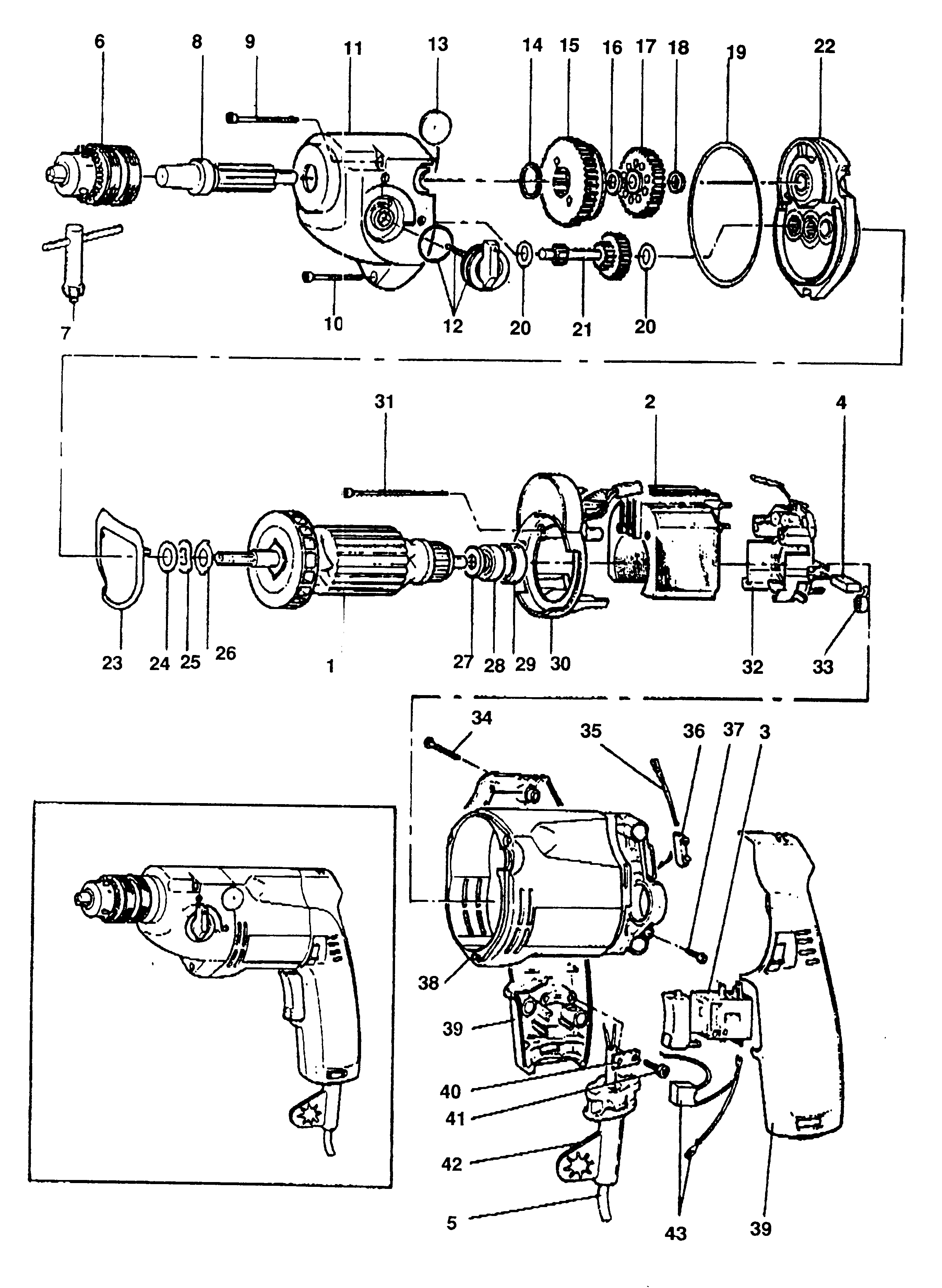

ECD308 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 936825 | 1 | ARMATURE | GB 115V | AE |  |
|
| 1 | 936825 | 1 | ARMATURE | AE 115V | AE | |
|
| 1 | 936395 | 1 | ARMATURE | GB 240V | AE | |
|
| 1 | 936395 | 1 | ARMATURE | AE | |
||
| 2 | 932154 | 1 | FIELD | AE | |
||
| 2 | 932153 | 1 | FIELD | GB 115V | AE | |
|
| 2 | 932153 | 1 | FIELD | AE 115V | AE | |
|
| 2 | 932155 | 1 | FIELD 240V | GB 240V | AE | |
|
| 4 | 932047 | 2 | BRUSH | GB 115V | AE | |
|
| 4 | 932047 | 2 | BRUSH | AE 115V | AE | |
|
| 4 | 931235-00 | 2 | BRUSH 230V | GB 240V | AE | |
|
| 4 | 931235-00 | 2 | BRUSH 230V | AE | |
||
| 5 | 330061-07 | 1 | CABLE SA | GB 240V | AE | ||
| 5 | 949843-04 | 1 | CABLE | AE 115V | AE | |
|
| 5 | 949843-04 | 1 | CABLE | AE | |
||
| 5 | 330061-04 | 1 | CORDSET (M/PLUG) | GB 115V | AE | |
|
| 6 | 930628 | 1 | CHUCK | AE | |
||
| 7 | 330034-07 | 1 | CHUCK KEY | AE |  |
||
| 8 | 931400 | 1 | CHUCK & SPINDLE | AE | |
||
| 9 | 931298 | 2 | SCREW | AE | |
||
| 10 | 931297-00 | 1 | SCREW | AE | |
||
| 11 | 935691 | 1 | GEARCASE SA | AE | |
||
| 12 | 936416 | 1 | LEVER SA | AE | |
||
| 14 | 930098-00 | 1 | RETAINER | AE | |
||
| 15 | 931803 | 1 | GEAR SA | AE | |
||
| 16 | 931892-00 | 1 | WASHER | AE | |
||
| 17 | 931802 | 1 | GEAR | AE | |
||
| 18 | 931395 | 1 | SPACER | AE | |
||
| 19 | 931286 | 1 | SEAL | AE | |
||
| 20 | 930102-00 | 2 | WASHER | AE | |
||
| 21 | 936822 | 1 | GEAR & PINION | AE | |
||
| 22 | 935689 | 1 | GEARCASE COVER | AE | |
||
| 23 | 935678 | 1 | SPRING | AE | |
||
| 24 | 931250 | 1 | WASHER | AE | |
||
| 25 | 931249 | 1 | WASHER | AE | |
||
| 26 | 934951 | 1 | WASHER SPECIAL | AE | |
||
| 27 | 931245 | 1 | SPACER | AE | |
||
| 28 | 330003-02 | 1 | BEARING | AE | |
||
| 29 | 930275-00 | 1 | SLEEVE | AE | |
||
| 30 | 931279 | 1 | ELECTRONIC 240V | GB 240V | AE | |
|
| 30 | 931279 | 1 | ELECTRONIC 240V | AE | |
||
| 30 | 931280 | 1 | ELECTRONIC 115V | GB 115V | AE | |
|
| 30 | 931280 | 1 | ELECTRONIC 115V | AE 115V | AE | |
|
| 31 | 933541 | 2 | SCREW | AE | |
||
| 32 | 931231-00 | 1 | BRUSH HOLDER SA | GB 240V | AE | |
|
| 32 | 931231-00 | 1 | BRUSH HOLDER SA | AE | |
||
| 32 | 931231-01 | 1 | BRUSHBOX SA | GB 115V | AE | |
|
| 32 | 931231-01 | 1 | BRUSHBOX SA | AE 115V | AE | |
|
| 33 | 931221-00 | 2 | SPRING | AE | |
||
| 34 | 930079-01 | 4 | SCREW | AE | |
||
| 35 | 931303 | 1 | LEAD | AE | |
||
| 36 | 930187 | 1 | CONNECTOR | AE | |
||
| 37 | 931254-00 | 1 | SCREW | AE | |
||
| 38 | 933945 | 1 | FIELDCASE | AE | |
||
| 39 | 936409 | 1 | HANDLE SA | AE | |
||
| 40 | 930103-00 | 1 | CORD CLAMP | AE | |
||
| 41 | 930276 | 2 | SCREW | AE | |
||
| 42 | 938498 | 1 | CORD PROTECTOR | AE 115V | AE | |
|
| 42 | 938498 | 1 | CORD PROTECTOR | AE | |
||
| 42 | 732456 | 1 | CORD PROTECTOR | GB 240V | AE | |
|
| 42 | 732456 | 1 | CORD PROTECTOR | GB 115V | AE | |
|
| 43 | 931300-00 | 1 | CAPACITOR SA | AE | |
