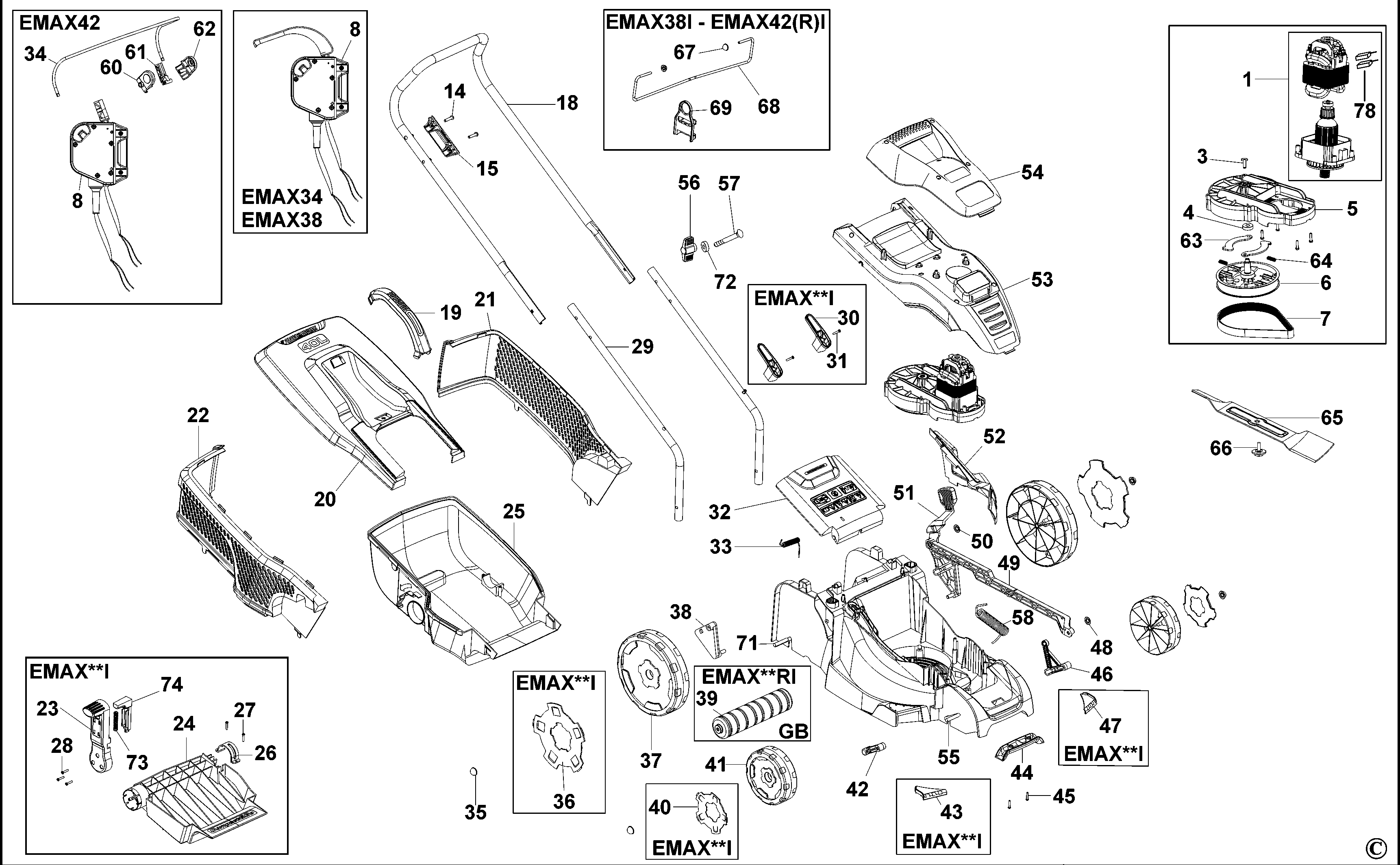

EMAX38 ROTARY MOWER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90565704-03 | 1 | MOTOR SA | B1 | |||
| 3 | 90639221 | 1 | BOLT | M5x8.5 LEFT-HAND | B1 |  |
|
| 4 | 574853-12 | 1 | BEARING | 9x24x7 - 609 2RS | B1 | |
|
| 4 | 574853-05 | 1 | WASHER | B1 | |
||
| 5 | 90560309 | 1 | BRACKET | B1 | |
||
| 6 | 90560305 | 1 | PULLEY | B1 | |||
| 7 | 90560308 | 1 | BELT | B1 |  |
||
| 8 | 90577008-03 | 1 | SWITCHBOX & CABLE | Emax34s/38i | B1 | ||
| 14 | 747329 | 2 | SCREW | B1 | |
||
| 15 | 90563921-01 | 1 | BRACKET | B1 | |
||
| 18 | 90569080 | 1 | HANDLE UPPER | B1 | |
||
| 19 | 90567333 | 1 | HANDLE | B1 | |
||
| 20 | 90562894-01 | 1 | COVER | B1 | |||
| 21 | 90586295 | 1 | GRASSBOX LEFT | B1 | |||
| 22 | 90586296 | 1 | GRASSBOX RIGHT | B1 | |||
| 24 | 90569043 | 1 | TRAY | B1 | |||
| 25 | 90568884-01 | 1 | GRASSBOX | B1 | |
||
| 26 | 90567440 | 1 | CLAMP | B1 | |
||
| 27 | 747329 | 2 | SCREW | B1 | |
||
| 28 | 747329 | 3 | SCREW | B1 | |
||
| 29 | 90568475 | 2 | HANDLE | B1 | |||
| 30 | 90571019 | 2 | CLIP CABLE | B1 | |
||
| 31 | 90580712 | 2 | SCREW | B1 | |
||
| 32 | 90566704 | 1 | GRASSFLAP | B1 | |
||
| 33 | 90571059 | 1 | SPRING | B1 | |||
| 35 | 90574276 | 4 | WASHER LOCK | B1 | |
||
| 36 | 90567334 | 1 | COVER | B1 | |
||
| 37 | 90560300 | 2 | WHEEL | B1 | |
||
| 38 | 90561676-01 | 1 | BRACKET | B1 | |
||
| 39 | 90565682 | 1 | ROLLER | Emax38Ri | B1 | |
|
| 40 | 90567335 | 2 | COVER | B1 | |
||
| 41 | 90560001 | 2 | WHEEL | B1 | |
||
| 42 | 90561653 | 1 | BRACKET | B1 | |
||
| 43 | 90569293 | 1 | CAP | B1 | |
||
| 44 | 90567331 | 1 | HANDLE | B1 | |
||
| 45 | 747329 | 2 | SCREW | B1 | |
||
| 46 | 90561677 | 1 | BRACKET | B1 | |
||
| 47 | 90569292 | 1 | CAP | B1 | |
||
| 48 | 90579431 | 1 | WASHER LOCK | B1 | |
||
| 49 | 90562575 | 1 | LEVER | B1 | |
||
| 50 | 90579432 | 1 | WASHER LOCK | B1 | |
||
| 51 | 90567592-01 | 1 | LEVER | B1 | |||
| 52 | 90566707 | 1 | COVER | B1 | |
||
| 53 | 90563023 | 1 | COVER HOUSING | B1 | |
||
| 54 | 90563022 | 1 | HOUSING UPPER | B1 | |
||
| 55 | 90561651 | 1 | AXLE FRONT | B1 | |
||
| 56 | 90570279 | 2 | WING NUT | B1 | |||
| 57 | 90570805 | 2 | BOLT | B1 | |||
| 58 | 90569681 | 1 | SPRING | B1 | |
||
| 63 | 90561984 | 2 | PAD | B1 | |
||
| 64 | 90571573 | 2 | SPRING | B1 | |
||
| 65 | 90560645 | 1 | BLADE | 38CM | B1 | ||
| 66 | 90516533 | 1 | BOLT | B1 | |
||
| 67 | 90574274 | 2 | WASHER LOCK | B1 | |||
| 68 | 90580512 | 1 | GUIDE | B1 | |
||
| 69 | 90568882 | 1 | CLIP CABLE | B1 | |
||
| 71 | 90561605 | 1 | AXLE REAR | B1 | |
||
| 72 | 490624-00 | 2 | WASHER | B1 | |
||
| 73 | 90570095 | 1 | SPRING | B1 | |||
| 74 | 90567408 | 1 | LEVER | B1 | |||
| 78 | 90604379 | 1 | BRUSH PAIR | B1 |
