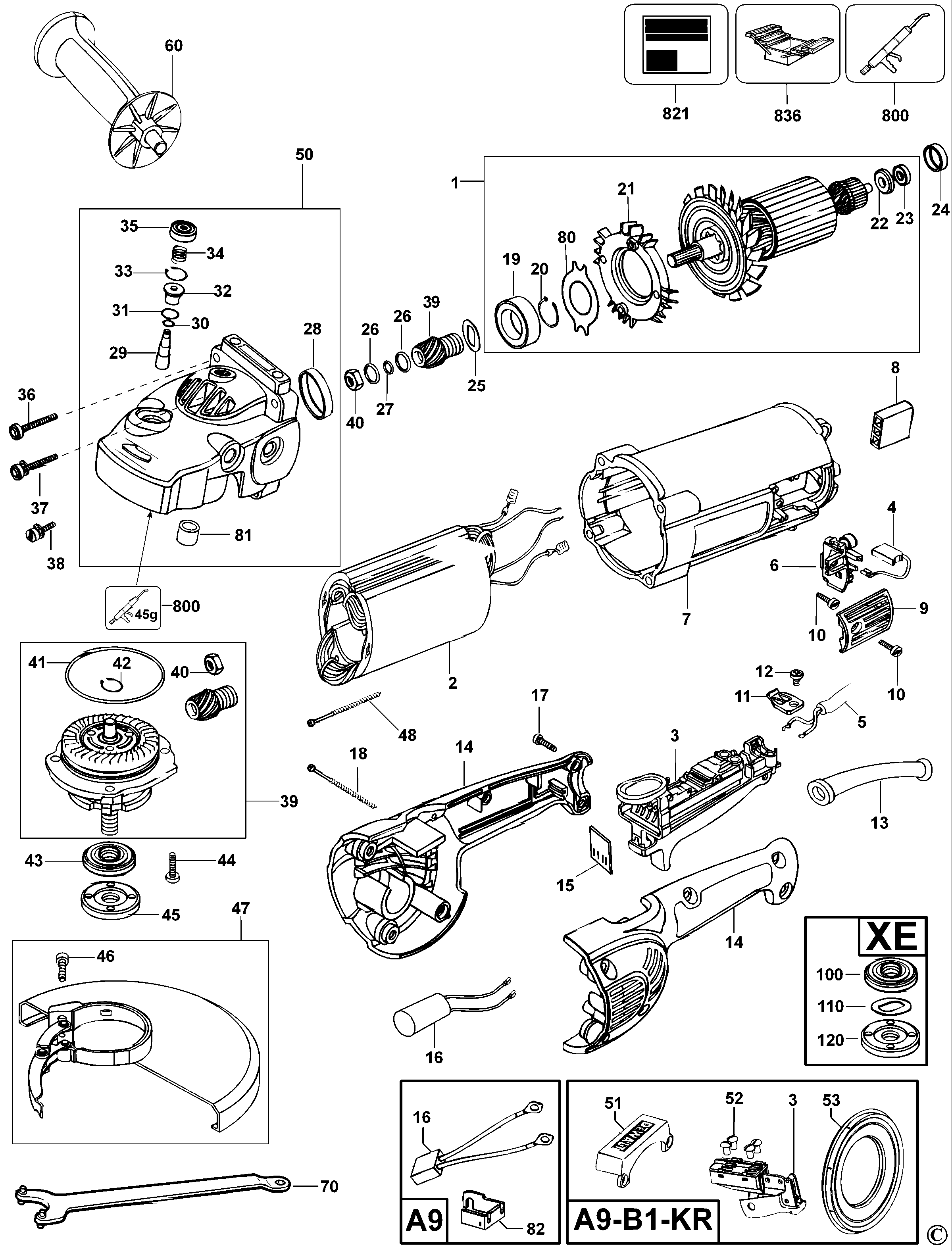

D28414 MEULEUSE D'ANGLE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 621864-10 | 1 | ARMATURE | B1 |  |
||
| 2 | 617004-06 | 1 | FIELD 230V | 230V | B1 | ||
| 3 | 394375-04 | 1 | S/E INTERRUPTEUR | B1 |  |
||
| 4 | N495294 | 1 | BRUSH KIT 230V | B1 | |||
| 5 | 330120-40 | 1 | CABLE | B1 | |
||
| 6 | 617001-00 | 2 | S/E PORTE-BALAIS | B1 | |
||
| 7 | 393239-00 | 1 | BOITIER DE CHAMP | B1 | |
||
| 9 | 394387-00 | 2 | CACHE BALAI | B1 | |
||
| 10 | 330019-11 | 4 | VIS | M4.55x13 T20 | B1 | |
|
| 11 | 604119-00 | 1 | COLLIER DE CORDON | B1 | |
||
| 12 | 330019-11 | 2 | VIS | M4.55x13 T20 | B1 | |
|
| 13 | 604118-00 | 1 | PROTECTEUR DE CORDON | B1 | |
||
| 14 | 395184-00 | 1 | S/E POIGNEE | B1 | |
||
| 17 | 330019-32 | 4 | VIS | B1 | |
||
| 18 | 330019-18 | 3 | VIS | M4.55 x 50 PLASTIC THD FMG | B1 | |
|
| 19 | 605040-27 | 1 | PALIER | B1 | |
||
| 20 | 398605-00 | 1 | PIECE DE RETENUE | B1 | |
||
| 21 | 614708-00 | 1 | ENTRETOISE | B1 | |
||
| 22 | 393238-00 | 1 | ECRAN PROTECTEUR | B1 | |
||
| 23 | 330003-60 | 1 | PALIER | B1 | |
||
| 24 | 609970-00 | 1 | MANCHON ISOLANT | B1 | |
||
| 25 | 608568-00 | 1 | RONDELLE AVANT | B1 | |
||
| 26 | 607502-00 | 2 | RONDELLE AVANT | B1 | |
||
| 27 | 614045-00 | 1 | RONDELLE ELASTIQUE | B1 | |
||
| 28 | 609971-00 | 1 | MANCHON | B1 | |
||
| 29 | 611212-00 | 1 | GOUPILLE DE VERROUILLAGE | B1 | |||
| 30 | 603608-00 | 1 | JOINT TORIQUE | B1 | |
||
| 31 | 050049-00 | 1 | ANNEAU | B1 | |
||
| 32 | 611213-00 | 1 | MANCHON | B1 | |||
| 33 | 603470-00 | 1 | PIECE DE RETENUE | B1 | |
||
| 34 | 395029-00 | 1 | RESSORT | B1 | |
||
| 35 | 610999-00 | 1 | BOUCHON | B1 | |
||
| 36 | 330019-26 | 4 | VIS | B1 | |
||
| 37 | 330045-70 | 2 | VIS | M5X40 | B1 | |
|
| 38 | 330045-67 | 1 | VIS | B1 | |
||
| 39 | N319599 | 1 | S/E COUVERCLE DE CARTER D'ENGRENAGES | B1 | |||
| 40 | 609125-00 | 1 | CONTRE-ECROU | B1 | |
||
| 41 | 397031-00 | 1 | JOINT TORIQUE | B1 | |
||
| 42 | 034109-00 | 1 | PIECE DE RETENUE | B1 | |
||
| 43 | 403150-01 | 1 | BRIDE INTERIEURE | B1 | |
||
| 44 | 330045-14 | 4 | VIS | B1 | |
||
| 44 | 330045-14 | 4 | VIS | B1 | |
||
| 45 | 401678-05 | 1 | BRIDE EXTERNE | B1 | |
||
| 46 | 606863-00 | 1 | VIS | B1 | |
||
| 47 | N036837 | 1 | S/E PROTECTION | B1 | |
||
| 48 | 330019-19 | 2 | VIS | B1 | |
||
| 50 | 398618-00 | 1 | S/E CARTER D'ENGRENAGES | B1 | |||
| 51 | 620579-00 | 1 | PARE-CHOCS | B1 | |
||
| 52 | 384127-01 | 4 | VIS | B1 | |
||
| 53 | 614542-00 | 1 | CHICANE | B1 | |
||
| 60 | 651858-00 | 1 | POIGNEE LATERALE | B1 | |
||
| 70 | 938733 | 1 | CLE A ERGOTS | B1 | |
||
| 80 | 613366-00 | 1 | INSERT | B1 | |
||
| 81 | 330004-06 | 1 | ROULEMENT A AIGUILLES | B1 | |
||
| 800 | 583534-00 | 1 | GRAISSE | 50 GRAMS - NYE RHEOLUB 380G1 | B1 | |
|
| 821 | N464661 | 1 | ETIQUETTE SIGNALETIQUE | B1 | |||
| 836 | 559638-99 | 1 | EXTRACTEUR DE BORNE S.T. | B1 | |
