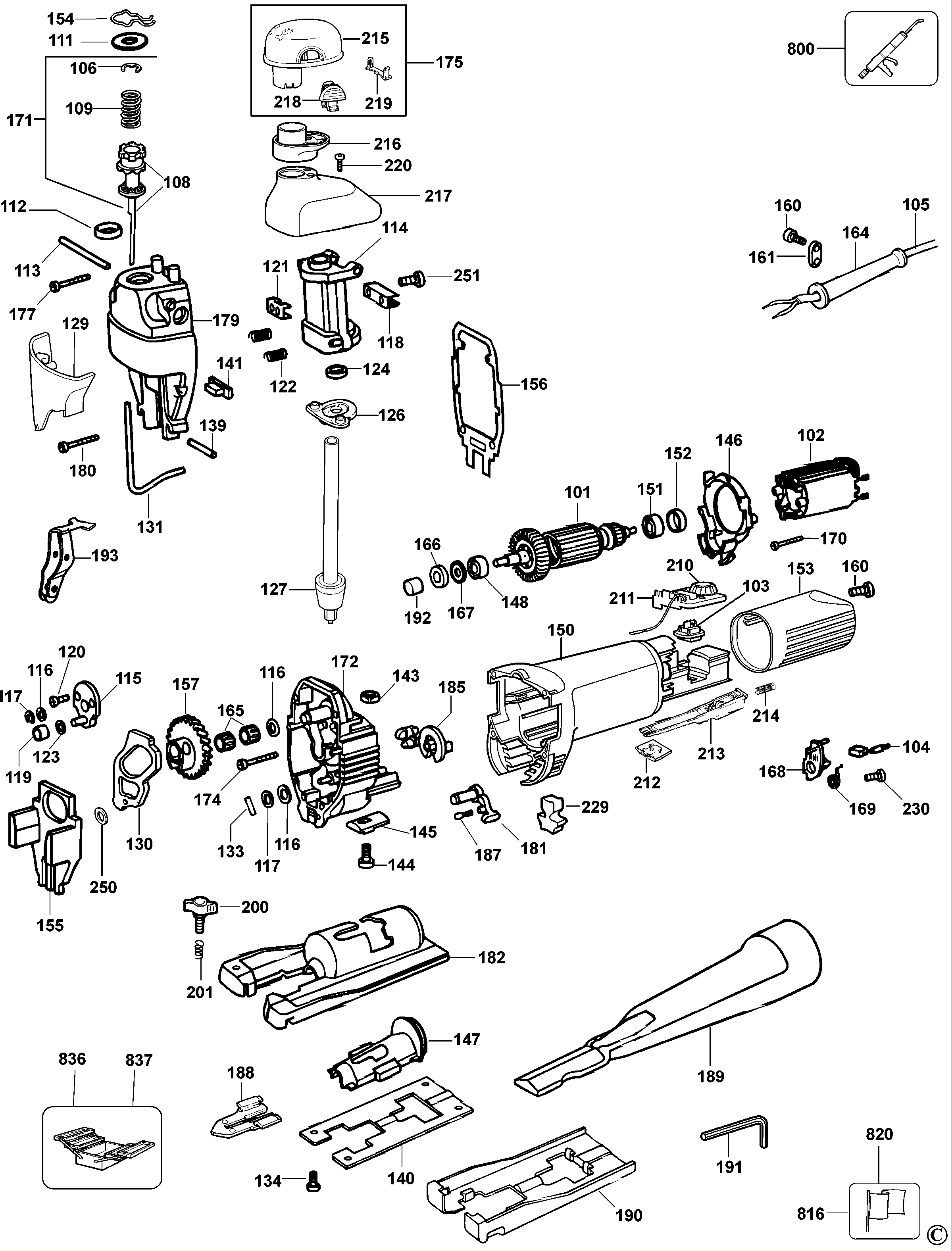

DW323 SCIE SAUTEUSE Type 3 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 577357-02 | 1 | ARMATURE ET VENTILATEUR | GB |  |
||
| 102 | 402051-02 | 1 | FIELD 230V | GB | |
||
| 103 | 402434-00 | 1 | S/E INTERRUPTEUR | Tyco | GB | |
|
| 104 | 939539-01 | 2 | BALAI D'OXYCOUPAGE | GB |  |
||
| 105 | 330061-14 | 1 | JEU DE CORDONS | GB | |
||
| 106 | 860322-01 | 1 | CIRCLIP | GB | |
||
| 108 | 402960-00 | 1 | S/E EMBRAYAGE | GB | |
||
| 109 | 402110-00 | 1 | RESSORT | GB | |
||
| 111 | 949876-21 | 1 | RONDELLE AVANT | GB | |
||
| 112 | 402154-00 | 1 | CAOUTCHOUC | GB | |
||
| 113 | 402105-00 | 1 | AXE | GB | |
||
| 114 | 402153-00 | 1 | SUPPORT | GB | |
||
| 115 | 402161-00SV | 1 | S/E EXCENTRIQUE | GB | |||
| 116 | 932302-00 | 3 | RONDELLE AVANT | GB | |
||
| 117 | 949728-04 | 2 | CIRCLIP | GB | |
||
| 118 | 402118-00 | 1 | ETRIER | GB | |
||
| 119 | 402155-00 | 1 | COUSSINET | GB | |
||
| 120 | N056875 | 4 | SCREW TORX | M4x10 | GB | |
|
| 121 | 399146-00 | 1 | COLLIER | GB | |
||
| 122 | 933524-00 | 2 | RESSORT | GB | |
||
| 123 | 949876-20 | 1 | RONDELLE AVANT | GB | |
||
| 124 | 949400-00 | 1 | FEUTRE | GB | |
||
| 126 | 402177-00 | 1 | S/E JOINT | GB | |
||
| 127 | 948603-00SV | 1 | AXE | GB | |
||
| 127 | 948603-00SV | 1 | AXE | GB | |
||
| 129 | 389599-00 | 1 | ECRAN | GB | |
||
| 130 | 402097-00 | 1 | CAME | GB | |
||
| 131 | 402116-00 | 2 | PROTECTION | GB | |
||
| 133 | 330041-08 | 1 | AXE | GB | |
||
| 134 | N056875 | 4 | SCREW TORX | M4x10 | GB | |
|
| 139 | 330041-29 | 1 | AXE | GB | |
||
| 140 | 402146-00 | 1 | SEMELLE | GB | |
||
| 141 | 402151-00 | 1 | CAOUTCHOUC | GB | |
||
| 143 | 860310-00 | 1 | ECROU | GB | |
||
| 144 | 390908-00 | 1 | VIS | GB | |
||
| 145 | 402652-00 | 1 | PLAQUE | GB | |
||
| 146 | 388968-01 | 1 | CHICANE | GB | |
||
| 147 | 402176-00 | 1 | ADAPTATEUR | GB | |
||
| 148 | 605040-05 | 1 | PALIER | GB | |
||
| 150 | 402429-03 | 1 | BOITIER DE CHAMP | GB | |
||
| 151 | 330003-02 | 1 | PALIER | GB | |
||
| 152 | 930029-00 | 1 | HOLDER BEARING | GB | |
||
| 153 | 402430-03 | 1 | BOUCHON D'EXTREMITE | GB | |
||
| 154 | 402111-00 | 1 | RESSORT | GB | |
||
| 155 | 402098-00 | 1 | CONTREPOIDS | GB | |
||
| 156 | 402112-00 | 1 | JOINT STATIQUE | GB | |
||
| 157 | 611147-00 | 1 | S/E PIGNON | 46T | GB | |
|
| 160 | 330065-08 | 3 | VIS | M4x18 T20 | GB | |
|
| 161 | 935616-00 | 1 | COLLIER DE CORDON | GB | |
||
| 164 | 401088-01 | 1 | PROTECTEUR DE CORDON | GB | |
||
| 165 | 402091-00 | 2 | PALIER | GB | |
||
| 166 | 949400-03 | 1 | FEUTRE | GB | |
||
| 167 | 402125-00 | 1 | COUVERCLE | GB | |
||
| 168 | 949880-05 | 2 | S/E PORTE-BALAIS | INCL. SPRING | GB | |
|
| 169 | 930090-00 | 2 | RESSORT DE BALAI | GB | |
||
| 170 | 931469-02 | 4 | VIS | GB | |
||
| 171 | 402158-04 | 1 | S/E EMBRAYAGE | GB | |
||
| 172 | 387850-00 | 1 | S/E CARTER D'ENGRENAGES | GB | |
||
| 174 | 930079-01 | 2 | VIS | GB | |
||
| 175 | 402962-00 | 2 | S/E BOUTON | GB | |
||
| 177 | 949870-08 | 2 | VIS | GB | |
||
| 179 | 389870-02 | 1 | COUVERCLE DE CARTER D'ENGRENAGES | GB | |
||
| 180 | 930082-01 | 2 | VIS | GB | |
||
| 181 | 329977-00 | 1 | LEVIER | GB | |
||
| 182 | 429802-01 | 1 | KIT DE REPARATION | GB | |
||
| 185 | 329979-01 | 1 | LEVIER | GB | |
||
| 187 | 326467-00 | 2 | CRAN DE VERROUILLAGE | GB | |
||
| 188 | 402140-00 | 1 | DISP. ANTI-ECLATS | GB | |
||
| 189 | 402138-00 | 1 | TUBE | GB | |
||
| 190 | 402147-00 | 1 | PLAQUE | GB | |
||
| 191 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 192 | 402191-00 | 1 | COUSSINET | GB | |
||
| 193 | 388577-00 | 1 | S/E SUPPORT | GB | |
||
| 200 | 025922908 | 1 | BOUTON | GB | |
||
| 201 | 868082-00 | 1 | RESSORT | GB | |
||
| 210 | 402447-00 | 1 | ROUE | GB | |
||
| 211 | 402187-04 | 1 | ELECTRONIC & SWITCH | Tyco | GB 230V | GB | |
| 211 | 402187-06 | 1 | ELECTRONIC & SWITCH | GB 115V | GB | |
|
| 212 | 402433-01 | 1 | BOUTON | GB | |
||
| 213 | 402432-00 | 1 | LEVIER | GB | |
||
| 214 | N406641 | 1 | RESSORT DE COMPRESSION | GB | |
||
| 215 | 402133-00 | 1 | BOUTON | GB | |
||
| 216 | 402131-00 | 1 | BOUTON | GB | |
||
| 217 | 402128-03 | 1 | COUVERCLE | GB | |
||
| 218 | 402659-00 | 2 | BOUTON | GB | |
||
| 219 | 402959-00 | 1 | INSERT | GB | |
||
| 220 | 860094-03 | 2 | VIS | GB | |
||
| 229 | 388911-00 | 1 | SUPPORT | GB | |
||
| 230 | 330065-06 | 2 | VIS | GB | |
||
| 250 | 609364-00 | 1 | ENTRETOISE | GB | |
||
| 251 | 603215-00 | 2 | SCREW.SPECIAL | GB | |
||
| 800 | 870889-02 | 1 | GRAISSE | GB | |
||
| 816 | 946194-00 | 1 | ETIQUETTE MARQUE | GB | |
||
| 820 | 569037-00 | 1 | PLAQUE SIGNALETIQUE | GB | |
||
| 836 | 559635-99 | 1 | OUTIL D'INSERTION S.T. | Insertion tool | GB | |
|
| 837 | 559636-99 | 1 | OUTIL D'ENTRETIEN | Spacer Puller | GB | |
