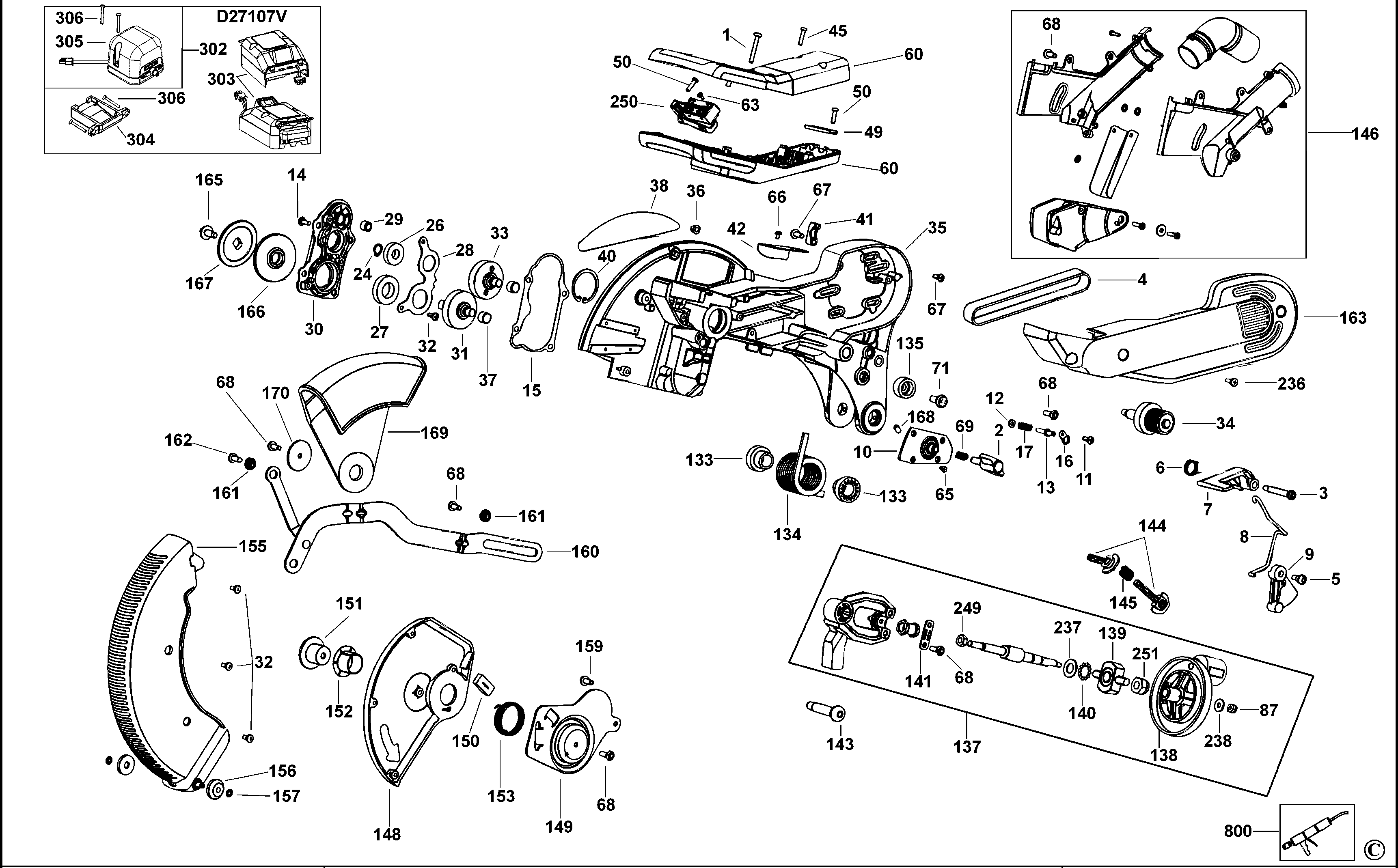

D27107 SCIE COMBINEE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 98094-35 | 4 | VIS | M5 x 35 | GB |  |
|
| 2 | 147107-06 | 1 | BOUTON | GB | |
||
| 3 | 152852-00 | 1 | BOULON | GB | |
||
| 4 | N453995 | 1 | COURROIE | GB | |
||
| 5 | 153639-00 | 4 | VIS | GB | |
||
| 6 | 398472-00 | 2 | RESSORT DE TORSION | GB | |
||
| 7 | 605603-00 | 1 | LEVIER | GB | |
||
| 8 | 606278-00 | 1 | S/E TRINGLERIE | UPLOCK | GB | |
|
| 9 | 606279-00 | 1 | PLAQUE | GB | |
||
| 10 | 607221-00 | 1 | PLAQUE | GB | |
||
| 11 | 330045-05 | 11 | VIS | GB | |
||
| 12 | 618480-00 | 1 | RONDELLE FEUTRE | GB | |
||
| 13 | 153561-00 | 1 | GOUPILLE DE VERROUILLAGE | GB | |
||
| 14 | 385915-01 | 4 | VIS | GB | |
||
| 15 | 391315-00 | 1 | JOINT STATIQUE | GB | |
||
| 16 | 393071-00 | 1 | PLAQUE | GB | |
||
| 17 | 868082-00 | 2 | RESSORT | GB | |
||
| 24 | 860079-03 | 1 | CIRCLIP | GB | |
||
| 26 | 605040-59 | 1 | PALIER | GB | |
||
| 27 | 330003-66 | 1 | BEARING,BALL | GB | |
||
| 28 | 627904-00 | 1 | PLAQUE D'APPUI | GB | |
||
| 29 | 391616-00 | 1 | ROULEMENT A AIGUILLES | GB | |
||
| 30 | 621759-00 | 1 | COUVERCLE DE CARTER D'ENGRENAGES | Inc 29 | + 29 | GB | |
| 31 | 869219-06 | 1 | S/E AXE ET PIGNON | GB | |
||
| 32 | 330045-49 | 7 | VIS | GB | |
||
| 33 | 869219-07 | 1 | S/E AXE ET PIGNON | GB | |
||
| 34 | N105443 | 1 | S/E POULIE | inc 33,35 | GB | |
|
| 35 | 612349-00 | 1 | BRAS | + 36,37,38,39 | GB | |
|
| 36 | 148608-00 | 2 | INSERT | GB | |
||
| 37 | 386780-00 | 2 | PALIER | GB | |
||
| 38 | 621329-00 | 1 | ETIQUETTE D'IDENTIFICATION | GB | |
||
| 39 | 637691-00 | 1 | INTERRUPTEUR | 230V | See SB 161 | GB | |
| 40 | 616726-00 | 1 | PIECE DE RETENUE | GB | |
||
| 41 | 612350-00 | 1 | COLLIER DE CORDON | GB | |
||
| 42 | 613781-00 | 1 | COUVERCLE | GB | |
||
| 43 | 605786-01 | 1 | INTERRUPTEUR DE CARTER | <012009 | GB | |
|
| 44 | 638634-00 | 1 | GAINE | GB | |
||
| 45 | 330019-13 | 5 | VIS | M4X19 T20 | GB | |
|
| 47 | 652121-00 | 1 | FIL DE RACCORDEMENT | <012009 | GB | |
|
| 48 | 326057-00 | 1 | BORNIER | GB | |
||
| 49 | N380405 | 2 | INSERT | GB | |
||
| 50 | 330013-22 | 5 | VIS | GB |  |
||
| 51 | 330060-85 | 1 | JEU DE CORDONS | GB | |
||
| 52 | 639912-01 | 1 | SET OF LEAD WIRES | <012009 | GB | |
|
| 57 | N377629 | 1 | CACHE D'INTERRUPTEUR | GB | |
||
| 58 | 607854-00 | 1 | AXE | GB | |
||
| 59 | 613782-01 | 1 | RESSORT DE TORSION | GB | |
||
| 60 | 607855-00 | 1 | S/E POIGNEE | GB | |
||
| 63 | 384127-01 | 4 | VIS | GB | |
||
| 65 | 860091-04 | 4 | VIS | GB | |
||
| 66 | 860094-03 | 2 | VIS | GB | |
||
| 67 | 330045-15 | 7 | VIS | GB | |
||
| 68 | 330045-23 | 7 | VIS | GB | |
||
| 69 | 606014-00 | 1 | RESSORT | GB | |
||
| 70 | 394034-00 | 1 | VIS | GB | |
||
| 71 | 330045-32 | 5 | VIS | M8x1.25x20 MTLTHDFMG | GB | |
|
| 72 | 621647-00 | 3 | PLAQUE | GB | |
||
| 73 | N162216 | 1 | BARRIERE | GB | |
||
| 74 | 869233-00 | 1 | TABLE | GB | |
||
| 75 | 614822-00 | 1 | BALANCE | GB | |
||
| 76 | 398999-00 | 1 | CRAN DE VERROUILLAGE | GB | |
||
| 77 | 615876-00 | 4 | VIS | Hex | GB | |
|
| 78 | 607103-00 | 2 | PLAQUE | GB | |
||
| 79 | 98104-16 | 4 | VIS | GB | |
||
| 80 | N162168 | 1 | PARTIE AVANT | GB | |
||
| 81 | 605799-00 | 1 | TIGE | GB | |
||
| 82 | 399162-00 | 1 | ACTIONNEUR | GB | |
||
| 84 | 399009-00 | 1 | AXE | GB | |
||
| 85 | 860094-00 | 2 | SCREW.TEMP | GB | |
||
| 86 | 606898-00 | 1 | CRAN DE VERROUILLAGE | SPRING | GB | |
|
| 87 | 860092-02 | 3 | ECROU | GB | |
||
| 88 | 606900-00 | 1 | PLAQUE | GB | |
||
| 89 | 606896-00 | 1 | PATIN | GB | |
||
| 90 | 617561-00 | 7 | VIS | M8, | GB | |
|
| 91 | 606897-00 | 1 | COUVERCLE | GB | |
||
| 93 | 860205-01 | 4 | VIS | GB | |
||
| 94 | 399004-00 | 1 | BOUTON | GB | |
||
| 95 | 605785-00 | 1 | BOUTON | GB | |
||
| 96 | 611991-00 | 1 | POINTEUR | GB | |
||
| 98 | 606198-00 | 1 | BOUTON | GB | |
||
| 99 | N409486 | 4 | VIS | GB | |
||
| 100 | 607129-00 | 3 | PATIN | GB | |
||
| 101 | N190890 | 1 | GUIDE ARRIERE | GB | |
||
| 102 | 610251-00 | 1 | BOUTON | GB | |
||
| 103 | 610250-00 | 1 | RESSORT | GB | |
||
| 104 | N399933 | 5 | VIS | M5x30 T30 Patch | GB | |
|
| 105 | 610710-00 | 1 | ETIQUETTE D'AVERTISSEMENT | GB | |
||
| 106 | 941586-00 | 3 | RESSORT | GB | |
||
| 107 | 153451-00 | 1 | PALIER BUTEE | GB | |
||
| 109 | 153655-00 | 3 | RONDELLE AVANT | GB | |
||
| 110 | 153781-00 | 3 | RONDELLE AVANT | GB | |
||
| 111 | 153797-03 | 2 | VIS | GB | |
||
| 112 | 330021-10 | 1 | ECROU | M10 | GB | |
|
| 113 | 391347-00 | 3 | CLIQUET | GB | |
||
| 115 | 869233-02 | 1 | TABLE TOURNANTE | inc 122,124 | + 122, 124 | GB | |
| 116 | 399004-01 | 1 | BOUTON | GB | |
||
| 117 | 605653-00 | 1 | TOURILLON | GB | |
||
| 118 | 606152-00 | 1 | POINTEUR | GB | |
||
| 119 | 618660-00 | 1 | ECHELLE CONIQUE | GB | |
||
| 120 | 606192-00 | 1 | POINTEUR | GB | |
||
| 121 | 606193-00 | 1 | ECHELLE CONIQUE | GB | |
||
| 122 | 606359-00 | 1 | GOUJON | GB | |
||
| 123 | 606362-00 | 1 | ENTRETOISE | GB | |
||
| 124 | 610707-00 | 2 | ETIQUETTE D'AVERTISSEMENT | GB | |
||
| 125 | 613709-00 | 1 | LOQUET | GB | |
||
| 126 | 860094-06 | 6 | VIS | GB | |
||
| 127 | 153576-03 | 1 | VIS | GB | |
||
| 129 | 615589-00 | 1 | DISP. DE REGLAGE | GB | |
||
| 131 | 615777-00 | 1 | ARBRE PIVOT | GB | |
||
| 132 | 148296-00 | 1 | RONDELLE AVANT | GB | |
||
| 133 | 146732-00 | 2 | ENTRETOISE | GB | |
||
| 134 | 619571-00 | 1 | RESSORT | GB | |
||
| 135 | 146753-00 | 1 | BAGUE | GB | |
||
| 137 | 609837-00 | 1 | HAUTEUR DU DISP. DE REGLAGE | GB | |
||
| 138 | 606689-00 | 1 | MANIVELLE | GB | |
||
| 139 | 607754-00 | 1 | SUPPORT | GB | |
||
| 140 | 604107-00 | 14 | ROTULE ACIER | GB | |
||
| 141 | 609840-00 | 1 | COLLIER | GB | |
||
| 143 | 610254-00 | 1 | BOULON | GB | |
||
| 144 | 614072-00 | 2 | AXE | GB | |
||
| 145 | 606688-00 | 1 | RESSORT | GB | |
||
| 146 | N166053 | 1 | ORIFICE PARE-POUSSIERE | GB | |
||
| 148 | 615459-00 | 1 | PLAQUE | GB | |
||
| 149 | N041976 | 1 | PLAQUE ARRIERE | GB | |
||
| 150 | 609514-00 | 1 | PARE-CHOCS | GB | |
||
| 151 | 146750-03 | 1 | PLAQUE DE RETENUE | GB | |
||
| 152 | 609314-00 | 1 | MANCHON | GB | |
||
| 153 | 609496-00 | 1 | RESSORT DE TORSION | GB | |
||
| 155 | N298999 | 1 | PROTECTION | GB | |
||
| 156 | 146774-00 | 2 | ROULEAU | GB | |
||
| 157 | 604728-00 | 2 | SEGMENT DE VERROUILLAGE | GB | |
||
| 159 | 394589-01 | 2 | VIS | GB | |
||
| 160 | N225776 | 1 | S/E LEVIER | GB | |
||
| 161 | 146740-02 | 3 | MANCHON | GB | |
||
| 162 | 605590-00 | 1 | VIS | GB | |
||
| 163 | 610556-01 | 1 | CACHE-COURROIE | GB | |
||
| 165 | 145344-01 | 1 | BOULON DE LAME | M8 X 20 LH | GB | |
|
| 166 | 616319-00 | 1 | RONDELLE DE SERRAGE INTERNE | GB | |
||
| 167 | 604765-00 | 1 | COLLIER EXTERNE | GB | |
||
| 168 | 150075-00 | 2 | VIS | GB | |
||
| 169 | 605593-00 | 1 | PROTECTION | GB | |
||
| 170 | 607536-00 | 1 | RONDELLE AVANT | GB | |
||
| 171 | 656421-00 | 1 | FSO KIT | Inc 171, 196 | GB | |
|
| 173 | 391358-01 | 1 | SUPPORT | GB | |
||
| 174 | 385567-03 | 1 | CLE | TX30 6.0mm | GB | |
|
| 175 | 608563-01 | 1 | CLE SPECIALE | M13 - T30 | GB | |
|
| 176 | 615993-00 | 2 | PIECE DE RETENUE | GB | |
||
| 177 | 946866-00 | 2 | RESSORT | GB | |
||
| 179 | N181532 | 1 | KIT PROTECTIONS | Inc 179 + 226 | GB | |
|
| 180 | 609497-00 | 1 | CALE D'EPAISSEUR | GB | |
||
| 181 | 607181-00 | 4 | VIS | M8 | GB | |
|
| 182 | 616634-00 | 4 | PARE-CHOCS | GB | |
||
| 183 | 860083-15 | 4 | ECROU | GB | |
||
| 185 | 606233-00 | 1 | VERROUILLAGE | GB | |
||
| 186 | 606232-00 | 1 | VERROUILLAGE | GB | |
||
| 187 | 605601-01 | 1 | COLLIER DE CORDON | GB | |
||
| 188 | 607132-00 | 1 | AXE | GB | |
||
| 189 | 330045-55 | 2 | VIS | M5x55 MTL THD FMG | GB | |
|
| 190 | 153379-00 | 4 | BLOC PALIER | GB | |
||
| 191 | 610574-00 | 1 | VIS | M5X25 | GB | |
|
| 192 | 611094-00 | 1 | TIGE | GB | |
||
| 193 | 861090-00 | 1 | VIS | GB | |
||
| 194 | 860073-14 | 3 | RONDELLE AVANT | GB | |
||
| 195 | 613233-00 | 2 | JAMBE AVANT | GB | |
||
| 196 | 655033-00 | 2 | PIED ARRIERE | GB | |
||
| 197 | 861073-00 | 4 | PIED | GB | |
||
| 198 | N013623 | 4 | COLLIER | GB | |
||
| 199 | 618362-00 | 4 | BOUTON | GB | |
||
| 200 | 98131-90 | 4 | BOULON DE CHARIOT | M10*1.5 | GB | |
|
| 201 | 861091-00 | 3 | SERRE CABLE | GB | |
||
| 202 | 860112-11 | 1 | RESSORT | GB | |
||
| 204 | 656421-01 | 1 | FSO KIT | Inc 204, 196 | GB | |
|
| 205 | 615994-00 | 1 | ATTACHE | GB | |
||
| 206 | 860610-01 | 1 | BIELLE DE POUSSEE | GB | |
||
| 207 | 616592-00 | 2 | BOULON | M8 x 16 | GB | |
|
| 208 | 604537-00 | 2 | TUBE | GB | |
||
| 209 | 942447-00 | 2 | VIS | GB | |
||
| 210 | 611623-00 | 2 | DEMI-ESSIEU | M12 | GB | |
|
| 211 | 98197-08 | 4 | RONDELLE AVANT | GB | |
||
| 212 | 330045-50 | 3 | VIS | GB | |
||
| 213 | 605789-00 | 1 | BARRIERE | GB | |
||
| 214 | 386616-00 | 1 | BARRIERE | GB | |
||
| 215 | 147107-00 | 2 | BOUTON | GB | |
||
| 216 | 611712-00 | 1 | PLAQUE | GB | |
||
| 217 | 611921-00 | 1 | SUPPORT | GB | |
||
| 218 | 605794-00 | 1 | LEVIER DE VERROUILLAGE | GB | |
||
| 219 | 605796-00 | 1 | SUPPORT | GB | |
||
| 220 | 605795-00 | 1 | BROCHE D'ETRIER | GB | |
||
| 221 | 392948-00 | 1 | RONDELLE DE SERRAGE | GB | |
||
| 222 | 605798-00 | 1 | POINTEUR | GB | |
||
| 223 | 330045-05 | 1 | VIS | GB | |
||
| 224 | 612284-00 | 2 | ECROU | M8 | GB | |
|
| 225 | 605790-00 | 2 | RONDELLE AVANT | GB | |
||
| 226 | N181532 | 1 | KIT PROTECTIONS | Inc 179 + 226 | GB | |
|
| 227 | N060425 | 1 | PROTECTION | inc 3x271 | GB | |
|
| 228 | 612441-00 | 2 | ROUE | 150MM | GB | |
|
| 229 | 941602-00 | 2 | RONDELLE AVANT | GB | |
||
| 230 | N219072 | 4 | PIED | GB | |
||
| 231 | 860083-14 | 4 | ECROU | GB | |
||
| 232 | 860073-03 | 4 | WASHER M8 | GB | |
||
| 233 | 860085-20 | 4 | VIS | GB | |
||
| 234 | 621653-00 | 1 | PATIN | GB | |
||
| 235 | 610252-00 | 1 | COLLIER | GB | |
||
| 236 | 330045-14 | 4 | VIS | GB | |
||
| 237 | 623499-00 | 1 | RONDELLE AVANT | GB | |
||
| 238 | 860075-00 | 1 | RONDELLE AVANT | GB | |
||
| 239 | 617108-00 | 1 | ETIQUETTE D'IDENTIFICATION | GB | |
||
| 240 | 607182-00 | 2 | BAGUE | GB | |
||
| 241 | 860078-02 | 4 | RONDELLE AVANT | GB | |
||
| 243 | 620327-00 | 1 | ATTACHE DE RESSORT | GB | |
||
| 244 | 624373-00 | 1 | ETIQUETTE D'IDENTIFICATION | GB | |
||
| 245 | 931997-00 | 1 | VIS | GB | |
||
| 246 | 720959-00 | 1 | RONDELLE AVANT | GB | |
||
| 248 | 720929-00 | 1 | ECROU PAPILLON | GB | |
||
| 248 | 720929-00 | 1 | ECROU PAPILLON | GB | |
||
| 249 | 860092-05 | 3 | ECROU | GB | |
||
| 250 | 394375-02P | 1 | INTERRUPTEUR | <012009 | GB | |
|
| 251 | 330021-08 | 1 | ECROU | GB | |
||
| 270 | 626334-00 | 1 | ENTRETOISE | GB | |
||
| 271 | 868303-00 | 3 | FIXATION | GB | |
||
| 272 | 626191-00 | 1 | ETIQUETTE | GB | |
||
| 273 | 330019-13 | 4 | VIS | M4X19 T20 | GB | |
|
| 274 | N395535 | 1 | PROTECTEUR DE SURCHARGE | <012009 | GB | |
|
| 275 | 611713-01 | 1 | BARRIERE | GB | |
||
| 276 | 949701-05 | 4 | VIS | M8 x 20 | GB | |
|
| 277 | 860083-15 | 4 | ECROU | GB | |
||
| 278 | 621067-01 | 1 | BOITIER DE CHAMP | <012009 | GB | |
|
| 279 | N158402 | 1 | MOTOR SA 230V | <012009 | GB | |
|
| 280 | 622440-00 | 1 | PORTE-BALAIS | <012009 | GB | |
|
| 281 | 98094-55 | 4 | VIS | M5 X 55mm T25 | GB | |
|
| 282 | 330022-16 | 2 | VIS | GB | |
||
| 283 | 391375-00 | 1 | CARTER | GB | |
||
| 284 | N158403 | 1 | ARMATURE 230V | <012009 | GB | |
|
| 284 | N158403 | 1 | ARMATURE 230V | <012009 | GB | |
|
| 287 | N110359 | 1 | PALIER | GB | |
||
| 287 | N110359 | 1 | PALIER | GB | |
||
| 294 | 650234-00 | 1 | MANCHON ISOLANT | GB | |
||
| 295 | 622441-00 | 2 | CHAPEAU DE BALAI | GB | |
||
| 296 | 391282-00 | 1 | SUPPORT DE MONTAGE | GB | |
||
| 297 | N013883 | 2 | BALAI | <012009 | GB | |
|
| 298 | 330019-34 | 2 | VIS | GB | |
||
| 299 | 621118-00 | 1 | BOUCHON D'EXTREMITE | GB | |
||
| 300 | 605155-00 | 1 | BAGUE | GB | |
||
| 301 | 391325-00 | 1 | ETIQUETTE D'IDENTIFICATION | <012009 | GB | |
|
| 302 | 635797-00 | 1 | S/E TETE LASER | D27107V | GB | |
|
| 303 | 627631-00 | 1 | S/E ALIMENTATION | D27107V | GB | |
|
| 304 | 615498-00 | 1 | VITRE | D27107V | GB | |
|
| 305 | 635797-00 | 1 | S/E TETE LASER | D27107V | GB | |
|
| 306 | 860094-03 | 4 | VIS | D27107V | GB | |
|
| 400 | N158402 | 1 | MOTOR SA 230V | GB | |
||
| 800 | 5140061-28 | 1 | GRAISSE | GB | |
||
| 821 | 569037-00 | 1 | PLAQUE SIGNALETIQUE | GB | |
||
| 822 | 652191-04 | 1 | PLAQUE SIGNALETIQUE | GB | |
