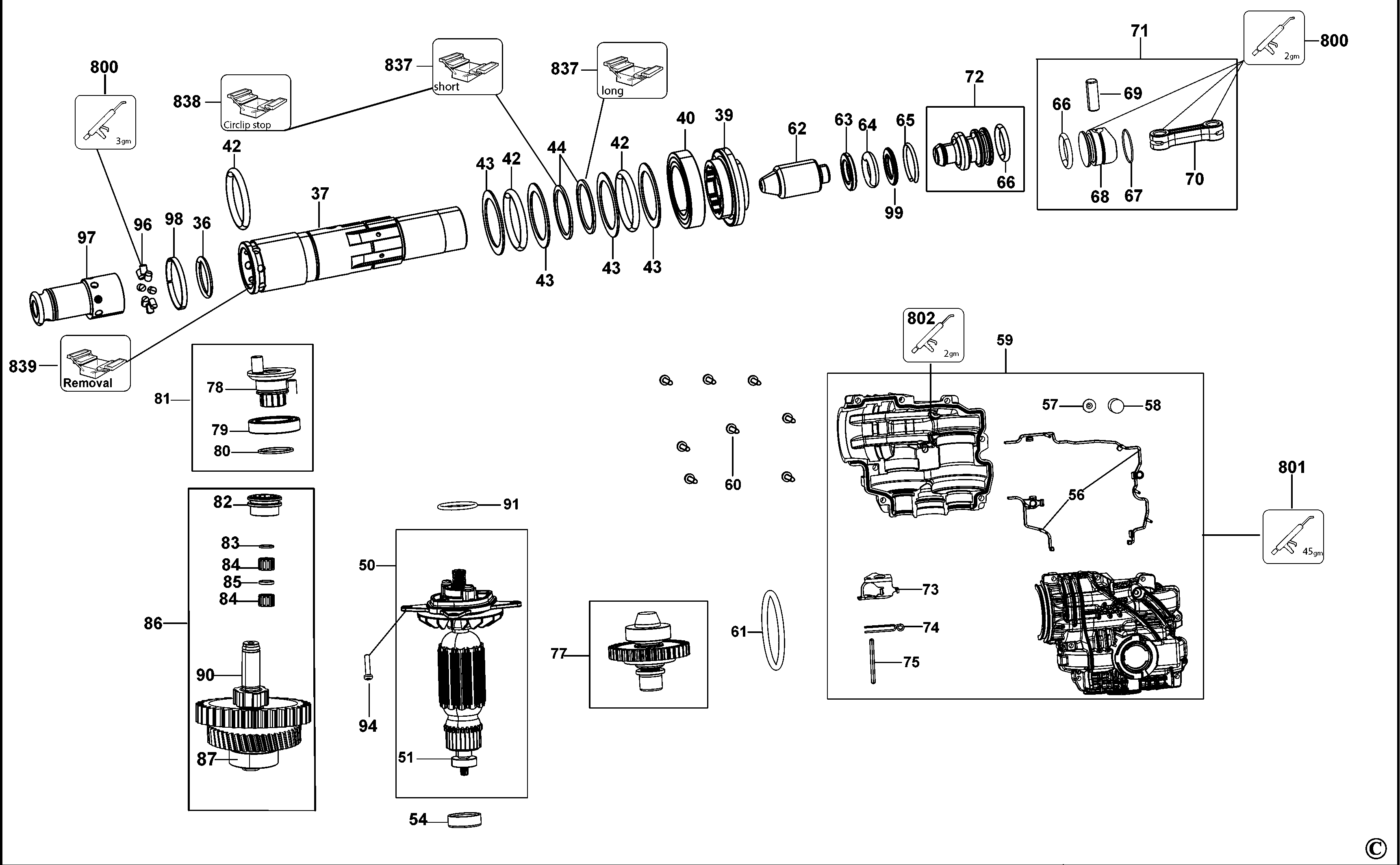

D25333K MARTEAU PERFORATEUR Type 2 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | BOUCHON | GB |  |
||
| 2 | 579212-00 | 1 | ANNEAU | GB | |
||
| 3 | N910599 | 1 | TUBE | GB | |
||
| 4 | 583890-00 | 1 | ROTULE | GB | |
||
| 5 | 578387-00 | 1 | RONDELLE AVANT | GB | |
||
| 6 | 871690 | 1 | RESSORT | GB | |
||
| 8 | N544044 | 1 | CARTER AVANT | + Seal + Bearing | GB | |
|
| 10 | 582319-32 | 1 | JEU DE CORDONS | GB | |
||
| 18 | N544046 | 1 | S/E POIGNEE | Pair | GB | |
|
| 19 | 330019-80 | 5 | VIS | GB | |
||
| 20 | N106188 | 1 | RESSORT DE COMPRESSION | GB | |
||
| 22 | N152623 | 1 | SÉCURITÉ | GB | |
||
| 23 | N544064 | 1 | S/E CARTER DE MOTEUR | Pair | GB | |
|
| 24 | N106221-01 | 1 | SOUFFLETS | GB | |
||
| 26 | 330019-20 | 4 | VIS | GB |  |
||
| 27 | 330019-80 | 11 | VIS | GB | |
||
| 28 | N267567 | 1 | S/E SELECTEUR | BLACK | GB | |
|
| 29 | N091381-00 | 1 | JOINT TORIQUE | GB | |
||
| 30 | N364920 | 1 | SWITCH 240V | NON LOCK ON | GB | |
|
| 31 | N106222 | 1 | SOUFFLETS | GB | |
||
| 32 | N159443 | 1 | AXE | GB | |
||
| 33 | 330019-80 | 2 | VIS | GB | |
||
| 34 | 821070 | 1 | COLLIER DE CORDON | GB | |
||
| 35 | 584090-00 | 1 | PROTECTEUR DE CORDON | GB | |||
| 36 | N412167 | 1 | JOINT TORIQUE | 20x3 | GB | |
|
| 37 | N561701 | 1 | AXE | GB | |
||
| 37 | N561701 | 1 | AXE | GB | |
||
| 37 | N561701 | 1 | AXE | GB | |
||
| 38 | N466472 | 1 | FAISCEAU DE FILS | GB | |
||
| 39 | N406771 | 1 | COURONNE CONIQUE | GB | |
||
| 40 | 479478-00 | 1 | BEARING,BALL | 6906 | GB | |
|
| 42 | N421627 | 3 | JOINT TORIQUE | 30X4 | GB | |
|
| 43 | N395027 | 4 | RONDELLE AVANT | GB | |
||
| 44 | N422601 | 2 | CIRCLIP | GB | |
||
| 45 | N231636 | 1 | SUPPORT | GB | |
||
| 46 | N453264 | 1 | LEVIER | FR/REV | GB | |
|
| 47 | 326467-00 | 1 | CRAN DE VERROUILLAGE | GB | |
||
| 48 | N544178 | 1 | KIT DE BALAIS | GB | |
||
| 49 | N544068 | 1 | PONT | ROTATING BRUSH | GB | |
|
| 50 | N584772 | 1 | ARMATURE 230V | + MOTOR PLATE | GB | |
|
| 51 | 605040-02 | 1 | PALIER | GB | |
||
| 52 | N544427 | 1 | FIELD 230V | GB | |
||
| 53 | N588464 | 1 | ENS. CHICANE | GB | |
||
| 54 | 870052 | 1 | MANCHON | GB | |
||
| 56 | N433272 | 1 | S/E JOINT | GB | |
||
| 57 | N374339 | 1 | INSERT | GB | |
||
| 58 | N038257 | 1 | FEUTRE | GB | |
||
| 59 | N616792 | 1 | S/E CARTER D'ENGRENAGES | GB | |
||
| 60 | 324006-15 | 8 | VIS | GB | |
||
| 61 | N423558 | 1 | JOINT TORIQUE | O-RING 43x3.5 | GB | |
|
| 62 | N459693 | 1 | POUSSOIR | GB | |
||
| 63 | N388939 | 1 | RONDELLE AVANT | 14mm | GB | |
|
| 64 | N412168 | 1 | JOINT TORIQUE | 12x5 | GB | |
|
| 65 | N413186 | 1 | CIRCLIP | 23x2 | GB | |
|
| 66 | N394408 | 2 | JOINT TORIQUE | 17x3 | GB | |
|
| 67 | N517447 | 1 | JOINT TORIQUE | 19X1 | GB | |
|
| 68 | N510098 | 1 | PISTON | GB | |||
| 69 | N123257 | 1 | AXE | GB | |
||
| 70 | N390874 | 1 | TIGE CONIQUE | GB | |
||
| 71 | N505552 | 1 | KIT DE PISTON | GB | |
||
| 72 | N505553 | 1 | S/E VERIN | GB | |
||
| 73 | N431392 | 1 | PLAQUE | Switch | GB | |
|
| 74 | N663642 | 1 | RESSORT | GB | |
||
| 75 | N433763 | 1 | AXE | GB | |
||
| 77 | N605730 | 1 | S/E EMBRAYAGE | GB | |
||
| 78 | N452829 | 1 | VILEBREQUIN | GB | |
||
| 79 | N427179 | 1 | PALIER | GB | |
||
| 80 | N453028 | 1 | ATTACHE | GB | |
||
| 81 | N505555 | 1 | VILEBREQUIN | 3KG | GB | |
|
| 82 | N264669 | 1 | COLLIER | GB | |
||
| 83 | 323763-10 | 1 | SEGMENT DE VERROUILLAGE | 8; | GB | |
|
| 84 | N427177 | 2 | CAGE DE PALIER | GB | |
||
| 85 | N433668 | 1 | COUSSINET | GB | |
||
| 86 | N593071 | 1 | S/E TRANSMISSION | GB | |
||
| 87 | N168103 | 1 | PALIER | GB | |
||
| 88 | 798846-02 | 1 | BUTEE DE PROFONDEUR | GB | |
||
| 89 | N413662 | 1 | S/E POIGNEE LATERALE | GB | |
||
| 90 | N513678 | 1 | S/E PIGNON | GB | |
||
| 91 | N423558 | 1 | JOINT TORIQUE | O-RING 43x3.5 | GB | |
|
| 94 | 324006-14 | 4 | VIS | GB | |
||
| 96 | N468472 | 8 | AXE | 4X6 | GB | |
|
| 97 | N783458 | 1 | AXE | GB | |
||
| 98 | N467014 | 1 | PIECE DE RETENUE | GB | |
||
| 99 | N502900 | 1 | RONDELLE AVANT | GB | |
||
| 99 | N502900 | 1 | RONDELLE AVANT | GB | |
||
| 800 | 578970-04 | 1 | GRAISSE | 80g | GB | |
|
| 801 | 870889-03 | 1 | GRAISSE | RENOLIT PARAGON EP ½ - 20 GRAMS | GB | |
|
| 802 | N770138 | 1 | JOINT | HYLOMAR ADVANCED | GB | |
|
| 821 | N578996 | 1 | ETIQUETTE SIGNALETIQUE | GB | |||
| 837 | 1003968-99 | 1 | OUTIL D'INSERTION DE CIRCLIP S.T. | 3KG | Long | GB | |
| 837 | 1003969-99 | 1 | OUTIL D'INSERTION DE CIRCLIP S.T. | 3KG | Short | GB | |
| 838 | 1003967-99 | 1 | OUTIL D'INSERTION DE CIRCLIP S.T. | 3KG | Limit Stop | GB | |
| 839 | 1003970-99 | 1 | BATI DE DESASSEMBLAGE S.T. | 3KG | GB | |
|
| 861 | N506514 | 1 | BOITE DE KIT | GB | |
