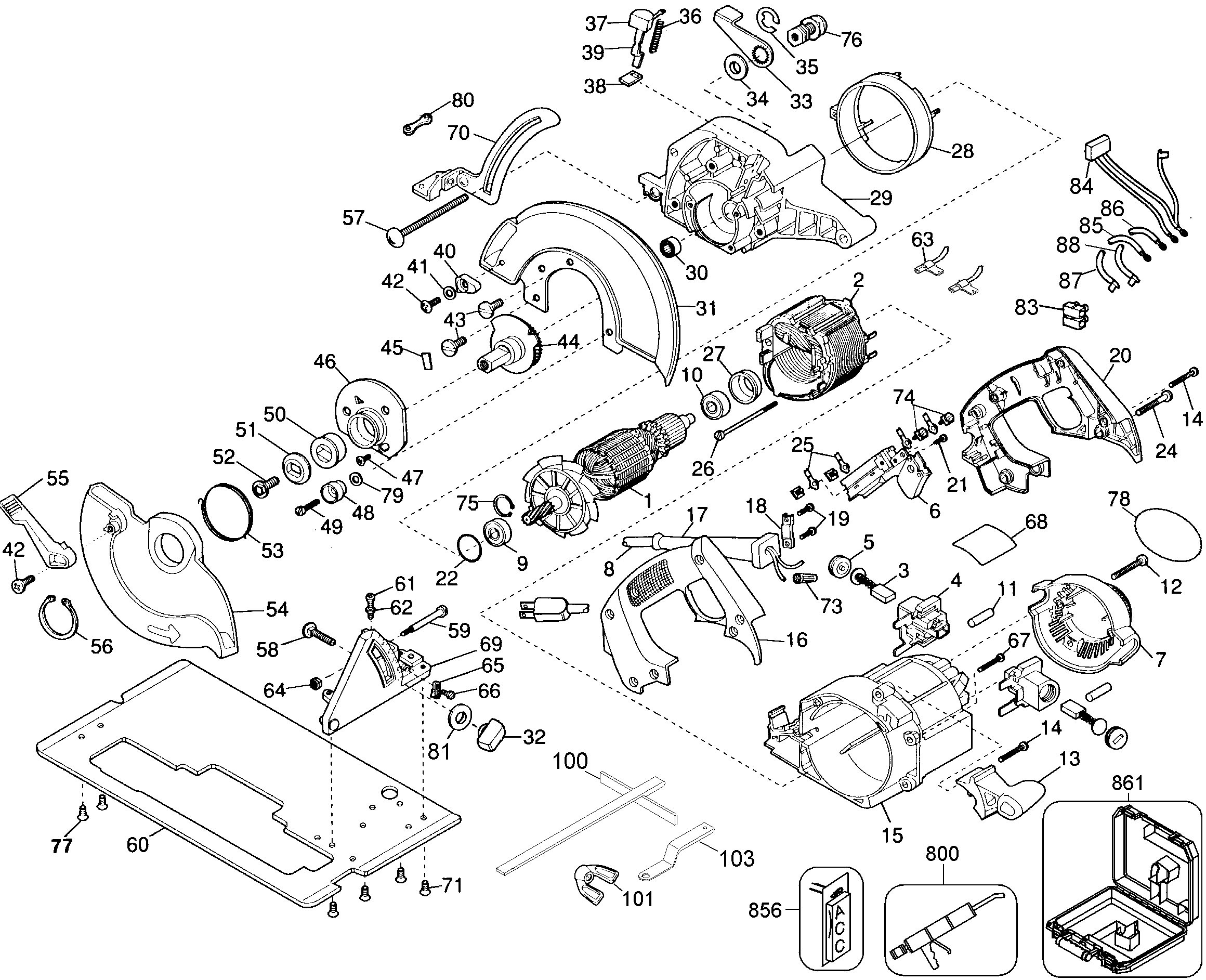

DW359 7-1/4 CIRCULAR SAW -ASPAC Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 380240-01 | 1 | ARMATURE ET VENTILATEUR | 10 TEETH | B4 |  |
|
| 2 | 144795-00 | 1 | CHAMP | B4 | |
||
| 3 | 145323-06 | 2 | BALAI SECURITE | B4 |  |
||
| 4 | 147097-09 | 2 | S/E PORTE-BALAIS | INC 3, 5 | B4 | |
|
| 5 | 448084-01 | 2 | CHAPEAU DE BALAI | B4 | |
||
| 6 | 5140028-48 | 1 | INTERRUPTEUR | B4 | |
||
| 7 | 382251-00 | 1 | S/E CHAPEAU D'EXTREMITE | INC 11 | B4 | |
|
| 8 | 330064-14 | 1 | CABLE | B4 | |
||
| 9 | N110363 | 1 | PALIER | B4 | |||
| 10 | 605040-20 | 1 | PALIER | 12 x 28 x 8mm | B4 | |
|
| 11 | 87205-00 | 2 | PRISE MALE | B4 | |
||
| 12 | 330019-20 | 2 | VIS | B4 | |
||
| 13 | 144942-02 | 1 | HANDLE | B4 | |
||
| 14 | 330019-14 | 6 | VIS | B4 | |
||
| 15 | 144945-02 | 1 | BOITIER DE CHAMP | B4 | |||
| 16 | 000000-00 | 1 | PLUS DISPONIBLE | B4 | |||
| 17 | 445338-00 | 1 | PROTECTEUR DE CORDON | B4 | |
||
| 18 | 003618-00 | 1 | COLLIER DE CORDON | B4 | |
||
| 19 | 148461-00 | 2 | SCREW.TEMP | B4 | |
||
| 20 | 394149-02 | 1 | COUVERCLE DE POIGNEE | B4 | |
||
| 21 | 330019-10 | 1 | VIS | B4 | |
||
| 22 | 701297-00 | 1 | JOINT | B4 | |
||
| 24 | 330019-21 | 3 | SCREW.TEMP | B4 | |
||
| 25 | 053650-00 | 4 | BORNE | B4 | |
||
| 26 | 330019-18 | 2 | VIS | M4.55 x 50 PLASTIC THD FMG | B4 | |
|
| 27 | 137382-00 | 1 | MANCHON | B4 | |
||
| 28 | 145301-01 | 1 | CARTER | B4 | |
||
| 29 | 145357-00 | 1 | CARTER D'ENGRENAGES | INC 30 | B4 | |
|
| 30 | 330004-06 | 1 | ROULEMENT A AIGUILLES | B4 | |
||
| 31 | 149519-00 | 1 | PROTECTION SUPERIEURE | B4 | |
||
| 32 | 395889-00 | 1 | BOUTON | B4 | |
||
| 33 | 145347-00 | 1 | LEVIER | B4 | |
||
| 34 | 152014-00 | 1 | RONDELLE AVANT | B4 | |
||
| 35 | 152211-00 | 2 | ANNEAU | B4 | |
||
| 36 | 150466-00 | 1 | RESSORT | B4 | |
||
| 37 | 145350-00 | 1 | BOUTON | B4 | |
||
| 38 | 145351-00 | 1 | ESSUIE-GLACE | B4 | |
||
| 39 | 145349-00 | 1 | LEVIER | B4 | |
||
| 40 | 145318-00 | 1 | PARE-CHOCS | B4 | |
||
| 41 | 330016-07 | 1 | RONDELLE AVANT | B4 | |
||
| 42 | 098094-13 | 2 | VIS | M5 x 13mm, Pan Hd | B4 | |
|
| 43 | 330045-23 | 2 | VIS | B4 | |
||
| 44 | 145353-10SV | 1 | AXE ET PIGNON | 47 TEETH ; INC 45 | B4 | ||
| 45 | 147194-00 | 1 | JOINT | B4 | |
||
| 46 | 610906-00 | 1 | COUVERCLE DE CARTER D'ENGRENAGES | B4 | |
||
| 47 | 098102-13 | 3 | VIS | B4 | |||
| 48 | 145375-02 | 1 | PARE-CHOCS | B4 | |
||
| 49 | 330045-27 | 1 | VIS | B4 | |
||
| 50 | N013166 | 1 | IN.CLAMP WASHER | B4 | |||
| 51 | 145343-01 | 1 | RONDELLE DE SERRAGE EXTERNE | B4 | |
||
| 52 | 145344-00 | 1 | SCREW.SPECIAL | B4 | |
||
| 53 | N401777 | 1 | TORSIONSFEDER | B4 | |||
| 54 | 655178-00 | 1 | LOWER GUARD | B4 | |||
| 55 | 389572-00 | 1 | LEVIER | B4 | |
||
| 56 | 388496-00 | 1 | PIECE DE RETENUE | B4 | |
||
| 57 | 148457-00 | 1 | BOULON DE CHARIOT | B4 | |
||
| 58 | 098128-25 | 1 | BOLT, CARRIAGE | M6x1.0x25 | B4 | ||
| 59 | 396631-00 | 1 | VIS | B4 | |
||
| 60 | 388808-01 | 1 | PATIN | B4 | |
||
| 60 | 145319-06 | 1 | S/E PATIN | INC 69-71, 77 | B4 | |
|
| 61 | 098004-36 | 1 | VIS | B4 | |||
| 62 | 330015-04 | 1 | ECROU | B4 | |
||
| 63 | 145332-00 | 2 | BORNE | B4 | |
||
| 64 | 148641-00 | 1 | LOCK-NUT | B4 | |
||
| 65 | 145341-00 | 1 | POINTEUR | B4 | |
||
| 66 | 330045-44 | 1 | VIS | B4 | |
||
| 67 | 330045-19 | 4 | VIS | B4 | |
||
| 68 | 381742-04 | 1 | PLAQUE SIGNALETIQUE | B4 | |||
| 69 | 148193-02SV | 1 | QUADRANT | B4 | |||
| 70 | 148195-00 | 1 | PIVOT | B4 | |
||
| 71 | 098102-10 | 4 | SCREW.TEMP | M4x10 FLATHD TAPTITE | B4 | |
|
| 73 | 32114-01 | 1 | CONNECTEUR | B4 | |
||
| 74 | 384127-01 | 4 | VIS | B4 | |
||
| 75 | 144803-00 | 1 | CIRCLIP | B4 | |
||
| 76 | 152015-03 | 1 | ECROU | B4 | |
||
| 77 | 98102-08 | 2 | SCREW.TEMP | M4 * 12mm | B4 | ||
| 78 | 149521-01 | 1 | PLAQUE SIGNALETIQUE | B4 | |
||
| 79 | 150246-00 | 1 | ENTRETOISE | B4 | |
||
| 80 | 145449-00 | 1 | PLAQUE | B4 | |
||
| 81 | 46084-00 | 1 | RONDELLE AVANT | B4 | |
||
| 85 | 145370-00 | 1 | S/E CONDUCTEUR | B4 | |
||
| 87 | 145374-00 | 1 | S/E CONDUCTEUR | B4 | |
||
| 100 | DW3278 | 1 | GUIDE RIPPAGE | ACC | B4 | ||
| 101 | 392666-00 | 1 | NUT WING | B4 | |
||
| 103 | 145378-01 | 1 | CLE A BOUGIE | B4 | |
||
| 800 | 5140061-28 | 1 | GRAISSE | B4 | |
||
| 856 | DW3178 | 1 | 7-1/4 24T SAW BL - CARDED | ACC | B4 | ||
| 861 | N044228 | 1 | BOITE DE KIT | B4 | |
