DW705 SCIE À ONGLET Type 3 | Plans
Documents

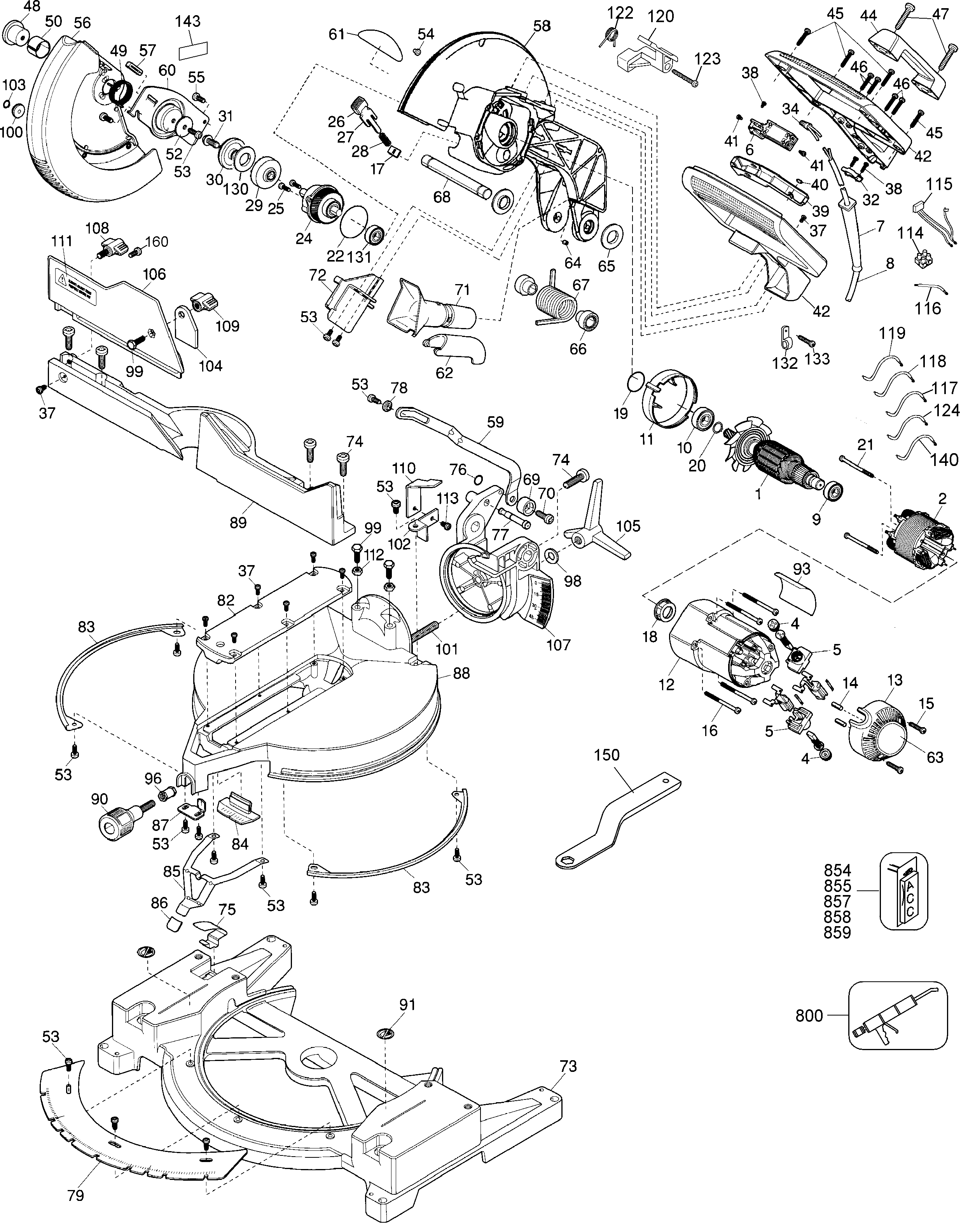

Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140021-94 | 1 | KIT ARMATURE | 240V/9T/ INCL. FIELD | B1 |  |
|
| 2 | N078041SV | 1 | CHAMP | 230/240V | B1 | ||
| 4 | 448084-01 | 2 | CHAPEAU DE BALAI | B1 | |
||
| 5 | 147097-09 | 2 | S/E PORTE-BALAIS | B1 |  |
||
| 6 | 151606-00 | 1 | INTERRUPTEUR | Tyco | B1 | |
|
| 7 | 445338-00 | 1 | PROTECTEUR DE CORDON | B1 | |
||
| 8 | 380651-04 | 1 | JEU DE CORDONS | B1 | |
||
| 9 | 605040-20 | 1 | PALIER | 12 x 28 x 8mm | B1 | |
|
| 10 | 605040-27 | 1 | PALIER | B1 | |
||
| 11 | 146723-01 | 1 | CHICANE | B1 | |
||
| 12 | 5140021-94 | 1 | KIT ARMATURE | 240V/9T/ INCL. FIELD | B1 | |
|
| 13 | 387678-00 | 1 | BOUCHON D'EXTREMITE | B1 | |
||
| 14 | 87205-00 | 2 | PRISE MALE | B1 | |
||
| 15 | 330019-20 | 2 | VIS | B1 | |
||
| 16 | 98094-55 | 4 | VIS | M5 X 55mm T25 | B1 | |
|
| 17 | 387732-00 | 1 | FEUTRE | B1 | |
||
| 18 | 137382-01 | 1 | MANCHON | B1 | |
||
| 19 | 701297-00 | 1 | JOINT | B1 | |
||
| 20 | 144803-00 | 1 | CIRCLIP | B1 | |
||
| 21 | 330019-19 | 2 | VIS | B1 | |
||
| 22 | 383470-00 | 1 | JOINT STATIQUE | B1 | |
||
| 24 | 386824-03SV | 1 | S/E PIGNON ET AXE | 51T | B1 | |
|
| 25 | 330045-14 | 3 | VIS | B1 | |
||
| 26 | 145350-00 | 1 | BOUTON | B1 | |
||
| 27 | 146714-00 | 1 | VERROUILLAGE | B1 | |
||
| 28 | 058698-00 | 1 | RESSORT | B1 | |||
| 29 | 141987-04 | 1 | RONDELLE DE SERRAGE INTERNE | B1 | |
||
| 30 | 151962-01 | 1 | COLLIER EXTERNE | B1 | |
||
| 31 | 145344-01 | 1 | BOULON DE LAME | M8 X 20 LH | B1 | |
|
| 32 | 381065-00 | 1 | COLLIER DE CORDON | B1 | |
||
| 34 | 32114-01 | 1 | CONNECTEUR | B1 | |
||
| 37 | 330045-05 | 8 | VIS | B1 | |
||
| 38 | 330019-03 | 4 | VIS | B1 | |
||
| 39 | 146741-00 | 1 | GACHETTE | B1 | |
||
| 40 | 701901-00 | 1 | ANNEAU | B1 | |
||
| 41 | 384127-01 | 4 | VIS | B1 | |
||
| 42 | 380452-00 | 1 | PAIRE DE COQUILLES | B1 | |
||
| 44 | 146729-01 | 1 | HANDLE | B1 | |
||
| 45 | 330019-14 | 4 | VIS | B1 | |
||
| 46 | 330045-08 | 4 | VIS | B1 | |
||
| 47 | 330019-22 | 2 | VIS | M5.74x32 | B1 | |
|
| 48 | 146750-03 | 1 | PLAQUE DE RETENUE | B1 | |
||
| 49 | N034013 | 1 | RESSORT | B1 | |
||
| 50 | 148295-00 | 1 | MANCHON | B1 | |
||
| 52 | 148612-00 | 1 | RONDELLE AVANT | B1 | |
||
| 53 | 151891-00 | 16 | VIS | B1 | |
||
| 54 | 148608-00 | 2 | INSERT | B1 | |
||
| 55 | 394589-01 | 2 | VIS | FOR UNITS WITH SOCKET HEAD SCREWS | B1 | |
|
| 55 | 394589-01 | 2 | VIS | B1 | |
||
| 56 | 5140159-88 | 1 | LOWER GUARD KIT | B1 | |||
| 57 | 146768-00 | 1 | PARE-CHOCS | B1 | |
||
| 58 | 387695-02SV | 1 | BRAS | B1 | |||
| 59 | 146752-02 | 1 | BIELLE | B1 | |
||
| 60 | 429986-01 | 1 | PLAQUE | B1 | |
||
| 61 | 149365-01 | 1 | ETIQUETTE D'IDENTIFICATION | B1 | |
||
| 62 | 148520-00 | 1 | DEFLECTEUR | B1 | |
||
| 63 | 149521-01 | 1 | PLAQUE SIGNALETIQUE | B1 | |
||
| 64 | 150075-00 | 2 | VIS | B1 | |
||
| 65 | 148296-00 | 2 | RONDELLE AVANT | B1 | |
||
| 66 | 146732-00 | 2 | ENTRETOISE | B1 | |
||
| 67 | N039404 | 1 | RESSORT | B1 | |
||
| 68 | 146751-00 | 1 | ARBRE | B1 | |
||
| 69 | 146753-00 | 1 | BAGUE | B1 | |
||
| 70 | 330045-32 | 1 | VIS | M8x1.25x20 MTLTHDFMG | B1 | |
|
| 71 | 146717-00 | 1 | GAINE | B1 | |
||
| 72 | 146772-03 | 1 | PROTECTION ARRIERE | B1 | |
||
| 73 | 152772-01 | 1 | BASE | B1 | |
||
| 74 | 330045-33 | 5 | VIS | B1 | |
||
| 75 | 146758-00 | 1 | RESSORT | B1 | |
||
| 76 | 034158-00 | 1 | JOINT TORIQUE | B1 | |
||
| 77 | 387130-00 | 1 | GOUPILLE DE VERROUILLAGE | B1 | |
||
| 78 | 146740-01 | 1 | COUSSINET | B1 | |
||
| 79 | 429904-02 | 1 | CRAN DE VERROUILLAGE | B1 | |||
| 82 | 146726-02 | 1 | PLAQUE | B1 | |
||
| 83 | 146773-01 | 2 | PLAQUE | B1 | |
||
| 84 | 146756-00 | 1 | POINTEUR | B1 | |
||
| 84 | 398693-00 | 1 | POINTEUR | SECURED BY ONE 330045-05 SCREW TO TABLE | B1 | |
|
| 85 | 146745-01 | 1 | CRAN DE VERROUILLAGE | SPRING | B1 | ||
| 86 | 148611-00 | 1 | COUVERCLE | B1 | |
||
| 87 | 148297-00 | 1 | COLLIER | B1 | |
||
| 88 | 429987-00 | 1 | KIT TABLE | B1 | |
||
| 89 | 5140030-20 | 1 | S/E BARRIERE | B1 | |
||
| 90 | 145439-09 | 1 | BOUTON | B1 | |
||
| 91 | 394976-00 | 2 | ETIQUETTE | WARNING | B1 | |
|
| 93 | 380701-02 | 1 | PLAQUE SIGNALETIQUE | B1 | |
||
| 96 | 146733-00 | 1 | COLLIER | B1 | |
||
| 98 | 330016-04 | 1 | RONDELLE AVANT | B1 | |
||
| 99 | 149368-00 | 3 | VIS | B1 | |
||
| 100 | 146774-00 | 1 | ROULEAU | B1 | |
||
| 101 | 146760-01 | 1 | GOUJON | B1 | |
||
| 102 | 148292-00 | 1 | SUPPORT | B1 | |
||
| 103 | 142273-00 | 1 | ANNEAU | B1 | |
||
| 104 | 146737-00 | 1 | COLLIER | B1 | |
||
| 105 | 392422-00 | 1 | HANDLE | B1 | |
||
| 106 | 605259-02 | 1 | FENCE LEFT | D/C 200328 AND LATER | B1 | ||
| 106 | 146739-00 | 1 | BARRIERE | B1 | |
||
| 107 | 146731-01 | 1 | TOURILLON | B1 | |
||
| 108 | 147107-02 | 1 | BOUTON INFERIEUR | B1 | |
||
| 109 | 147107-01 | 1 | BOUTON SUPERIEUR | B1 | |
||
| 110 | 148299-00 | 1 | POINTEUR | B1 | |
||
| 111 | 148524-01 | 1 | ETIQUETTE D'AVERTISSEMENT | B1 | |
||
| 112 | 99368-04 | 2 | ECROU | B1 | |
||
| 113 | 151895-00 | 1 | VIS | B1 | |
||
| 114 | 320078-00 | 1 | BORNIER | B1 | |
||
| 116 | 148048-00 | 1 | LEAD SA BLACK | B1 | |
||
| 118 | 151644-00 | 1 | LEAD SA BLACK | B1 | |
||
| 124 | 145374-00 | 1 | S/E CONDUCTEUR | B1 | |
||
| 130 | 152636-00 | 1 | SUPPORT DE LAME | B1 | |
||
| 131 | 386780-00 | 1 | PALIER | B1 | |
||
| 132 | 153669-00 | 1 | COLLIER DE CORDON | B1 | |
||
| 133 | 330045-13 | 1 | VIS | M5x0.8x10 MTL THDFMG | B1 | |
|
| 140 | 151615-00 | 1 | S/E CONDUCTEUR BLANC | B1 | |
||
| 143 | 151976-00 | 1 | ETIQUETTE D'AVERTISSEMENT | B1 | |
||
| 150 | 145378-01 | 1 | CLE A BOUGIE | B1 | |
||
| 160 | 330045-06 | 1 | VIS | B1 | |
||
| 800 | 93488-00 | 1 | GRAISSE | B1 | |
||
| 854 | 000000-00 | 1 | PLUS DISPONIBLE | B1 | |||
| 855 | DE7053 | 1 | DUST BAG | B1 | |||
| 857 | DE7051 | 1 | LENGTH STOP | B1 | |||
| 858 | DE7052 | 1 | MATERIAL CLAMP | B1 | |||
| 859 | DE7050 | 1 | EXTENSION KIT | B1 |
