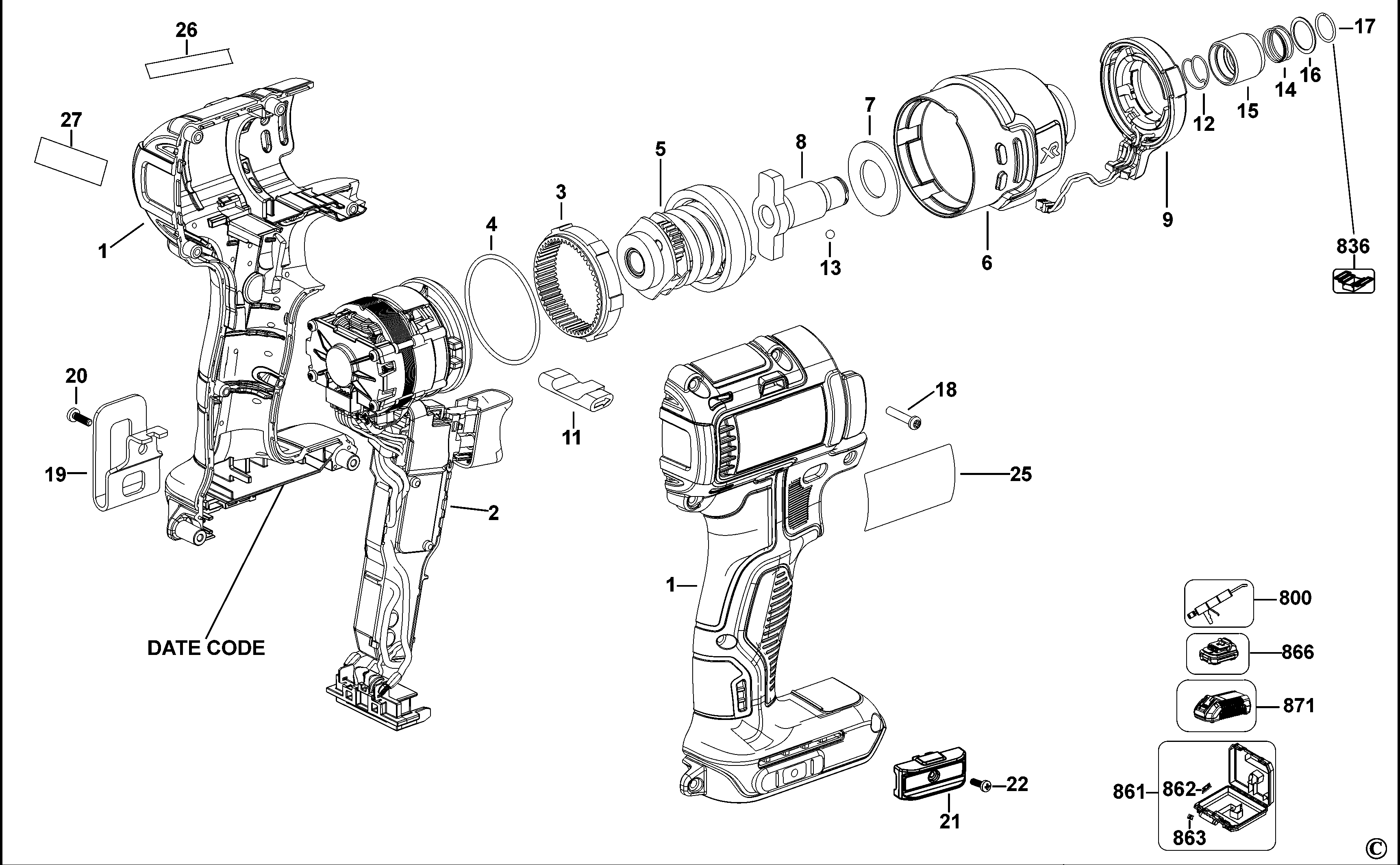

DCF836 VISSEUSE A CHOCS Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N190092 | 1 | JEU DE COQUILLES | GB |  |
||
| 1 | 5170029-46 | 1 | ROTULE | GB | |||
| 2 | N257202 | 1 | S/E MOTEUR ET COMMUTATEUR | 14.4V | GB | |
|
| 2 | 586614-00 | 1 | CHICANE | GB | |
||
| 3 | N112877 | 1 | PIGNON | GB |  |
||
| 3 | 1004683-28 | 1 | PROTECTION | GB | |
||
| 4 | N075339 | 1 | JOINT TORIQUE | GB | |
||
| 4 | 579778-00 | 4 | BRIDE | GB | |
||
| 5 | N236619 | 1 | IMPACTEUR | GB | |
||
| 6 | N236639 | 1 | S/E PARTIE AVANT | GB | |
||
| 7 | 642883-00C | 1 | RONDELLE AVANT | GB | |
||
| 8 | N114621 | 1 | ENSEMBLE ENCLUME | GB | |
||
| 9 | N165504 | 1 | DIODE LUMINESCENTE | GB | |
||
| 11 | N079835 | 1 | ACTIONNEUR SENS AVANT/ARRIERE | GB | |
||
| 12 | N078434 | 1 | RESSORT | GB | |
||
| 13 | N089668 | 1 | ROTULE ACIER | GB | |
||
| 14 | N019351 | 1 | RESSORT | GB | |
||
| 14 | 498099-00 | 1 | VIS | GB | |
||
| 15 | N078437 | 1 | MANCHON | GB | |
||
| 15 | 491506-00 | 5 | BOUCHON D'EXTREMITE | GB | |
||
| 16 | N016823 | 1 | RONDELLE AVANT | GB | |
||
| 17 | N053863 | 1 | ANNEAU | GB | |
||
| 18 | 682211-00 | 8 | VIS | GB | |
||
| 19 | N086039 | 1 | CROCHET | GB | |
||
| 20 | N042665 | 1 | VIS | GB | |
||
| 21 | N095778 | 1 | PORTE-EMBOUT | GB | |
||
| 21 | 90525962 | 1 | BOULON | GB | |||
| 22 | N042665 | 1 | VIS | GB | |
||
| 22 | 6010267-76 | 1 | RESSORT | GB | |||
| 24 | 581656-00 | 1 | AXE | GB | |
||
| 25 | N221072 | 1 | PLAQUE SIGNALETIQUE | EURO | GB | |
|
| 25 | 5170020-10 | 1 | S/E UNITE PRINCIPALE | GB | |||
| 26 | N249161 | 1 | ETIQUETTE | GB | |
||
| 26 | 5170028-08 | 2 | RESERVOIR | GB | |||
| 27 | N298039 | 1 | ETIQUETTE | GB | |
||
| 27 | 1004593-00 | 1 | ARMATURE | GB | |
||
| 29 | N106221-00 | 1 | SOUFFLETS | GB | |
||
| 30 | 6010267-90 | 1 | S/E FLEXIBLE | GB | |||
| 31 | 6010037-17 | 1 | TUBE | FLUORESCENT | GB | |
|
| 32 | 1004587-06 | 1 | S/E CARTER DE MOTEUR | GB | |
||
| 33 | 1004773-41 | 2 | ECROU | M3×0.5 | GB | |
|
| 34 | 1004732-39 | 1 | S/E CHAMP | Inc. HOUSING | GB | |
|
| 35 | 90587109 | 1 | FIL CONDUCTEUR | GB | |||
| 36 | N512361 | 1 | SWITCH & PCB SA | GB | |
||
| 37 | 6010267-78 | 2 | FILTRE | GB | |||
| 38 | 1004555-02 | 1 | CAPOT MOTEUR | GB | |
||
| 39 | 1004684-43 | 2 | BALAI D'OXYCOUPAGE | QTY 1 | GB | ||
| 43 | 479734-01 | 1 | INTERRUPTEUR | GB | |||
| 44 | 90587068 | 1 | S/E CONDUCTEUR D'ENRICHISSEUR | GB | |
||
| 45 | N041825 | 2 | S/E CARTER DE MOTEUR | GB | |
||
| 46 | 6010267-86 | 1 | BOUCHON D'EXTREMITE | GB | |||
| 47 | N020087 | 1 | CARTER ET COUVERCLE | Non EMI | GB | ||
| 48 | 6010037-16 | 1 | SUPPORT | TUBE HOLDER (BOTTOM) | GB | |
|
| 49 | 279558-00 | 1 | PLAQUE | GB | |
||
| 50 | 1002097-00 | 1 | S/E REFLECTEUR | GB | |
||
| 51 | 6010389-29 | 1 | CONE | GB | |
||
| 52 | 6010358-79 | 1 | PLAQUE SIGNALETIQUE | GB | |
||
| 53 | 6010387-00 | 1 | PLAQUE SIGNALETIQUE | GB | |||
| 54 | 6010266-98 | 1 | CARTE CIRCUIT IMPRIME | GB | |
||
| 55 | 1002098-00 | 1 | AMPOULE | GB | |||
| 56 | 596846-00 | 1 | PLAQUE DE COUVERCLE | GB | |
||
| 800 | 808386-00 | 1 | GRAISSE | MOLYKOTE G68 100GMS | GB | ||
| 800 | 286436-00 | 1 | GRAISSE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 836 | 1003940-99 | 1 | OUTIL D'INSERTION DE CIRCLIP S.T. | GB | |
||
| 861 | N312361 | 1 | BOITE DE KIT | D2 - T-STAK | DCF836D2 | GB | |
| 861 | N197072 | 1 | BOITE DE KIT | GB | |
||
| 861 | N312360 | 1 | BOITE DE KIT | P2-M2-NT - T-STAK | DCF836P2-DCF836M2 | GB | |
| 862 | H1500082520 | 2 | LOQUET | GB | |||
| 863 | P910190 | 2 | LOQUET | GB | |
||
| 866 | N342079 | 1 | BATTERIE 14,4 V - 2,0 AH - 29 WH | Li-ion - DCB143-XJ | DCF836D2 | GB | |
| 866 | N394622 | 1 | BATTERIE 14,4 V - 5,0 AH - 72 WH | Li-Ion - DCB144-XJ | DCF836M2 | GB | |
| 871 | N450537 | 1 | CHARGER 10,8 V - 18 V | GB | |
