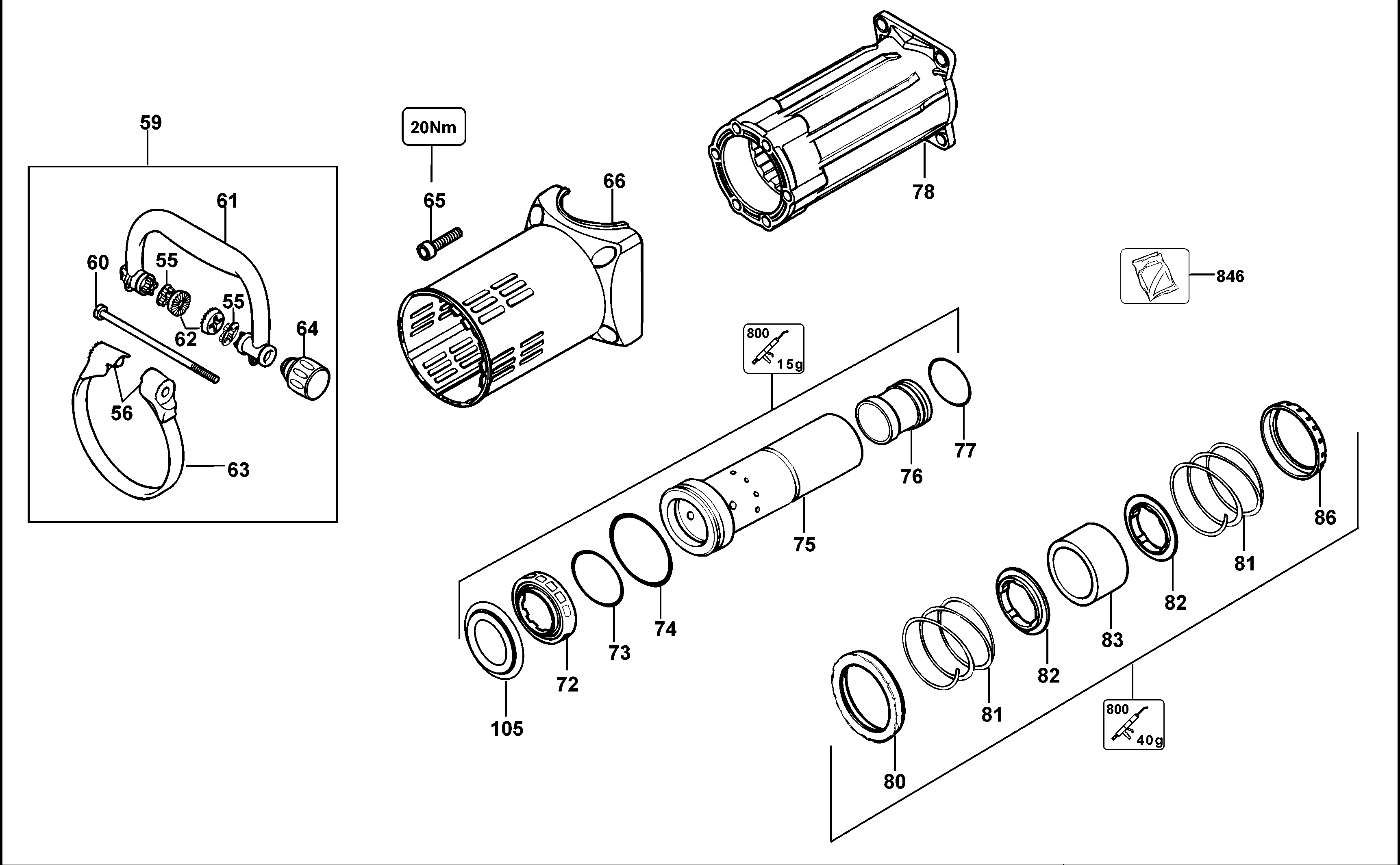

D25902K MARTEAU DE DEMOLITION Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579837-02 | 1 | ARMATURE 230V | GB | |||
| 2 | 579827-04 | 1 | FIELD SA 230V | GB | |||
| 3 | 1007719-00 | 1 | S/E PORTE-BALAIS | GB |  |
||
| 4 | 590191-00 | 1 | MANCHON ISOLANT | GB | |
||
| 5 | 577745-00 | 1 | PALIER | GB | |
||
| 7 | 1007800-00 | 1 | JOINT | GB | |
||
| 8 | 1005550-02 | 1 | BRUSH PAIR 230V | GB | |
||
| 9 | 487377-00 | 2 | RESSORT DE BALAI | GB | |
||
| 9 | N833746 | 2 | S/E SELECTEUR | GB |  |
||
| 10 | N542569 | 1 | S/E VENTILATEUR | GB | |
||
| 10 | N542569 | 1 | S/E VENTILATEUR | GB | |
||
| 11 | 324119-02 | 1 | VIS | GB | |
||
| 12 | 1005637-00 | 2 | RESSORT DE COMPRESSION | GB | |
||
| 13 | 1005640-00 | 1 | POIGNEE DE CARTER | GB | |
||
| 14 | 1005643-00 | 2 | SOUFFLETS | GB | |
||
| 15 | 1005672-00 | 2 | VIS | GB | |
||
| 16 | 1005646-00 | 2 | TUBE DE GUIDAGE | GB | |
||
| 17 | 1005644-00 | 2 | SÉCURITÉ | GB | |
||
| 18 | 487326-03 | 1 | S/E CONDUCTEUR ET DOUILLE | GB | |
||
| 19 | N571294 | 1 | PLAQUE | HANDLE PLATE BLACK | GB | |
|
| 20 | 1005496-01 | 2 | BAGUE DE GUIDAGE | GB | |
||
| 21 | N572223 | 1 | SUPPORT | GB | |
||
| 22 | N485854 | 1 | INTERRUPTEUR | GB | |
||
| 22 | N485854 | 1 | INTERRUPTEUR | GB | |
||
| 23 | 1005645-00 | 1 | TIGE | GB | |
||
| 24 | 1005641-00 | 1 | COUVERCLE DE POIGNEE | GB | |
||
| 25 | 821070 | 1 | COLLIER DE CORDON | GB | |
||
| 26 | 330065-08 | 7 | VIS | M4x18 T20 | GB | |
|
| 27 | 1005942-00 | 2 | PALIER LISSE | GB | |
||
| 28 | 323091-01 | 1 | PROTECTEUR DE CORDON | GB | |
||
| 29 | 582319-23 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 29 | 582319-45 | 1 | JEU DE CORDONS | GB | |
||
| 30 | 1005642-00 | 1 | COUVERCLE DE CARTER D'ENGRENAGES | GB | |
||
| 31 | N345479 | 1 | PONT | GB | |
||
| 32 | 487224-00 | 1 | JOINT | GB | |
||
| 33 | 330065-08 | 2 | VIS | M4x18 T20 | GB | |
|
| 34 | 324821-04 | 1 | CIRCLIP | GB | |
||
| 35 | N570313 | 1 | PALIER | GB | |
||
| 36 | 487209-01 | 1 | JOINT | GB | |
||
| 37 | 324821-03 | 1 | CIRCLIP | GB | |
||
| 38 | N542565 | 1 | TIGE CONIQUE | GB | |
||
| 38 | N542565 | 1 | TIGE CONIQUE | GB | |
||
| 39 | 578452-00 | 1 | ENTRETOISE | GB | |
||
| 40 | 578451-00 | 1 | ENTRETOISE | GB | |
||
| 41 | 605040-26 | 2 | PALIER | GB | |
||
| 42 | 579782-00 | 1 | PIGNON | GB | |
||
| 43 | 579783-00 | 1 | PIGNON | GB | |
||
| 44 | 579772-00 | 1 | S/E CARTER D'ENGRENAGES | GB | |
||
| 45 | 579839-00 | 1 | VILEBREQUIN | GB | |
||
| 46 | 576451-00 | 1 | ANNEAU | GB | |
||
| 47 | 487208-00 | 1 | AXE | GB | |
||
| 48 | 581656-00 | 2 | AXE | GB | |
||
| 49 | 487213-00 | 1 | JOINT TORIQUE | GB | |
||
| 50 | 579774-00 | 1 | PISTON | GB | |
||
| 51 | 579779-01 | 1 | KIT DE PISTON | GB | |
||
| 52 | 323711-47 | 1 | JOINT TORIQUE | GB | |
||
| 53 | N147097 | 1 | S/E COUVERCLE | GB | |
||
| 54 | N325399 | 1 | ELECTRONIC 230V | GB | |
||
| 55 | 479319-00 | 1 | INSERT DE SERRAGE | GB | |
||
| 56 | 487284-00 | 2 | RONDELLE DE SERRAGE | GB | |
||
| 57 | 1005666-00 | 1 | CAPOT MOTEUR | GB | |
||
| 58 | 324007-11 | 23 | VIS | M5 X 18 | GB | |
|
| 59 | 1007718-00 | 1 | POIGNEE LATERALE | GB | |
||
| 60 | 487343-00 | 1 | BOULON | GB | |
||
| 61 | 487277-00 | 1 | HANDLE | GB | |
||
| 62 | 479317-01 | 2 | RONDELLE-FREIN | GB | |
||
| 63 | 487281-00 | 1 | COLLIER | GB | |
||
| 64 | 487291-00 | 1 | S/E BOUTON | GB | |
||
| 65 | 949886-32 | 4 | VIS | GB | |
||
| 66 | 487282-00 | 1 | COUVERCLE DE CARTER | GB | |||
| 67 | 579832-00 | 1 | POUSSOIR | GB | |
||
| 68 | 487270-00 | 1 | COUSSINET | GB | |
||
| 69 | 496678-00 | 1 | AMORTISSEUR | GB | |
||
| 70 | 579786-00 | 1 | COUSSINET | GB | |
||
| 71 | 487298-00 | 1 | JOINT TORIQUE | GB | |
||
| 72 | 496847-00 | 1 | COUSSINET | GB | |
||
| 73 | 487297-00 | 1 | JOINT TORIQUE | GB | |
||
| 74 | 323711-41 | 2 | JOINT TORIQUE | GB | |
||
| 75 | N075954 | 1 | CYLINDRE | GB | |
||
| 76 | 579780-00 | 1 | VERIN | GB | |
||
| 77 | 487296-00 | 1 | JOINT TORIQUE | GB | |
||
| 78 | 579769-00 | 1 | CARTER AVANT | GB | |
||
| 79 | 323711-55 | 1 | JOINT TORIQUE | GB | |
||
| 80 | 487293-00 | 1 | GUIDE DE RESSORT | GB | |
||
| 81 | 487247-00 | 2 | RESSORT | GB | |
||
| 82 | 576488-00 | 2 | GUIDE DE RESSORT | GB | |
||
| 83 | 579781-00 | 1 | CONTREPOIDS | GB | |
||
| 86 | 576489-00 | 1 | GUIDE DE RESSORT | GB | |
||
| 87 | 487238-01 | 1 | JOINT | GB | |
||
| 88 | 487205-00 | 1 | ANNEAU | GB | |
||
| 89 | 487241-00 | 1 | RONDELLE AVANT | GB | |
||
| 90 | 487244-00 | 1 | CAOUTCHOUC | GB | |
||
| 91 | 487236-00 | 1 | MANCHON | GB | |
||
| 92 | 579784-00 | 1 | SEGMENT DE VERROUILLAGE | GB | |
||
| 93 | 487218-00 | 1 | RESSORT | GB | |
||
| 94 | 487249-00 | 1 | COUSSINET | GB | |
||
| 95 | 489672-00 | 2 | CLE | GB | |
||
| 96 | 487240-00 | 1 | BAGUE | GB | |
||
| 97 | 487216-00 | 1 | RESSORT | GB | |
||
| 98 | 487268-00 | 1 | GUIDE DE RESSORT | GB | |
||
| 99 | 487289-00 | 1 | RESSORT | GB | |
||
| 100 | N542567 | 1 | S/E MANCHON | GB | |
||
| 100 | N542567 | 1 | S/E MANCHON | GB | |
||
| 101 | 487237-00 | 1 | MANCHON | GB | |
||
| 102 | 918825-02 | 6 | VIS | GB | |
||
| 103 | 579778-00 | 1 | BRIDE | GB | |
||
| 104 | 323711-15 | 1 | JOINT TORIQUE | GB | |
||
| 105 | 496677-00 | 1 | AMORTISSEUR | GB | |
||
| 107 | 579773-00 | 1 | S/E AXE | GB | |
||
| 108 | N014007 | 1 | JOINT | GB | |
||
| 109 | 487287-00 | 1 | JOINT TORIQUE | GB | |
||
| 110 | 1007543-00 | 1 | COUSSINET DE PALIER | GB | |
||
| 112 | 487392-00 | 1 | ETIQUETTE | GB | |
||
| 120 | 330003-68 | 1 | PALIER | GB | |
||
| 130 | 330003-69 | 1 | PALIER | GB | |
||
| 800 | 578970-06 | 1 | GREASE 150 GMS | 145gms | GB | |
|
| 802 | 870889-02 | 1 | GRAISSE | GB | |
||
| 821 | N323702 | 1 | ETIQUETTE SIGNALETIQUE | GB | |
||
| 826 | 487395-01 | 1 | ETIQUETTE | GB | |
||
| 836 | 559617-99 | 1 | BATI DE SOUTIEN S.T. | Crank Gear removal. | GB | |
|
| 837 | 559618-99 | 1 | BATI DE SOUTIEN S.T. | Motor assembly jig | GB | |
|
| 838 | 559621-99 | 1 | OUTIL D'ENTRETIEN | Armature brg tool | GB | |
|
| 840 | 559619-99 | 1 | OUTIL DE DEPOSE DE CIRCLIP S.T. | Snap ring assy tool. | GB | |
|
| 845 | 559620-99 | 1 | OUTIL DE POSE DE JOINT S.T. | Spindle seal tool | GB | |
|
| 846 | 1008772-00 | 1 | SERVICE KIT 230V | GB | |
||
| 855 | 351087-01 | 1 | BIT | GB | |
||
| 861 | 487353-04 | 1 | BOITE DE KIT | GB | |
