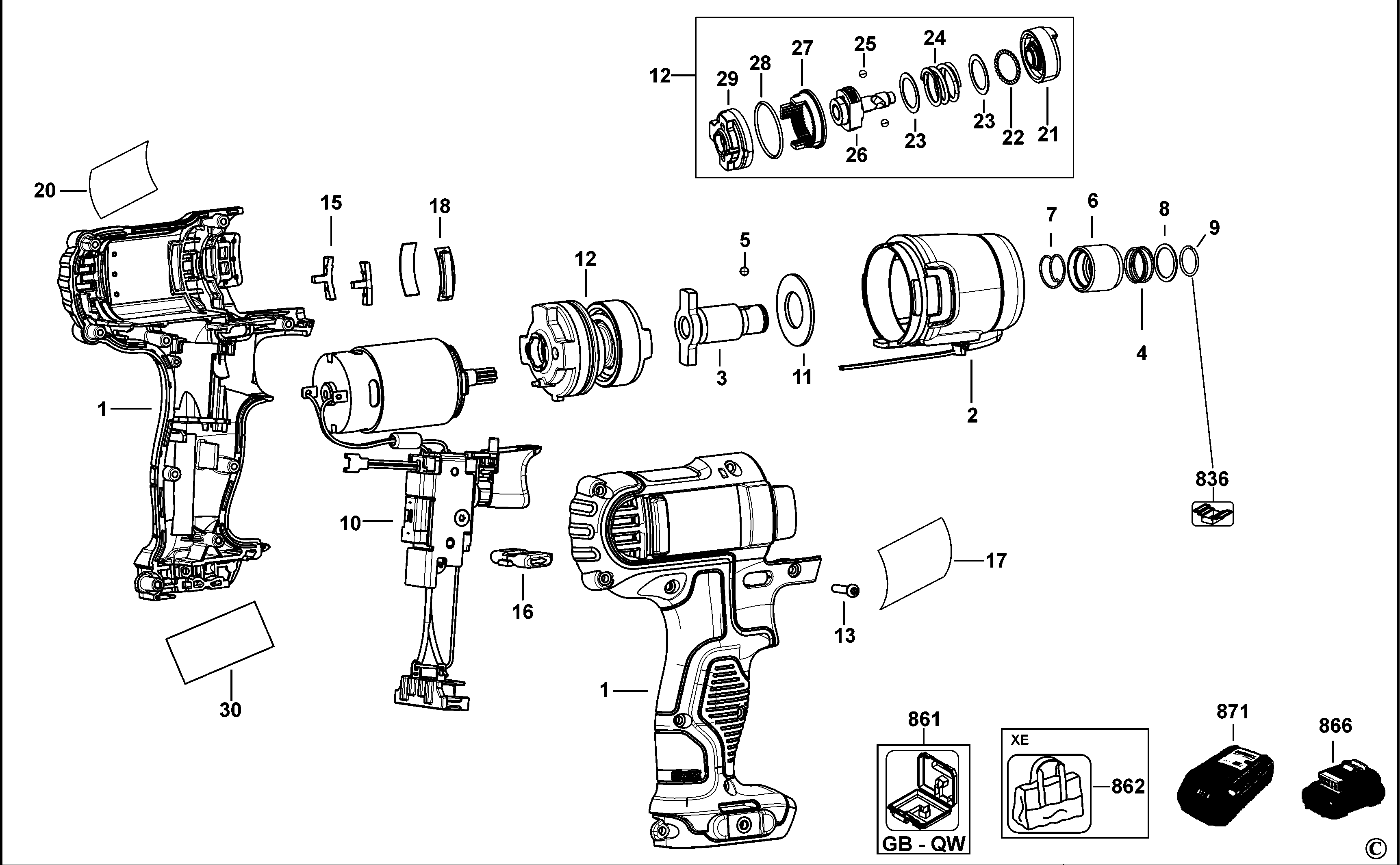

DCF815 VISSEUSE A CHOCS Type 3 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N348741 | 1 | JEU DE COQUILLES | GB |  |
||
| 2 | N382726 | 1 | S/E PARTIE AVANT | GB | |
||
| 3 | N200672 | 1 | ENSEMBLE ENCLUME | GB | |
||
| 4 | N019351 | 1 | RESSORT | GB | |
||
| 5 | N089668 | 1 | ROTULE ACIER | GB | |
||
| 6 | N078437 | 1 | MANCHON | GB | |
||
| 7 | N078434 | 1 | RESSORT | GB | |
||
| 8 | N016823 | 1 | RONDELLE AVANT | GB | |
||
| 9 | N053863 | 1 | ANNEAU | GB | |
||
| 10 | N382724 | 1 | S/E MOTEUR ET COMMUTATEUR | GB | |
||
| 11 | 642883-00C | 1 | RONDELLE AVANT | GB | |
||
| 12 | N382718 | 1 | S/E EMBRAYAGE | GB | |
||
| 13 | 682211-00 | 9 | VIS | GB | |
||
| 15 | N336139 | 2 | PATIN CAOUTCHOUC | GB | |
||
| 16 | N017247 | 1 | ACTIONNEUR SENS AVANT/ARRIERE | GB | |
||
| 17 | N793540 | 1 | PLAQUE SIGNALETIQUE | EURO | GB | ||
| 18 | N336499 | 2 | PATIN CAOUTCHOUC | GB | |
||
| 20 | N127969 | 1 | ETIQUETTE MARQUE | GB | |
||
| 21 | N241759 | 1 | IMPACTEUR | GB | |
||
| 22 | 389317-00 | 28 | ROTULE ACIER | GB | |
||
| 23 | N021845 | 2 | RONDELLE D'ARRET | GB | |
||
| 24 | N021280 | 1 | RESSORT | GB | |
||
| 25 | 386690-00 | 2 | ROTULE | STEEL, 5MM | GB | |
|
| 26 | N386478 | 1 | S/E PIGNON ET CAME | GB | |
||
| 27 | N020961 | 1 | PIGNON | GB | |
||
| 28 | N022802 | 1 | JOINT TORIQUE | GB | |
||
| 29 | N021164 | 1 | SUPPORT | GB | |
||
| 30 | N807080 | 1 | ETIQUETTE | GB | |
||
| 836 | 1003940-99 | 1 | OUTIL D'INSERTION DE CIRCLIP S.T. | GB | |
||
| 861 | N488394 | 1 | BOITE DE KIT | GB | |
||
| 866 | N394615 | 1 | BATTERIE 10,8 V - 1,3 AH - 14 WH | DCB125-XJ | DCF815C2 | GB | |
| 866 | N394620 | 1 | BATTERIE 10,8 V - 2,0 AH - 21,6 WH | DCB127-XJ | DCF815D2 | GB | |
| 866 | N394620 | 1 | BATTERIE 10,8 V - 2,0 AH - 21,6 WH | DCB127-XJ | DCF815S2 | GB | |
| 871 | N450537 | 1 | CHARGER 10,8 V - 18 V | DCF815C2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10,8 V - 18 V | DCF815S2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10,8 V - 18 V | DCF815D2 | GB | |
