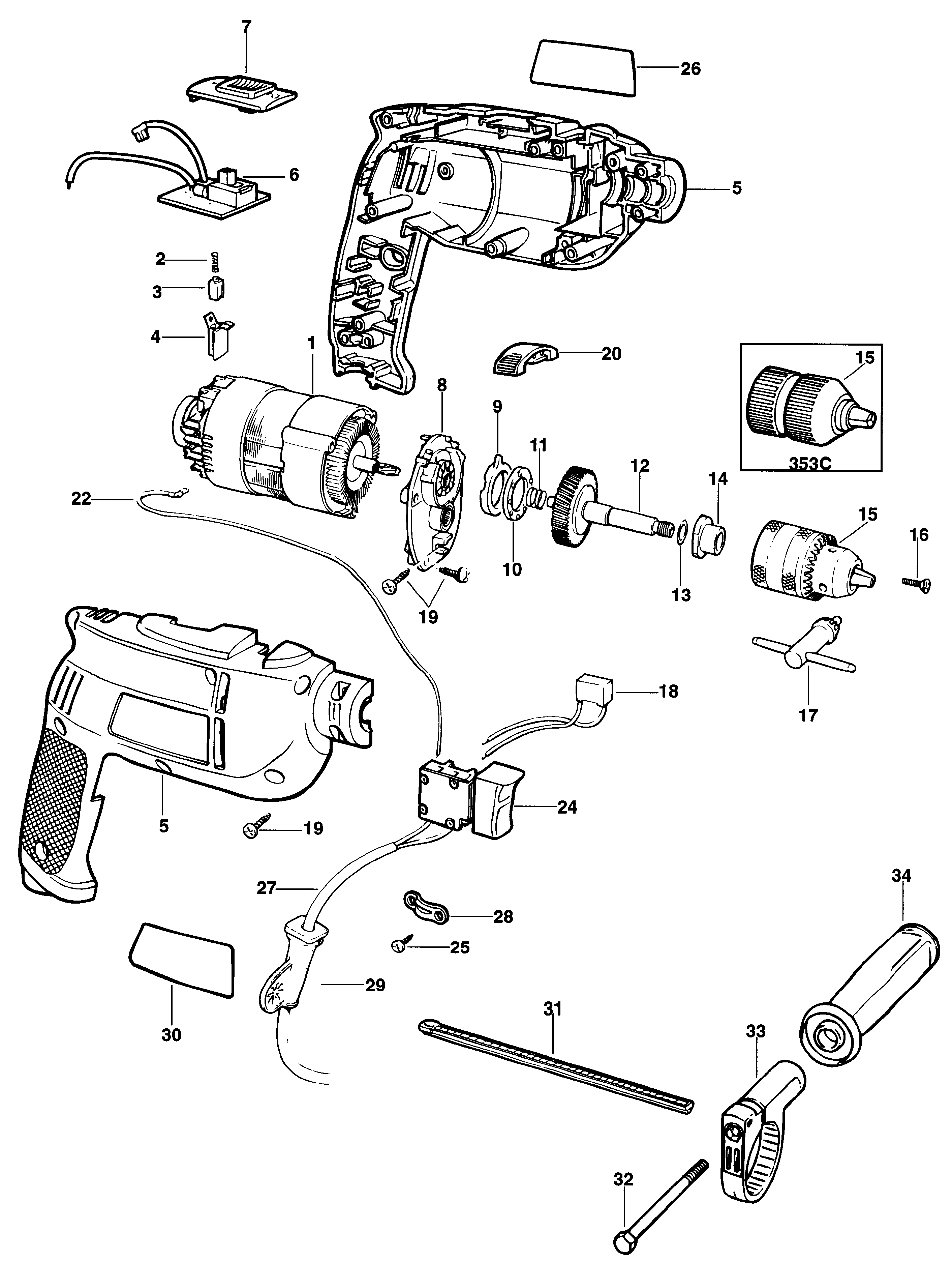

KD353 PERCEUSE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 376913-09 | 1 | S/E MOTEUR | GB |  |
||
| 1 | 376913-05 | 1 | MOTEUR | TW ONLY | GB | |
|
| 1 | 5170029-46 | 1 | ROTULE | GB | |||
| 2 | 847709 | 2 | RESSORT | GB |  |
||
| 2 | 586614-00 | 1 | CHICANE | GB | |
||
| 3 | 376143 | 2 | BALAI | GB | |
||
| 3 | 1004702-18 | 1 | PROTECTION | Type 27 | GB | |
|
| 4 | 812738 | 2 | PORTE-BALAIS | GB | |
||
| 4 | 579778-00 | 4 | BRIDE | GB | |
||
| 5 | 808362 | 1 | COQUILLE | GB | |
||
| 6 | 808367-00 | 1 | INTERRUPTEUR | GB | |
||
| 6 | 808367-01 | 1 | INTERRUPTEUR | TW ONLY | GB | ||
| 7 | 808369-01 | 1 | ACTIONNEUR | GB | |
||
| 8 | 823782 | 1 | COUVERCLE DE CARTER D'ENGRENAGES | GB | |
||
| 9 | 812962 | 1 | ANNEAU | GB | |
||
| 10 | 892261 | 1 | PALIER | GB | |
||
| 11 | 821986 | 1 | RESSORT | GB | |
||
| 12 | 747323-49 | 1 | S/E AXE | GB | |
||
| 13 | 812979 | 1 | RONDELLE D'ARRET | GB | |
||
| 14 | 812973 | 1 | PALIER | GB | |
||
| 14 | 498099-00 | 1 | VIS | GB | |
||
| 15 | 586589-00L | 1 | MANDRIN AUTOSERR. | KD353C | GB | |
|
| 15 | 330033-23 | 1 | CHUCK 13MM | KD352 | GB | |
|
| 15 | 330033-23 | 1 | CHUCK 13MM | KD353 | GB | |
|
| 15 | 491506-00 | 5 | BOUCHON D'EXTREMITE | GB | |
||
| 16 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 17 | 330034-07 | 1 | CLE DE MANDRIN | KD352 | GB | |
|
| 17 | 330034-07 | 1 | CLE DE MANDRIN | KD353 | GB | |
|
| 18 | 793192 | 1 | S/E CONDENSATEUR | GB | |
||
| 19 | 809961 | 11 | VIS | GB | |
||
| 20 | 808370 | 1 | SELECTEUR | GB | |
||
| 20 | 1004742-76 | 1 | PIGNON | GB | |
||
| 21 | 90525962 | 1 | BOULON | GB | |||
| 22 | 371667 | 1 | CONDUCTEUR | TW ONLY | GB | |
|
| 22 | 822215 | 1 | CONDUCTEUR | GB | |
||
| 22 | 6010267-76 | 1 | RESSORT | GB | |||
| 24 | 808365-00 | 1 | INTERRUPTEUR | GB | |
||
| 24 | 808365-01 | 1 | INTERRUPTEUR | TW ONLY | GB | |
|
| 24 | 581656-00 | 1 | AXE | GB | |
||
| 25 | 821057 | 2 | VIS | No 6 x 12.7mm | GB | |
|
| 25 | 5170020-10 | 1 | S/E UNITE PRINCIPALE | GB | |||
| 26 | 808371-10 | 1 | ETIQUETTE MARQUE | KD353 | GB | |
|
| 26 | 5170028-08 | 2 | RESERVOIR | GB | |||
| 27 | 330060-53 | 1 | JEU DE CORDONS | GB | |||
| 27 | 1004569-02 | 1 | S/E ARMATURE | GB | |
||
| 28 | 821070 | 1 | COLLIER DE CORDON | GB | |
||
| 29 | 770235 | 1 | PROTECTEUR | GB | |
||
| 29 | N106221-00 | 1 | SOUFFLETS | GB | |
||
| 30 | 6010267-90 | 1 | S/E FLEXIBLE | GB | |||
| 31 | 808401 | 1 | BUTEE DE PROFONDEUR | GB | |
||
| 31 | 6010037-17 | 1 | TUBE | FLUORESCENT | GB | |
|
| 32 | 813918 | 1 | VIS | GB | |
||
| 32 | 6010408-43 | 1 | NACELLE | UPPER | GB | ||
| 33 | 808405 | 1 | COLLIER | GB | |
||
| 33 | 5170033-56 | 2 | VIS | GB | |
||
| 34 | 808402 | 1 | POIGNEE LATERALE | GB | |
||
| 34 | 90629876 | 1 | S/E CHAMP | GB | |
||
| 35 | 90587109 | 1 | FIL CONDUCTEUR | GB | |||
| 36 | N512361 | 1 | SWITCH & PCB SA | GB | |
||
| 37 | 6010267-78 | 2 | FILTRE | GB | |||
| 38 | 1004555-02 | 1 | CAPOT MOTEUR | GB | |
||
| 39 | 3084355 | 2 | BALAI SECURITE | Patio | GB | |
|
| 43 | 90615125 | 1 | SWITCH & PCB SA | GB | |
||
| 44 | 90587068 | 1 | S/E CONDUCTEUR D'ENRICHISSEUR | GB | |
||
| 45 | N041825 | 2 | S/E CARTER DE MOTEUR | GB | |
||
| 46 | 6010267-86 | 1 | BOUCHON D'EXTREMITE | GB | |||
| 47 | N020087 | 1 | CARTER ET COUVERCLE | Non EMI | GB | ||
| 48 | 6010037-16 | 1 | SUPPORT | TUBE HOLDER (BOTTOM) | GB | |
|
| 49 | 279558-00 | 1 | PLAQUE | GB | |
||
| 50 | 1002097-00 | 1 | S/E REFLECTEUR | GB | |
||
| 51 | 6010389-29 | 1 | CONE | GB | |
||
| 52 | N133192 | 1 | PLAQUE SIGNALETIQUE | GB | |||
| 54 | 6010266-98 | 1 | CARTE CIRCUIT IMPRIME | GB | |
||
| 55 | 1002098-00 | 1 | AMPOULE | GB | |||
| 56 | 90591863 | 1 | PROTECTION INFERIEURE | GB | |
||
| 861 | N501802 | 1 | BOITE DE KIT | GB | |
