D21160 10mm Right Angle Drill Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page

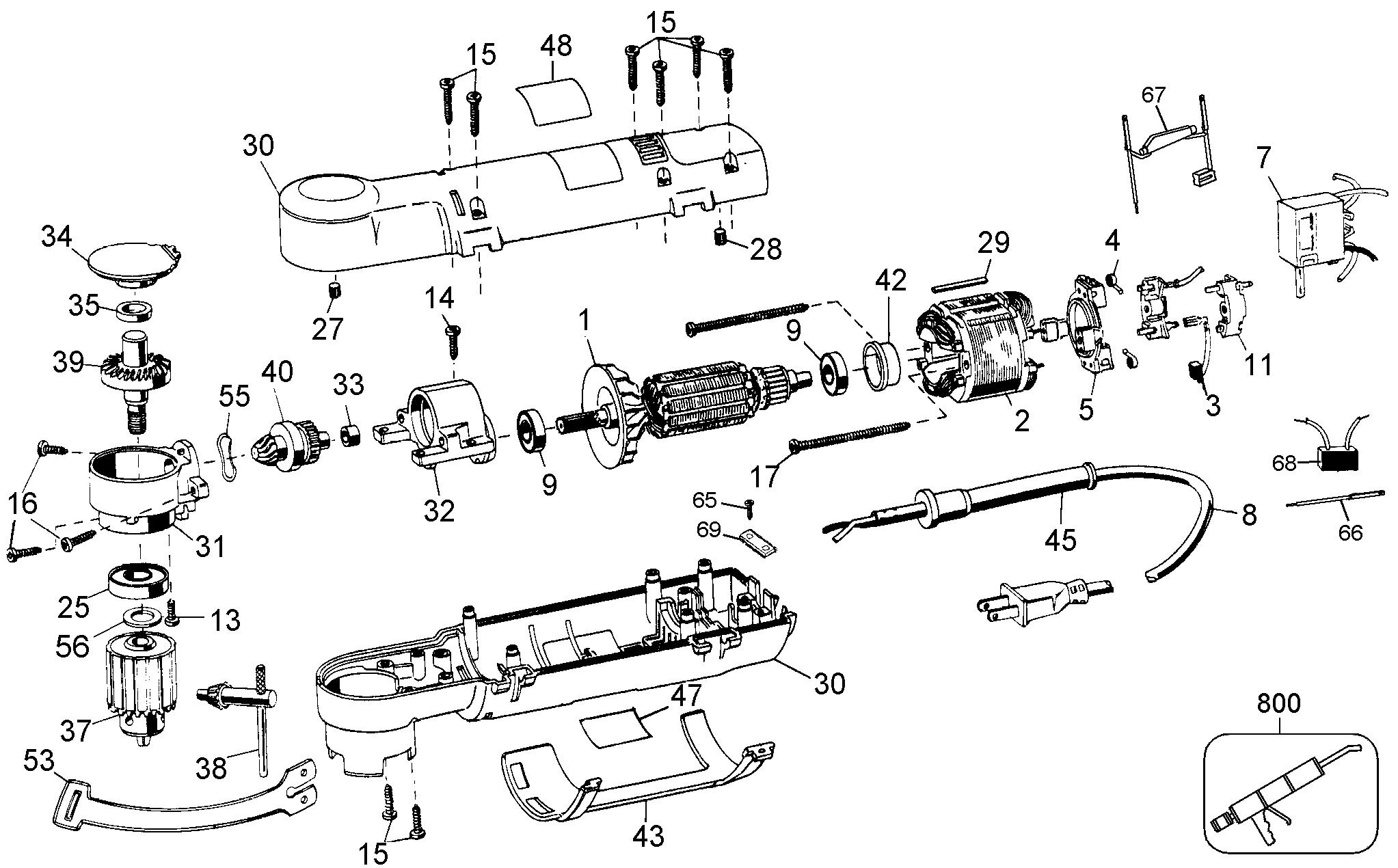

| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 619347-01SV | 1 | ARMATURE ET VENTILATEUR | GB |  |
||
| 2 | 619233-01SV | 1 | FIELD 230V | GB |  |
||
| 3 | 445861-19 | 1 | BALAI | GB | |||
| 4 | 445860-00 | 2 | RESSORT DE BALAI | GB | |
||
| 5 | 449899-05 | 1 | ANNEAU | Inc. 4 | GB | |
|
| 7 | 629457-01 | 1 | INTERRUPTEUR VARIABLE | GB | |
||
| 8 | 330060-67 | 1 | JEU DE CORDONS | GB | |
||
| 9 | 330003-04 | 2 | PALIER | GB | |||
| 11 | 449829-00 | 2 | ECROU | GB | |
||
| 13 | 055206-00 | 1 | VIS | GB | |||
| 14 | 133042-00 | 2 | VIS | GB | |
||
| 15 | 330019-05 | 8 | VIS | GB | |
||
| 16 | 062812-00 | 3 | VIS | GB | |||
| 17 | 389820-00 | 2 | VIS | GB | |
||
| 25 | 605040-20 | 1 | PALIER | 12 x 28 x 8mm | GB | |
|
| 27 | 030611-00 | 2 | PRISE MALE | GB | |||
| 28 | 095114-00 | 1 | RUBBER PLUG | GB | |||
| 29 | 445402-00 | 1 | PATIN CAOUTCHOUC | GB | |
||
| 30 | 629045-01 | 1 | JEU DE COQUILLES | GB | |
||
| 31 | 449857-00 | 1 | CARTER D'ENGRENAGES | GB | |||
| 32 | 449033-01 | 1 | CARTER D'ENGRENAGES | INC 9, 33 | GB | |
|
| 33 | 131557-00 | 1 | MANCHON | GB | |
||
| 34 | 448591-00 | 1 | COUVERCLE DE CARTER D'ENGRENAGES | INC 35 | GB | |
|
| 35 | 445175-00 | 1 | MANCHON | GB | |
||
| 37 | 429663-00 | 1 | MANDRIN ET CLE | INC 38 | GB | |
|
| 38 | 330034-02 | 1 | CLE DE MANDRIN | GB | |||
| 39 | 445414-01SV | 1 | S/E AXE ET PIGNON | 3/8-24 THRD;35 TEETH | GB | |
|
| 40 | 445397-03SV | 1 | ENGRENAGE ET PIGNON | 6/32 TEETH | GB | |
|
| 42 | 445217-01 | 1 | MANCHON | GB | |
||
| 43 | 448595-04 | 1 | PALETTE | GB | |
||
| 45 | 330005-01 | 1 | PROTECTEUR DE CORDON | GB | |||
| 47 | N044940 | 1 | PLAQUE SIGNALETIQUE | GB | |
||
| 48 | 395047-00 | 1 | ETIQUETTE MARQUE | GB | |
||
| 53 | 065288-02 | 1 | SUPPORT | GB | |
||
| 55 | 448373-00 | 1 | RONDELLE ELASTIQUE | GB | |
||
| 56 | 447765-00 | 1 | RONDELLE AVANT | GB | |
||
| 65 | 330013-03 | 2 | VIS | GB | |
||
| 66 | 636324-00 | 1 | FIL CONDUCTEUR | GB | |
||
| 67 | 636325-00 | 1 | BALAI SECURITE | GB | |
||
| 68 | 396320-00 | 1 | CONDENSATEUR | GB | |
||
| 69 | 142519-00 | 1 | SERRE CABLE | GB | |
||
| 800 | 761995-01 | 1 | GRAISSE | 180 Grams | 6 OZ | CVJ GREASE | GB | |
| 800 | 283484-01 | 1 | GRAISSE | 32oz, EXXON CVJ | GB |
