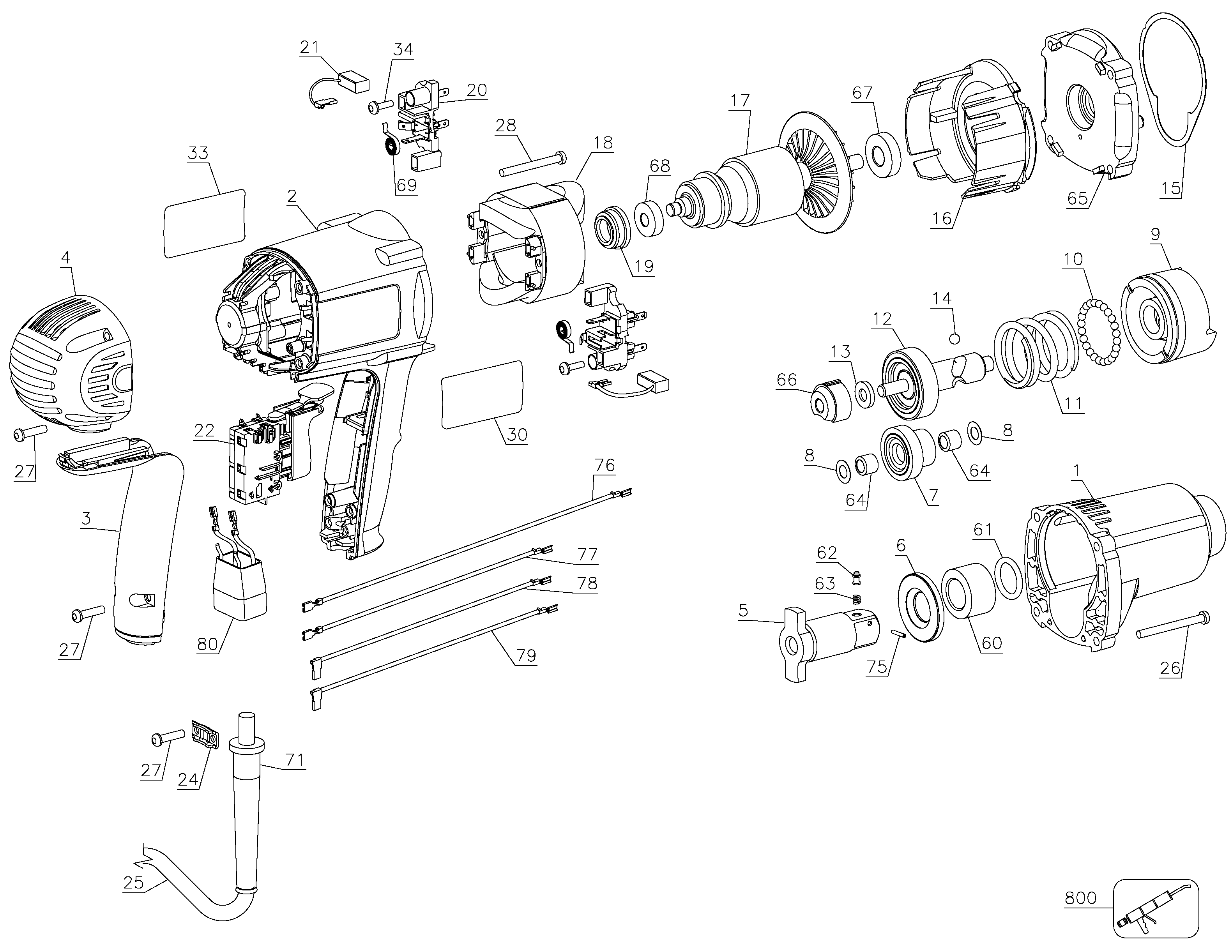

DW292 CLE À CHOCS Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N822135 | 1 | S/E CARTER D'ENGRENAGES | PKGD 616822-00 | Incl. 60,61 | GB |  |
| 2 | 616828-05 | 1 | BOITIER DE CHAMP | GB | |
||
| 3 | 616829-01 | 1 | COUVERCLE DE POIGNEE | GB | |
||
| 4 | 616830-00 | 1 | BOUCHON D'EXTREMITE | GB | |
||
| 5 | 627238-00SV | 1 | ENSEMBLE ENCLUME | Incl. 62,63,75 | GB | |
|
| 6 | 616859-00 | 1 | RONDELLE D'ARRET | GB | |
||
| 7 | 135093-01SV | 1 | ENGRENAGE ET PIGNON | GB | |
||
| 8 | 135089-00 | 2 | RONDELLE AVANT | GB | |
||
| 9 | 628129-00 | 1 | IMPACTEUR | GB | |
||
| 10 | 000475-00 | 25 | ROTULE ACIER | GB | |
||
| 11 | 618843-00 | 1 | RESSORT | GB | |
||
| 12 | 659923-00SV | 1 | S/E PIGNON ET CAME | GB | |
||
| 13 | 450667-00 | 1 | RONDELLE AVANT | GB |  |
||
| 14 | 618844-00 | 2 | ROTULE ACIER | 1/4 INCH | GB | |
|
| 15 | 616847-00 | 1 | JOINT STATIQUE | GB | |
||
| 16 | 655537-00 | 1 | CARTER | GB | |
||
| 17 | 5140071-79 | 1 | ARMATURE KIT 220 | 230V | GB | |
|
| 18 | 617862-01SV | 1 | CHAMP | 230v | GB | |
|
| 19 | 445217-01 | 1 | MANCHON | GB | |
||
| 20 | 616857-00 | 2 | PORTE-BALAIS | GB | |
||
| 21 | 617848-03 | 2 | BRUSH 230V | GB | |
||
| 22 | 616849-00 | 1 | INTERRUPTEUR | GB | |
||
| 24 | 450877-00 | 1 | COLLIER DE CORDON | GB | |
||
| 25 | 330060-44 | 1 | CORDSET (M/PLUG) | GB | |
||
| 26 | 330019-18 | 4 | VIS | M4.55 x 50 PLASTIC THD FMG | GB | |
|
| 27 | 330019-13 | 8 | VIS | M4X19 T20 | GB | |
|
| 28 | 330019-17 | 2 | VIS | GB | |
||
| 30 | N031298 | 1 | PLAQUE SIGNALETIQUE | DW292-GB TYPE 1 | GB | |
|
| 33 | 605523-00 | 1 | ETIQUETTE D'IDENTIFICATION | GB | |
||
| 34 | 176951-00 | 2 | VIS | GB | |
||
| 60 | N863052 | 1 | KIT ENTRETIEN | INCL. SEAL | GB | |
|
| 61 | N863052 | 1 | KIT ENTRETIEN | INCL. SEAL | GB | |
|
| 62 | N020802 | 1 | CRAN DE VERROUILLAGE | GB | |
||
| 63 | 038769-00 | 1 | RESSORT | GB | |
||
| 64 | 330004-02 | 2 | ROULEMENT A AIGUILLES | GB | |
||
| 65 | 616823-00SV | 1 | S/E COUVERCLE DE CARTER D'ENGRENAGES | Incl. 66,67 | GB | |
|
| 66 | 616841-00 | 1 | BLOC PALIER | GB | |
||
| 67 | 616823-00SV | 1 | S/E COUVERCLE DE CARTER D'ENGRENAGES | GB | |
||
| 68 | 330003-04 | 1 | PALIER | GB | |||
| 69 | 383387-00 | 2 | RESSORT DE BALAI | GB | |
||
| 71 | 148809-00 | 1 | PROTECTEUR DE CORDON | NPP | GB | |
|
| 75 | 099205-07 | 1 | GOUPILLE CREUSE | GB | |
||
| 76 | 616852-00 | 1 | LEAD BLUE | BLUE | GB | |
|
| 77 | 616852-01 | 1 | LEAD WHITE | WHITE | GB | |
|
| 78 | 616852-02 | 1 | LEAD BLACK | BLACK, 18GA | GB | |
|
| 79 | 616852-03 | 1 | LEAD RED | RED | GB | |
|
| 80 | 623976-00 | 1 | FILTRE | GB | |
||
| 800 | 429698-00 | 1 | GRAISSE | BD-L 2 | GB | |
|
| 836 | 233804-32 | 1 | OUTIL D'ENTRETIEN | 626571-00 | FOR ARMATURE FAN END BRG. | GB |
