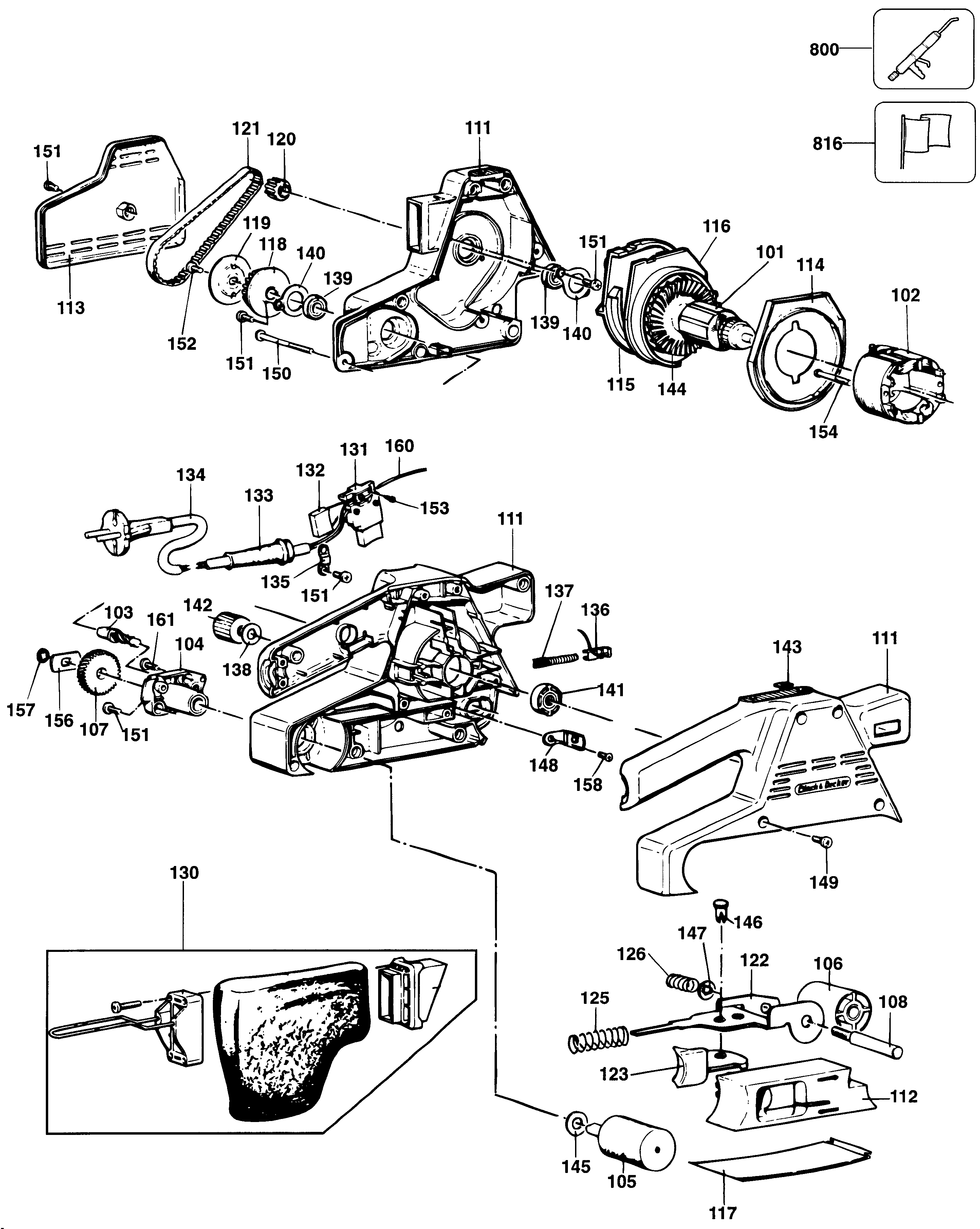

KA83 PONCEUSES A BANDE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 878525 | 1 | ARMATURE | TYPE 1-1A | GB |  |
|
| 101 | 372778-01 | 1 | ARMATURE | TYPE 1B | GB | |
|
| 102 | 878418 | 1 | CHAMP | TYPE 1-1A | GB | |
|
| 102 | 747293-21 | 1 | CHAMP | TYPE 1B | GB | |
|
| 103 | 878529 | 1 | ARBRE MOTEUR | GB | |
||
| 104 | 874241 | 1 | HOLDER BEARING | GB | |
||
| 105 | 879100 | 1 | GALET D'ENTRAINEMENT | GB | |
||
| 106 | 878536 | 1 | S/E ROULEAU | GB | |
||
| 107 | 878527 | 1 | PIGNON | GB | |
||
| 108 | 878526 | 1 | ESSIEU | GB | |
||
| 111 | 373443-00 | 1 | COQUILLE | GB | |
||
| 112 | 874085-01 | 1 | CARTER | PE 1A-1B | GB | |
|
| 113 | 917395 | 1 | COUVERCLE DE COURROIE | GB | |
||
| 114 | 917384 | 1 | CARTER | GB | |
||
| 115 | 918631 | 1 | INSERT | GB | |
||
| 116 | 918630 | 1 | INSERT | GB | |
||
| 117 | 874243 | 1 | PLAQUE | GB | |
||
| 118 | 870353 | 1 | POULIE | GB | |
||
| 119 | 870354 | 1 | GUIDE COURROIE | GB | |
||
| 120 | 917296 | 1 | POULIE | GB | |
||
| 121 | 917627 | 1 | COURROIE | GB | |
||
| 122 | 918878 | 1 | SUPPORT | GB | |
||
| 123 | 322093 | 1 | LEVIER | GB | |
||
| 125 | 917414 | 1 | RESSORT | GB | |
||
| 126 | 917415 | 1 | RESSORT | GB | |
||
| 130 | 369639-01 | 1 | BAG DUST SA | GB | |
||
| 131 | 370177 | 1 | S/E INTERRUPTEUR | PE 1A-1B | GB | |
|
| 131 | 321997 | 1 | INTERRUPTEUR | PE 1 | GB | |
|
| 132 | 807285-08 | 1 | CONDENSATEUR | PE 1A-1B | GB | |
|
| 132 | 321384 | 1 | CONDENSATEUR | PE 1 | GB |  |
|
| 133 | 770235 | 1 | PROTECTEUR | GB | |
||
| 134 | 330060-53 | 1 | JEU DE CORDONS | GB | |||
| 135 | 821070 | 1 | COLLIER DE CORDON | GB | |
||
| 136 | 877898 | 2 | PORTE-BALAIS | GB | |
||
| 137 | 915068-01 | 2 | BALAI ET RESSORT | SINGULAR | GB | |
|
| 138 | 911491 | 1 | RONDELLE AVANT | GB | |
||
| 139 | 330003-19 | 2 | PALIER | GB | |
||
| 140 | 917389 | 2 | PALIER | GB | |
||
| 141 | 878817 | 1 | S/E PALIER | GB | |
||
| 142 | 322094 | 1 | ECROU | GB | |
||
| 143 | 914079 | 4 | ECROU | GB | |
||
| 144 | 918207 | 1 | VENTILATEUR | GB | |
||
| 145 | 876326 | 1 | RONDELLE AVANT | GB | |
||
| 146 | 911591 | 1 | RIVET | GB | |
||
| 147 | 916105 | 1 | ANNEAU | GB | |
||
| 148 | 879223 | 1 | BANDE DE GUIDAGE | GB | |
||
| 149 | 911325 | 14 | VIS | GB | |
||
| 150 | 917413 | 2 | VIS | GB | |
||
| 151 | 894748 | 8 | JOINT TORIQUE | GB | |
||
| 152 | 911276 | 1 | VIS | GB | |
||
| 153 | 911026 | 4 | VIS | GB | |
||
| 154 | 917424 | 2 | VIS | GB | |
||
| 156 | 917530 | 1 | ENTRAINEMENT | GB | |
||
| 157 | 911777 | 1 | ATTACHE | GB | |
||
| 158 | 911059 | 1 | VIS | GB | |
||
| 160 | 878881 | 2 | LEAD 140MM BLACK | PE 1 | GB | |
|
| 161 | 911516 | 1 | VIS | GB | |
||
| 162 | 917623 | 1 | ADAPTATEUR | PARTS NOT DRAWN | GB | |
|
| 163 | 770238 | 1 | REDUCTEUR | PARTS NOT DRAWN | GB | |
|
| 800 | 870889-02 | 1 | GRAISSE | GB | |
||
| 816 | 326870-00 | 1 | ETIQUETTE MARQUE | GB | |
