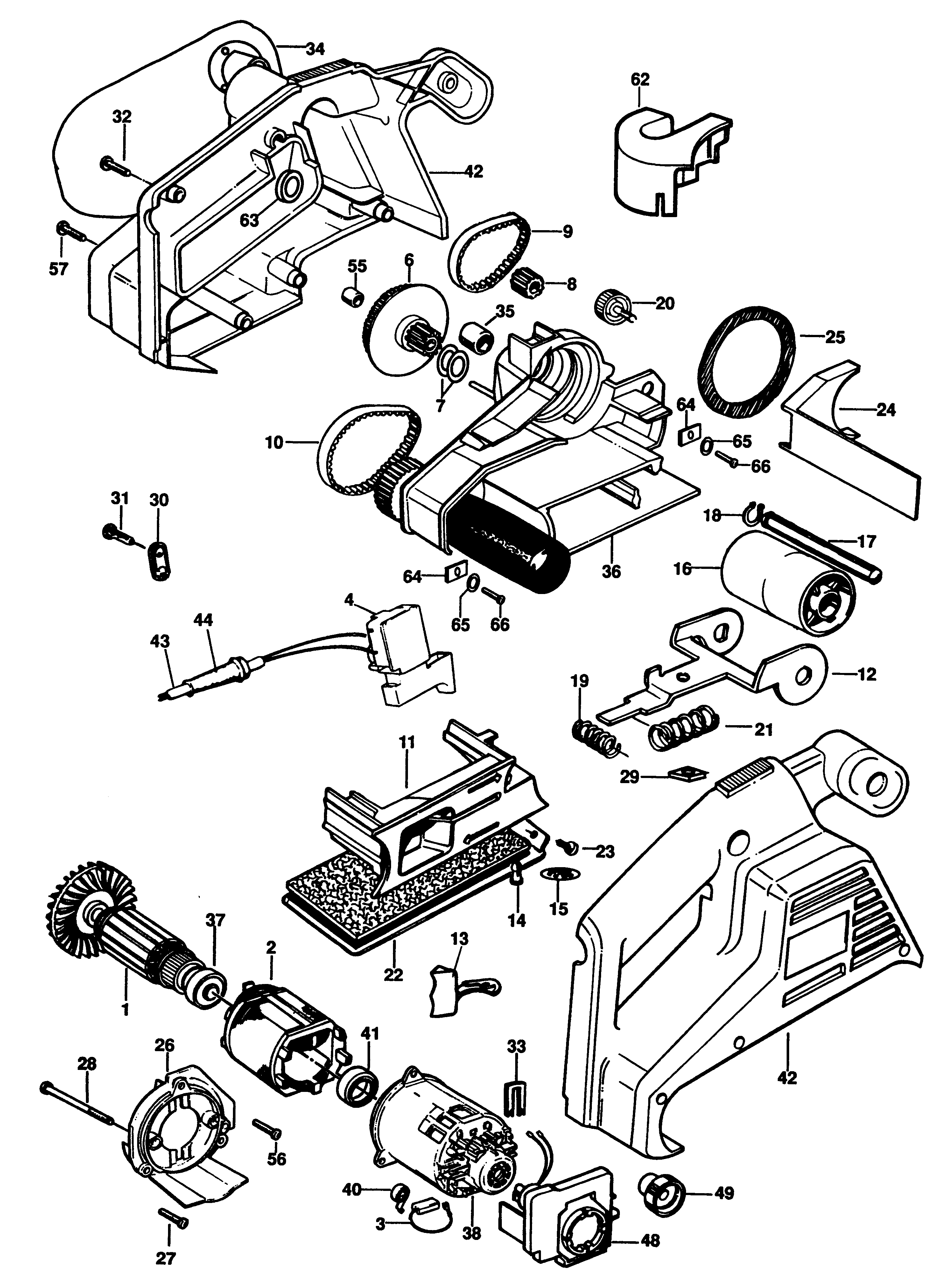

BD75E PONCEUSES A BANDE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323968-00 | 1 | ARMATURE | GB |  |
||
| 2 | 376007-49 | 1 | S/E MOTEUR | GB | |
||
| 3 | 324016-01 | 2 | BALAI | GB | |
||
| 4 | 369735-49 | 1 | KIT D'INTERRUPTEUR | GB | |
||
| 6 | 371512 | 1 | PIGNON | GB | |
||
| 7 | 891066 | 1 | RONDELLE AVANT | POST WEEK 49 1994 | GB | |
|
| 7 | 323753-04 | 2 | RONDELLE AVANT | PRE WEEK 49 1994 | GB | |
|
| 8 | 323902-00 | 1 | POULIE | GB | |
||
| 9 | 323909-00 | 1 | COURROIE | GB | |
||
| 10 | 323909-01 | 1 | COURROIE | GB | |
||
| 11 | 323917-00 | 1 | CARTER | GB | |
||
| 12 | 916919 | 1 | SUPPORT | GB | |
||
| 13 | 325118-00 | 1 | LEVIER | GB | |
||
| 14 | 916929 | 1 | RIVET | GB | |
||
| 15 | 916105 | 1 | ANNEAU | GB | |
||
| 16 | 873100 | 1 | ROULEAU | GB | |
||
| 17 | 878138 | 1 | ESSIEU | GB | |
||
| 18 | 916930 | 1 | ANNEAU | GB | |
||
| 19 | 916925 | 1 | RESSORT | GB | |
||
| 20 | 322095 | 1 | DISP. DE REGLAGE | GB | |
||
| 21 | 916926 | 1 | RESSORT | GB | |
||
| 22 | 323916-49 | 1 | S/E PLAQUE | GB | |
||
| 23 | 911059 | 2 | VIS | GB | |
||
| 26 | 323918-00 | 1 | SUPPORT | TYPE 1 | GB | |
|
| 26 | 324947-00 | 1 | SUPPORT | TYPE 2 | GB | |
|
| 27 | 324006-01 | 2 | VIS | GB | |
||
| 28 | 916231 | 2 | VIS | GB | |
||
| 29 | 914079 | 1 | ECROU | GB | |
||
| 30 | 821070 | 1 | COLLIER DE CORDON | GB |  |
||
| 31 | D911324 | 2 | VIS | GB | |
||
| 32 | 330065-08 | 7 | VIS | M4x18 T20 | GB | |
|
| 33 | 323858-00 | 1 | ATTACHE | GB | |
||
| 34 | 323785-00 | 1 | BAG DUST SA | GB | |
||
| 35 | 330004-18 | 1 | PALIER | GB | |
||
| 36 | 325223-00 | 1 | S/E MOULAGE | GB | |
||
| 37 | 605040-63 | 1 | PALIER | GB | |
||
| 38 | 326059-01 | 1 | CARTER | TYPE 2 | GB | |
|
| 40 | 872843 | 2 | RESSORT | GB | |
||
| 41 | 323910-00 | 1 | BOUCHON | GB | |
||
| 42 | 323772-00 | 1 | COQUILLE | TYPE 1 | GB | |
|
| 43 | 330060-45 | 1 | CORDSET (M/PLUG) | GB | |
||
| 44 | 916969 | 1 | PROTECTEUR | GB | |
||
| 48 | 323770-02 | 1 | ELECTRONIQUE | GB | |
||
| 55 | 330004-19 | 2 | PALIER | GB | |
||
| 56 | 330045-11 | 1 | VIS | TYPE 2 | GB | |
|
| 56 | 324006-02 | 1 | VIS | TYPE 1 | GB | |
|
| 57 | 954183 | 2 | VIS | GB | |
||
| 62 | 325735-00 | 1 | ADAPTATEUR | TYPE 2 | GB | |
|
| 63 | 324819-00 | 1 | RONDELLE AVANT | GB | |
||
| 64 | 325514-00 | 2 | PLAQUE | TYPE 2 | GB | |
|
| 65 | 916702 | 2 | RONDELLE AVANT | TYPE 2 | GB | |
|
| 66 | 324006-00 | 2 | VIS | TYPE 2 | GB | |
