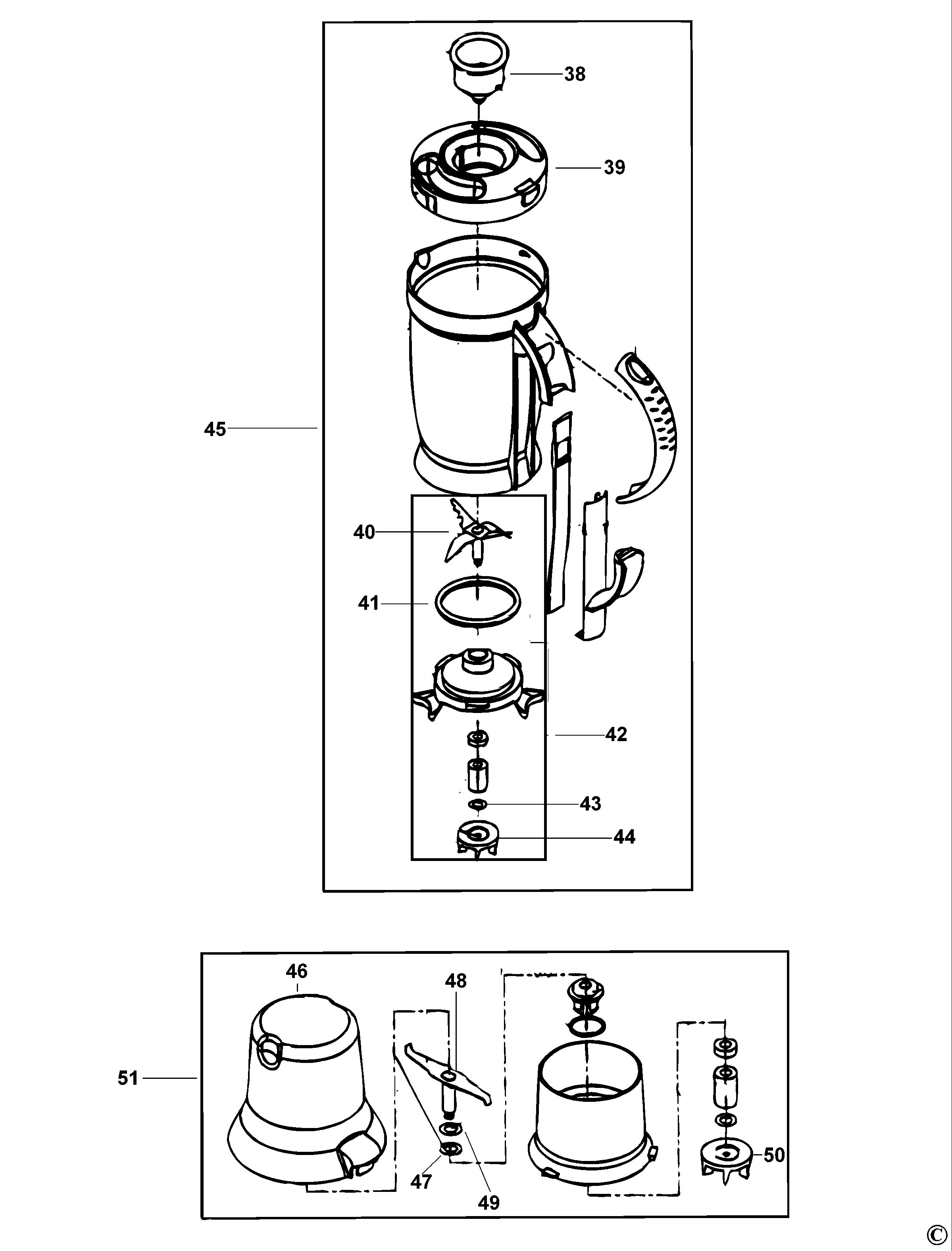

BX300 BLENDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010002-01 | 1 | COVER | SHAFT | AP-089819 | XJ | |
| 2 | 6010002-02 | 1 | COUPLING SA | DRIVE COUPLER | JBG60-1 | XJ | |
| 3 | 6010002-03 | 1 | COVER | SCREW COVER | AP-089803 | XJ | |
| 4 | 6010002-04 | 1 | SHOCK ABSORBER | AN-039815 | XJ | ||
| 5 | 6010002-05 | 1 | HOUSING UPPER | AP-080001 | XJ | ||
| 6 | 6010002-06 | 1 | BUTTON | PULSE | AP-080011 | XJ | |
| 7 | 6010002-07 | 1 | BUTTON | SWITCH | AP-080012 | XJ | |
| 11 | 6010002-11 | 1 | HOLDER | SAFETY SWITCH HOLDER | AP-080009 | XJ | |
| 12 | 6010002-12 | 1 | SHAFT | SAFETY SWITCH SHAFT | AP-080010 | XJ | |
| 13 | 6010002-13 | 1 | HOUSING LOWER | AP-080002 | XJ | ||
| 14 | 6010002-14 | 1 | FOOT | RUBBER | AP-083830 | XJ | |
| 15 | 6010002-15 | 1 | CORD CLAMP | AP-089308 | XJ | ||
| 17 | 6010002-17 | 1 | SCREW | CD-M50L15 | XJ | ||
| 19 | 6010002-19 | 1 | SPRING | SAFETY SWITCH SPRING | AM-112823 | XJ | |
| 20 | 6010002-20 | 1 | SCREW | CD-S30J14 | XJ | ||
| 21 | 6010002-21 | 1 | SCREW | CD-S30A14 | XJ | ||
| 22 | 6010002-22 | 1 | SCREW | CD-S35B12 | XJ | ||
| 23 | 6010002-23 | 1 | SCREW | CD-P35B12 | XJ | ||
| 24 | 6010002-24 | 1 | MOTOR 230V | ER-0800V2 | XJ | ||
| 25 | 6010002-25 | 1 | CAPACITOR | CERAMIC CAPACITOR | EC-C47225 | XJ | |
| 26 | 6010002-26 | 1 | CHOKE | CHOKE COIL | EI-450051 | XJ | |
| 27 | 6010002-27 | 1 | LEADS | INTERNAL WIRING | EL-B22020 | XJ | |
| 28 | 6010002-28 | 1 | LEADS | INTERNAL WIRING | EL-B22620 | XJ | |
| 29 | 6010002-29 | 1 | CORDSET | EG-J65CD1 | XJ | ||
| 30 | 6010002-30 | 1 | RESISTOR | EB-475G02 | XJ | ||
| 31 | 6010002-31 | 1 | CAPACITOR | METALLIZED | EC-M10427 | XJ | |
| 33 | 6010002-33 | 1 | TUBE | HEAT SHRINKABLE | EJ-S7004U | XJ | |
| 34 | 6010002-34 | 1 | TUBE | HEAT SHRINKABLE | EJ-S1002U | XJ | |
| 35 | 6010002-35 | 1 | TERMINAL BLOCK | EM-F02202 | XJ | ||
| 36 | 6010002-36 | 1 | MICRO SWITCH | EE-M1230U | XJ | ||
| 37 | 6010002-37 | 1 | SWITCH | PIANO SWITCH 230V | EE-C1550N | XJ | |
| 38 | 6010003-38 | 1 | CAP | TOP CAP | XJ | ||
| 39 | 6010002-39 | 1 | COVER-TOP | AP-080004 | XJ | ||
| 40 | 6010002-40 | 1 | BLADE SA | SHAFT & BLADE | AM-089828 | XJ | |
| 41 | 6010002-41 | 1 | SEAL | SEALING RING | AN-089838 | XJ | |
| 42 | 6010002-42 | 1 | BLADE SA | BX675-BR | Inc 40,41,43,44 | XJ | ||
| 43 | 6010002-43 | 1 | WASHER | BAKELITE WASHER | CG-B80140 | XJ | |
| 44 | 6010002-44 | 1 | COUPLING SA | RUBBER COUPLER | AN-089837 | XJ | |
| 45 | 6010002-45 | 1 | JAR | BLENDER JAR ASSEMBLY | BX300-BJ | XJ | |
| 46 | 6010002-46 | 1 | COVER | AP-080017 | XJ | ||
| 47 | 6010002-43 | 1 | WASHER | BAKELITE WASHER | CG-B80140 | XJ | |
| 48 | 6010002-48 | 1 | BLADE SA | GRINDER BLADE & SHAF | AS-08880C | XJ | |
| 49 | 6010002-49 | 1 | WASHER | METAL WASHER | CG-S82120 | XJ | |
| 50 | 6010002-44 | 1 | COUPLING SA | RUBBER COUPLER | AN-089837 | XJ | |
| 51 | 6010002-51 | 1 | ATTACHMENT | GRINDER ATTACHMENT | BX300-G | XJ |
