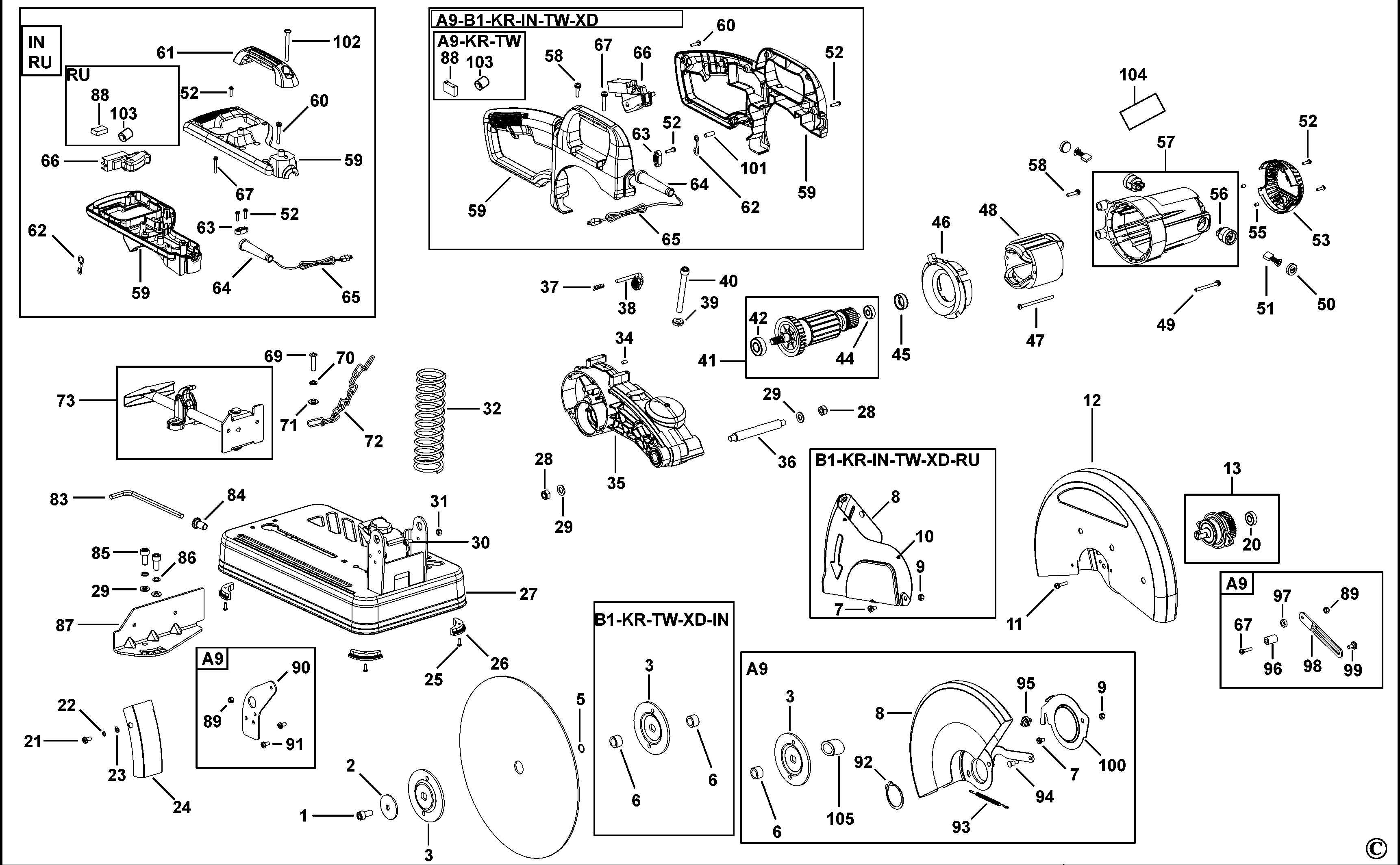

D28710 CHOP SAW Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	N085909	1	SCREW		XE
2	N085898	1	WASHER		XE
3	N085893	2	FLANGE		XE
5	N085972	1	O RING		XE
7	N085903	1	SCREW		XE
9	N085883	1	NUT		XE
11	N085889	4	SCREW		XE
20	N085923	1	BEARING		XE
21	N085910	1	SCREW		XE
22	N085885	1	WASHER LOCK		XE
23	N085908	1	WASHER		XE
24	N085906	1	GUARD REAR		XE
25	N085948	4	SCREW		XE
26	N085949	4	FOOT		XE
28	N085952	2	NUT		XE
29	N085955	4	WASHER		XE
30	N085947	1	SCREW		XE
31	N085954	1	NUT		XE
32	N085890	1	SPRING COMPRESSION		XE
34	N085880	1	PLUG		XE
35	N085891	1	ARM		XE
36	N085950	1	PIN		XE
37	N085881	1	SPRING		XE
38	N085879	1	LOCKING PIN		XE
39	N085897	1	NUT		XE
40	N085896	1	SCREW		XE
42	N085930	1	BEARING		XE
44	N085929	1	BEARING		XE
45	N085933	1	RUBBER BOOT		XE
46	N085941	1	BAFFLE FAN		XE
47	N085939	2	SCREW		XE
49	N085936	4	SCREW		XE
50	N085940	2	BRUSH CAP		XE
53	N085937	1	END CAP		XE
55	N085946	2	SCREW		XE
56	N085935	2	BRUSH HOLDER		XE
63	N085964	1	CORD CLAMP		XE
64	N085957	1	CORD PROTECTOR		XE
67	N085966	2	SCREW		XE
69	N085905	2	SCREW		XE
70	N085899	2	WASHER LOCK	D8	XE
71	N085895	2	WASHER		XE
72	N085907	1	CHAIN		XE
73	N085916	1	VICE JAW MOVEABLE		XE
83	N085914	1	HEX KEY		XE
84	N085919	1	HOLDER TOOL		XE
85	N085918	2	SCREW		XE
86	N085917	2	WASHER LOCK		XE
87	N085886	1	FENCE		XE
