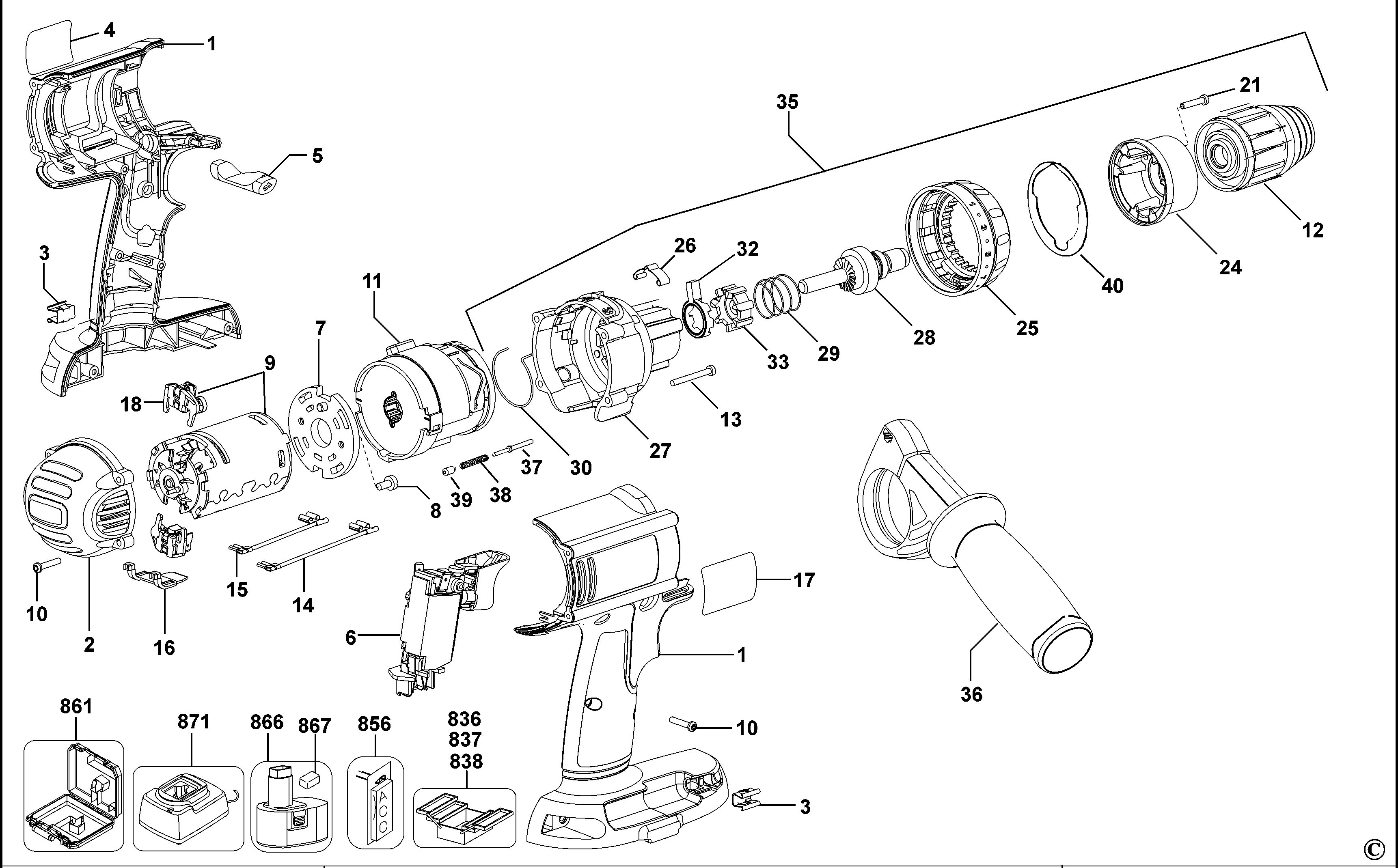

DC925K CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 629820-02 | 1 | CLAMSHELL | Housing, Mid Handle | XE | ||
| 2 | 629823-00 | 1 | END CAP | XE | |||
| 3 | 148354-03 | 2 | HOLDER | XE | |||
| 4 | 395657-00 | 1 | BRAND LABEL | XE | |||
| 5 | 633327-02 | 1 | ACTUATOR FWD/REV | XE | |||
| 6 | 152274-25SV | 1 | SWITCH SA | XE | |||
| 7 | 629172-00 | 1 | ADAPTOR | XE | |||
| 8 | 156179-01 | 2 | SCREW | XE | |||
| 9 | 629151-02SV | 1 | MOTOR & PINION | XE | |||
| 10 | 682211-00 | 5 | SCREW | XE | |||
| 11 | 613237-00SV | 1 | TRANSMISSION SA | XE | |||
| 12 | 330075-90 | 1 | CHUCK KEYLESS | XE | |||
| 13 | 330019-62 | 8 | SCREW | XE | |||
| 14 | 631282-01 | 1 | LEAD PURPLE | XE | |||
| 15 | 631283-01 | 1 | LEAD BROWN | Neg.14 AWG. Ang.Term | XE | ||
| 16 | 636634-00 | 1 | GUIDE | XE | |||
| 17 | 640520-00 | 1 | RATING PLATE | DC925-XE TY1 | XE | ||
| 18 | 493511-00 | 2 | BRUSH PAIR | XE | |||
| 21 | 330019-00 | 3 | SCREW | M3x16 T10 PLASTITE | XE | ||
| 24 | 609133-00 | 1 | END CAP | XE | |||
| 25 | 1005638-00 | 1 | COLLAR SA | XE | |||
| 26 | 395460-00 | 1 | SPRING GUIDE | XE | |||
| 27 | 629829-00 | 1 | HOUSING SA | NOSECONE & BEARING | XE | ||
| 28 | 638692-00 | 1 | SPINDLE SA | XE | |||
| 29 | 394546-00 | 1 | SPRING | XE | |||
| 30 | 399059-00 | 1 | SPRING | XE | |||
| 32 | 394545-00 | 1 | CAM | XE | |||
| 33 | 394542-00 | 1 | RATCHET FIXED | XE | |||
| 35 | 629828-00 | 1 | REPAIR KIT | Nosecone Assy. | XE | ||
| 36 | 646594-00 | 1 | SIDE HANDLE | XE | |||
| 37 | 629827-00 | 1 | PIN | XE | |||
| 38 | 613217-00 | 1 | SPRING | XE | |||
| 39 | 635718-00 | 1 | PIN | XE | |||
| 40 | 622929-00 | 1 | WASHER SPECIAL | XE | |||
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | XE | |||
| 837 | 559662-99 | 1 | S.T.CHUCK REMOVAL JIG | XE | |||
| 838 | 559697-99 | 1 | S.T.INSERT | XE | |||
| 856 | 607918-41 | 1 | BIT SCREWDRIVER | XE | |||
| 861 | 660141-00 | 1 | KITBOX | XE | |||
| 866 | 389795-23 | 1 | BATTERY 18V - 2.4AH | DC9096 18 V NICD | DC925KA | XE | |
| 867 | 608522-00 | 1 | SAFETY CAP | XE | |||
| 871 | DE9116 | 1 | CHARGER 7.2V - 18V | Ni-Cad - NiMH - 1 hr | DC925KA | XE |
