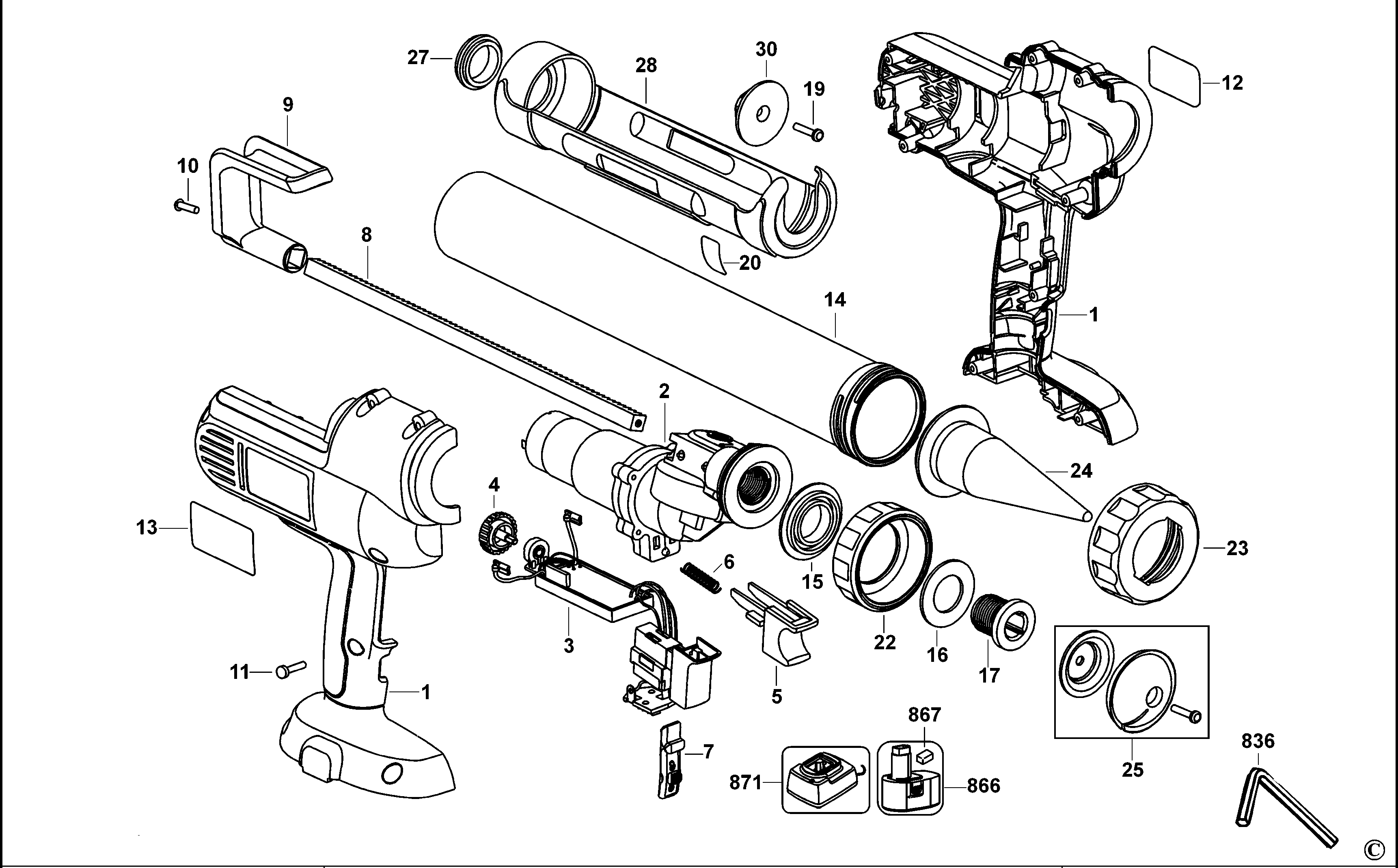

DC547K CAULK GUN Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 636610-02 | 1 | CLAMSHELL SET | XE | |||
| 1 | N082380 | 1 | REPAIR KIT | 18V XE | XE | ||
| 2 | 639717-00 | 1 | MOTOR & GEARCASE | XE | |||
| 3 | N082380 | 1 | REPAIR KIT | 18V XE | XE | ||
| 4 | 639011-00 | 1 | SPEED REGULATOR | XE | |||
| 5 | 636615-00 | 1 | TRIGGER | XE | |||
| 6 | 642413-00 | 1 | SPRING | XE | |||
| 7 | 636614-00 | 1 | SWITCH LOCK OFF | XE | |||
| 7 | N082380 | 1 | REPAIR KIT | 18V XE | XE | ||
| 8 | 642408-00 | 1 | PUSHROD | XE | |||
| 8 | 642410-00 | 1 | PUSHROD | 310 ml | XE | ||
| 9 | 639061-00 | 1 | HANDLE | XE | |||
| 10 | 642474-00 | 2 | SCREW | XE | |||
| 11 | 90611830 | 8 | SCREW | XE | |||
| 12 | 642732-00 | 1 | IDENTITY LABEL | XE | |||
| 13 | 652271-00 | 1 | RATING PLATE | XE | |||
| 14 | 637898-00 | 1 | TUBE SA | XE | |||
| 15 | 640340-00 | 1 | SPACER | XE | |||
| 16 | 640827-00 | 1 | WASHER | XE | |||
| 17 | 641739-00 | 1 | LOCK SCREW | XE | |||
| 18 | 659569-00 | 1 | SERVICE KIT | DCE5801 | XE | ||
| 19 | 642414-00 | 1 | SCREW | XE | |||
| 20 | 648980-00 | 1 | WARNING LABEL | 310 ml | XE | ||
| 22 | 637649-00 | 1 | END CAP | XE | |||
| 23 | 637651-00 | 1 | CAP | XE | |||
| 24 | 637653-00 | 1 | NOZZLE | XE | |||
| 25 | 659569-00 | 1 | SERVICE KIT | DCE5801 | XE | ||
| 27 | 640207-00 | 1 | SPACER | XE | |||
| 28 | 637823-00 | 1 | TUBE SUPPORT | XE | |||
| 30 | 639729-00 | 1 | PLUNGER | XE | |||
| 836 | 559694-99 | 1 | S.T.WRENCH | XE | |||
| 856 | 642473-00 | 1 | TUBE SA | 600 ml | INC 8-14-19-22-24 | XE | |
| 866 | 389795-23 | 1 | BATTERY 18V - 2.4AH | DC9096 18 V NICD | XE | ||
| 867 | 608522-00 | 1 | SAFETY CAP | XE | |||
| 871 | DE9116 | 1 | CHARGER 7.2V - 18V | Ni-Cad - NiMH - 1 hr | XE |
