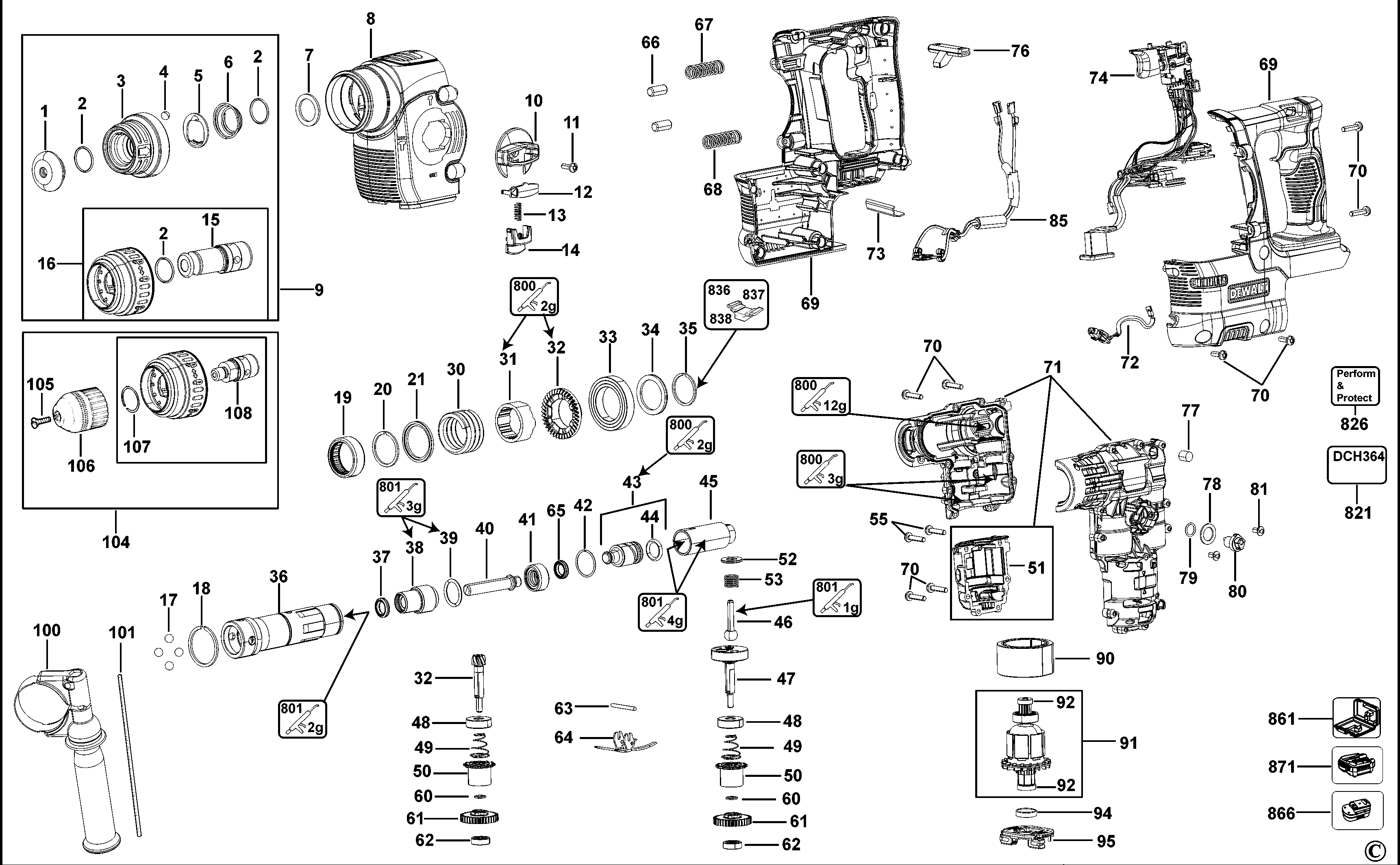

DCH364 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | XE | |||
| 2 | 579212-00 | 1 | RING | XE | |||
| 3 | N774198 | 1 | TUBE SA | XE | |||
| 3 | N774198 | 1 | TUBE SA | XE | |||
| 4 | 583890-00 | 1 | BALL | XE | |||
| 5 | 578387-00 | 1 | WASHER | XE | |||
| 6 | 871690 | 1 | SPRING | XE | |||
| 7 | 590306-00 | 1 | FELT SEAL | XE | |||
| 8 | N137915 | 1 | COVER GEARCASE | XE | |||
| 9 | N591846 | 1 | CHUCK SA | SDS PLUS | XE | ||
| 10 | N190510 | 1 | SELECTOR | XE | |||
| 11 | 324006-16 | 1 | SCREW | XE | |||
| 12 | N034134 | 1 | COVER | XE | |||
| 13 | N074923 | 1 | SPRING | XE | |||
| 14 | N190511 | 1 | BUTTON RELEASE | XE | |||
| 15 | N403112 | 1 | SPINDLE | XE | |||
| 16 | N591847 | 1 | CHUCK & SPINDLE SA | Dewalt | XE | ||
| 17 | 583890-00 | 4 | BALL | XE | |||
| 18 | 323762-07 | 1 | RING | XE | |||
| 19 | N149956 | 1 | BEARING NEEDLE | XE | |||
| 20 | 488105-00 | 1 | CLIP | XE | |||
| 21 | N043423 | 1 | WASHER | XE | |||
| 30 | N060009 | 1 | SPRING | XE | |||
| 31 | N072203 | 1 | RING | XE | |||
| 32 | N290001 | 1 | GEAR & PINION SA | XE | |||
| 33 | 479478-00 | 1 | BEARING,BALL | XE | |||
| 34 | N043424 | 1 | WASHER | XE | |||
| 35 | 488390-00 | 1 | CLIP | SW26 1.5mm | XE | ||
| 36 | N288225 | 1 | SPINDLE | 19mm QCC | XE | ||
| 37 | 577139-00 | 1 | SEAL | XE | |||
| 38 | 493676-00 | 1 | BEARING BUSH | QCC | XE | ||
| 39 | 590299-00 | 1 | O RING | 18.5 X 2.5 | XE | ||
| 40 | 493675-00 | 1 | BEAT PIECE | QCC | XE | ||
| 41 | 493677-00 | 1 | GUIDE BUSH | QCC | XE | ||
| 42 | 323762-07 | 1 | RING | XE | |||
| 43 | N178363 | 1 | RAM SA | 19mm; Inc 222+223 | XE | ||
| 44 | N114827 | 1 | O RING | Dynamic 13x3 | XE | ||
| 45 | 492822-00 | 1 | PISTON | XE | |||
| 46 | 492823-00 | 1 | BALL SPINDLE | XE | |||
| 47 | N288223 | 1 | CRANKSHAFT | XE | |||
| 48 | N168103 | 2 | BEARING | XE | |||
| 49 | N466046 | 2 | SPRING COMPRESSION | XE | |||
| 50 | N150085 | 1 | COLLAR | XE | |||
| 51 | N307379 | 1 | MOTOR COVER | XE | |||
| 52 | N108992 | 1 | WASHER | XE | |||
| 53 | 490286-00 | 1 | SPRING | XE | |||
| 55 | 330019-81 | 2 | SCREW | XE | |||
| 60 | 323763-10 | 2 | LOCKING RING | XE | |||
| 61 | N450704 | 2 | GEAR SA | XE | |||
| 62 | N621023 | 2 | BEARING | XE | |||
| 63 | 590312-00 | 1 | PIN | XE | |||
| 64 | 575022-00 | 1 | PLATE | XE | |||
| 65 | 580990-00 | 1 | O RING | XE | |||
| 66 | 575032-00 | 2 | PIN | XE | |||
| 67 | 575030-00 | 1 | SPRING | XE | |||
| 68 | 479313-00 | 1 | SPRING | XE | |||
| 69 | N392850 | 1 | CLAMSHELL PAIR | XE | |||
| 70 | 330019-80 | 16 | SCREW | XE | |||
| 71 | N392851 | 1 | GEARCASE SA | Inc 51 | XE | ||
| 72 | N280480 | 1 | LED LIGHT | XE | |||
| 73 | N269419 | 1 | LATCH | XE | |||
| 74 | N392852 | 1 | ELECTRONIC & SWITCH | XE | |||
| 76 | N072124 | 1 | LEVER | XE | |||
| 77 | 582865-00 | 1 | FILTER | XE | |||
| 78 | 1006725-00 | 1 | WASHER SHIM | 12x18x1.2 | XE | ||
| 79 | 323711-34 | 1 | O RING | XE | |||
| 80 | 575025-00 | 1 | LEVER | XE | |||
| 81 | 330065-04 | 2 | SCREW | XE | |||
| 85 | N335499 | 1 | SET OF LEAD WIRES | XE | |||
| 90 | N230576 | 1 | MAGNET | 26mm | XE | ||
| 91 | N392853 | 1 | ARMATURE SA | Inc 92x2 | XE | ||
| 92 | N217452 | 1 | BEARING,BALL | 695 | XE | ||
| 94 | N076342 | 1 | COVER | XE | |||
| 95 | N384037 | 1 | BRUSH PLATE SA | XE | |||
| 100 | N112156 | 1 | HANDLE SIDE SA | XE | |||
| 101 | N290613 | 1 | DEPTH STOP | XE | |||
| 104 | N591847 | 1 | CHUCK & SPINDLE SA | Dewalt | XE | ||
| 105 | 605256-02 | 1 | SCREW | XE | |||
| 106 | 582512-02 | 1 | CHUCK KEYLESS | XE | |||
| 107 | 579212-00 | 1 | RING | XE | |||
| 108 | 584676-00 | 1 | SPINDLE | XE | |||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | XE | ||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | XE | ||
| 826 | N196274 | 1 | LABEL | PERFORM & PROTECT | XE | ||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | XE | |||
| 837 | 596006-99 | 1 | S.T.CIRCLIP REMOVER | XE | |||
| 838 | 596007-99 | 1 | S.T.CIRCLIP INSERTER | XE | |||
| 861 | N383257 | 1 | KITBOX | XE | |||
| 866 | 000000-00 | 1 | NO LONGER AVAILABLE | DCH364M2 | XE |
