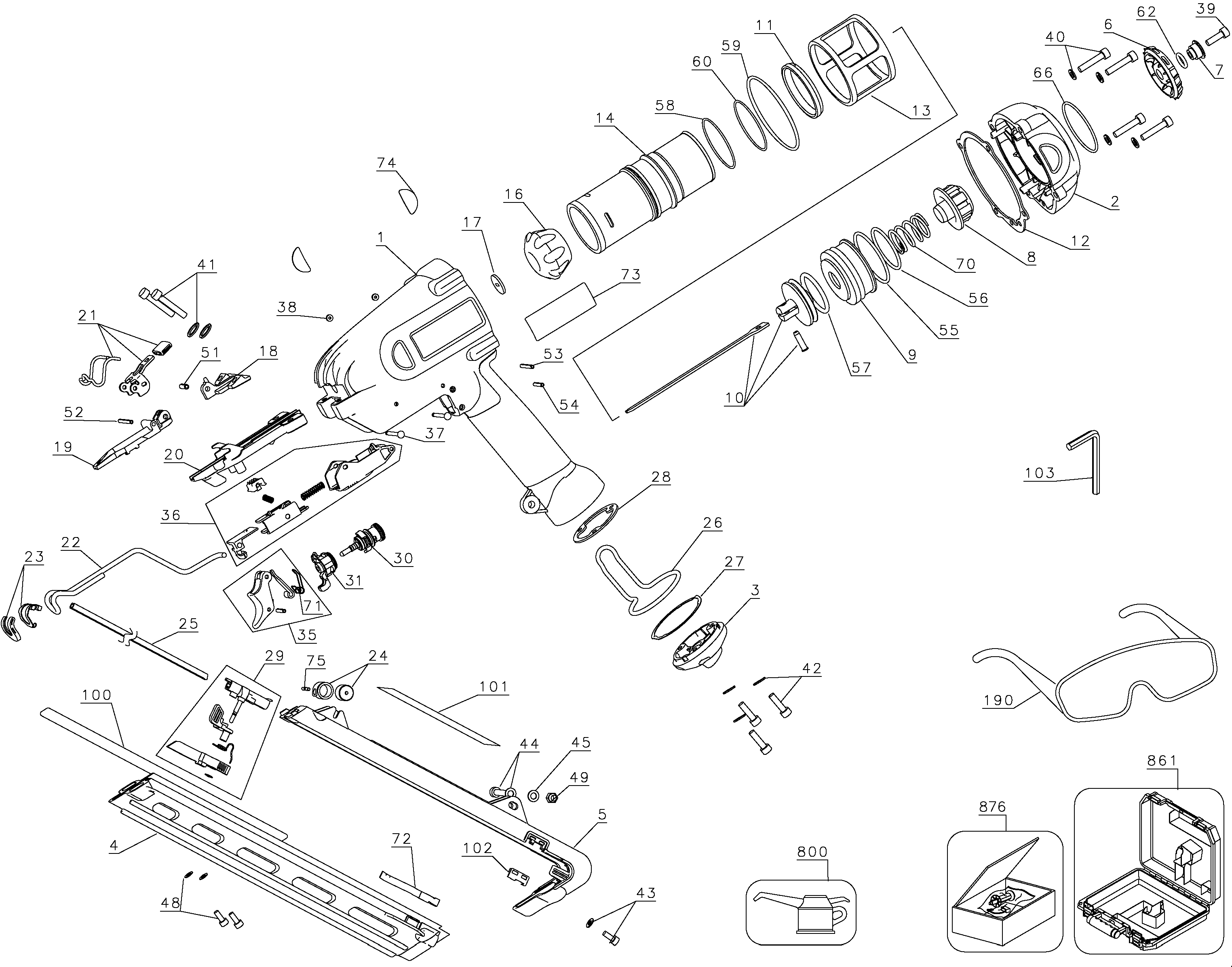

D51275K ANGLED FINISH NAILER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 644004-00 | 1 | FRAME | XE | |||
| 2 | 621869-00 | 1 | CAP | XE | |||
| 3 | 395078-00 | 1 | END CAP | XE | |||
| 4 | 609116-00 | 1 | MAGAZINE | Incl. 72,100 | XE | ||
| 5 | 646718-00 | 1 | MAGAZINE | XE | |||
| 6 | 395058-00 | 1 | DEFLECTOR | XE | |||
| 7 | 619175-00 | 1 | BUSHING | DEFLECTOR | XE | ||
| 8 | 640884-00 | 1 | BUMPER | XE | |||
| 9 | 395063-00 | 1 | VALVE | XE | |||
| 10 | 395071-00 | 1 | PISTON SA | XE | |||
| 11 | 395065-00 | 1 | SEAL | XE | |||
| 12 | 395061-00 | 1 | GASKET | XE | |||
| 13 | 619253-00 | 1 | HOLDER | XE | |||
| 14 | 621866-00 | 1 | CYLINDER | XE | |||
| 16 | 631041-00 | 1 | BUMPER | XE | |||
| 17 | 395073-00 | 1 | PLATE | XE | |||
| 18 | 619178-00 | 1 | DOOR | XE | |||
| 19 | 623096-00 | 1 | DOOR | XE | |||
| 20 | 395099-00 | 1 | NOSE | XE | |||
| 21 | 653129-00 | 1 | LATCH | XE | |||
| 22 | N015849 | 1 | CONTACT | XE | |||
| 23 | 619943-00 | 1 | PAD | XE | |||
| 24 | 606337-00 | 1 | SPRING | XE | |||
| 25 | 395115-00 | 1 | LINER | XE | |||
| 26 | 395079-00 | 1 | HOOK | XE | |||
| 27 | 395080-00 | 1 | PLATE | XE | |||
| 28 | 395430-00 | 1 | GASKET | XE | |||
| 29 | 618015-00 | 1 | SLIDER SA | XE | |||
| 30 | N566148 | 1 | TRIGGER | XE | |||
| 31 | N566148 | 1 | TRIGGER | XE | |||
| 35 | 398230-00 | 1 | TRIGGER | SEQUENTIAL | INCL. 71 | XE | |
| 35 | 398219-00 | 1 | TRIGGER | BUMP | INCL. 71 | XE | |
| 36 | N110774 | 1 | ADJUSTER | XE | |||
| 37 | 395091-00 | 2 | PIN | XE | |||
| 38 | 391814-00 | 2 | GROMMET | XE | |||
| 39 | 98119-14 | 1 | SCREW | M4 X 14 SHCS | XE | ||
| 40 | 608174-00 | 4 | SCREW | XE | |||
| 41 | 608175-00 | 2 | SCREW | XE | |||
| 42 | 608178-00 | 3 | SCREW | XE | |||
| 43 | 608177-00 | 3 | SCREW | M4 x 10 | XE | ||
| 44 | 608176-00 | 1 | SCREW | XE | |||
| 45 | 330016-07 | 1 | WASHER | XE | |||
| 48 | 608179-00 | 2 | SCREW | XE | |||
| 49 | 607155-00 | 1 | NUT | XE | |||
| 51 | 330036-23 | 1 | ROLL PIN | XE | |||
| 52 | 330036-21 | 1 | ROLL PIN | XE | |||
| 53 | 330036-20 | 1 | ROLL PIN | 3 x 26mm | XE | ||
| 54 | 330036-19 | 1 | ROLL PIN | 3 x 18mm | XE | ||
| 55 | 609018-00 | 1 | O RING | XE | |||
| 56 | 398156-00 | 1 | O RING | XE | |||
| 57 | 398157-00 | 1 | O RING | XE | |||
| 58 | 398158-00 | 1 | O RING | XE | |||
| 59 | 398159-00 | 1 | O RING | XE | |||
| 60 | 398167-00 | 1 | O RING | XE | |||
| 62 | 390748-00 | 1 | O RING | XE | |||
| 66 | 622418-00 | 1 | O RING | XE | |||
| 70 | 395064-00 | 1 | SPRING | XE | |||
| 71 | 391813-00 | 1 | SPRING | XE | |||
| 72 | 395122-00 | 1 | RETAINER | XE | |||
| 73 | 613089-00 | 2 | BRAND LABEL | XE | |||
| 74 | 619127-00 | 4 | LABEL | BUMPER | XE | ||
| 75 | 395085-00 | 1 | PIN | XE | |||
| 100 | 609117-00 | 1 | WARNING LABEL | XE | |||
| 101 | 646425-00 | 1 | LABEL | XE | |||
| 102 | 395120-00 | 1 | CATCH | XE | |||
| 103 | 497570-02 | 1 | KEY | 4mm | XE | ||
| 103 | 604407-02 | 1 | WRENCH | XE | |||
| 190 | 629042-01 | 1 | SAFETY GLASSES | XE | |||
| 800 | 429995-00 | 1 | GREASE 150 GMS | XE | |||
| 861 | 607315-00 | 1 | KITBOX | XE | |||
| 876 | 605706-00 | 1 | PISTON SA | XE | |||
| 876 | 605707-00 | 1 | BUMPER | XE | |||
| 876 | 618057-00 | 1 | TRIGGER | BUMPER KIT | XE | ||
| 876 | 623235-00 | 1 | O RING KIT | XE | |||
| 876 | 609988-00 | 1 | TRIGGER | SEQUENTIAL KIT | XE |
