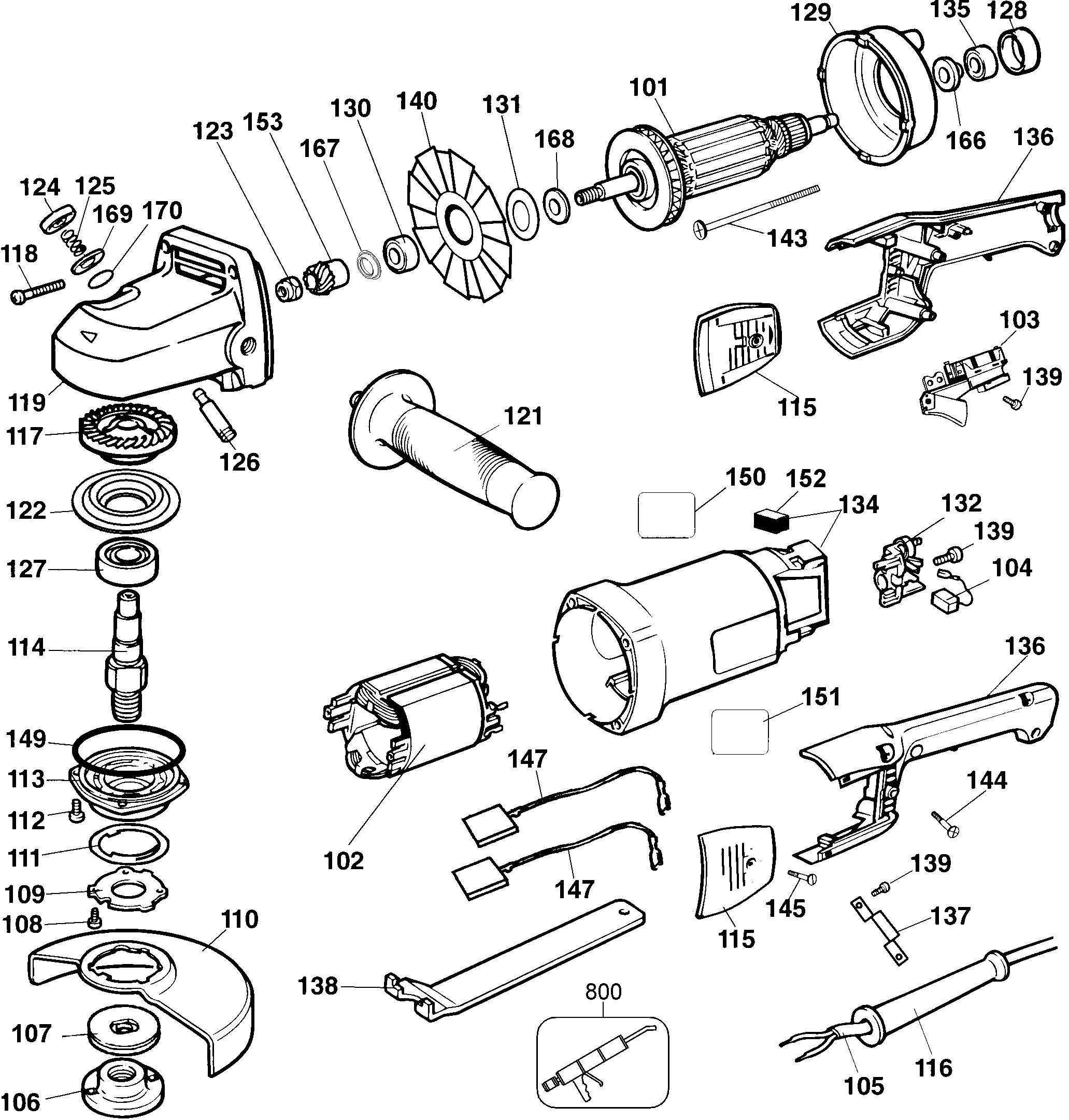

DW830 ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 397337-02 | 1 | ARMATURE KIT 220 | XE | |||
| 102 | 569588-00 | 1 | FIELD 230V | XE | |||
| 103 | 402868-03 | 1 | SWITCH LOCK-ON | XE | |||
| 104 | 654631-07 | 2 | BRUSH CUT OFF | CUT-OFF | XE | ||
| 105 | 330080-38 | 1 | CABLE | XE | |||
| 106 | 947212-00 | 1 | OUTER FLANGE | XE | |||
| 107 | 391969-00 | 1 | INNER FLANGE | XE | |||
| 108 | 562160-06 | 3 | SCREW | XE | |||
| 109 | 605415-00 | 1 | RETAINING PLATE | XE | |||
| 110 | 944586-00 | 1 | GUARD | XE | |||
| 111 | 393576-00 | 1 | RING | XE | |||
| 112 | 562160-05 | 4 | SCREW | XE | |||
| 113 | 390521-00 | 1 | GEARCASE COVER | XE | |||
| 114 | 391972-00 | 1 | SPINDLE | XE | |||
| 115 | 402849-00 | 2 | COVER BRUSH | XE | |||
| 116 | 401088-00 | 1 | PROTECTOR | XE | |||
| 117 | 390522-00 | 1 | GEAR | XE | |||
| 118 | 562097-10 | 4 | SCREW | XE | |||
| 119 | 569905-02 | 1 | GEAR CASE | XE | |||
| 121 | 573115-00 | 1 | SIDE HANDLE | XE | |||
| 122 | 398976-00 | 1 | FLANGE | XE | |||
| 123 | 393568-00 | 1 | NUT | XE | |||
| 124 | 390705-00 | 1 | LOCK BUTTON | XE | |||
| 125 | 562210-00 | 1 | SPRING | XE | |||
| 126 | 390704-00 | 1 | PIN | XE | |||
| 127 | 605040-22 | 1 | BEARING | XE | |||
| 128 | 641823-00 | 1 | SLEEVE | XE | |||
| 129 | 402856-00 | 1 | BAFFLE | XE | |||
| 130 | 605040-60 | 1 | BEARING 6200 | XE | |||
| 131 | 930753-00 | 1 | WASHER | XE | |||
| 132 | 402869-01 | 2 | BRUSH & HOLDER SA | XE | |||
| 134 | 402871-21 | 1 | FIELDCASE | XE | |||
| 135 | 605040-02 | 1 | BEARING | XE | |||
| 136 | 402844-11 | 1 | HANDLE SA | XE | |||
| 137 | 930103-00 | 1 | CORD CLAMP | XE | |||
| 138 | 401253-00 | 1 | WRENCH ROUND-PINS | XE | |||
| 139 | 562097-00 | 5 | SCREW | XE | |||
| 140 | 399032-00 | 1 | FLANGE | XE | |||
| 143 | 562097-11 | 2 | SCREW | XE | |||
| 144 | 562097-03 | 4 | SCREW | XE | |||
| 145 | 945280-00 | 2 | SCREW | XE | |||
| 147 | 402878-00 | 2 | LEAD | XE | |||
| 149 | 403123-00 | 1 | O RING | XE | |||
| 150 | 403007-38 | 1 | NAME PLATE | DW830-XE TY.3 | XE | ||
| 151 | 398941-00 | 1 | IDENTITY LABEL | XE | |||
| 152 | 402847-00 | 4 | SHOCK ABSORBER | XE | |||
| 153 | 402863-00 | 1 | PINION | XE | |||
| 166 | 398985-00 | 1 | SPACER INSULATING | XE | |||
| 167 | 398909-00SV | 1 | GREASE RETAINER | XE | |||
| 168 | 399052-00 | 1 | FELT SEAL | XE | |||
| 169 | 403148-00 | 1 | WASHER | XE | |||
| 170 | 050050-00 | 1 | RING | XE | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XE |
