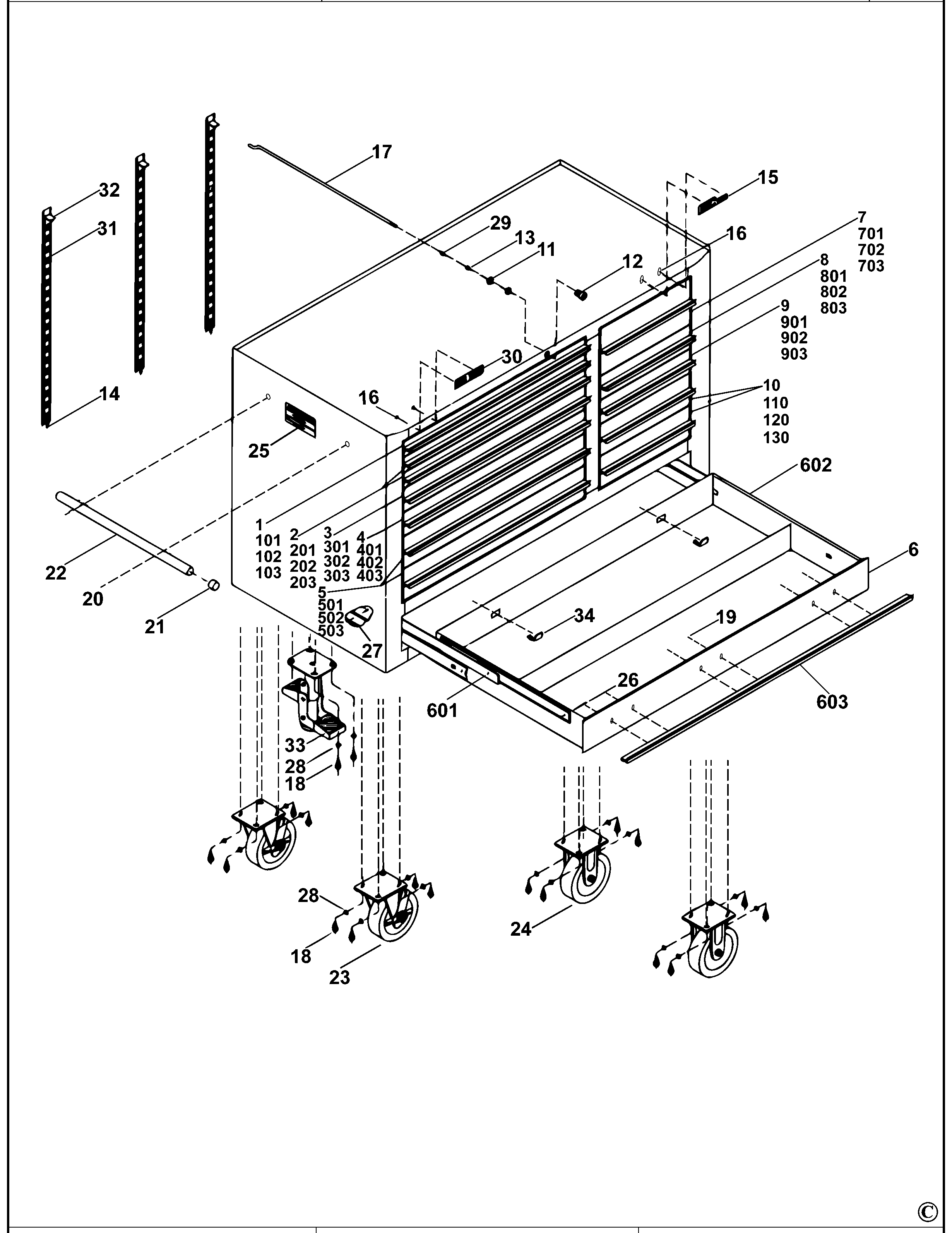

MB1500 ROLLER CABINET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 34329 | 1 | DRAWER | XJ | |||
| 2 | 34329 | 1 | DRAWER | XJ | |||
| 3 | 34330 | 1 | DRAWER | XJ | |||
| 4 | 34331 | 1 | DRAWER | XJ | |||
| 5 | 34332 | 1 | DRAWER | XJ | |||
| 6 | 31851 | 1 | DRAWER | XJ | |||
| 7 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 9 | 31048 | 1 | DRAWER | XJ | |||
| 10 | 31046 | 1 | DRAWER | XJ | |||
| 11 | 000000-00 | 1 | NO LONGER AVAILABLE | LOCK CAM SPACER | XJ | ||
| 12 | MB1600LK | 1 | LOCK | XJ | |||
| 13 | XLALRN | 1 | NUT | XJ | |||
| 14 | XLSS | 1 | SPRING | XJ | |||
| 15 | XNP-2 | 1 | NAMEPLATE | XJ | |||
| 16 | XNPSN | 1 | NUT | XJ | |||
| 17 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 19 | 23808 | 1 | SCREW | XJ | |||
| 20 | 23655-03 | 1 | SCREW | F/CABINET HANDLE | XJ | ||
| 21 | XCABHP | 1 | CAP | XJ | |||
| 22 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 23 | MBC6-SWC | 1 | WHEEL PIVOT | XJ | |||
| 24 | MBC6-RC | 1 | WHEEL FIXED | XJ | |||
| 25 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 26 | 23667-01 | 1 | SCREW | XJ | |||
| 27 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 28 | 23966 | 1 | WASHER | XJ | |||
| 29 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 30 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 31 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 32 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 33 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 34 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 101 | 042752 | 1 | SLIDE | XJ | |||
| 102 | 30608 | 1 | SLIDE | XJ | |||
| 103 | 23673-12 | 1 | Handle | XJ | |||
| 110 | 42756 | 1 | SLIDE | XJ | |||
| 120 | 42757 | 1 | SLIDE | XJ | |||
| 130 | 23673-11 | 1 | Handle | XJ | |||
| 201 | 042752 | 1 | SLIDE | XJ | |||
| 202 | 30608 | 1 | SLIDE | XJ | |||
| 203 | 23673-12 | 1 | Handle | XJ | |||
| 301 | 42756 | 1 | SLIDE | XJ | |||
| 302 | 30610 | 1 | SLIDE | XJ | |||
| 303 | 23673-12 | 1 | Handle | XJ | |||
| 401 | 42756 | 1 | SLIDE | XJ | |||
| 402 | 30610 | 1 | SLIDE | XJ | |||
| 403 | 23673-12 | 1 | Handle | XJ | |||
| 501 | 42756 | 1 | SLIDE | XJ | |||
| 502 | 30610 | 1 | SLIDE | XJ | |||
| 503 | 23673-12 | 1 | Handle | XJ | |||
| 601 | 30616 | 1 | SLIDE | XJ | |||
| 602 | 042752 | 1 | SLIDE | XJ | |||
| 603 | 000000-00 | 1 | NO LONGER AVAILABLE | DRAWER HANDLE | XJ | ||
| 802 | 42757 | 1 | SLIDE | XJ | |||
| 803 | 23673-11 | 1 | Handle | XJ | |||
| 901 | 30609 | 1 | SLIDE | XJ | |||
| 902 | 30610 | 1 | SLIDE | XJ | |||
| 903 | 000000-00 | 1 | NO LONGER AVAILABLE | DRAWER HANDLE | XJ |
