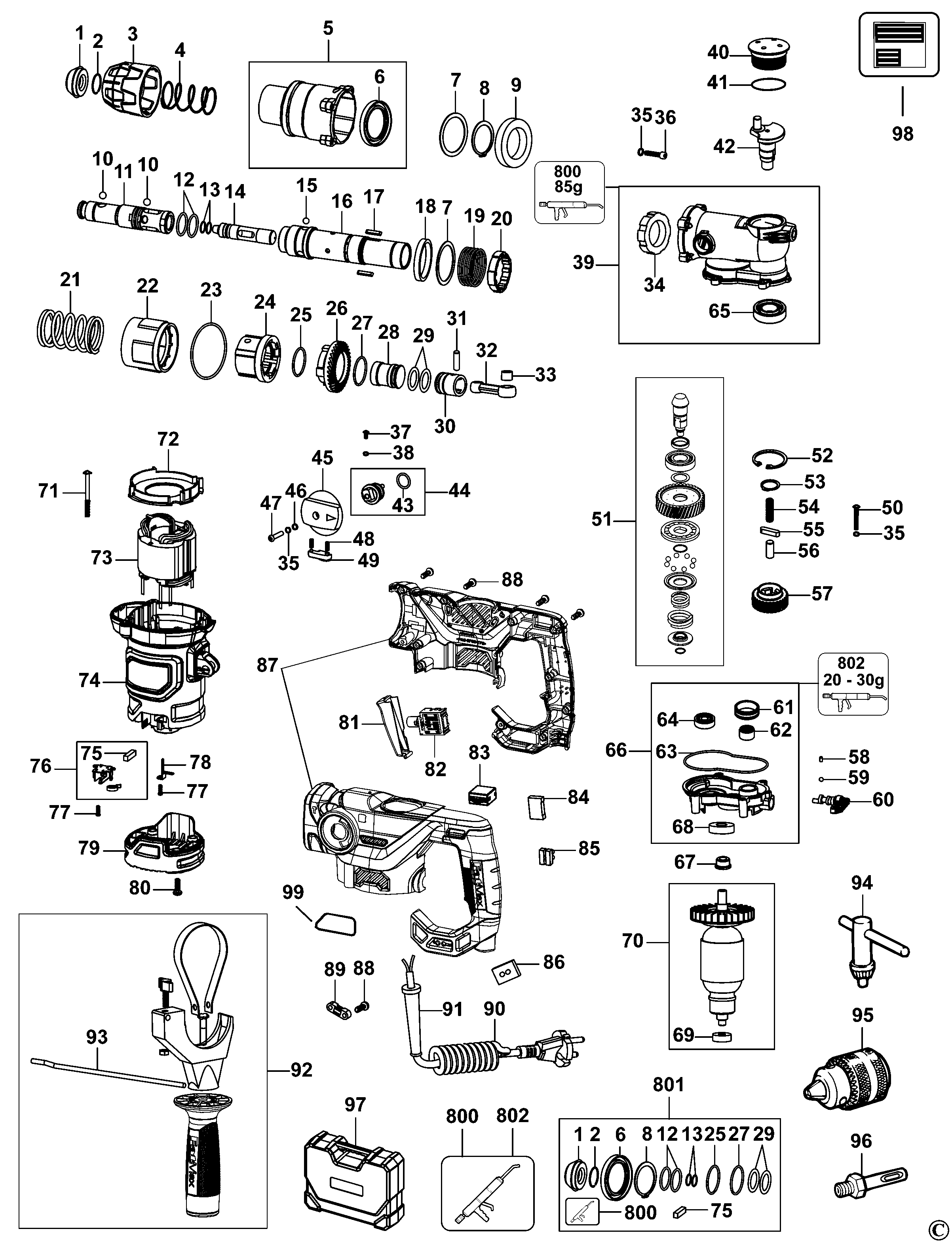

FME1250 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004691-27 | 1 | CAP | XE | |||
| 2 | 1004691-28 | 1 | RING | 18 x 2mm | XE | ||
| 3 | 1004692-37 | 1 | COLLAR | XE | |||
| 4 | 1004691-30 | 1 | SPRING | XE | |||
| 5 | 1004692-38 | 1 | HOUSING SA | XE | |||
| 6 | 1004691-32 | 1 | SEAL | 35 x 51 x 6mm | XE | ||
| 7 | 1004691-33 | 2 | WASHER | 45 x 54.7 x 1mm | XE | ||
| 8 | 1004691-34 | 1 | CIRCLIP | 35mm | XE | ||
| 9 | 1004691-35 | 1 | BEARING | 61907-Z1 | XE | ||
| 10 | 1004691-36 | 5 | BALL STEEL | 7.14mm | XE | ||
| 11 | 1004691-37 | 1 | SPINDLE | XE | |||
| 12 | 1004691-38 | 2 | O RING | 20.8 x 2.1mm | XE | ||
| 13 | 1004691-39 | 2 | O RING | 11 x 2mm | XE | ||
| 14 | 1004691-40 | 1 | BEAT PIECE | XE | |||
| 15 | 1004691-41 | 3 | BALL STEEL | 7.94mm | XE | ||
| 16 | 1004691-42 | 1 | CYLINDER | XE | |||
| 17 | 1004691-43 | 2 | KEY | XE | |||
| 18 | 1004691-44 | 1 | BUSH | 47 x 55 x 7mm | XE | ||
| 19 | 1004691-45 | 1 | SPRING | XE | |||
| 20 | 1004691-46 | 1 | BUSH | XE | |||
| 21 | 1004691-47 | 1 | SPRING | XE | |||
| 22 | 1004691-48 | 1 | BUSH | XE | |||
| 23 | 1004691-49 | 1 | O RING | 53.5 x 2mm | XE | ||
| 24 | 1004691-50 | 1 | CLUTCH | XE | |||
| 25 | 1004691-51 | 1 | RING | XE | |||
| 26 | 1004691-52 | 1 | GEAR | XE | |||
| 27 | 1004691-53 | 1 | RING | 26.7 x 1.6mm | XE | ||
| 28 | 1004691-54 | 1 | RAM | XE | |||
| 29 | 1004691-55 | 2 | O RING | 19.2 x 3mm | XE | ||
| 30 | 1004691-56 | 1 | PISTON | XE | |||
| 31 | 1004691-57 | 1 | PIN | XE | |||
| 32 | 1004691-58 | 1 | CON ROD | XE | |||
| 33 | 1004691-59 | 1 | BEARING | 8 x 12 x 10mm | XE | ||
| 34 | 1004691-60 | 1 | BUSH | 30 x 47 x 10mm | XE | ||
| 35 | 1004691-61 | 9 | WASHER SPRING | 5mm | XE | ||
| 36 | 1004691-62 | 4 | SCREW | M5 x 22mm | XE | ||
| 37 | 1004691-63 | 1 | SCREW | M4 x 10mm | XE | ||
| 38 | 1004691-64 | 1 | WASHER SPRING | 4mm | XE | ||
| 39 | 1004691-65 | 1 | CRANKCASE | XE | |||
| 40 | 1004691-66 | 1 | COVER | XE | |||
| 41 | 1004691-67 | 1 | O RING | 37 x 1.8mm | XE | ||
| 42 | 1004691-68 | 1 | CRANKSHAFT | XE | |||
| 43 | 1004691-69 | 1 | O RING | 13.4 x 2.4mm | XE | ||
| 44 | 1004691-70 | 1 | LEVER SA | XE | |||
| 45 | 1004691-71 | 1 | KNOB | XE | |||
| 46 | 1004691-72 | 1 | WASHER 5 MM | XE | |||
| 47 | 1004691-73 | 1 | SCREW | M5 x 12mm | XE | ||
| 48 | 1004691-74 | 2 | SPRING | XE | |||
| 49 | 1004691-75 | 1 | BUTTON | XE | |||
| 50 | 1004691-76 | 4 | SCREW | ST 4.8 x 45 - F | XE | ||
| 51 | 1004691-77 | 1 | GEAR & PINION SA | XE | |||
| 52 | 1004691-80 | 1 | CIRCLIP | 35mm | XE | ||
| 53 | 1004691-81 | 1 | CIRCLIP | 17mm | XE | ||
| 54 | 1004691-82 | 1 | SPRING | 1.2 x 5.1 x 33mm | XE | ||
| 55 | 1004691-83 | 2 | KEY | XE | |||
| 56 | 1004691-86 | 1 | PIN | 8 x 19.4mm | XE | ||
| 57 | 1004691-84 | 1 | GEAR | XE | |||
| 58 | 1004691-90 | 1 | STOP RUBBER | XE | |||
| 59 | 1004691-91 | 1 | BALL STEEL 4MM | XE | |||
| 60 | 1004692-39 | 1 | LEVER | XE | |||
| 61 | 1004691-85 | 1 | BUSH | XE | |||
| 62 | 1004691-87 | 1 | BEARING NEEDLE | HK1210 | XE | ||
| 63 | 1004691-89 | 1 | SEAL | XE | |||
| 64 | 1004691-78 | 1 | BEARING | 627-2Z | XE | ||
| 65 | 1004691-79 | 1 | BEARING | 6003-2Z | XE | ||
| 66 | 1004691-92 | 1 | GEARCASE COVER SA | XE | |||
| 67 | 1004691-88 | 1 | CAP | XE | |||
| 68 | 1004691-94 | 1 | BEARING | 6001-2RS | XE | ||
| 69 | 1004691-96 | 1 | BEARING | 608-2RS | XE | ||
| 70 | 1004691-95 | 1 | ARMATURE SA | XE | |||
| 71 | 1004691-97 | 2 | SCREW | ST 4.08 x 65mm | XE | ||
| 72 | 1004692-40 | 1 | FAN COVER | XE | |||
| 73 | 1004692-41 | 1 | FIELD | XE | |||
| 74 | 1004692-42 | 1 | HOUSING MOTOR | XE | |||
| 75 | 1004692-02 | 1 | BRUSH & LEAD | PAIR | XE | ||
| 76 | 1004692-03 | 2 | BRUSH & HOLDER SA | XE | |||
| 77 | 1004692-04 | 5 | SCREW | ST 2.9 x 10mm | XE | ||
| 78 | 1004692-05 | 1 | CONTACT | XE | |||
| 79 | 1004692-43 | 1 | MOTOR COVER | XE | |||
| 80 | 1004692-07 | 4 | SCREW | ST 4 x 20mm | XE | ||
| 81 | 1004692-09 | 1 | TRIGGER | XE | |||
| 82 | 1004692-10 | 1 | SWITCH | XE | |||
| 83 | 1004692-11 | 1 | POTENTIOMETER SA | XE | |||
| 84 | 1004692-13 | 1 | CAPACITOR | XE | |||
| 85 | 1004692-12 | 1 | TERMINAL BLOCK | XE | |||
| 86 | 1004692-19 | 1 | LED | XE | |||
| 87 | 1004692-44 | 1 | CLAMSHELL SA | XE | |||
| 88 | 1004692-15 | 14 | SCREW | ST 4 x 4 -F | XE | ||
| 89 | 1004692-14 | 1 | CORD CLAMP | XE | |||
| 91 | 1004692-16 | 1 | CORD PROTECTOR | XE | |||
| 92 | 1004692-47 | 1 | HANDLE SIDE SA | XE | |||
| 93 | 1004692-21 | 1 | DEPTH ROD | XE | |||
| 94 | 1004692-32 | 1 | CHUCK KEY | XE | |||
| 95 | 1004692-33 | 1 | CHUCK | XE | |||
| 96 | 1004692-34 | 1 | ADAPTOR | SDS | XE | ||
| 97 | 1004692-48 | 1 | KITBOX | XE | |||
| 99 | 1004782-02 | 1 | BRAND LABEL | XE | |||
| 800 | 1004692-23 | 1 | GREASE | XE | |||
| 801 | 1004692-25 | 1 | SERVICE KIT | XE | |||
| 802 | 1004692-24 | 1 | GREASE | 20 - 30g FT-1333 | XE |
