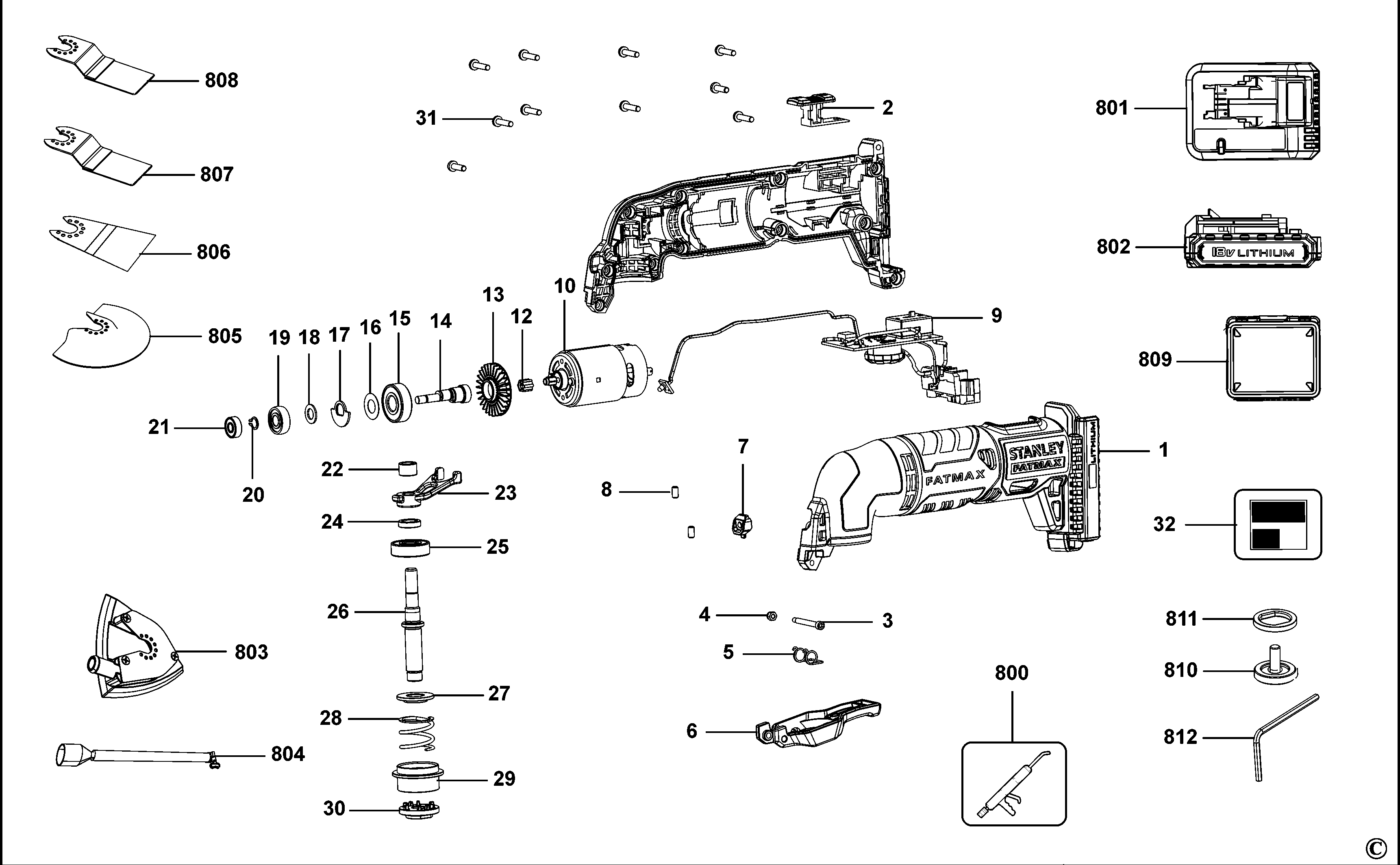

FMC710 OSCILLATING TOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90601447 | 1 | HOUSING SA | XE | |||
| 2 | 90592742-01 | 1 | ACTUATOR | XE | |||
| 3 | 90581542 | 1 | SCREW | XE | |||
| 4 | 90581543 | 1 | NUT | XE | |||
| 5 | 90580672 | 1 | SPRING TORSION | XE | |||
| 6 | 90599051 | 1 | LEVER SA | XE | |||
| 7 | 90593191 | 1 | COVER | XE | |||
| 8 | 90596629 | 2 | PLUG | XE | |||
| 9 | N559535 | 1 | PCB SA | XE | |||
| 10 | 90592745-01 | 1 | MOTOR SA | XE | |||
| 12 | 90592739 | 1 | PINION | XE | |||
| 13 | 90592738 | 1 | FAN | XE | |||
| 14 | 90592736 | 1 | DRIVE SHAFT | XE | |||
| 15 | 90581550 | 1 | BEARING | 6000 ZZ | XE | ||
| 16 | 90594208 | 1 | WASHER | XE | |||
| 17 | 90581541 | 1 | PLATE | XE | |||
| 18 | 90581562 | 1 | WASHER | XE | |||
| 19 | 90586419 | 1 | BEARING | S607-2RS | XE | ||
| 20 | 90581539 | 1 | CLIP | XE | |||
| 21 | 90592737 | 1 | BEARING | XE | |||
| 22 | 624474-06 | 1 | BEARING,NEEDLE | XE | |||
| 23 | 90580652 | 1 | YOKE | XE | |||
| 24 | 90581535 | 1 | SLEEVE | XE | |||
| 25 | 90581548 | 1 | BEARING,BALL | XE | |||
| 26 | 90580651 | 1 | SPINDLE | XE | |||
| 27 | 90580653 | 1 | SEAT | XE | |||
| 28 | 90580654 | 1 | SPRING COMPRESSION | XE | |||
| 29 | 90580655 | 1 | CLAMP | XE | |||
| 30 | 90580656 | 1 | WASHER CLAMP | XE | |||
| 31 | 370748 | 10 | SCREW | XE | |||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | XE | ||
| 801 | 90611165-02 | 1 | CHARGER 18V | FMC692L-2A | XE | ||
| 803 | 90583530 | 1 | PLATEN | XE | |||
| 804 | 90586018 | 1 | TUBE SA | XE | |||
| 805 | 90585838 | 1 | BLADE - CARBIDE | STA26125-XJ | XE | ||
| 806 | 90585829 | 1 | BLADE - RIGID SCRAPER | STA26135-XJ | XE | ||
| 807 | 90604632 | 1 | BLADE - PLUNGE CUT | STA26105-XJ | XE | ||
| 808 | 90604633 | 1 | BLADE - PLUNGE CUT | STA26110-XJ | XE | ||
| 809 | 90602160 | 1 | KITBOX | XE | |||
| 810 | 90584484 | 1 | OUTER FLANGE | XE | |||
| 811 | N440293 | 1 | FLANGE | XE | |||
| 812 | 90584745 | 1 | WRENCH SPECIAL | XE |
