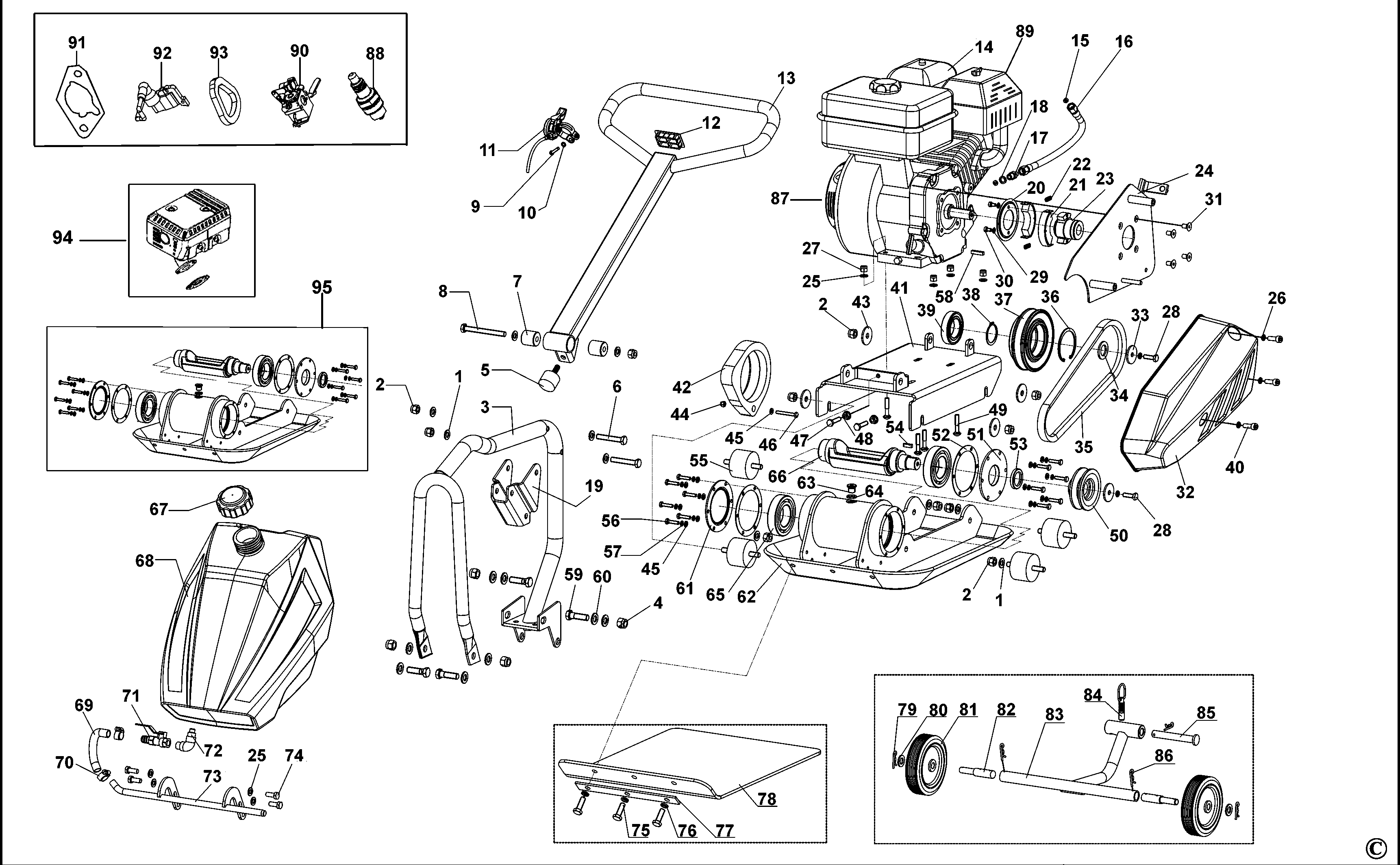

SGC-11000N COMPACTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | E6043000201 | 10 | WASHER | XJ | |||
| 2 | E6043000202 | 7 | NUT | XJ | |||
| 3 | E6043000203 | 1 | HANDLE SA | XJ | |||
| 4 | E6043000204 | 4 | NUT | XJ | |||
| 5 | E6043000205 | 1 | SHOCK ABSORBER | XJ | |||
| 6 | E6043000206 | 2 | BOLT | XJ | |||
| 7 | E6043000207 | 2 | SLEEVE | XJ | |||
| 8 | E6043000208 | 1 | BOLT | XJ | |||
| 9 | E6043000209 | 1 | BOLT | XJ | |||
| 10 | E60430002010 | 1 | WASHER | XJ | |||
| 11 | E60430002011 | 1 | LEVER | XJ | |||
| 12 | E60430002012 | 1 | PLUG | XJ | |||
| 13 | E60430002013 | 1 | HANDLE UPPER | XJ | |||
| 14 | E60430002014 | 1 | MOTOR SA | Refer to manual | XJ | ||
| 15 | E60430002015 | 2 | O RING | XJ | |||
| 16 | E60430002016 | 1 | HOSE | Oil | XJ | ||
| 17 | E60430002017 | 1 | JOINT | XJ | |||
| 18 | E60430002018 | 1 | SEAL | XJ | |||
| 19 | E60430002019 | 1 | COUPLING | XJ | |||
| 20 | E60430002020 | 1 | COVER SA | XJ | |||
| 21 | E60430002021 | 2 | WHEEL FRICTION | XJ | |||
| 22 | E60430002022 | 2 | SPRING | XJ | |||
| 23 | E60430002023 | 1 | PULLEY SHAFT | XJ | |||
| 24 | E60430002024 | 1 | PLATE | XJ | |||
| 25 | E60430002025 | 8 | WASHER | XJ | |||
| 26 | E60430002026 | 4 | WASHER | XJ | |||
| 27 | E60430002027 | 4 | NUT M8 | XJ | |||
| 28 | E60430002028 | 2 | BOLT | XJ | |||
| 29 | E60430002029 | 2 | WASHER | XJ | |||
| 30 | E60430002030 | 2 | SCREW | XJ | |||
| 31 | E60430002031 | 4 | SCREW | XJ | |||
| 32 | E60430002032 | 1 | BELT COVER | XJ | |||
| 33 | E60430002033 | 1 | PLATE | XJ | |||
| 34 | E60430002034 | 1 | WASHER | XJ | |||
| 35 | E60430002035 | 1 | V-BELT | XJ | |||
| 36 | E60430002036 | 1 | CIRCLIP | XJ | |||
| 37 | E60430002037 | 1 | PULLEY | XJ | |||
| 38 | E60430002038 | 1 | CIRCLIP | XJ | |||
| 39 | E60430002039 | 1 | BEARING | XJ | |||
| 40 | E60430002040 | 3 | SCREW | XJ | |||
| 41 | E60430002041 | 1 | CHASSIS | XJ | |||
| 42 | E60430002042 | 1 | PAD | XJ | |||
| 43 | E60430002043 | 4 | WASHER | XJ | |||
| 44 | E60430002044 | 1 | NUT M6 | XJ | |||
| 45 | E60430002045 | 13 | WASHER | XJ | |||
| 46 | E60430002046 | 1 | BOLT | XJ | |||
| 47 | E60430002047 | 2 | BOLT | XJ | |||
| 48 | E60430002048 | 2 | NUT M8 | XJ | |||
| 49 | E60430002049 | 4 | BOLT | XJ | |||
| 50 | E60430002050 | 1 | PULLEY | XJ | |||
| 51 | E60430002051 | 1 | COVER BEARING | XJ | |||
| 52 | E60430002052 | 2 | WASHER | XJ | |||
| 53 | E60430002053 | 1 | SEAL | XJ | |||
| 54 | E60430002054 | 1 | KEY | XJ | |||
| 55 | E60430002055 | 4 | SHOCK ABSORBER | XJ | |||
| 56 | E60430002056 | 12 | BOLT | XJ | |||
| 57 | E60430002057 | 12 | WASHER | XJ | |||
| 58 | E60430002058 | 1 | KEY | XJ | |||
| 59 | E60430002059 | 4 | BOLT | XJ | |||
| 60 | E60430002060 | 8 | WASHER | XJ | |||
| 61 | E60430002061 | 1 | COVER BEARING | XJ | |||
| 62 | E60430002062 | 1 | PLATE | XJ | |||
| 63 | E60430002063 | 1 | PLUG | XJ | |||
| 64 | E60430002064 | 1 | WASHER | XJ | |||
| 65 | E60430002065 | 2 | BEARING | XJ | |||
| 66 | E60430002066 | 1 | SHAFT | XJ | |||
| 67 | E60430002067 | 1 | CAP SA | XJ | |||
| 68 | E60430002068 | 1 | TANK | XJ | |||
| 69 | E60430002069 | 1 | PIPE | XJ | |||
| 70 | E60430002070 | 2 | CLAMP | XJ | |||
| 71 | E60430002071 | 1 | VALVE | XJ | |||
| 72 | E60430002072 | 1 | COUPLING | XJ | |||
| 73 | E60430002073 | 1 | PIPE | XJ | |||
| 74 | E60430002074 | 4 | BOLT | XJ | |||
| 75 | 1004719-26 | 3 | BOLT | XJ | |||
| 76 | 1004719-27 | 3 | WASHER | XJ | |||
| 77 | 1004719-28 | 1 | BAR | XJ | |||
| 78 | 1004719-29 | 1 | PAD | XJ | |||
| 79 | 1004719-30 | 3 | SPRING CLIP | XJ | |||
| 80 | 1004719-31 | 2 | WASHER | XJ | |||
| 81 | 1004719-32 | 2 | WHEEL | XJ | |||
| 82 | 1004719-33 | 2 | SHAFT | XJ | |||
| 83 | 1004719-34 | 1 | BRACKET | XJ | |||
| 84 | 1004719-35 | 1 | BOLT | XJ | |||
| 85 | 1004719-36 | 1 | SHAFT | XJ | |||
| 86 | 1004719-37 | 2 | SPRING CLIP | XJ | |||
| 87 | E60430020E1 | 1 | STARTER SA | XJ | |||
| 88 | E60430020E2 | 1 | SPARK PLUG | XJ | |||
| 89 | E60430020E3 | 1 | FILTER SA | Air Filter | XJ | ||
| 90 | E60430020E4 | 1 | CARBURETTOR SA | XJ | |||
| 91 | E60430020E5 | 1 | RING | XJ | |||
| 92 | E60430020E6 | 1 | COIL SA | XJ | |||
| 93 | E60430020E7 | 1 | RING SA | OHV | XJ | ||
| 94 | E60430020E8 | 1 | MUFFLER | XJ | |||
| 95 | E604300020P1 | 1 | PLATE SA | XJ |
