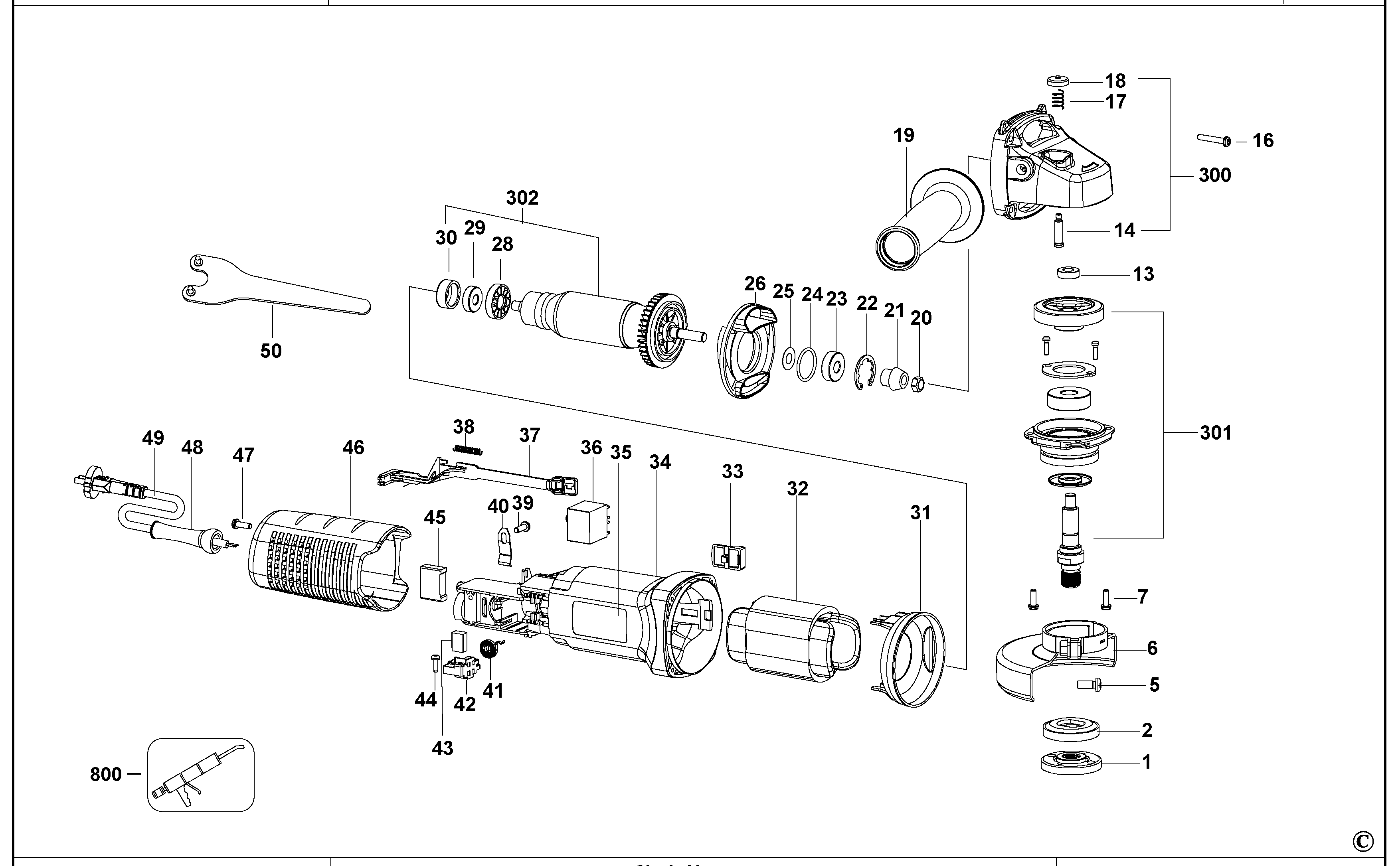

SGS105 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4145104008 | 1 | OUTER FLANGE | XJ | |||
| 2 | 4145104002 | 1 | INNER FLANGE | XJ | |||
| 5 | 49203052 | 1 | SCREW | XJ | |||
| 6 | 4142104001 | 1 | GUARD SA | XJ | |||
| 7 | 49209042 | 4 | SCREW | XJ | |||
| 13 | N494778 | 1 | BEARING | XJ | |||
| 14 | N514297 | 1 | LOCK PIN | XJ | |||
| 16 | 49206022 | 4 | SCREW | XJ | |||
| 17 | 4140308003 | 1 | SPRING | XJ | |||
| 18 | 4140301012 | 1 | LOCK BUTTON | XJ | |||
| 19 | 4140401001 | 1 | HANDLE SIDE SA | XJ | |||
| 20 | 49205017 | 1 | NUT | XJ | |||
| 21 | N494780 | 1 | PINION | XJ | |||
| 22 | 4141404607 | 1 | CIRCLIP | XJ | |||
| 23 | N175104 | 1 | BEARING | XJ | |||
| 24 | 4030203005 | 1 | O RING | XJ | |||
| 25 | 4090104003 | 1 | WASHER | 8 x 15 x 0.2 mm; 8*15*0.2 | XJ | ||
| 26 | N494788 | 1 | RETAINING PLATE | XJ | |||
| 28 | N494794 | 1 | WASHER INSULATING | XJ | |||
| 29 | N494797 | 1 | BEARING | XJ | |||
| 30 | 4140303002 | 1 | SLEEVE BEARING | XJ | |||
| 31 | N494795 | 1 | BAFFLE | XJ | |||
| 32 | N512904 | 1 | FIELD SA | XJ | |||
| 33 | 4140301011 | 1 | BUTTON | XJ | |||
| 34 | N494791 | 1 | HOUSING | XJ | |||
| 37 | N494790 | 1 | LINK | XJ | |||
| 38 | 4140308001 | 1 | SPRING | XJ | |||
| 39 | 49206016 | 1 | SCREW | self-tapping 4*12; self-tapping 4x12 mm | XJ | ||
| 40 | N514718 | 1 | CLAMP | XJ | |||
| 41 | N514753 | 1 | SPRING | PAIR | XJ | ||
| 42 | N494796 | 1 | BRUSH HOLDER PAIR | XJ | |||
| 43 | N542174 | 1 | BRUSH PAIR | XJ | |||
| 44 | N507174 | 2 | SCREW | XJ | |||
| 45 | 494014 | 1 | CAPACITOR | XJ | |||
| 46 | N494793 | 1 | HOUSING REAR | XJ | |||
| 47 | 49206018 | 1 | SCREW | SELF-TAPPING 4*15 | XJ | ||
| 48 | 49303605 | 1 | CORD PROTECTOR | XJ | |||
| 50 | 4140304608 | 1 | WRENCH SET | XJ | |||
| 300 | N534105 | 1 | GEAR CASE SA | XJ | |||
| 301 | N534106 | 1 | SPINDLE & GEAR SA | XJ | |||
| 302 | N534107 | 1 | ARMATURE SA | XJ | |||
| 800 | N544392 | 1 | GREASE | 15g | XJ |
