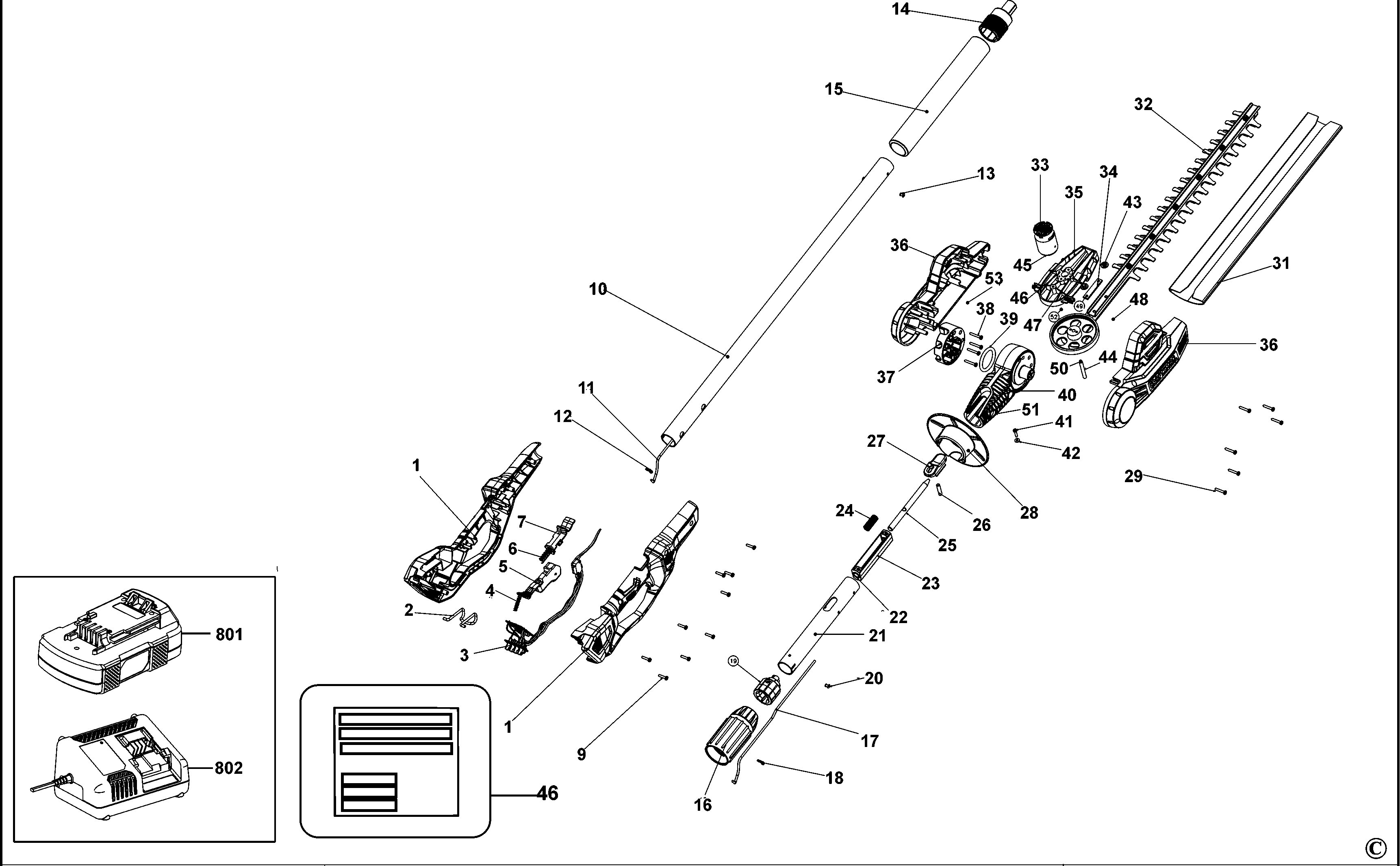

SFMCPH845 HEDGETRIMMER Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N715260 | 1 | HOUSING SA | XE | |||
| 2 | N545340 | 1 | CLIP | XE | |||
| 3 | N729798 | 1 | PCB SA | XE | |||
| 4 | 90558567 | 1 | SPRING COMPRESSION | XE | |||
| 5 | N582240 | 1 | TRIGGER | XE | |||
| 6 | 5104138-00 | 1 | SPRING | XE | |||
| 7 | N586117 | 1 | BUTTON LOCK-OFF | XE | |||
| 9 | 330019-03 | 9 | SCREW | XE | |||
| 11 | N601070 | 1 | WIRE | XE | |||
| 12 | N613933 | 1 | WIRE | XE | |||
| 13 | N625740 | 2 | RIVET | XE | |||
| 14 | N719301 | 1 | PLUG | XE | |||
| 15 | 90575479 | 1 | GRIP | XE | |||
| 16 | N597415 | 1 | SLEEVE | XE | |||
| 17 | N805009 | 1 | WIRE | XE | |||
| 18 | N805008 | 1 | WIRE | XE | |||
| 19 | N597735 | 1 | ADAPTOR | XE | |||
| 20 | N625740 | 1 | RIVET | XE | |||
| 21 | 5145122-00 | 1 | POLE PIECE | XE | |||
| 22 | 5145121-00 | 1 | SLEEVE | XE | |||
| 23 | 5145118-00 | 1 | HOUSING | XE | |||
| 24 | 5145120-00 | 1 | SPRING | XE | |||
| 25 | 5145117-00 | 1 | ROD | XE | |||
| 26 | 5145231-00 | 1 | PIN | XE | |||
| 27 | N718008 | 1 | BUTTON | XE | |||
| 28 | 5145119-00 | 1 | GUARD | XE | |||
| 29 | 330019-52 | 6 | SCREW | XE | |||
| 31 | N702938 | 1 | SHEATH | XE | |||
| 32 | N718581 | 1 | BLADE SA | XE | |||
| 33 | N737928 | 1 | MOTOR | XE | |||
| 34 | 90568498 | 1 | PLATE | XE | |||
| 35 | 571821-00 | 1 | GEARCASE SA | XE | |||
| 36 | N860854 | 1 | HOUSING SA | XE | |||
| 37 | 5145114-00 | 1 | PIVOT BLOCK | XE | |||
| 38 | 330019-05 | 4 | SCREW | XE | |||
| 39 | 5145133-00 | 1 | O RING | XE | |||
| 40 | 5145115-00 | 1 | PIVOT | XE | |||
| 41 | 330019-03 | 1 | SCREW | XE | |||
| 42 | 5145796-00 | 1 | WASHER | XE | |||
| 43 | 90568482 | 1 | SPACER | XE | |||
| 44 | 5103544-00 | 1 | PIN | XE | |||
| 45 | 90568243 | 1 | PINION | XE | |||
| 46 | 5103543-00 | 1 | SCREW | XE | |||
| 47 | 5103514-00 | 1 | BOLT | XE | |||
| 48 | 571828-01 | 1 | GEARCASE COVER | XE | |||
| 49 | 311940-03 | 2 | SCREW | XE | |||
| 50 | 5103547-00 | 1 | RING | XE | |||
| 51 | N625740 | 4 | RIVET | XE | |||
| 52 | 574164-00 | 1 | INSERT | XE | |||
| 53 | N718580 | 1 | MAGNET | XE | |||
| 800 | N726769 | 1 | RATING PLATE | XE | |||
| 801 | N855084 | 1 | BATTERY 18V - 4.0AH - 72WH | SFMCPH845M1 | XE |
