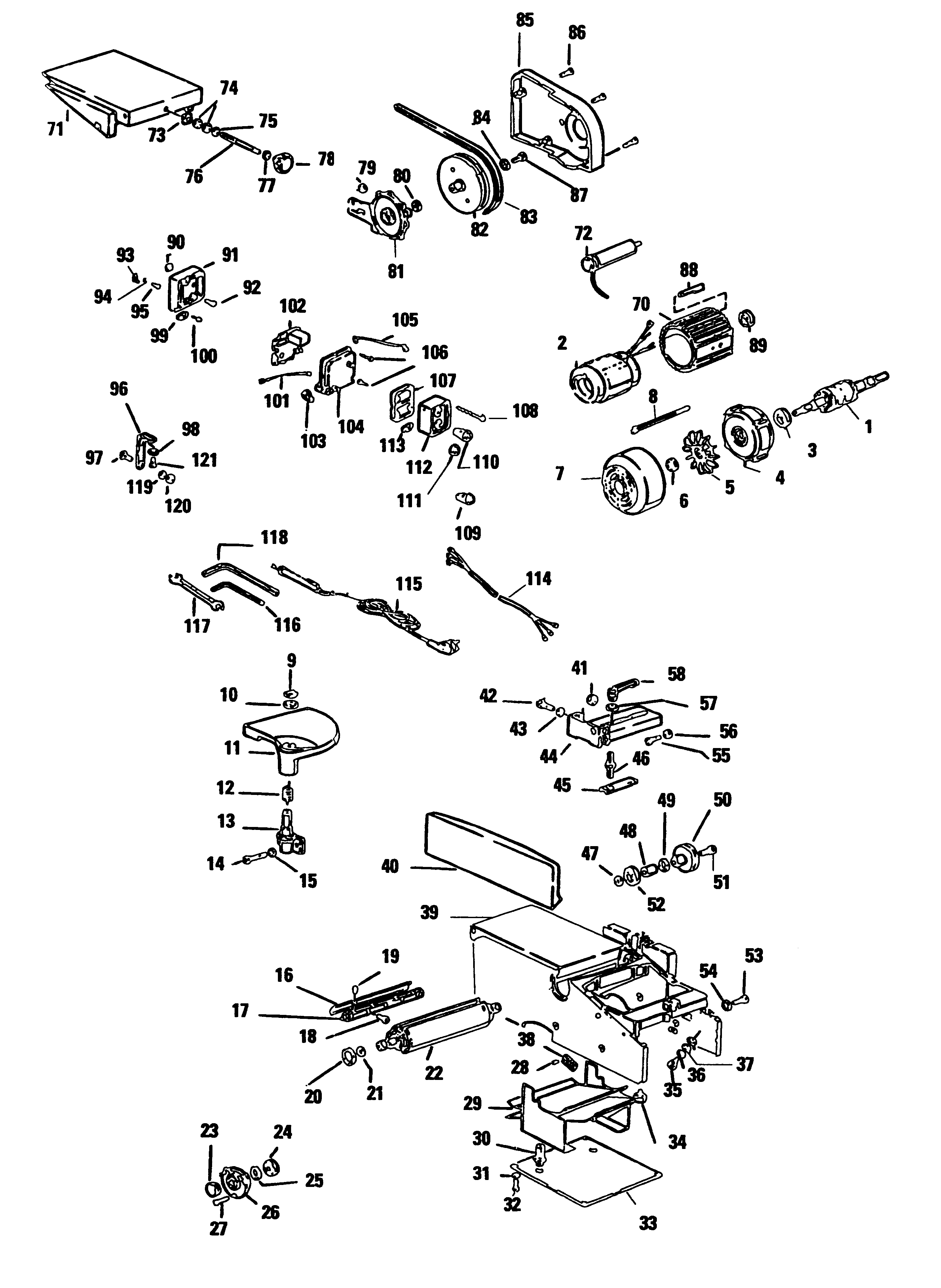

AH175 SURFACER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 576376-03 | 1 | MOTOR SA | XE | |||
| 2 | 376016-01 | 1 | CLAMSHELL | KS635S - KS634S | XE | ||
| 2 | 580486-01 | 1 | CLAMSHELL SET | KS638SE | XE | ||
| 3 | 809483-01 | 1 | SWITCH | XE | |||
| 4 | 807285-06 | 1 | CAPACITOR | KS635S - KS634S | XE | ||
| 5 | 368329-03 | 1 | PCB SA | KS638SE- EXCEPT M-TW | XE | ||
| 6 | 770235 | 1 | PROTECTOR | XE | |||
| 7 | 330080-06 | 1 | CORDSET | XE | |||
| 8 | 369328 | 1 | REGULATOR | XE | |||
| 9 | 376010-01 | 1 | ACTUATOR | TYPE 1 | XE | ||
| 9 | 376010-01 | 1 | ACTUATOR | TYPE 1A | XE | ||
| 10 | 748158 | 1 | SPRING | XE | |||
| 11 | 370966 | 2 | WASHER | XE | |||
| 12 | 847709 | 2 | SPRING | XE | |||
| 13 | 372523 | 2 | BRUSH | XE | |||
| 14 | 846076 | 2 | BRUSHBOX | XE | |||
| 15 | 811529 | 1 | LEAD SA | KS635S - KS634S | XE | ||
| 15 | 811679 | 1 | LEAD | KS638SE EXCEPT M-TW | XE | ||
| 16 | 811666 | 1 | LEAD | KS638SE EXCEPT M-TW | XE | ||
| 16 | 811504 | 1 | LEAD | KS635S - KS634S | XE | ||
| 17 | 828446 | 2 | CHOKE SA | XE | |||
| 18 | 369620 | 1 | NUT | XE | |||
| 19 | 581229-01 | 1 | GEARCASE SA | XE | |||
| 20 | 369619 | 1 | GEAR | XE | |||
| 21 | 891024 | 6 | SCREW | XE | |||
| 22 | 368389 | 1 | ROLLER | XE | |||
| 23 | 368360 | 2 | BEARING | XE | |||
| 24 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 25 | 374292 | 3 | PIN | XE | |||
| 26 | 799310 | 1 | O RING | XE | |||
| 27 | 371953 | 1 | SPRING RH | XE | |||
| 28 | 371952 | 1 | SPRING LH | XE | |||
| 29 | 995036 | 2 | WASHER SPRING | XE | |||
| 30 | 368366 | 1 | COVER | XE | |||
| 31 | 369008 | 1 | GUARD | XE | |||
| 32 | 370584 | 1 | GUARD | XE | |||
| 33 | 369002-08 | 1 | BRAND LABEL | KS634S | XE |
