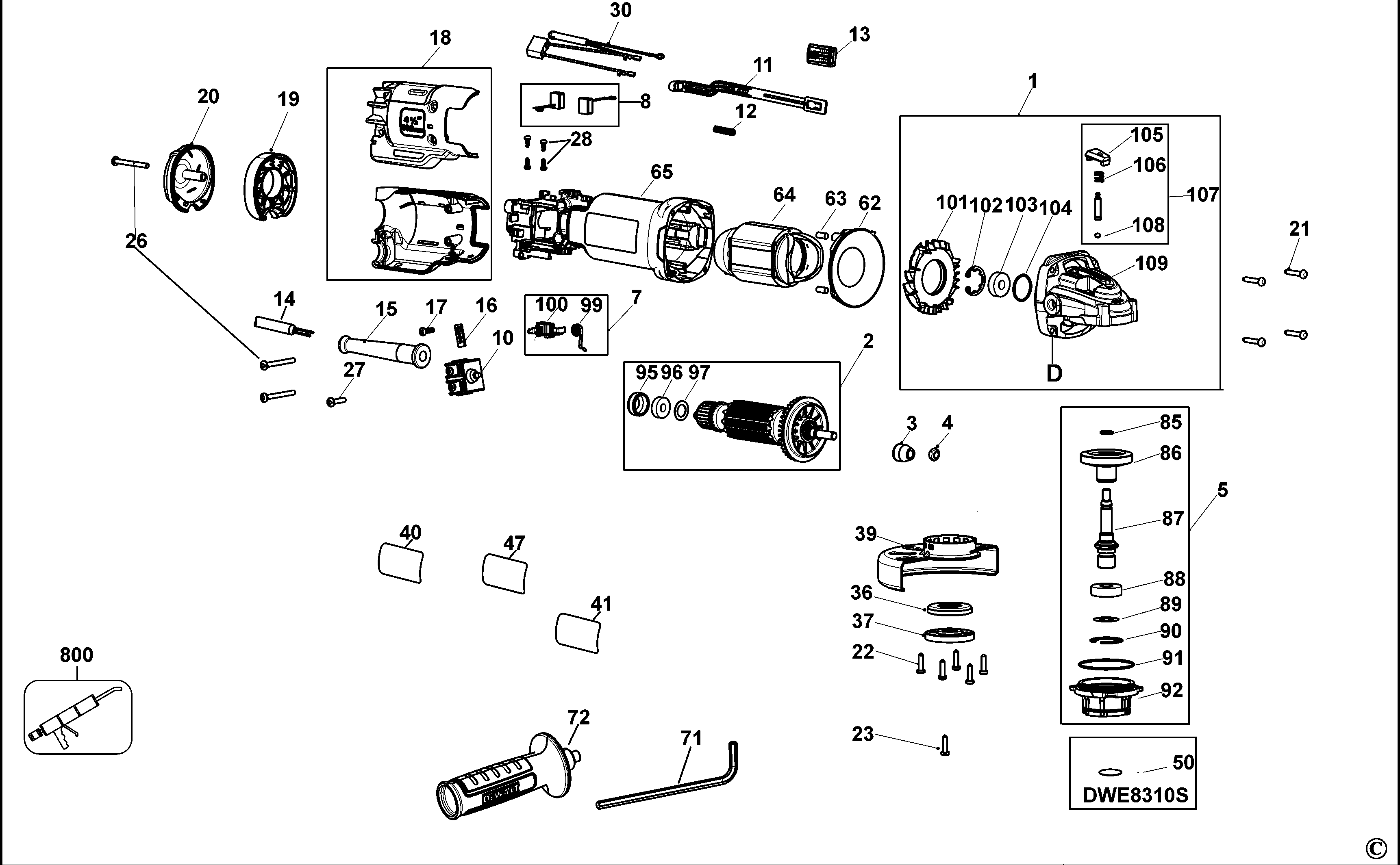

DWE8300S SMALL ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N540296 | 1 | GEARCASE SA | TW | |||
| 2 | N409482 | 1 | ARMATURE 115/120V | 120V PKGD N398315 | TW | ||
| 3 | N423537 | 1 | PINION | TW | |||
| 4 | N372039 | 1 | NUT | TW | |||
| 5 | N547046 | 1 | SPINDLE SA | TW | |||
| 7 | N413349 | 2 | BRUSHBOX SA | TW | |||
| 8 | N422683 | 1 | BRUSH PAIR | TW | |||
| 10 | N396008 | 1 | SWITCH | TW | |||
| 11 | N298583 | 1 | LINKAGE SA | TW | |||
| 12 | N093410 | 1 | SPRING | TW | |||
| 13 | N097844 | 1 | BUTTON | TW | |||
| 14 | N394544 | 1 | CORDSET | TW | |||
| 15 | 401088-00 | 1 | PROTECTOR | TW | |||
| 16 | N194291 | 1 | CORD CLAMP | TW | |||
| 17 | 330065-06 | 1 | SCREW | TW | |||
| 18 | N391187 | 1 | HOUSING SA | TW | |||
| 19 | N563707 | 1 | DUST PORT | DES STATOR | TW | ||
| 20 | N400902 | 1 | END CAP | TW | |||
| 21 | N371839 | 4 | SCREW | TW | |||
| 22 | 330045-06 | 5 | SCREW | TW | |||
| 23 | N130031 | 1 | SCREW | TW | |||
| 26 | N389438 | 3 | SCREW | TW | |||
| 27 | 330065-09 | 1 | SCREW | TW | |||
| 28 | 593478-00 | 4 | SCREW | M3 X 8 | TW | ||
| 30 | N399579 | 1 | CAPACITOR SA | TW | |||
| 36 | N552368 | 1 | INNER FLANGE | TW | |||
| 37 | N552385 | 1 | OUTER FLANGE | TW | |||
| 39 | N115343 | 1 | GUARD SA | TW | |||
| 40 | N403730 | 1 | BRAND LABEL | TW | |||
| 41 | N513463 | 1 | RATING LABEL | TW | |||
| 47 | N312819 | 1 | LABEL | TW | |||
| 62 | N399419 | 1 | BAFFLE FAN | TW | |||
| 63 | 949638-02 | 2 | DAMPER | TW | |||
| 64 | N421411 | 1 | FIELD 120V | 120V / PKG'D N382210 | TW | ||
| 65 | N390640 | 1 | FIELDCASE | TW | |||
| 71 | 401253-00 | 1 | WRENCH ROUND-PINS | TW | |||
| 72 | N383283 | 1 | HANDLE SIDE SA | TW | |||
| 85 | 444793-00 | 1 | CIRCLIP | TW | |||
| 86 | N409481 | 1 | GEAR | 38T /PKG'D N375319 | TW | ||
| 87 | N375692 | 1 | SPINDLE | TW | |||
| 88 | 605040-24 | 1 | BEARING | TW | |||
| 89 | N400478 | 1 | WASHER | TW | |||
| 90 | N481950 | 1 | RETAINER | TW | |||
| 91 | N307625 | 1 | O RING | TW | |||
| 92 | N482578 | 1 | GEARCASE COVER | TW | |||
| 95 | 641823-00 | 1 | SLEEVE | TW | |||
| 96 | N130916 | 1 | BEARING | TW | |||
| 97 | N324400 | 1 | WASHER | TW | |||
| 99 | N273780 | 2 | SPRING | TW | |||
| 100 | N335560 | 2 | BRUSHBOX | TW | |||
| 101 | N401958 | 1 | DEFLECTOR | TW | |||
| 102 | N453031 | 1 | RETAINER | TW | |||
| 103 | N175104 | 1 | BEARING | TW | |||
| 104 | N119639 | 1 | O RING | TW | |||
| 105 | N278899 | 1 | BUTTON | TW | |||
| 106 | N263579 | 1 | SPRING | TW | |||
| 107 | N422684 | 1 | BUTTON SA | TW | |||
| 108 | N263699 | 1 | O RING | TW | |||
| 109 | N547047 | 1 | GEARCASE SA | TW | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | TW |
